China Manufacture Dongfeng roll on roll off garbage truck

Dongfeng 10cbm Carbon Steel Arm Lift Garbage Truck (CNG MODEL)

Vehicle Parameters

General

Vehicle Model

YZR5162ZXXT5

Vehicle Brand

XDR

Chassis Brand

Dongfeng

Overall Dimension(mm)

7310×2500×3100

GVW/Curb Weight/Rated loading weight (kg)

15800/7200/5405

Chassis Parameters

Cab

Cab Seat

3,2

Air Conditioner

Optional

Engine

Fuel Type

Diesel

Engie Model

B190 33(6 cylinders,inter cooling, turbocharged)

Engine Brand

Dongfeng cummins

Power(hp)

170

Displacement(cc)

5900

Emmission Standard

Euro3

Chassis

Drive Type

4*2

Transmission

6speed, Manual

Wheelbase(mm)

4500

Tyre Specification

10.00-20

Tyre No.(pcs)

6+1

Max Speed(km/h)

90

Paint

Customized

Garbage Tank Structure Parameters

Tank Volume

10cbm

Tank Material

Carbon Steel

Tank Thickness

4/5mm

Max. Lifting Force

10ton

Lifting Up Time

≤15s

Lifting down Time

≤10

Dumping time

≤10s

Operation mode

Manual

Characteristic

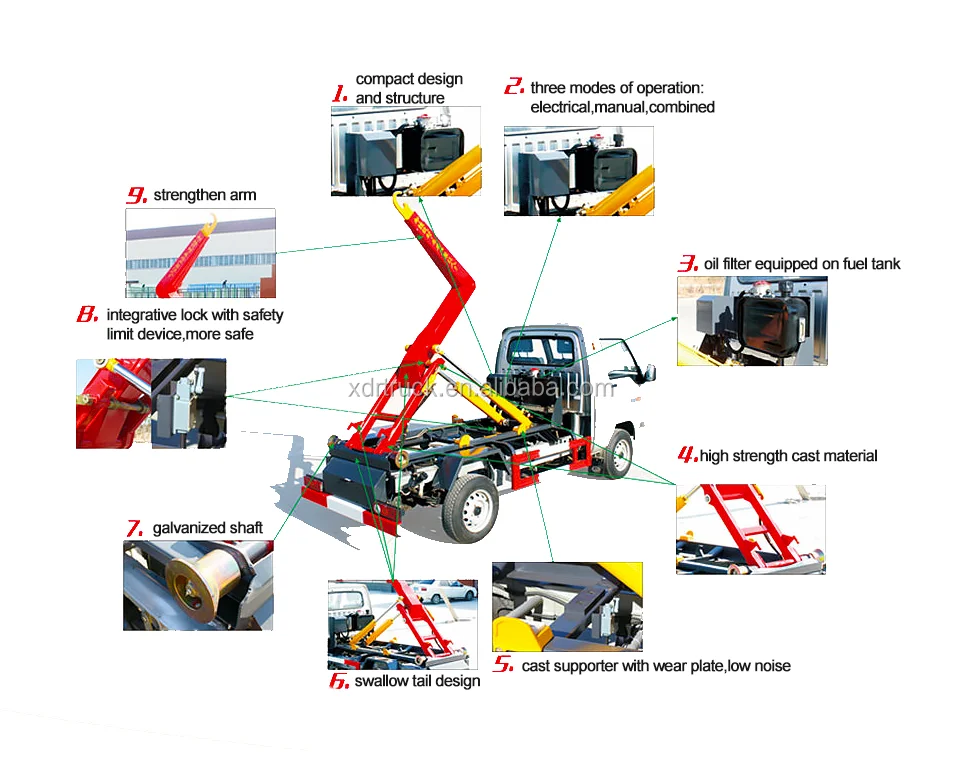

1.compact design and structure 2.three modes of operation: electrical,manual,combined 3. oil filter equipped on fuel tank 4.high strength cast material 5. cast supporter with wear plate,low noise 6. swallow tail design 7. galvanized shaft 8.integrative lock with safety limit device,more safe 9.strengthen arm
