make 5L 6L 7L PET bottle machine blowing bottle machine
- Category: >>>
- Supplier: Taizhou Huangyan Ouge Machine Mould Co. Ltd.
Share on (62369309374):
Product Overview
Description
Product Description
Product Application
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
ITEM | 单位 | OGS-1 | |||||
瓶型规格 PRODUCT | 理论产量 | Theoretical output | Pcs/h | 500 | |||
容积 | Max.volume | L | 7.0 | ||||
最大高度 | Max. height | mm | 360 | ||||
最大直径 | Max. diameter | mm | 190 | ||||
成型组规格 MOULD | 模穴数 | Number of cavities | / | 1 | |||
模板尺寸 | Mould plate dimension(LxH) | mm | 490x470 | ||||
模厚 | Mould thickness | mm | 250 | ||||
开模行程 | Mould opening stroke | mm | 230 | ||||
电力规格 ELECTRICAL | 电源 | Power | / | 220-380v/50-60hz | |||
总功率 | Total power | KW | 11 | ||||
加热功率 | Heating power | KW | 10 | ||||
机器规格 MACHINE | 吹瓶机主机尺寸 | Main body dimension(LxWxH) | M | 1.6x0.65x2.0 | |||
吹瓶机主机重量 | Main body weight | KG | 650 | ||||
加热烘箱尺寸 | Pre-heater dimension | M | 1.4x0.6x1.4 | ||||
加热烘箱重量 | Pre-heater weight | KG | 300 | ||||

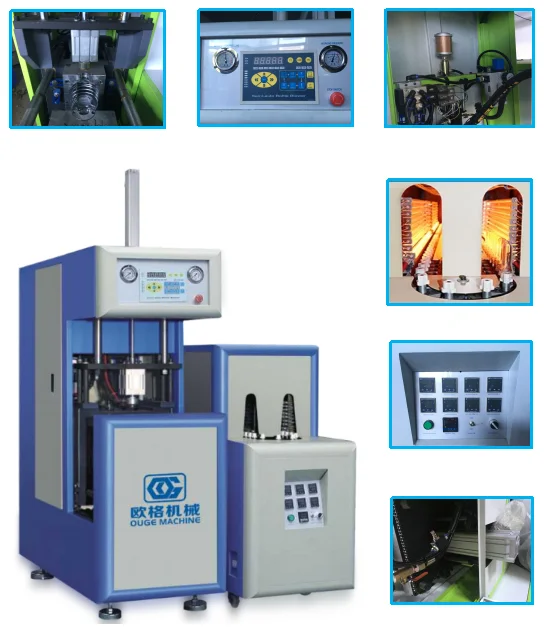

Products Show
Our Company
About us
Ouge company is located in the East China Sea coast, the famous "mould hometown"---- Huangyan Taizhou,Zhejiang. Specializes in the production of PET automatic and semi-automatic blowing machines, preform moulds and bottle moulds. It consists of many professional engineers with rich experience in the PET industry and high-quality staff. The main products include: PET automatic and semi-automatic blowing machines, all kinds of moulds for carbonated beverage bottles, juice bottles, alcohol drinks bottles, and cosmetic containers, PMMA lamps, PP infusion bottles, edible oil bottles, etc. Over the past several years, Ouge has always been devoting its utmost efforts to improving the technology, researching the market and developing new products to suit for all customer needs.
Our Service
Packing & Delivery
Packing Details : wooden case &plastic packaging
Delivery Details : 45 days after receive the deposit
