is used for drilling pile driving, reuse of slurry, in favour of save the material of making slurry, reduce construction cost,
The closed-circuit circulation of mud and the reduction of water content of ballast are beneficial to reduce environmental pollution.
Main parameter
MODEL NO.
WFL-50
WFL-100
WFL-150
WFL-200
WFL-250
WFL-500
LIQUID HANDLING CAPACITY(m³/h)
50
100
150
200
250
500
SEPARATION PARTICLE SIZE d50(µm)
20
30
45
60
60
60-200
SCREENING ABILITY(t/h)
10-15
15-26
25-50
25-80
35-90
75-250
MAX. WATER CONTENT
30%
30%
30%
30%
30%
30%
SAND CONTENT OF SLURRY
<2%
<2%
<2%
<2%
<2%
<2%
TOTAL POWER(kw)
20.7
20.7
20.7
48.6
58.6
117.2
OVERALL DIMENSIONS(mm)
2500X1700X2350
3500X1900X2450
WEIGHT(kgs)
2100
2300
2500
3300
3600
7800
Performance feature
1.Simple operation, low failure rate, easy installation, use and maintenance
2.The advanced linear vibration mode makes the screened ballasts have good dewatering effect.
3.The adjustable vibrating force, screen Angle and screen hole size make it keep good screening effect in various strata
4.The vibrating screen has high efficiency and can be used to drill holes in different strata.
5.Vibration motor power factor high, low energy consumption, energy saving effect is significant.
6.Low noise of vibrating screen operation is beneficial to improve the working environment.
Main structure of machine

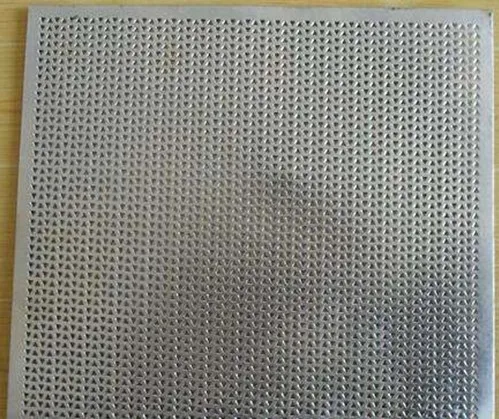

Vibrating screen

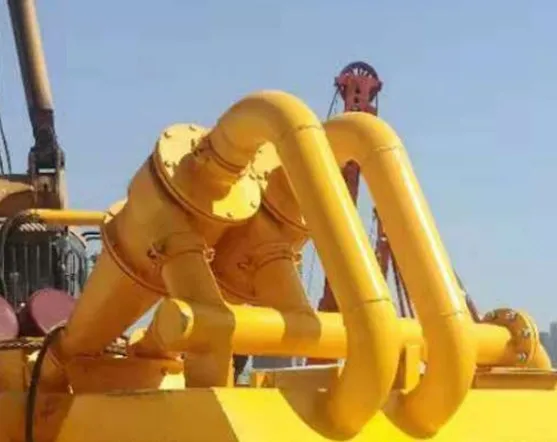

Swirler

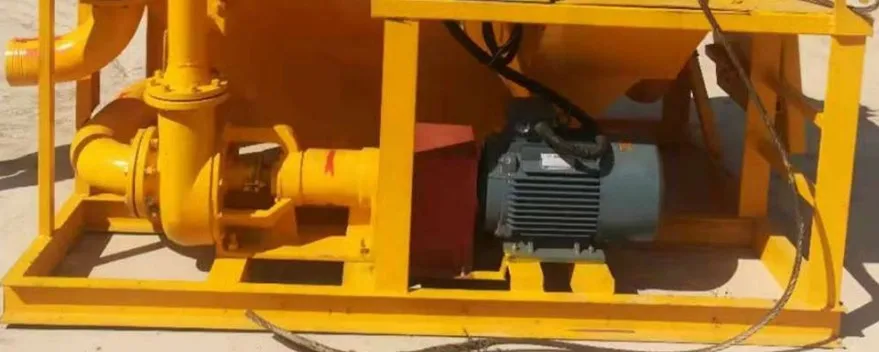

Sand pump system
Working principle diagram
Application areas
Mainly used for engineering, railway, highway bridge pile foundation, such as municipal, underground continuous wall, tunnel shield, drill, hammer, oil drilling, construction pile driving mud separation dehydration, stone mud dehydration, drilling mud dehydration, tailings disposal, sand field mud cave, tunnel, mine mud mud treatment etc, It can effectively solve the problems of waste slurry treatment, mud recovery and recycling in construction engineering.
