3674 2400w bldc motor 18v
- Category: >>>
- Supplier: Hangzhou Reacher Technology Co. Ltd.
Share on (62369489184):
Product Overview
Description

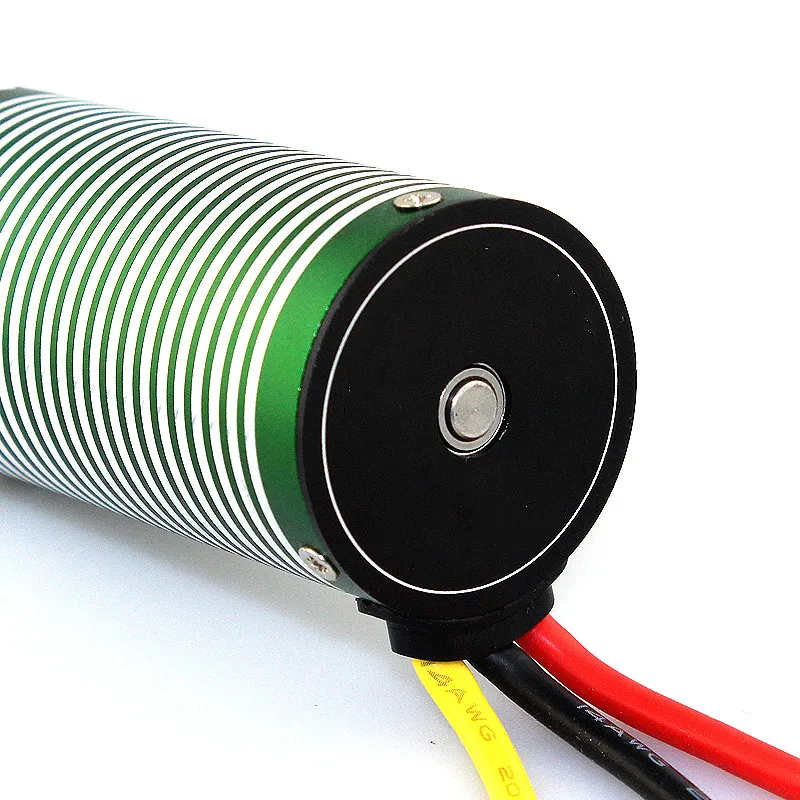

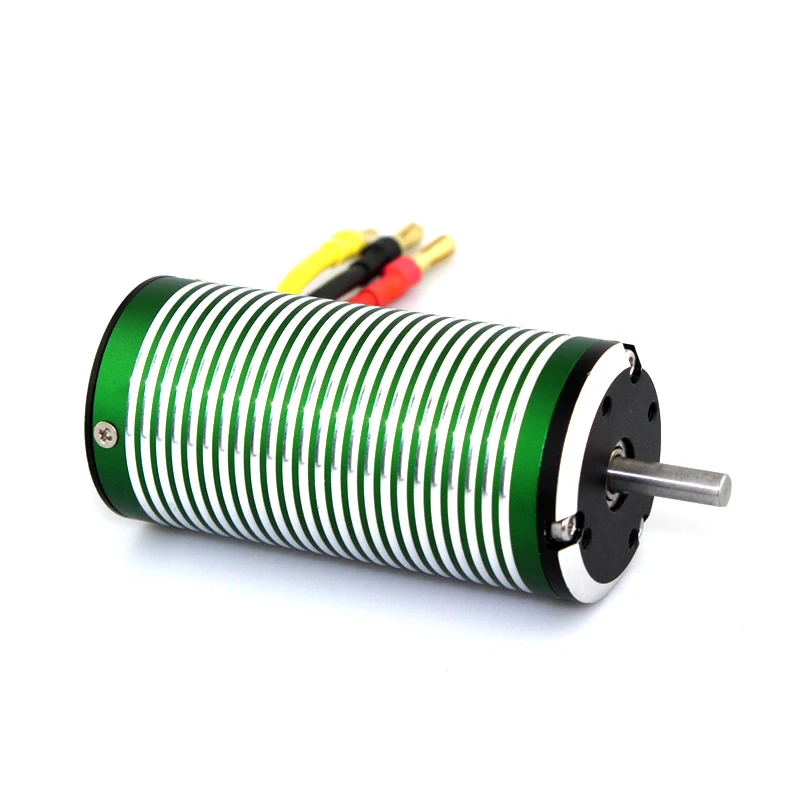

3674 2400w bldc motor 18v
The most popular for Industry Area like drone and electric drill.
| RT Motor | RT-3674 |
| kv | 3270 |
| Motor Diameter | 36mm |
| Motor Length | 74mm |
| Shaft Diameter | 5mm |
| Shaft Length | 15mm |
| Weight | 315g |

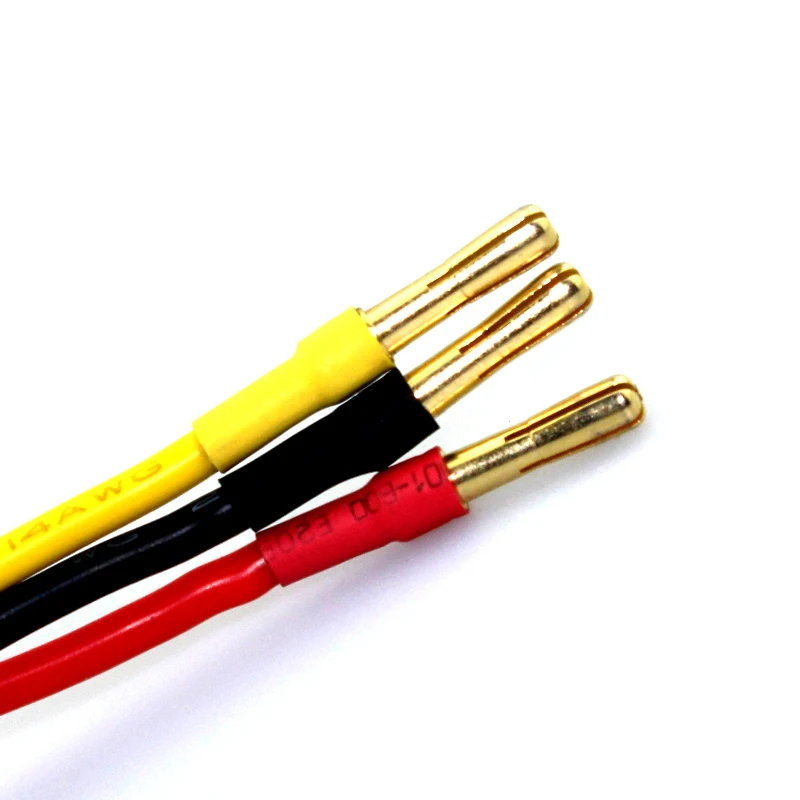

| Plug | 4mm |
| Mounting hole depth | 6mm |
| Max Amps (10 Sec) | 135A |
| Max Voltage | 18V |
| Max Power | 2400W |
| RT-3674/2D | 135A | 18V | 2400W | 3270KV |
| RT-3674/2.5D | 110A | 22V | 2400W | 2650KV |
| RT-3674/3D | 90A | 27V | 2400W | 2200KV |
| RT-3674/3.5D | 78A | 31V | 2400W | 1900KV |
| RT-3674/2Y | 72A | 34V | 2400W | 1700KV |
| RT-3674/4D | 70A | 35V | 2400W | 1650KV |
| RT-3674/4.5D | 60A | 40V | 2400W | 1470KV |
| RT-3674/2.5Y | 58A | 42V | 2400W | 1400KV |
| RT-3674/5D | 56A | 44V | 2400W | 1300KV |
| RT-3674/5.5D | 50A | 48V | 2400W | 1200KV |
| RT-3674/3Y | 50A | 48V | 2400W | 1180KV |
| RT-3674/6D | 48A | 51V | 2400W | 1100KV |
| RT-3674/3.5Y | 42A | 58V | 2400W | 1000KV |
| RT-3674/4Y | 36A | 68V | 2400W | 860KV |

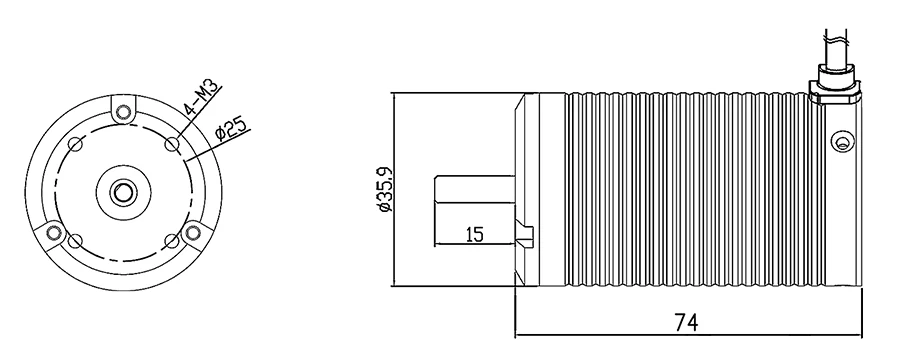

Product Drawing
