Small compact wall hanging machine IPC-630 embedded industrial control machine Industrial computer, industrial mini computer

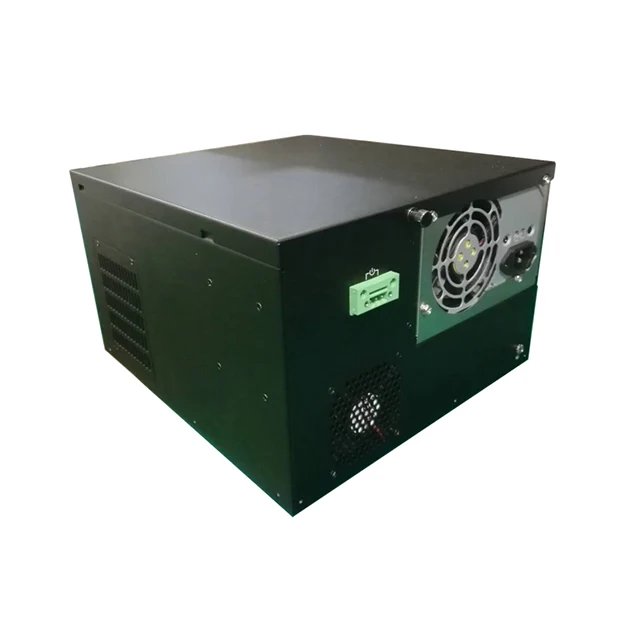

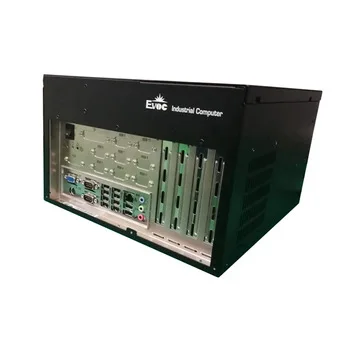

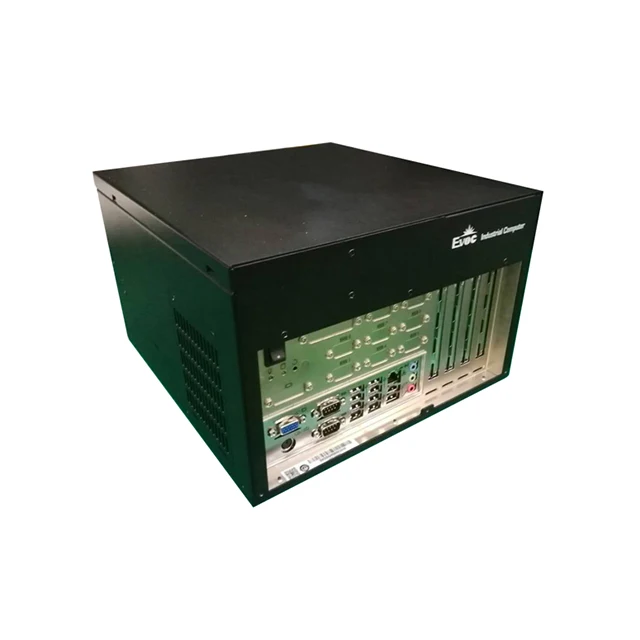

Small compact wall hanging machine with model: IPC-630 IPC-630 is a small compact wall hanging machine that installs the H61 desktop platform motherboard with compact size, high performance, and high cost performance. The second and third generations of I3/I5/I7 CoreTM Processor, Intel ® Pentium ® Processor, Intel ® Celleron ® Processor Series processors that support the Intel ® LGA 1155 pin provide ultra-high computing power and display performance; It is possible to extend the full-height semi-long application card directly using the expansion slot on the single board.
There is no need for a transfer board, and it still has good expansion performance in small volumes. The chassis adopts a miniaturized design and can meet the needs of installation in a narrow space. The main application areas: highways, self-service terminals, automated production and testing. High-performance, support Intel's second and third generations of i3/i5/i7 processors small size, compact desktop wall hanging machine, comparable to non-fan complete machine, the entire machine standard with 6 COM port expansion strong, 2 * PCI, 1 * PCIE × 4, 1 * PCIE × 16 is good for maintenance, the upper cover is designed with a flip type, and the overhaul and disassembly are convenient and quick.
Product Specifications:
CPU
Support Intel LGA1155 i7/i5/i3 Core/Pentium/Celeron CPU
I/O ports
10 x USB2.0, 6 x COM (COM1 and COM2 support RS232/RS422/RS485), 1 x VGA, 1 x GbE, 1 x PS/2,
1 x Audio (MIC-IN/LINE-IN/LINE-OUT)
Storage
Supports 2 x 2.5" HDD bay; optical driver : N/A
Expansion bus
2*PCI, 1*PCIe x4, 1*PCIe x16
Operating temperature
0℃~50℃; 5%~90% (non-condensing)
Storage environment
-20℃~60℃; humidity: 5%~90% (non-condensing)
Power supply
250W ATX Power Supply
Dimensions (D×H×W)
273*177*291 mm
Order information:
Part Number
Model Number
Description
0010-096131
IPC-630-01/G1620/2G/500G/250W
IPC-630-01/H61/EC9-1818-2P/G1620/2G DDR3/500G HDD/ATX 250W power supply/6*COM/10*USB2.0/1*GbE/1*VGA/1*PS2/
2*PCI/1*PCI x4/1*PCIE x16
0010-096201
IPC-630-02/I3-2120/2G/500G/250W
IPC-630-02/ H61/EC9-1818-2P/I3-2120/2G DDR3/500G HDD/ATX 250W power supply/6*COM/10*USB2.0/1*GbE/1*VGA/1*PS2/
2*PCI/1*PCI x4/1*PCIE x16
0010-096211
IPC-630-03/I5-2420/4G/1T/250W
IPC-630-03/ H61/EC9-1818-2P/I5-2400/4G DDR3/1T HDD/ATX 250W power supply/6*COM/10*USB2.0/1*GbE/1*VGA/1*PS2/
2*PCI/1*PCI x4/1*PCIE x16
0020-061321
IPC-630/EC9-1818-2P/250W
Barebone/ H61/EC9-1818-2P/No CPU/No Memory/No HDD/ ATX 250W power supply/6*COM/10*USB2.0/1*GbE/1*VGA/1*PS2/
2*PCI/1*PCI x4/1*PCIE x16V
