  • 1.0mm Female Header H=2.0mm Dual Row SMT type ,2X5pin , gold plated , tape and reel packaging
1.0mm Female Header H=2.0mm Dual Row SMT type ,2X5pin , gold plated , tape and reel packaging
1.0mm Female Header H=2.0mm Dual Row SMT-type ,2X5pin , gold plated , tape and reel packaging

1.0mm Female Header H=2.0mm Dual Row SMT type ,2X5pin , gold plated , tape and reel packaging

Share on (62369546408):


Price:RUB 0.7433

Quantity:


Product Overview

Description

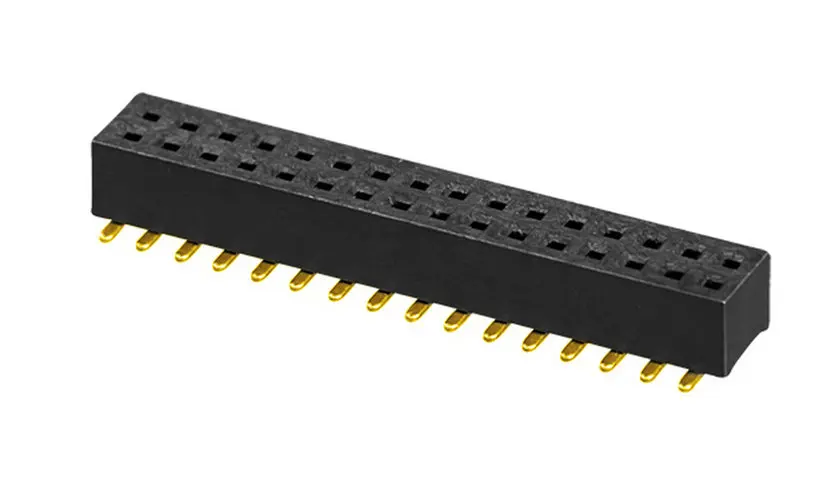

1.0mm Female Header H=2.0mm  Dual Row SMT-type Board to Board Connector,2X5pin , gold plated , tapeand reel  packaging



ARTICLE PROPERTIES
Pins  2-120
KIND PROPERTIES
Pitch 1.0mm
Rows Dual
Gender Socket  header
Type

SMT
MATERIAL PROPERTIES
Insulator Material  PA6T
Insulator Flammability Rating UL94 V-0
Contact Material Phosphor Bronze
Contact plating  Gold
UL Approval  E503010
Packaging  tape and reel with cap

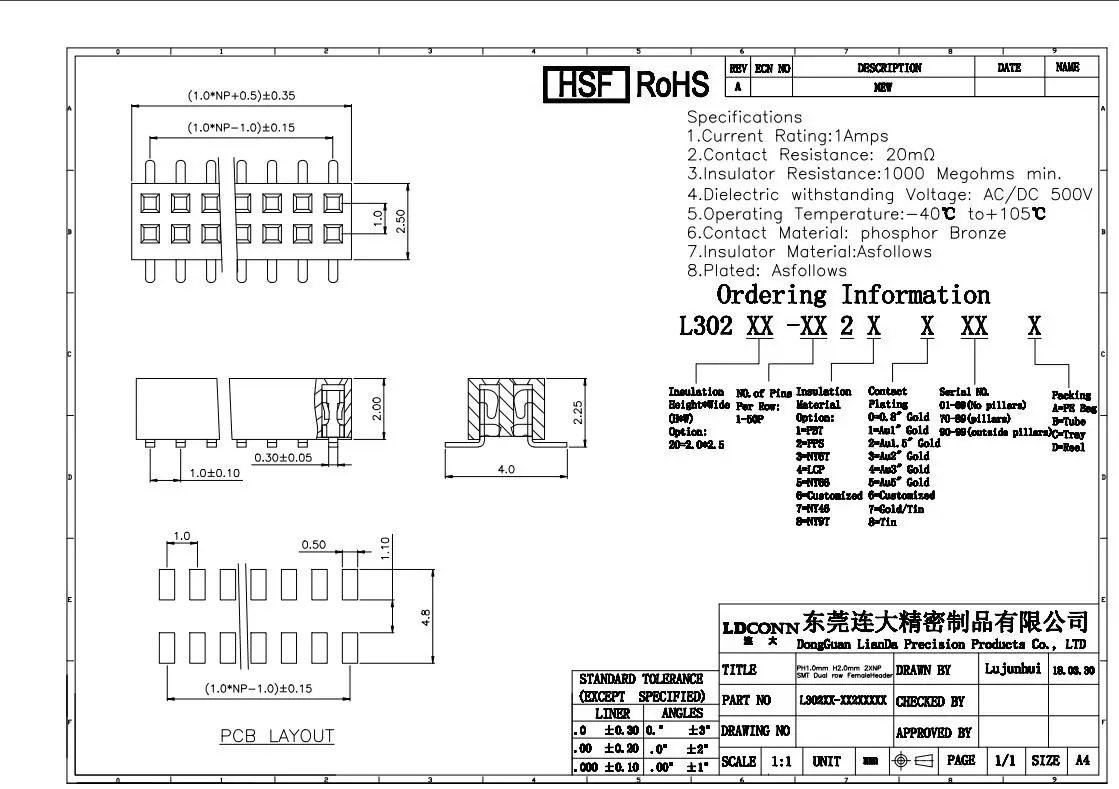

Products  Drawing  :



Male and female connector :

.jpg



Our customer :

.jpg





how to help.jpg

.jpg

Here below is our company short profile :

1.Manufacturing since 2002 , 90% automatic production , defective rate is less than 0.001%

2. 5-7 days delivery time and reasonable price for work further

3. Customized pin header & sockets solution

4. Main product :pin header , female header ,box header ,RJ 45 connector , USB connector, board to board connector ,D-sub connector ,terminal block , SIM connector and so on

5. Top 3 customers of BizLink , TP-link and Foxconn

6.Our components are manufactured to the ISO 9001 / ISO 14001 / IATF16469 / UL certifications and are RoHs 2.0 compliant as well as Halogen free.

7.You will enjoy the security of knowing that each product LDCONN is offering to you has been designed with high quality materials and engineered to optimize the performance characteristics still providing low cost installations and an excellent reliability.
