UL test straight finger 140 (145A) meets the requirements of UL507 & UL1287 and other standards. It is used to simulate fingers and instruments in protective tests. It is mainly used to detect whether the dangerous parts are charged. 140 (145A): Mainly used for the inspection of enameled wires (membrane conductors) or similar components.
Function:
This probe is used for the testing of coating lines of the enamel (i.e., transformers and inductors).
Standard:UL398 Fig 8.2（PA170B）、UL507（PA170D）、UL749 Fig 2、UL982 Fig 58.6 and UL1278 Fig 8.2（PA140A）.

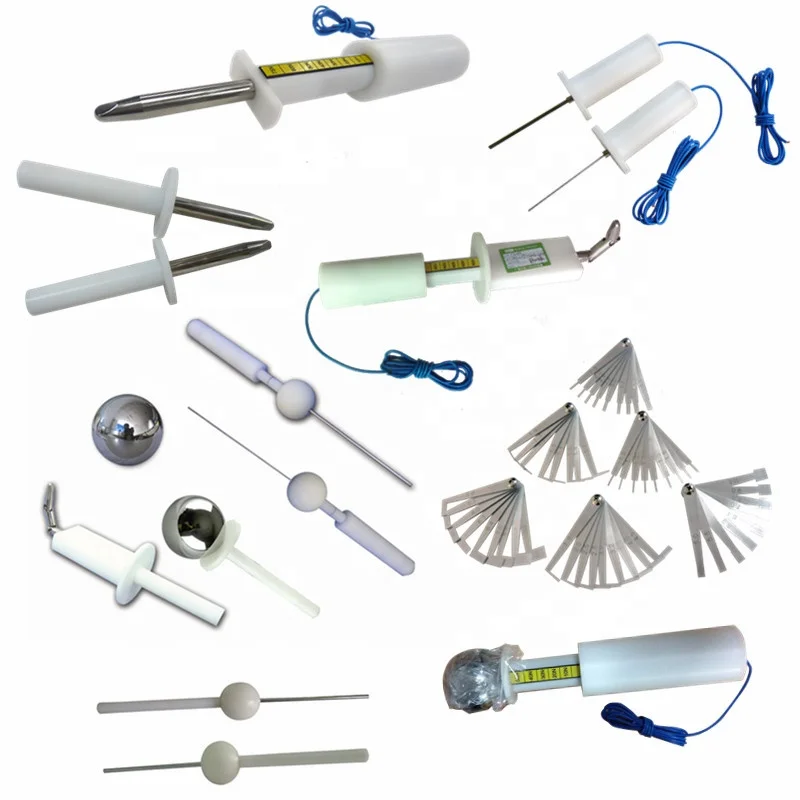

Model
Clause
Standard
Test probe A
9.1
IEC 61032
test finger /test probe B
9.1.1.2
IEC 61032
probes 18
9.1.1.2
IEC 61032
probes 19
9.1.1.2
IEC 61032
probe 13
9.1.1.2
IEC 61032
4mm test pin
9.1.3
IEC61032
20mm probe D
9.1.4
IEC 61032
probe D
9.1.4
IEC 61032
Probe C
9.1.5
IEC 61032
Test hook
9.1.7
IEC60065
test probe 11
9.1.7/13.3.1
IEC60335
spring-operated hammer
12.5
IEC 60068-2-75
Steel ball
18.2.3
IEC61032
Customized:
The end of the handle is equipped with a pluggable banana plug and terminal block for electric shock test, or the M6 threaded hole at the end of the handle (used with a push-pull force gauge) for the outer casing protection test.
Note: The test probe is a precision stainless steel product.,please take care of it .
Recommend Products

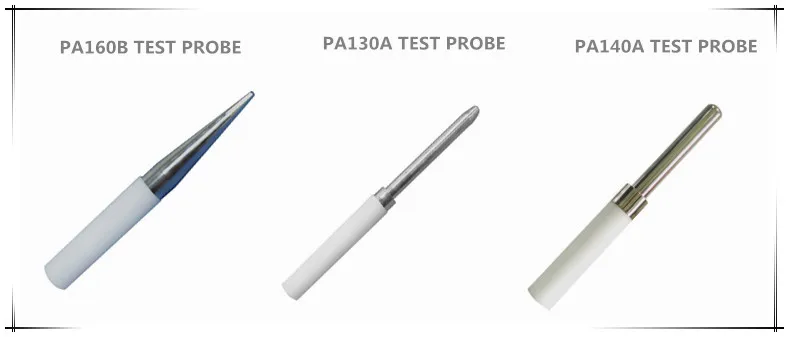

1.Test probe PA130A
Meet the requirements of UL507 & UL1287 and other standards, used in the protection test to simulate fingers and appliances,mainly used for the detection of uninsulated live parts.
Standard :UL507-2006（PA135A）Fig 9.1, UL749 Fig 1, UL982 Fig 58.6 and UL1278 Fig 8.1（PA130A）.
2.Test probe PA140A
meets the requirements of UL507 & UL1287 and other standards. It is used to simulate fingers and instruments in protective tests. Mainly used for the inspection of enameled wires (membrane conductors) or similar components.
Standard:UL398 Fig 8.2（PA170B）、UL507（PA170D）、UL749 Fig 2、UL982 Fig 58.6 and UL1278 Fig 8.2（PA140A）
3.Test probe PA160B
meets the requirements of the UL507 & UL1287 standard and is used to simulate fingers and appliances in protective tests. It is mainly used to check whether the air heater fan blade parts are touched.
Standard:UL507 Figure 8.1 (PA160B) and UL1278 Figure 9.1 (PA160)
