1000 1500V DC PV solar combiner box max 24 channel data acquisition LCD display hall sensor solar monitoring system
- Category: >>>
- Supplier: Shenzhen TOPBAND Automation Technology Co. ltd
Share on (62369580598):
Product Overview
Description
Product Description
PowerSA-SCD 4, 6, 12, 16, 24 strings INTELLIGENT MONITORING MODULE:
TOBPAND Intelligent monitoring module is designed to monitor the data of the PV array of the solar photovoltaic system.It is compact and installed in the PV array combiner box, supports 1000V/1500V PV system, real-time monitoring of the string current,bus voltage, bus box temperature, switch status, etc., alarm output when data is abnormal, support RS485 or industrial wireless data transmission.
TOBPAND Intelligent monitoring module is designed to monitor the data of the PV array of the solar photovoltaic system.It is compact and installed in the PV array combiner box, supports 1000V/1500V PV system, real-time monitoring of the string current,bus voltage, bus box temperature, switch status, etc., alarm output when data is abnormal, support RS485 or industrial wireless data transmission.

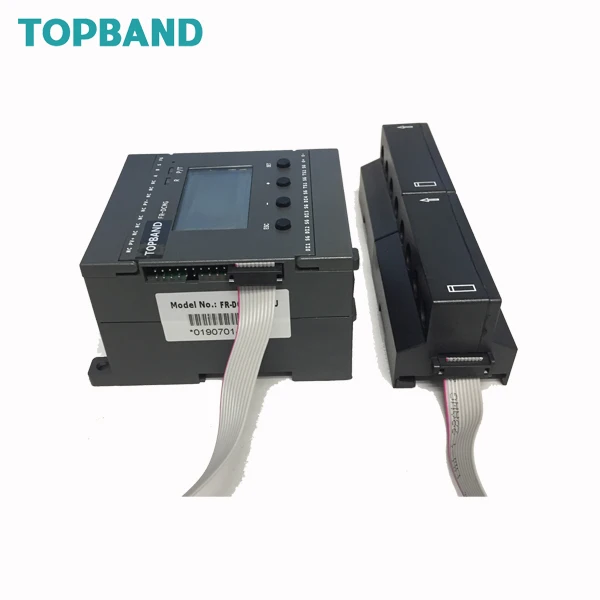

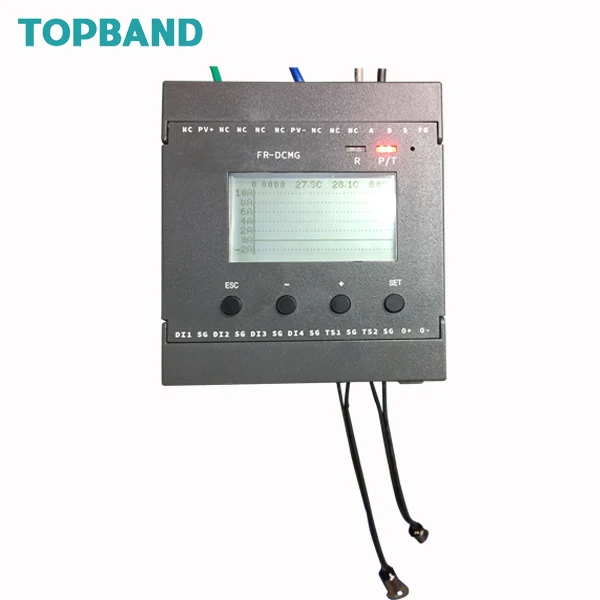

Product name | Data acquisition Host | DCMG-MMPU |

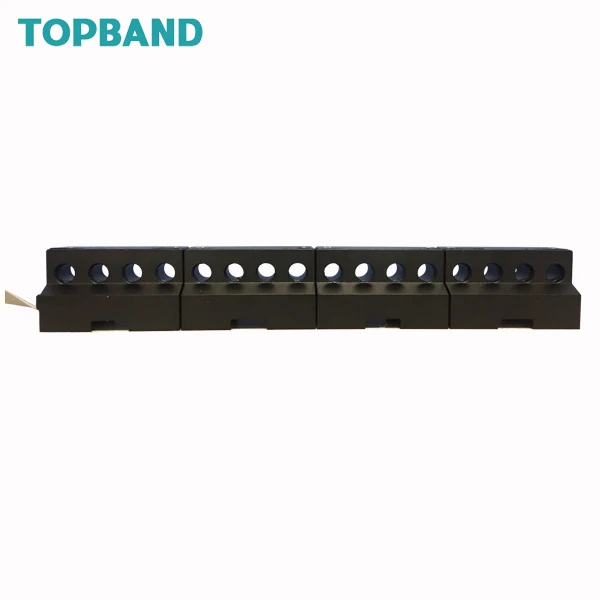

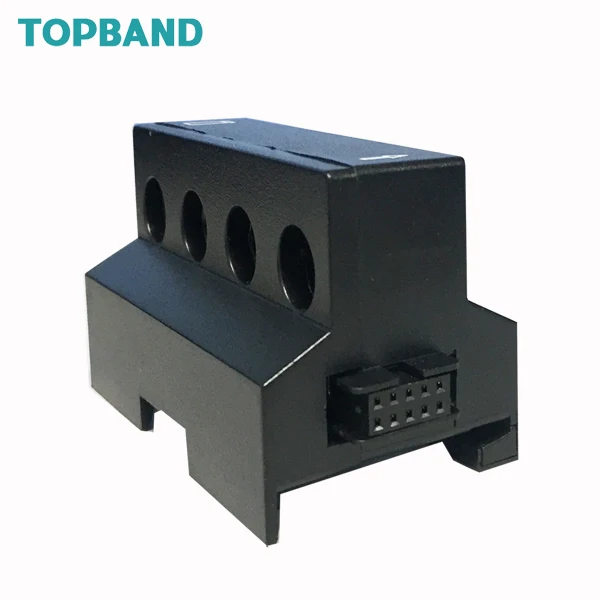

Product name | Hall Sensor | DCMG-HS4A |
Product Features
1, LCD screen + histogram display, one eye to understand the power generation status of all channels
2, support DC1500V system
3, built-in power supply, photovoltaic self-power supply, with tripping function, can directly drive the shunt trip coil
2, support DC1500V system
3, built-in power supply, photovoltaic self-power supply, with tripping function, can directly drive the shunt trip coil
4, string status abnormal alarm (overvoltage, under voltage, over current, under current, unbalanced current, etc.)
5, remote communication mode RS485 MODBUS-RTU
Features
6, local alarm display, you can view the channel that produces harmful arcs at any time
7, voltage measurement accuracy of 1%
8, support data freeze, address automatic allocation, log record function
9, two external temperature detection, four switch input detection
10, support Fengqi battery board monitoring data reception
11, support a variety of expansion modules, such as: lora wireless module, IO information acquisition module, analog acquisition
module, etc.
7, voltage measurement accuracy of 1%
8, support data freeze, address automatic allocation, log record function
9, two external temperature detection, four switch input detection
10, support Fengqi battery board monitoring data reception
11, support a variety of expansion modules, such as: lora wireless module, IO information acquisition module, analog acquisition
module, etc.
Detailed Images
Compatible with 1000V & 1500V systems:
* First domestic 1500V system intelligent monitoring
* CE-EMC Certification
* First domestic 1500V system intelligent monitoring
* CE-EMC Certification
Wireless Communication:
* Data transmission using RS485 (Modbus RTU) and LoRa wireless
* Data transmission using RS485 (Modbus RTU) and LoRa wireless
Installation method:
* PV combiner box installed for integration of DC arc detection
* PV combiner box installed for integration of DC arc detection
Size Information
Size Chart of This Design
Host | Size | monitoring current, voltage, Temperature etc. | W * H* T 80*100*57mm |
Sensor | Size | 4 channels | W*H 81*42mm |
Related Products
Packing&Shipping
Plyfoam+ Box (Or Customized Packing) , 50pcs/ CTN
After Sales Service
24 Hours After-sale Service
