Product Overview
Description
Product Description

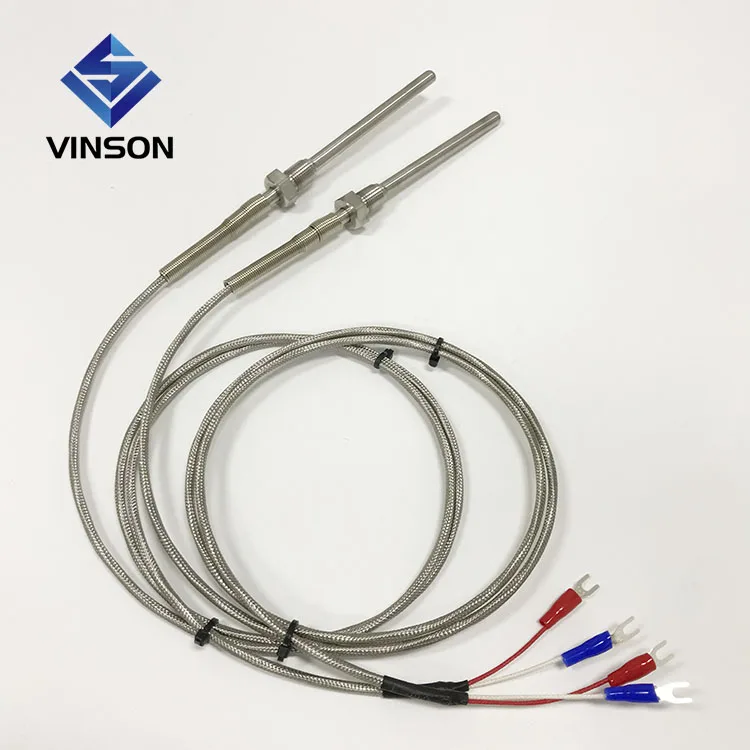

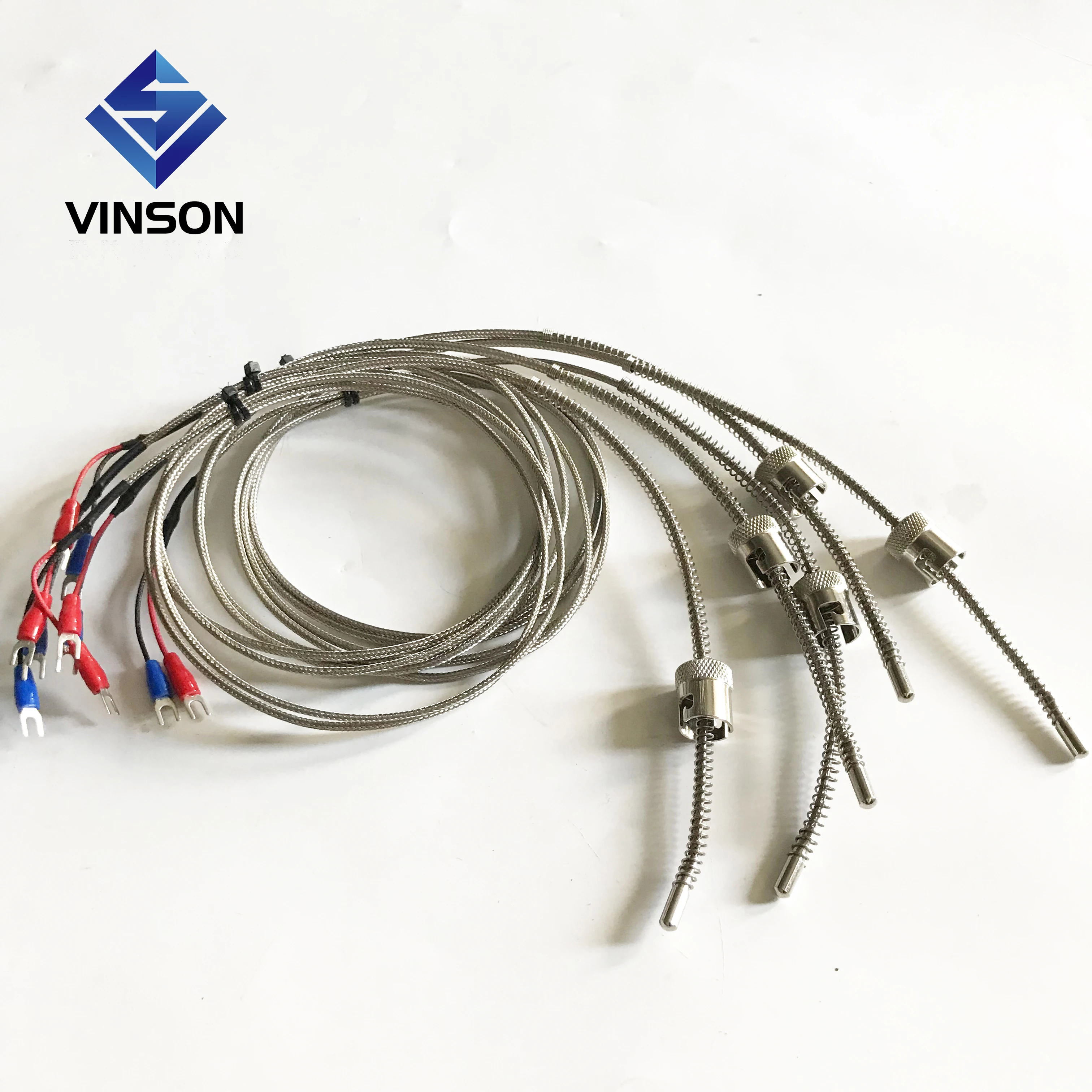

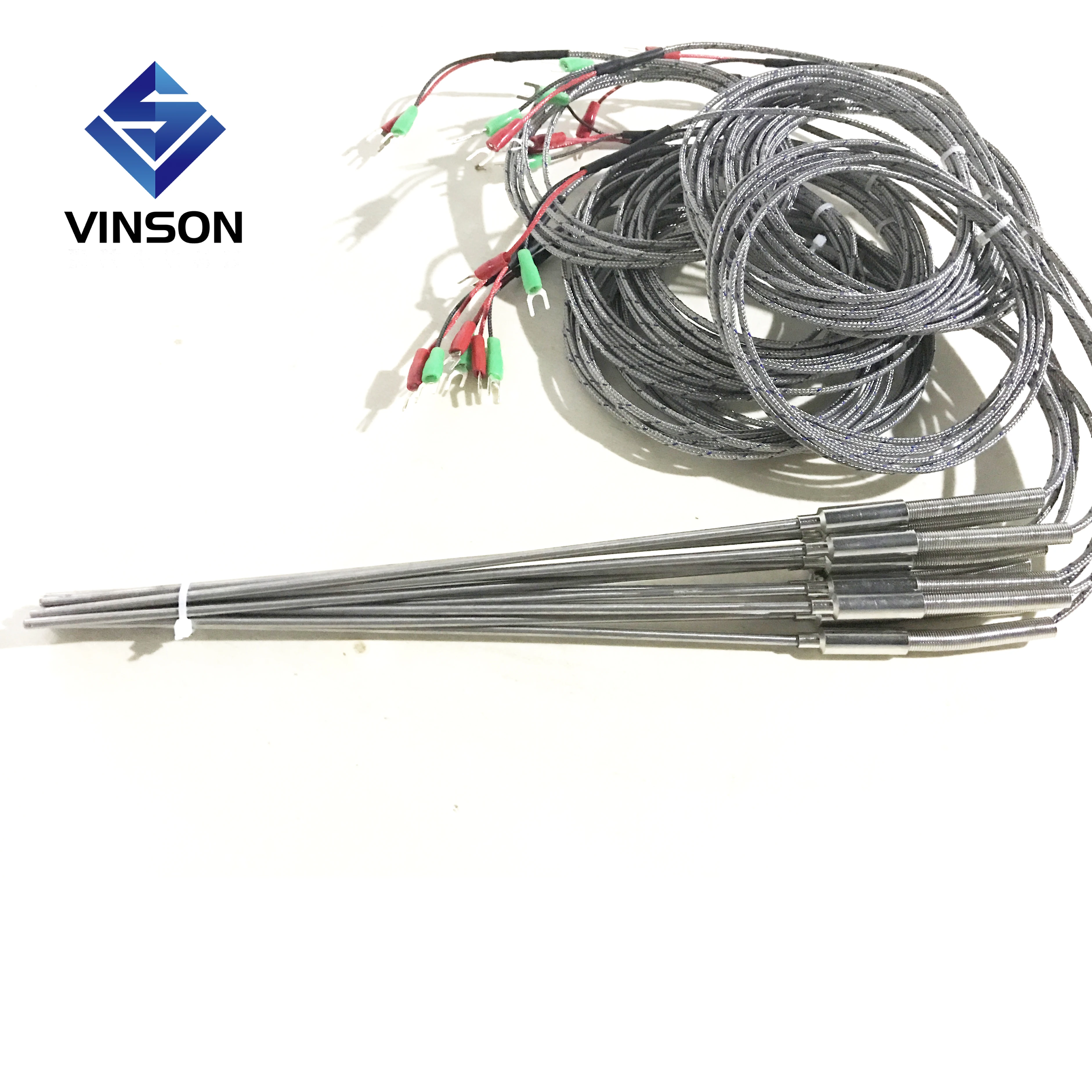

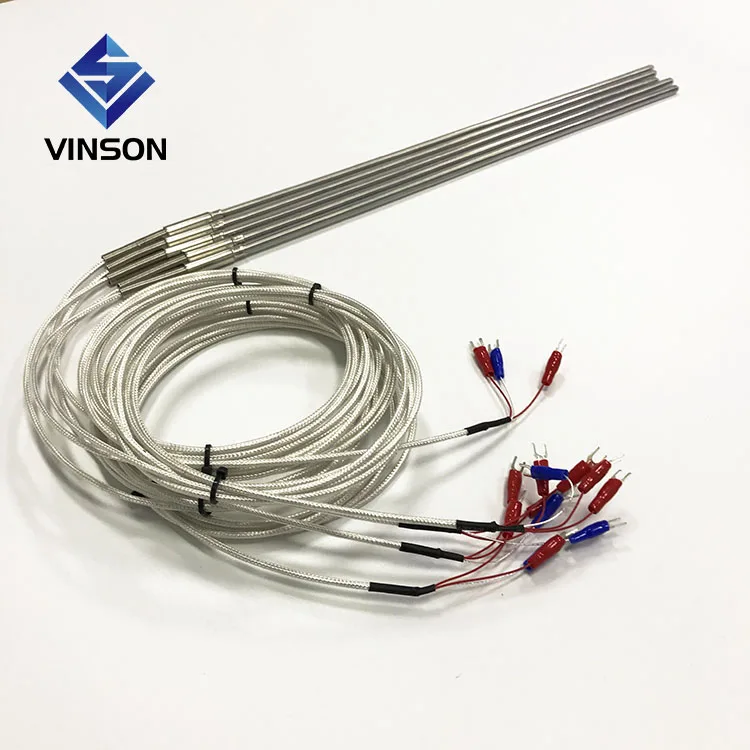

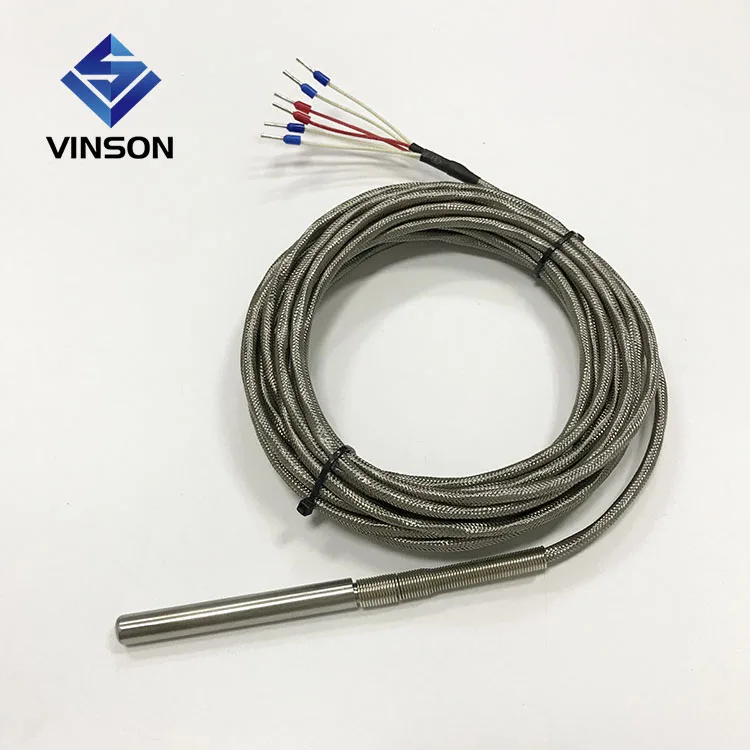

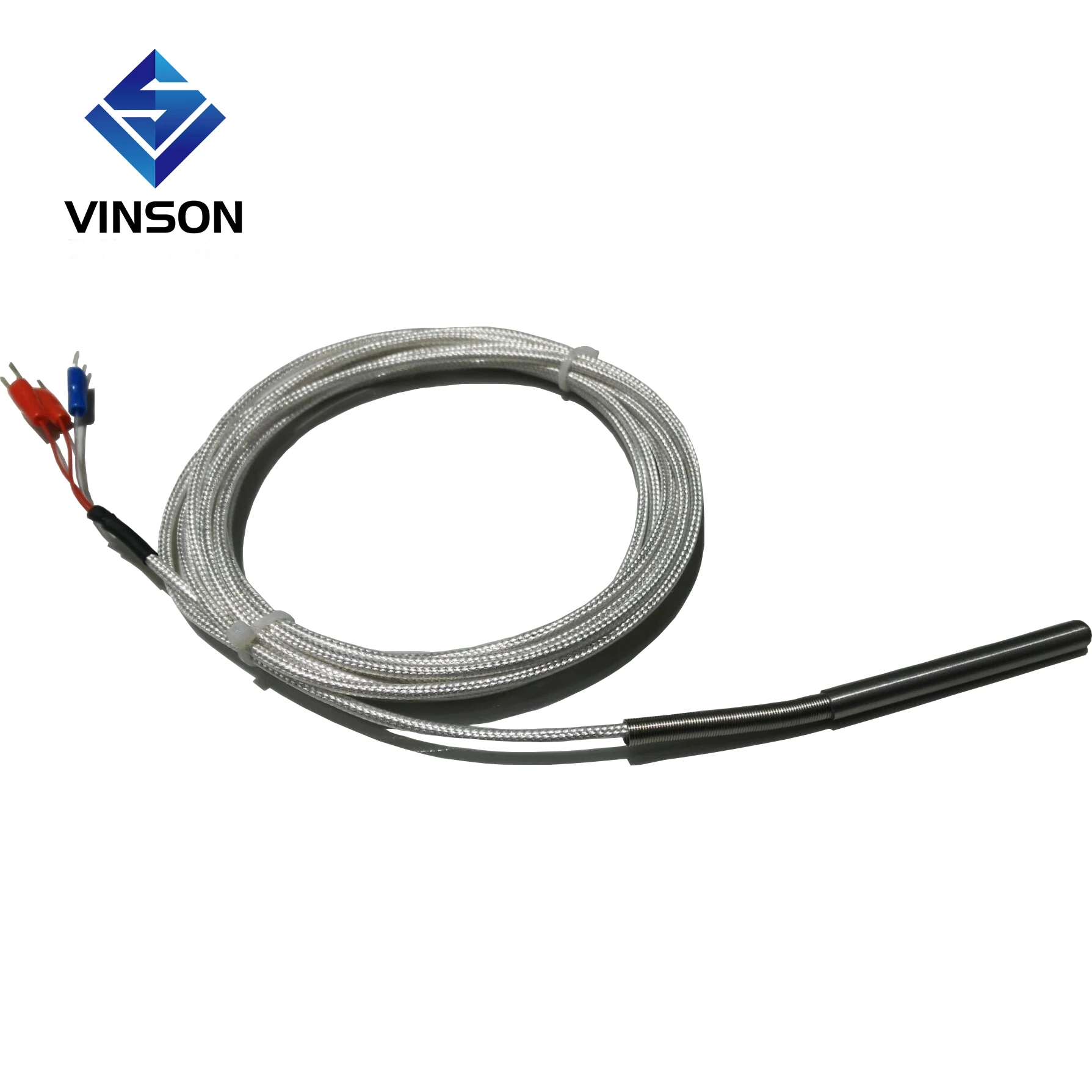

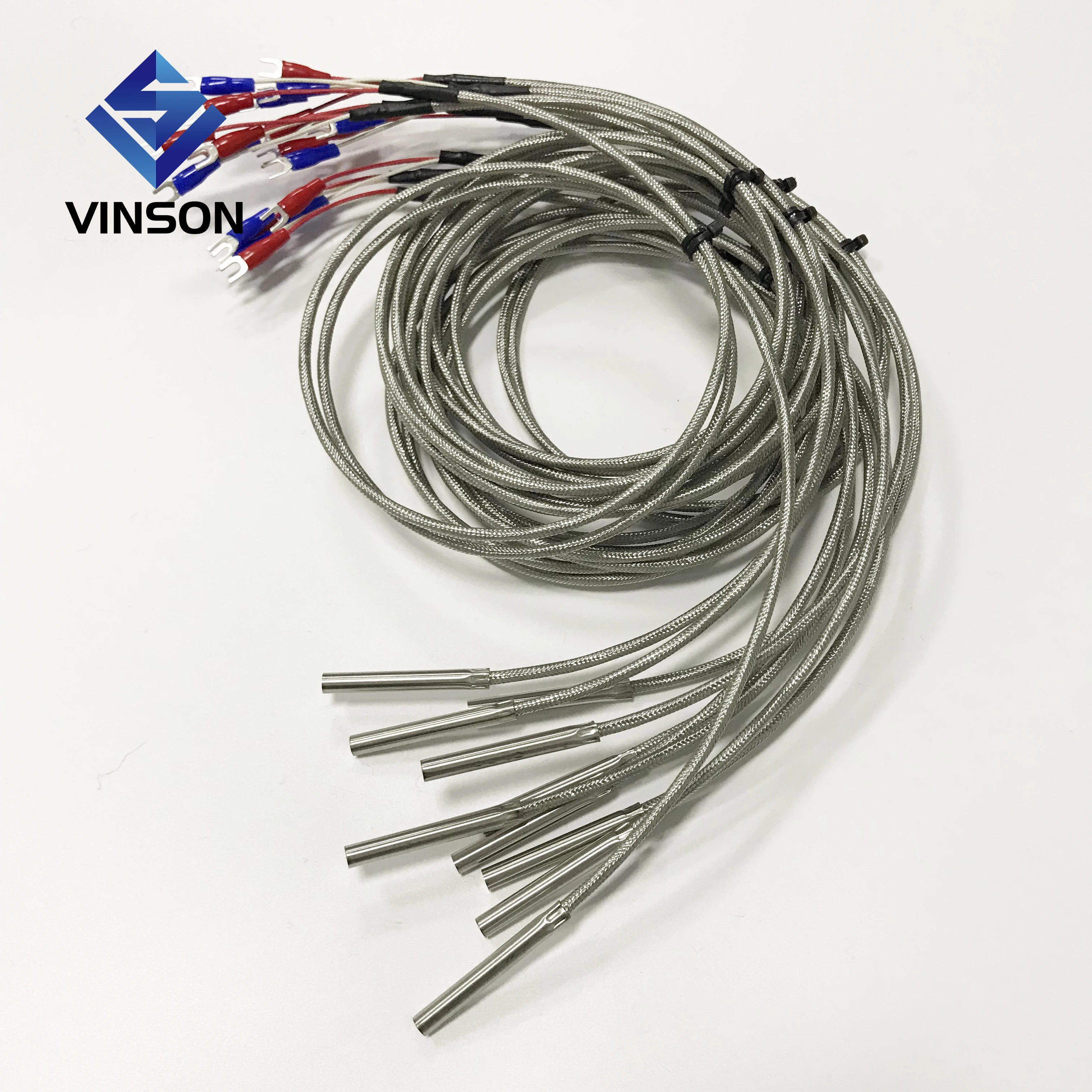

K Type or J Type Pin Armored Thermocouple WZPK-191/103 ,PT100 RTD
A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation
Specification thermocouple
Classify | Armored thermocouple | Assembly Thermocouple | |
Model | VS-WRK | VS-WR | |
Thermocouple type | K,N,E,J,T,S,B,R | K,N,E,J,T,S,B,R | |
Thermocouple diameter (mm) | φ3,φ4 ,φ4.5 ,φ5,φ6 ,φ8 | φ12,φ16,φ20,φ25,etc. | |
Sheath material | 304,316,310s, Incoloy600 etc. | 304,316,310s, Incoloy600 etc. | |
Probe structure | Grounded,Ungrouned,Exposed(VS-WR) | ||
Core number | 1,2 | ||
Terminal box(optional) | Cast aluminum,Stainless steel | ||
Accuracy | ±1.5℃/±0.5℃ or 0.4%|t|℃ | ||
Electrical connection | Thread | ||
Explosion proof level | √ | ||
Installation | Thread/flange | ||
Output Signal | mV,4-20mA | ||
Model and tolerance
Conductor | Model | Type | Use temperature°C (short time) | Use temperature°C (long time) |
Ni-Cr / Ni-Si | WRKK | k | 0-1200°C | 0-900°C |
Ni-Cr-Si / Ni-Cr-Mg | WRKN | N | 0-1000°C | 0-1000°C |
Ni-Cr / Ni-Cu | WRKE | E | 0-700°C | 0-600°C |
Fe / Cu-Ni | WRKJ | J | 0-600°C | 0-500°C |
Cu / Cu-Ni | WRKT | T | 0-400°C | 0-350°C |
Pt-Rh10 / Pt | Pt-Rh10 / Pt | S | 0-1600°C | 0-1300°C |
Pt-Rh13 / Pt | WRKR | R | 0-1600°C | 0-1300°C |
Pt-Rh30 / Pt6 | WRKB | B | 0-1800°C | 0-1600°C |

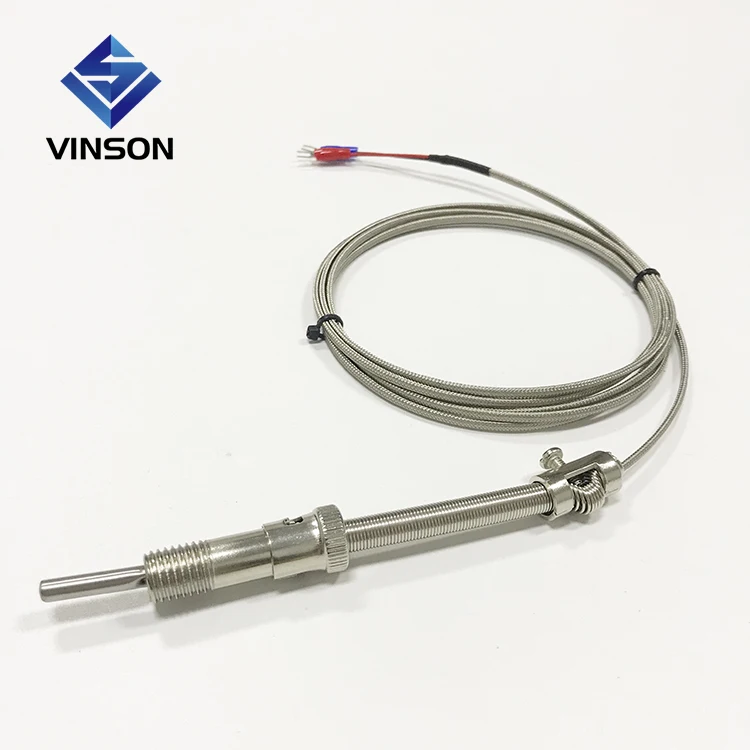

Application of k type spring compression bayonet thermocouple temperature sensor M12
1. Widely Used In Science and Industry
2. Temperature Measurement for kilns
3.Gas Turbine Exhaust Application
4. Used For Diesel Engines and Other Industrial Processes
Cusomized of K N J E T type temperature sensor thermocouple
Type: K/J/PT100/PT1000/Cu50...
Diameter and length of probe
Material of probe
Size of thread
Material and length of lead wire
Certifications
Related Products
Thermocouple with head
98% Response Rate
PTFE thermocouple
98% Response Rate
Thread thermocouple
98% Response Rate
Packing & Delivery
Packaging | ||
Size | 40(L) * 30 (W) * 30 (D) | |
Weight | ||
Packaging Details | The normal package is carton box(Size: L*W*H)for K Type or J Type Pin Armored Thermocouple WZPK-191/103 ,PT100 RTD | |
