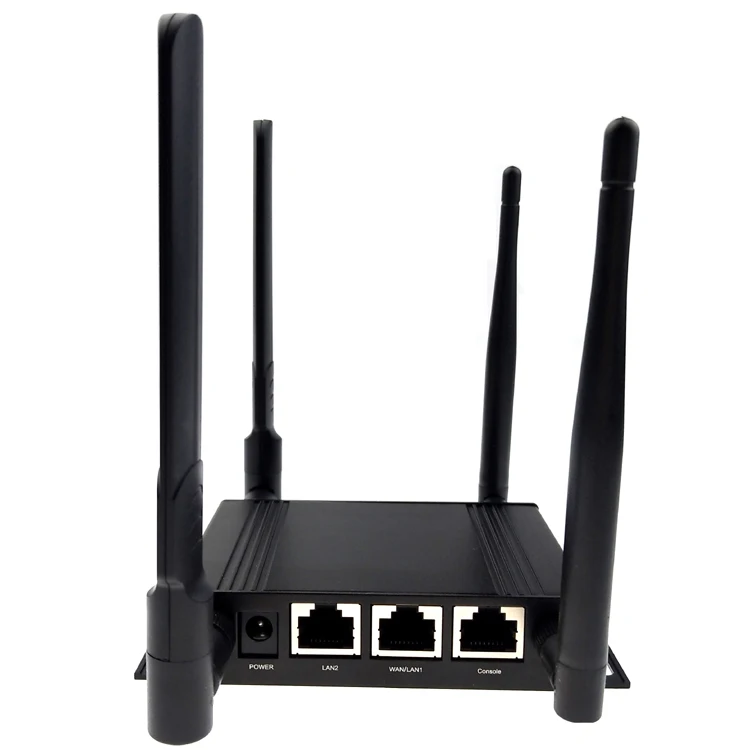

10km long range wifi transmitter wifi access point router
- Category: >>>
- Supplier: Shenzhen Ex-link Technology Co. Ltd
Share on (62369621283):
Product Overview
Description
Product Description
10km long range wifi transmitter wifi access point router
Product Application
HDRM100 router and modem integrated device is designed for global market, It comes with industrial quality and multiple RF band combination.
HDRM100 supports 2G/3G/4G LTE, GPS, WIFI feature. It provides stable and reliable data connection for user devices such as RTU, Kiosk, Power Ammeter and other remote devices management applications. In order to achieve permanent online, some key features such as watch-dog, wide temperature/ voltage range and multiple RF band/mode are supported by HDRM100, which making it can be used in any environment of worldwide.
SPECIFICATIONS | ||||||
Product feature | Frequency bands | Data rate |
• 3G/4G LTE data transmission; • Active auto connect; • Embedded watchdog , Auto recovery; • 2*2 4G/WIFI MIMO antenna; • Integrate 3G/4G LTE,WIFI,GPS feature; • WIFI High quality performance without congestion; • 1 WAN/1 LAN or 2 LAN ports, One console port; • With SIM card slot; • Supported communication protocols: PPTP,L2TP,IPSEC VPN,DDNS,TR-069,GRE,DHCP,HTTP,HTTPS, SSH,TCP,UDP,Open VPN,SNMP; • Remote management platform; • Firmware version: Linux or Openwrt; • Wide power supply: +5V~+48V/1A • Small size dimension:115mm*73mm*20mm • Temperature. Operating Temperature -40~+75ºC Storage Temperature -45~+85ºC • Environment humidty. 5%~95% | * 4G LTE router. HDRM100 V2/4G Series Version A LTE FDD. B2,4,5,17 UMTS. 850/1900MHz Version E LTE FDD. B1,3,7,8,20 LTE TDD B38, B40 UMTS. 900/2100MHz GSM. 900/1800MHz Version SA Seven-Band LTE-FDD B1/B3/B4/B5/B7/B8/B28 Tri-Band LTE-TDD B38/B40/B41 Qual-Band UMTS/HSDPA/HSPA+ B1/B2/B5/B8 Qual-Band GSM/GPRS/EDGE B2/B3/B5/B8 Version C LTE FDD. B1,3,7,8 LTE TDD B38, B39, B40, B41 UMTS. 900/2100MHz TD-SCDMA. 1880~1920MHz & 2010~2025MHz GSM. 900/1800MHz Version JC LTE FDD. B1,B3,B8,B18,B19 LTE TDD. B41 UMTS. B1,B6,B8 GSM. 900/1800MHz Version JE LTE FDD. B1,B8 UMTS. B1,B8 GSM. 900/1800MHz * 3G router. HDRM100 V2/3G (WCDMA) WCDMA. 850/1900MHz & 900/2100MHz GSM. 850/900/1800/1900MHz HDRM100 V2/3G (EVDO). EVDO 800MHz & 800/1900MHz | 4G LTE router. HDRM100 V2/4G FDD LTE. DL,100Mbps UL,50Mbps TDD LTE. DL,50Mbps UL,25Mbps WCDMA. DL 42Mbps UL5.76Mbps TD-SCDMA. DL 2.8Mbps UL 2.2Mbps Or LTE Category 4 - 150 Mbps (DL) LTE Category 4 - 50 Mbps (UL) 3G router. 1). HDRM100 V2/3G (WCDMA) WCDMA. DL 14.4Mbps, UL 5.76Mbps 2).HDRM100 V2/3G (EVDO) EVDO. DL 3.1Mbps, UL 1.8Mbps |
Detailed Images

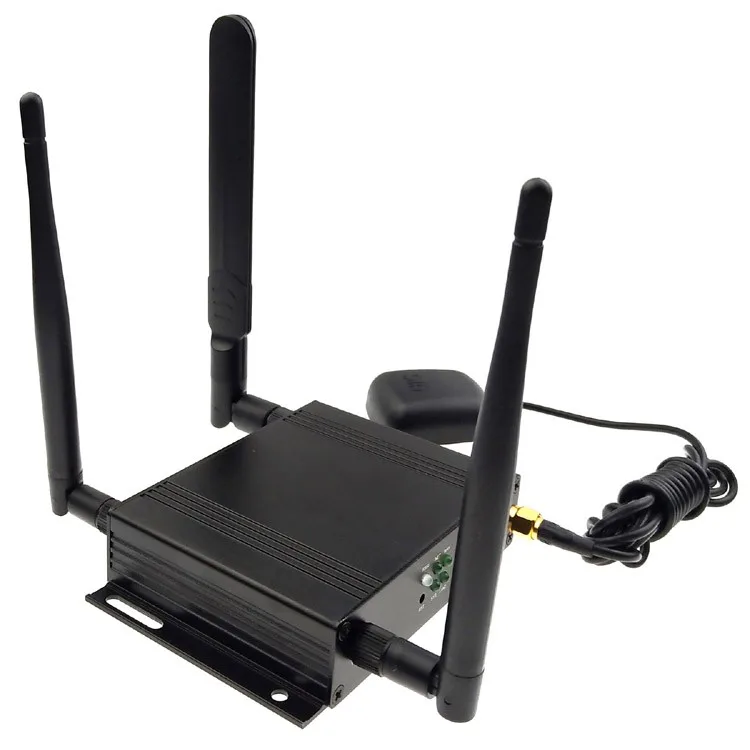

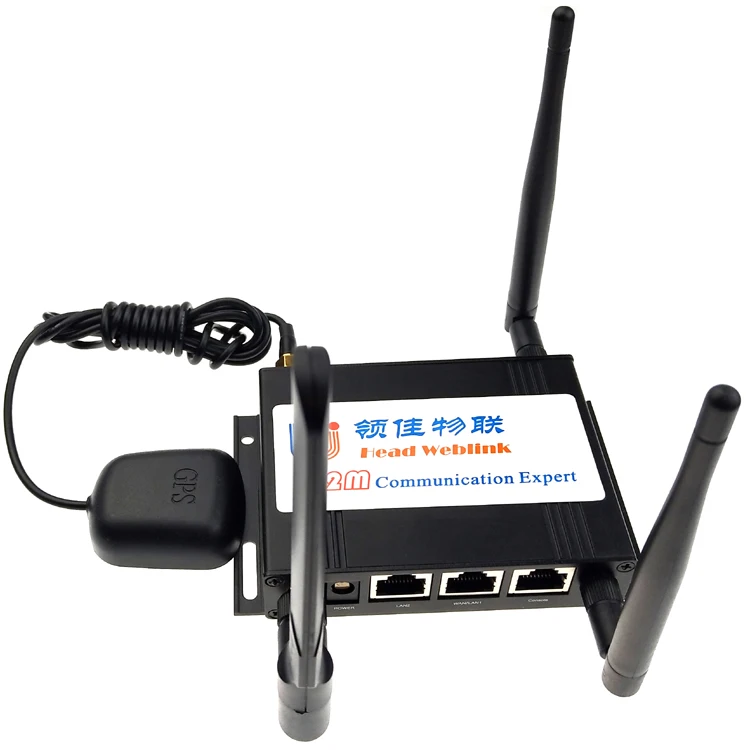

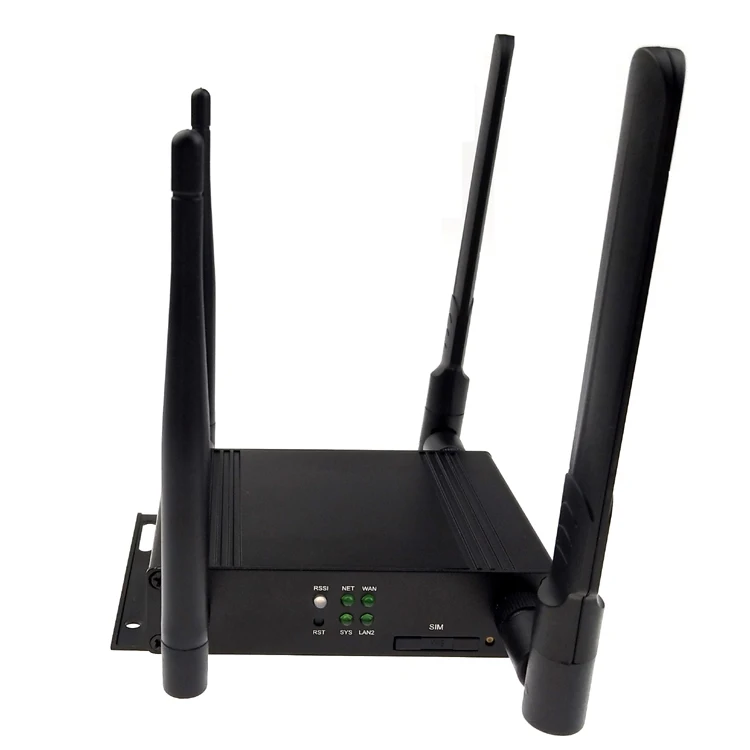

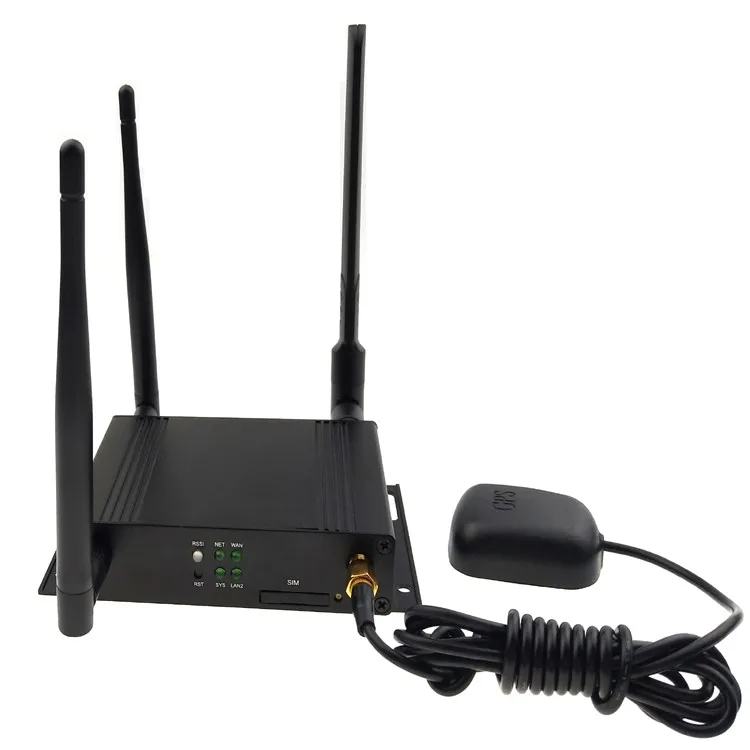

Machine Parts
1. Router
2. dual 4G antenna
3. one wifi antenna
4. GPS antenna optional
5. power adapter
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 26 (CM) * 10 (CM) * 22 (CM) | |
Weight | 0.6KG | |
Packaging Details | The normal package is carton(Size: L*W*H). If export to european countries,the cartons will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
