Support 32ch 5M unreal-time encoding;
Support XVI,AHD, TVI, CVI,CVBS, IP video input;
HDMI/VGA simultaneous video output;
BIG 1U Case, 2 SATA(Up to 8TB);
1*10/100/1000Mbps auto-sensing Ethernet port, RJ45 port；
Automatic networking support, a key to add equipment;
Support the Onvif protocol;
Support GB28181 (Optional);
Cloud services, P2P, alarm information push to phone;
Support remote access, support ARSP;
Support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL,
3G, WIFI, IP search, Alarm center, etc ;
Mobile phone remote monitoring (iOS, Android);
Multi browser access (IE, Chrome, Firefox, Safari);
Support for more than twenty languages;
Perfect protection circuit,unique triple watchdog function
Support WEB, CMS, VMS, MYEYE Platform;
Support coaxial control

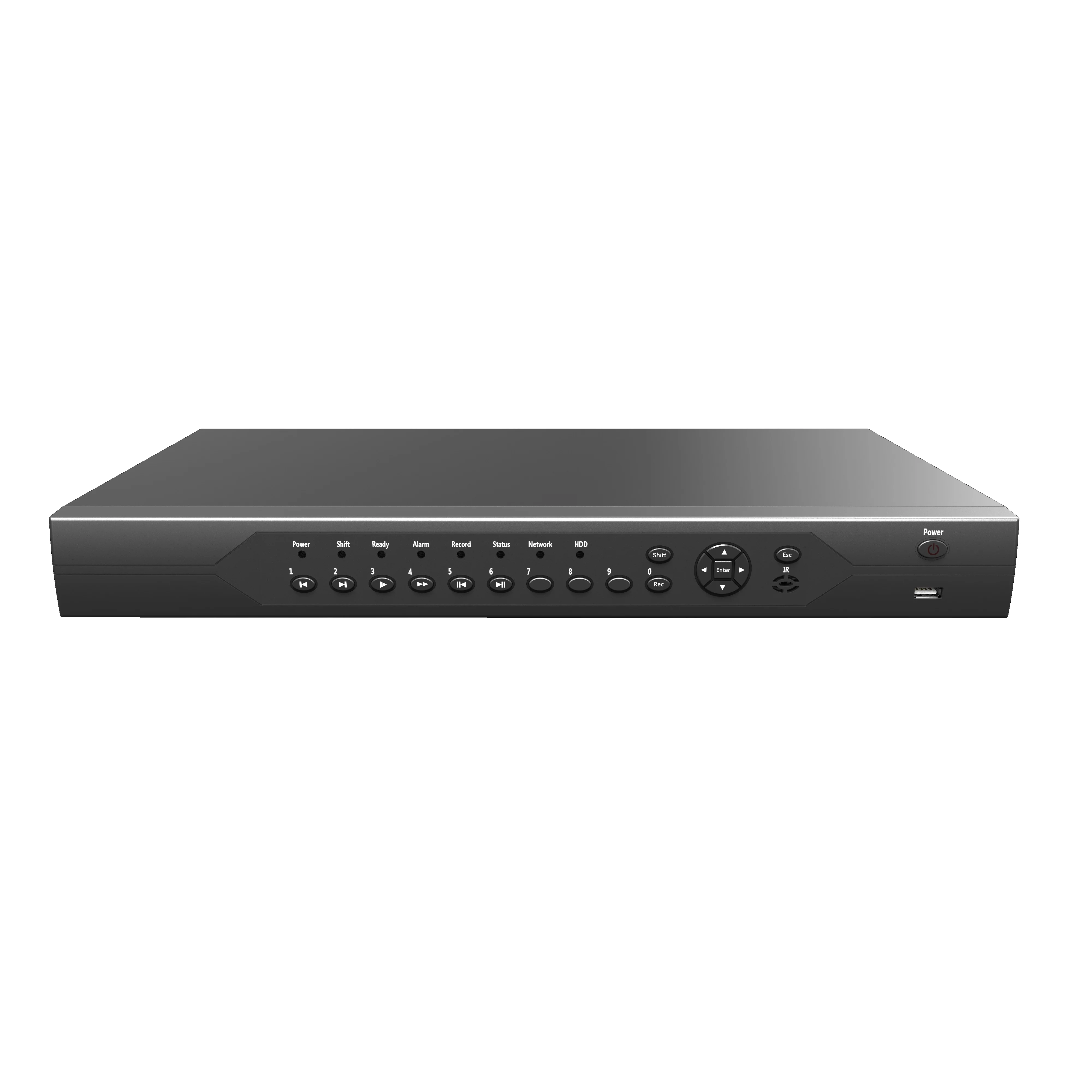

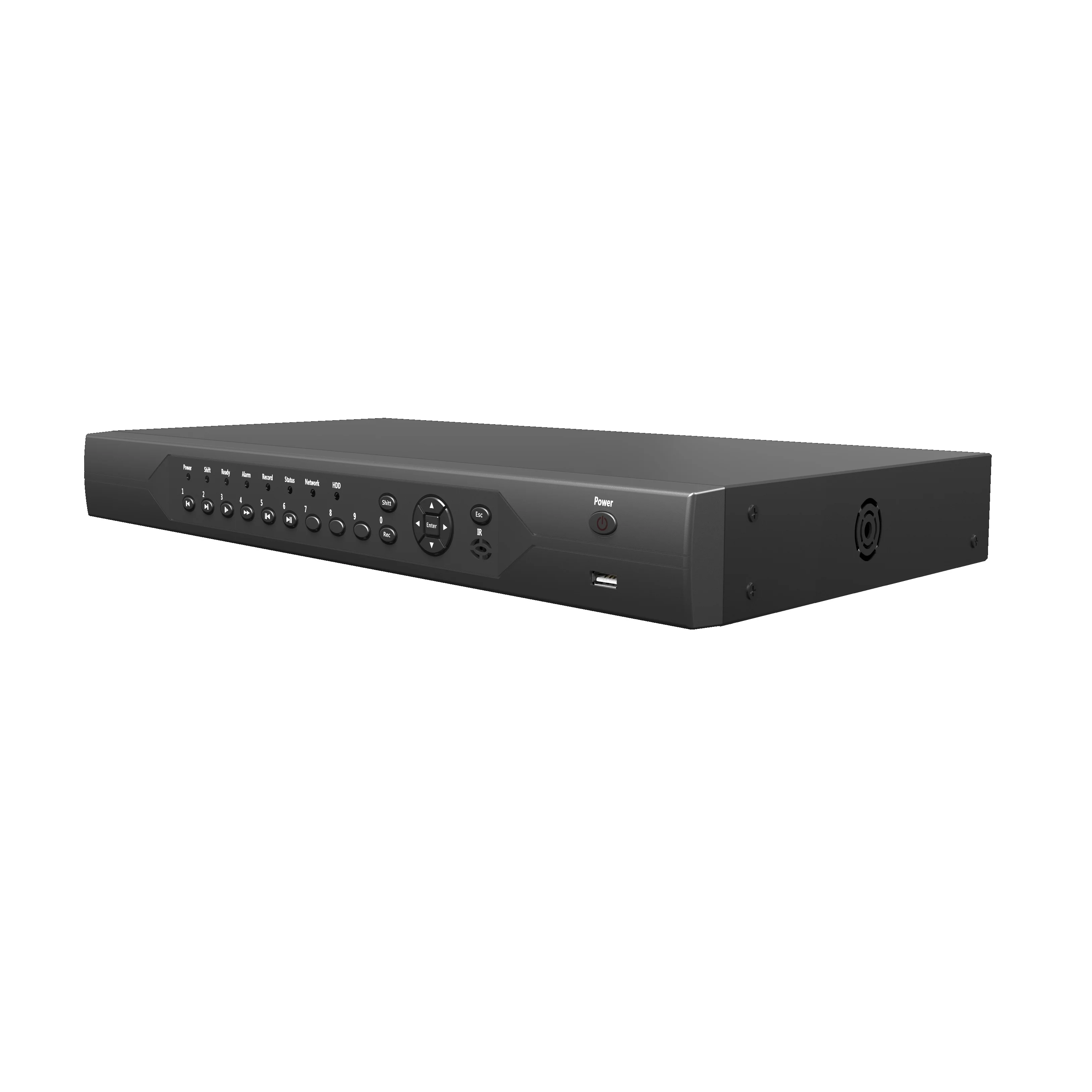

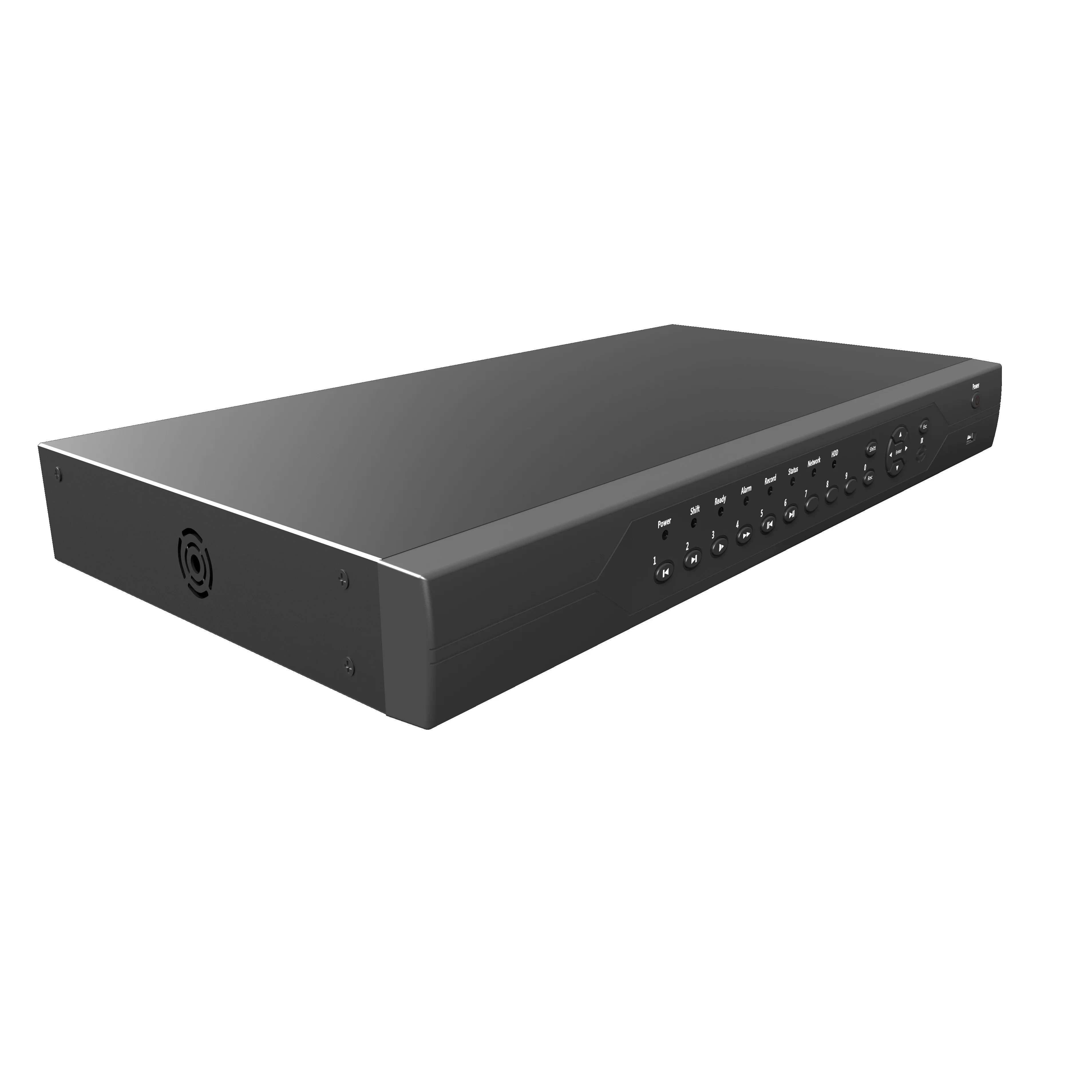

Model
ADVR8032E-GS
System
processor
HI3531D*2
Video
Codec
H.265+/H.265/H.264
Encode
32ch 4M@8fps(6 in 1)/32ch 5M@6fps(6 in 1)/ 32ch 4K-N@7fps(6 in 1),default 4M
Decode
16ch 4M@8fps(6 in 1)/8ch 5M@6fps(6 in 1)/ 8ch 4K-N@7fps(6 in 1),default 4M
Preview
32ch 4M@15fps(6 in 1)/32ch 5M@12fps(6 in 1)/ 32ch 4K-N@15fps(6 in 1),default 4M
Multi-mode
Analog:32ch 4M/32ch 5M
Digital to analog conversion： support
IP: 32ch 1080P/16ch 3M/8ch 5M
Audio
Compression
G.711a
Intercom
Support
Management
Record mode
Manual>Alarm>Motion detection>Timing
Inquire mode
Inquire by Time/Calendar/Event/Channel
Storage mode
HDD Storage, Network Storage
Backup
Network, USB, SATA
Interface
Video input
32*BNC（Support Coaxitron）
HDMI output
1*HDMI (MAX:1080P)
VGA output
1*VGA (MAX:1080P)
Audio I/O
16/1
Alarm I/O
16/4
Ethernet port
1*10/100Mbps Ethernet port, RJ45 port
PTZ control
1*RS485, Support for multiple PTZ protocol
USB Port
2*USB2.0 ports
HDD
2*SATA interface (Up to 8TB)
General
Temperature
0 ℃ - + 55 ℃
Humidity
10% -90% RH
Power supply
12V/4A
Consumption
<10W(Without HDD)
Weight
Around 3KG
Dimension
440mm(L)* 290mm(W)* 50mm(H)
