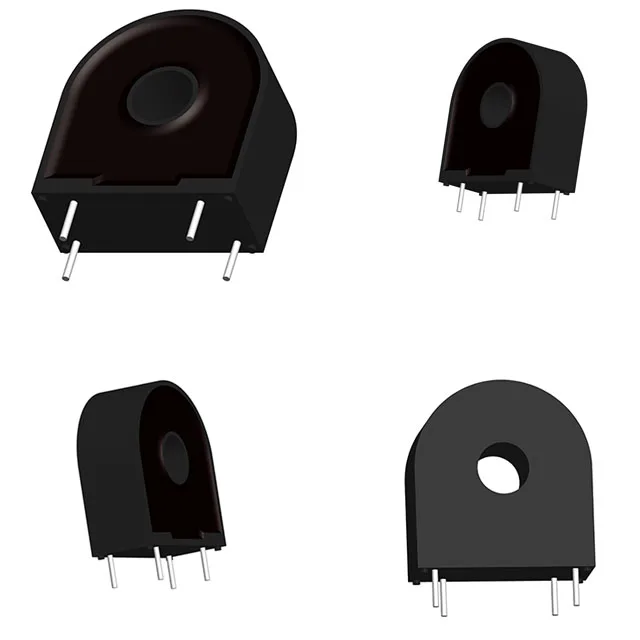

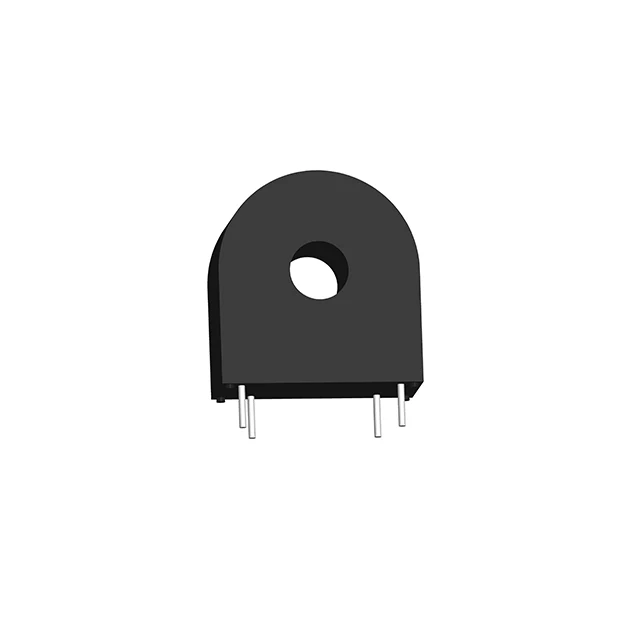

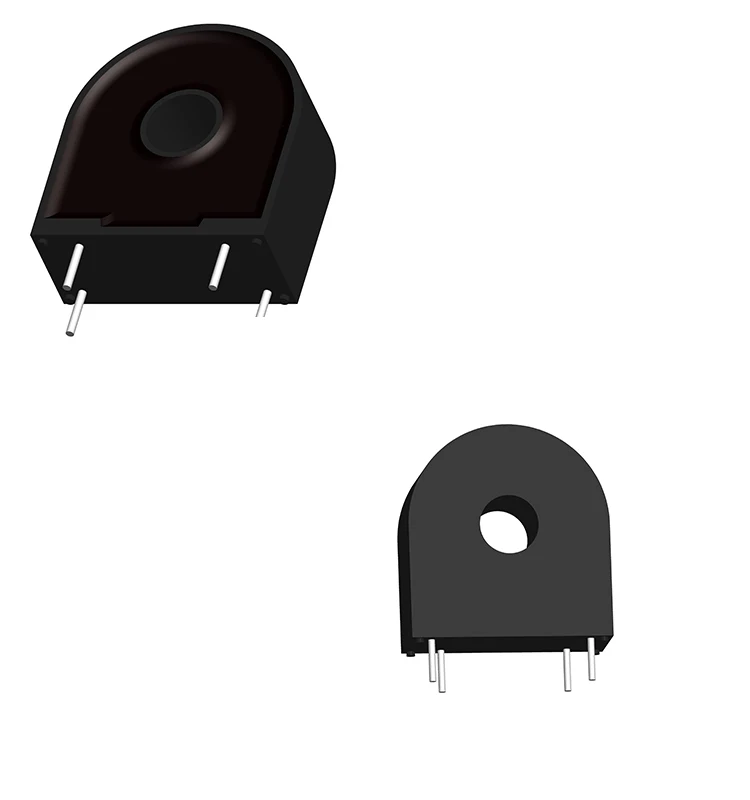

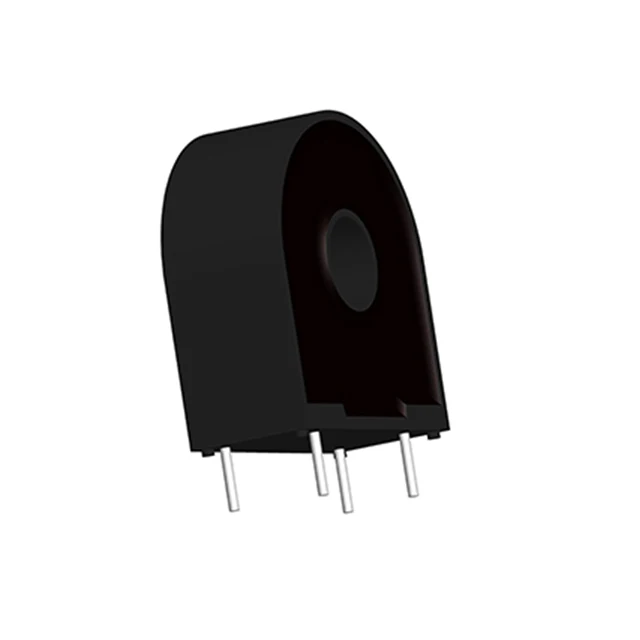

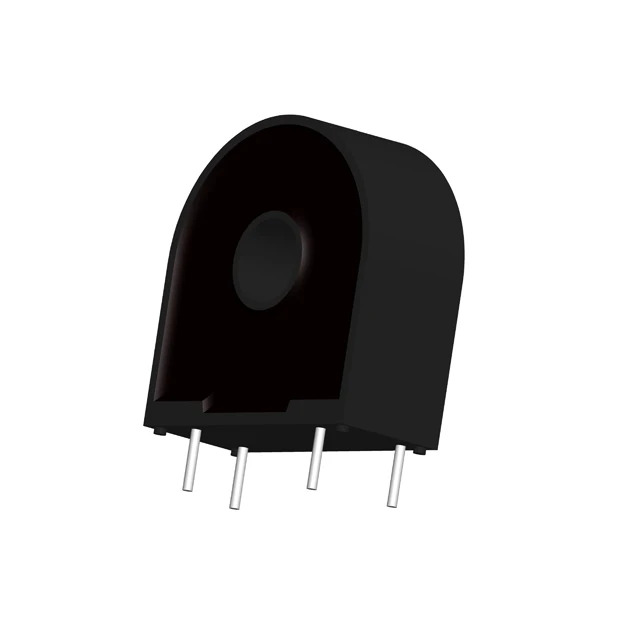

High precision good linearity round hole current transformer

Feature:

1.    Permalloy core,

2.    High precision, good linearity;

3.    Epoxy potting , Safe and reliable

4.    Flame retardant (UL94- V0),

5.    Environmental protection( EU RoHS).

6.    Small size and light weight

7.    Easy to assemble and weld

8.    Guideline: National standard gb 1208-2006;

9.    Industry Standard jbt 10665-2006.

Use Temperature:-25℃-+85℃

Relative humidity:≤95%

Scope of application:

Suitable for converting large currents into small currents,

Used for precision measurement or as electrical safety protection.

Precautions:

If the load connected to the secondary of the transformer exceeds the rated load capacity,

it may result in reduced accuracy or saturation. If you need to increase the load capacity and we can provide customized.

Technical Parameter:

  Note: If there is no product suitable for your use in the above table, we can tailor the product according to

your technical and structural requirements.

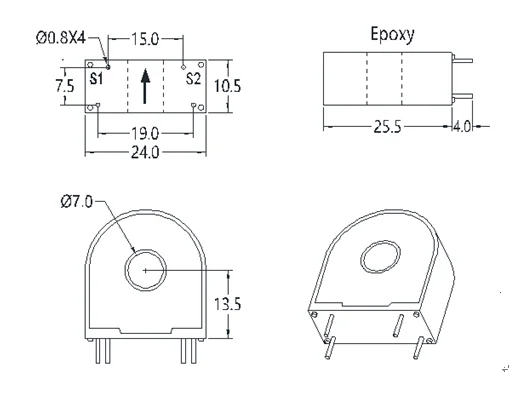

Size Picture:

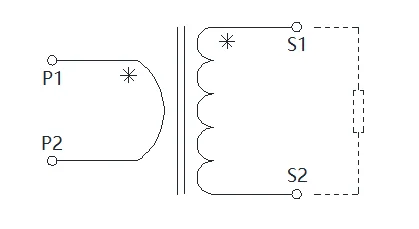

Circuit schematic:

  Note: This schematic diagram is the basic working principle of the transformer. We can design the transformer sampling circuit for the customer.
