HDMI is the first and only digital interface to combine uncompressed high-definition video, multi-channel audio and intelligent format and command data in a single digital interface. Cable HDMI offers significant advantages over analog A/V connections, including the ability to transmit uncompressed digital video and audio content. With these capabilities, HDMI is, and will be the evolving interconnection standard for the future of consumer electronics.
FEATURES

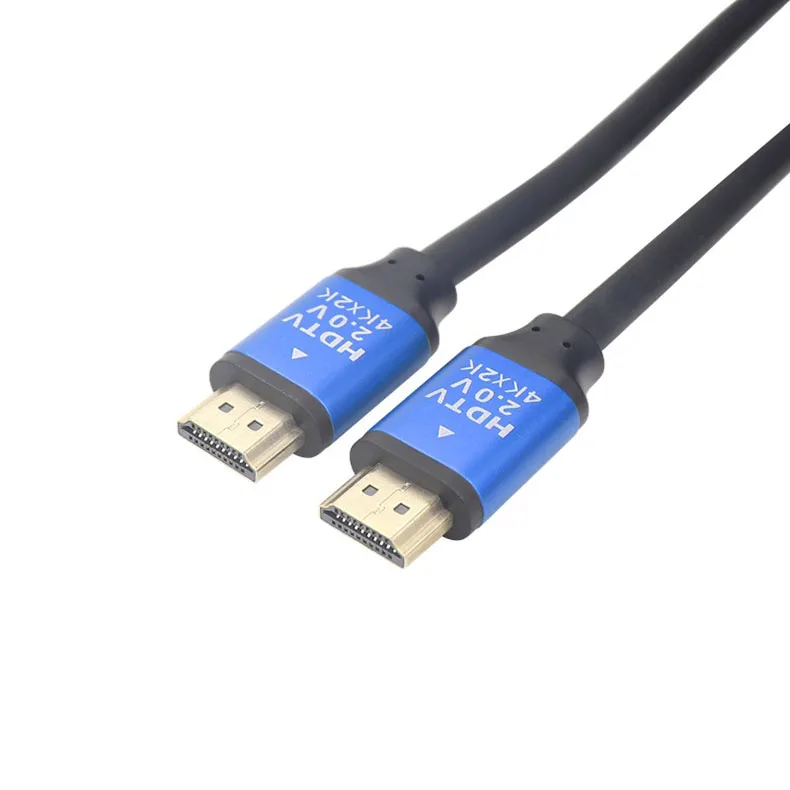

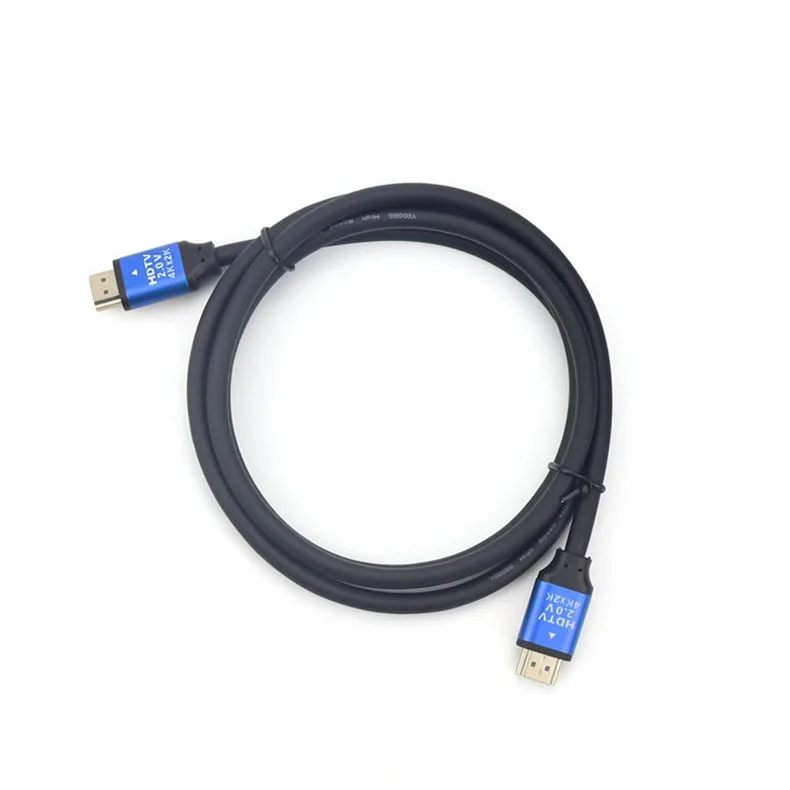

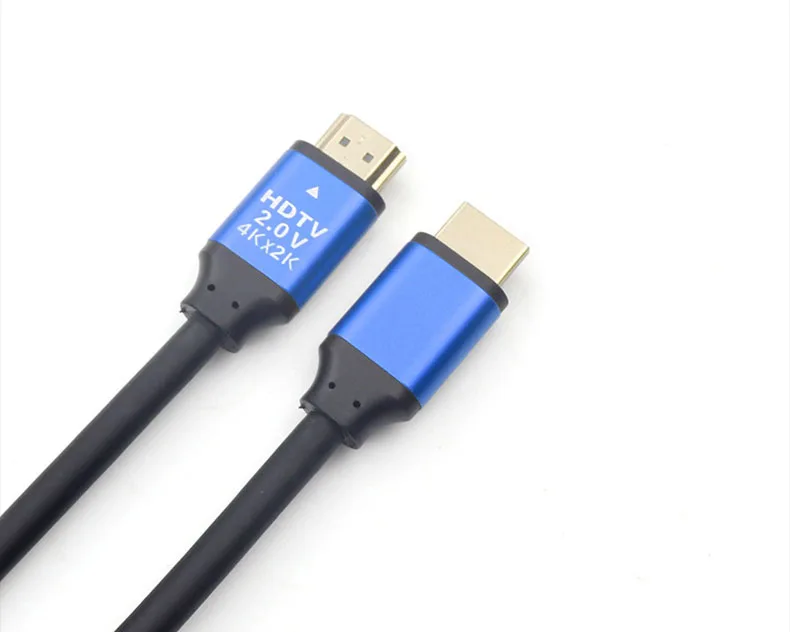

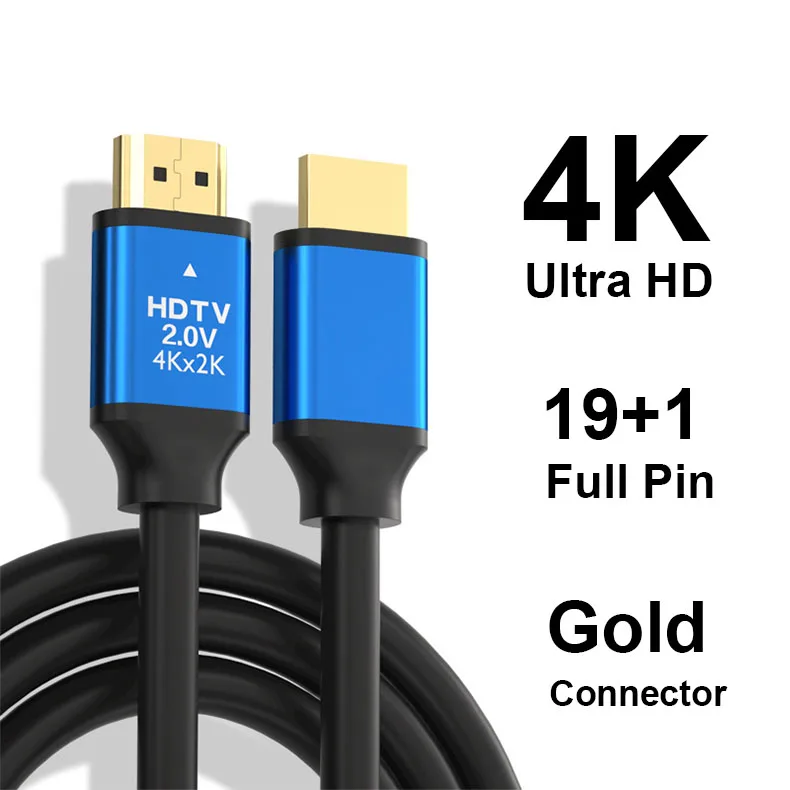

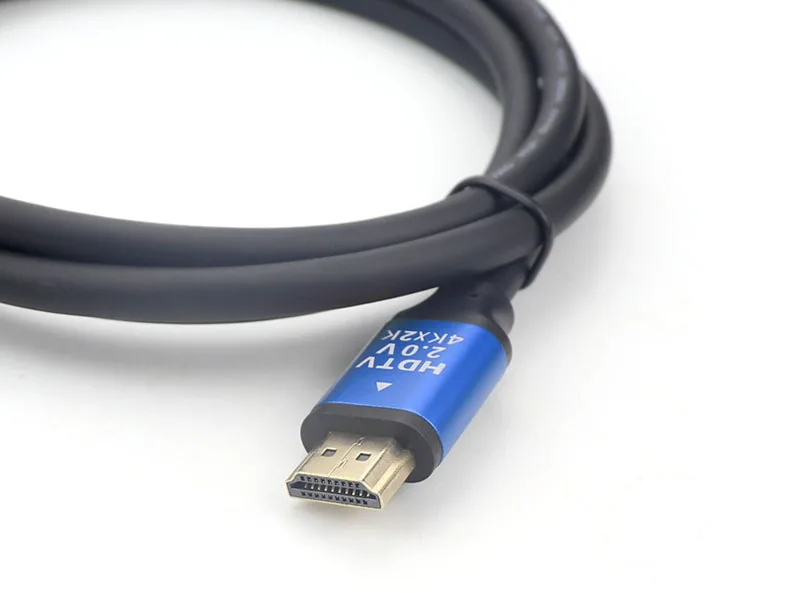

(1) This HDMI Cable is suitable for use in HDTV, home theater, DVD player, projector, PS3, and other HDMI devices
(2) 24k gold-plated connector resists corrosion and ensures an optimum connection for maximum signal transfer
(3) High quality conductor for maximum conductivity and reliability
(4) High density double shielding for maximum rejection of EMI and RFI
(5) Compatible with multiple audio formats from stereo to multi-channel sound
(6) Transfer digital audio and video signals at warp speed of 18 gigabytes per second
Specifications:
(1) 2×HDMI 19PIN, male connectors, version 1.4&2.0
(2) Gold plated connectors
(3) Digital transfers at rates up to 18Gbps
(4) All materials are RoHS complaint
(5) Cable from 36wg to 22awg,cable OD from 5.5mm to 10.5mm
| Product | High Speed HDMI Cable with Ethernet |
| Connector | 24K Gold-plated |
| Length | 1-10meter |
| Speed | Super high 18Gbps |
| Working Temperature | -20 to 80 degree |
| Cable Conductor | 30-24AWG |
| Material | Aluminum/PVC |
| Differential impedance | 100+/-15ohm |
| Far-end Crosstalk | -26db@300k-5GHz |
| Attenuation | 5dB@300KHZ-825MHz |
| Intra-pair skew | 11ps(max) |
| Inter-pair skew | 1780(max) |
| Differential Delay | 5.05ns/m(max) |
| Shape | Round HDMI Cable |
| Spec. | HDMI A Malet o Male |
| Applications | PPTV,LCD,HDTV,RPTV,DVD, HD Player, Xbox, PS2, PS3, PS4, Monitor, Projector |








Optional Package:
Double Blister, Slide Card Blister, PE Bag, OPP Bag, Gift box or on request
(If you were based on a certain order quantity, we can provide the design packing style.)

Payment terms:
By T/T, Western Union, Paypal, ESCREW etc
Delivery time:
2-3 working days after payment for sample order
7-15 working days after payment for mass order
HDMI Licensing Certificate
HDMI ATC Testing
RoHS Certificate
CE Certificate
TPCH Testing
|
| |||
|
| ||
