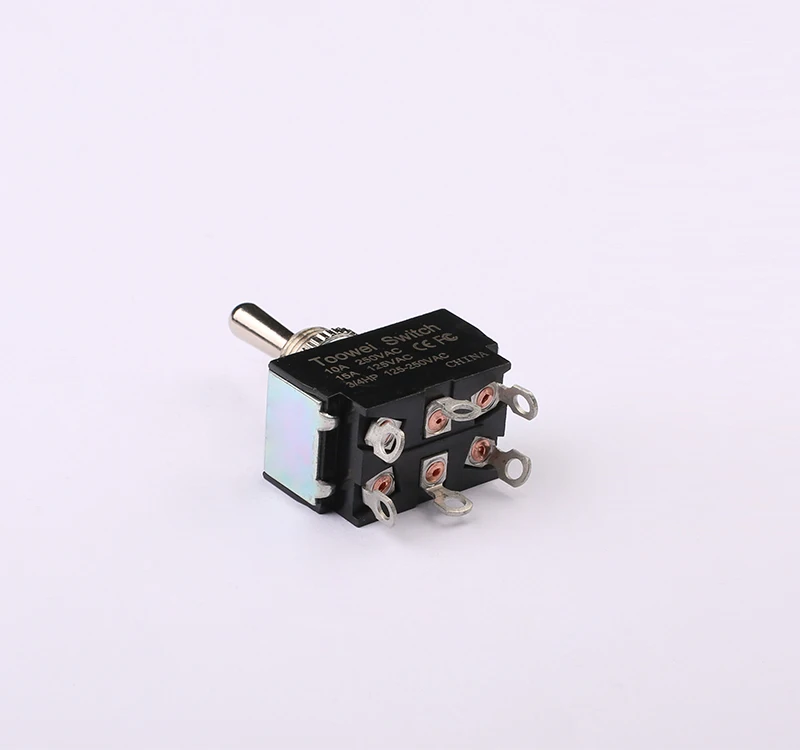

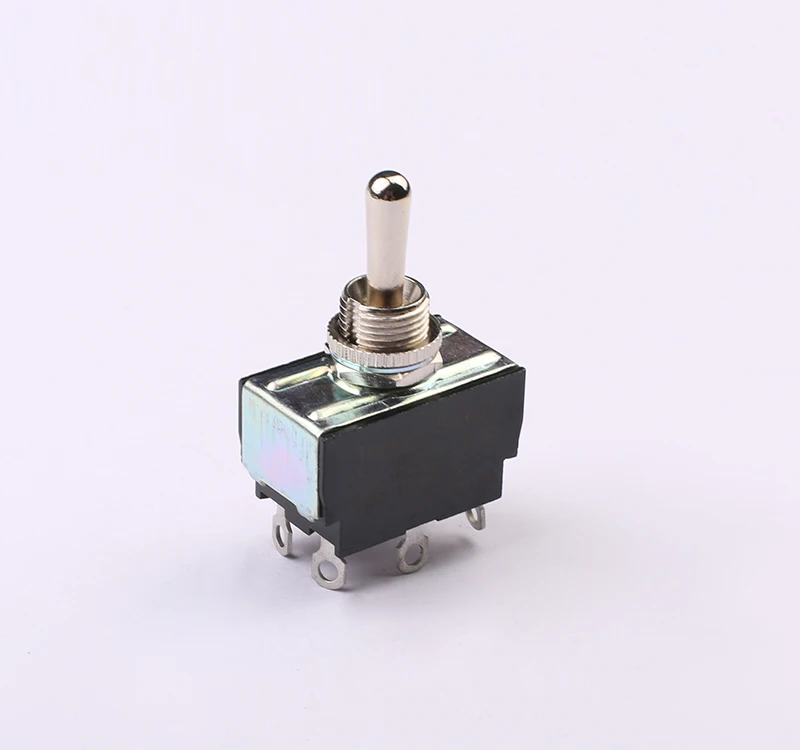

Mini Industrial 10A 250VAC 15A 125VAC Toggle Switch China Double pole 3way (on) off (on) double way momentary T6025U
- Category: >>>
- Supplier: Yueqing Toowei Electronic Switch Manufacturer
Share on (62369854007):
Product Overview
Description
Toowei ON-ON 2pin Toggle Switch With Quick Plug Terminal
Product Description
Toggle Switch Information | ||
Model | T6012T | |
rated voltage | 10A 250VAC/15A 125VAC | |
Base material | Bakelite | |
Ambient Temperature | -25~+80degree | |
Founction | ON-ON | |

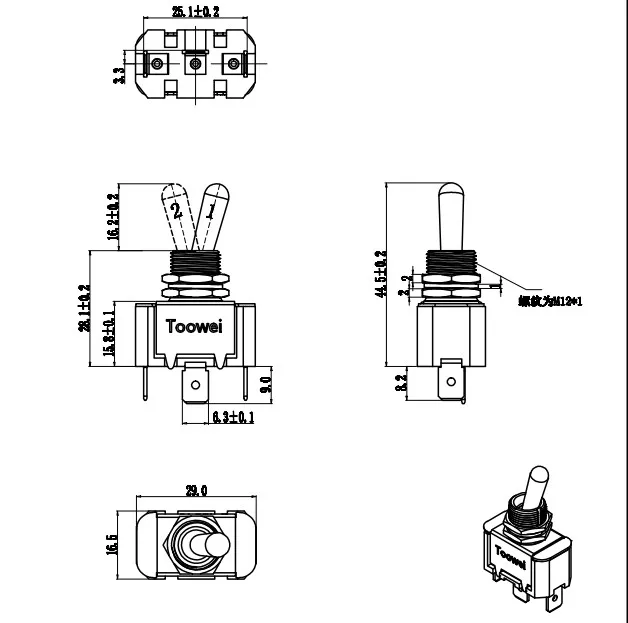

Mounting Dimension | Diameter 12+0.2mm | |
Usage | Food machinery, generators, industrial control, office automation | |
Specification
1. Rating Value: 10A 250VAC/15A 125VAC
2. Operating Force: 8N-24N
3. Ambient temperature: -25℃~+85℃
4. Withstand voltage： 1500VAC 50/60hz
Leakage current：5mA
5. Insulation resistance ≥100mΩ
Contact resistance ≤ 50mΩ
6. Electrical life： 20,000 times
Mechanical life: 50,000 times
7. Humidity： below 85% RH
8. Terminal form : Soldering terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron：345±5° 3~5S
Other Model Show
Applications
Company Information
Exhibition
Packing&shipping
FAQ
Q1. CAN I HAVE A SAMPLE ORDER FOR TOGGLE SWITCH?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. WHAT ABOUT THE LEAD TIME?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. WHAT ABOUT THE LEAD TIME?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
