flat plate pressurized solar hot water heater

flat plate pressurized solar hot water heater

Category: Solar Water Heaters >>>
Supplier: Zhejiang,Babysun,New,Energy,Technology,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

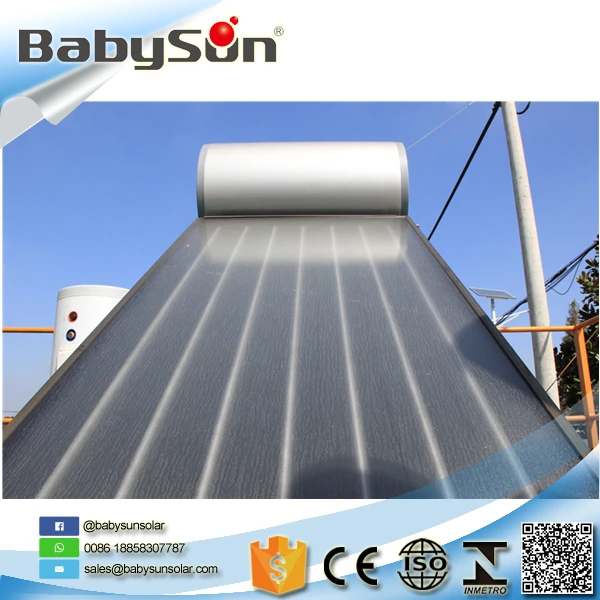

1 High pressure flat plate solar water heater

1.5.jpg 2. Product Description

01 : Features and Advantages

Special features of compact pressure flat plate solar water heater

1. Suitable to use in all kinds of climates with electric heater

2. Absorbing heat quickly
3. Completely automatic operation
4. It can withstand pressure of tap water when it works

5. Without incrusting, long usage life

6. Multifunction: Bathing, washing, domestic heating

7.Guarantee: Water tank for 2 years, the whole system for 5 years

Advantages Compact Pressurized Flat Plate Solar Water Heater:

Comparing with pressurized heat pipe solar water heater:

1. More simple collector installation;

2. More economical flat plate collector;

3. More strong and safe collector with tempered glass glazing;

4. Traditional solar collector with more market share;

5. Enjoys much more popularity in warm area;

02 : Specifications of Compact Pressure Flat Plate Solar Water Heater

Flat Plate Solar Collector	Size (mm)	2000106082 / 2000156082
	Cover glass	Low-iron tempered glass with transmittance ≥91%
	Coating	Selective black chrome coating with absorptivity ≥95±2%
	Absorber	Aluminum strip welded with copper header & riser tubes
	Insulation	High-density polyurethane & fiber glass
	Frame	Anodized aluminum alloy with anti-aging elastic sealing
Pressure Water Tank	Capacity	100L ~ 300L for pressure hot water storage tank
	Inner tank	Food-grade stainless steel SUS304-2B / SUS316 / Enamel
	Insulation	High-density PU foam with 80~90 hours heat preservation
	Tank shell	High-quality stainless steel
Bracket	Shaped strong aluminum alloy, adaptable to flat or slope roof
Accessories	T/P valve, Check valve, Stainless screws
Auxiliary Equipments	Electrical heater, Intelligent controller, Magnesium anode, Pipe & fittings
Collector Angle	25 ~ 50°
Working Pressure	6.0 bar
Model Number	Flat Plate Solar Collector		Aperture Area/ m2	Tank Liter	Container Loading Qty /sets
Model Number	Size /mm	Qty /pcs	Aperture Area/ m2	Tank Liter	20GP	40GP	40HQ
100	2000106082	1	2	100	51	102	124
120		1	2	120	49	98	119
150		1	2	150	44	89	108
150	2000156082	1	3	150	35	70	85
200	2000156082	1	3	200	31	62	75
250	2000106082	2	4	250	25	49	60
300	2000106082	2	4	300	23	45	55

03 : Working Principle of Flat Plate Solar Water Heater

Sunlight passes through the glazing and strikes the absorber plate, which heats up, changing solar energy into heat energy. The heat is transferred to liquid passing through pipes attached to the absorber plate. Absorber plates are commonly painted with "selective coatings". Absorber plates are usually made of copper or aluminum because the metal is a good heat conductor. Copper is more expensive, but is a better conductor and less prone to corrosion than aluminum.


04. Accessories for Optional Choice

05. Pressurized Flat Plate Solar Water Heater Model for Your Reference
