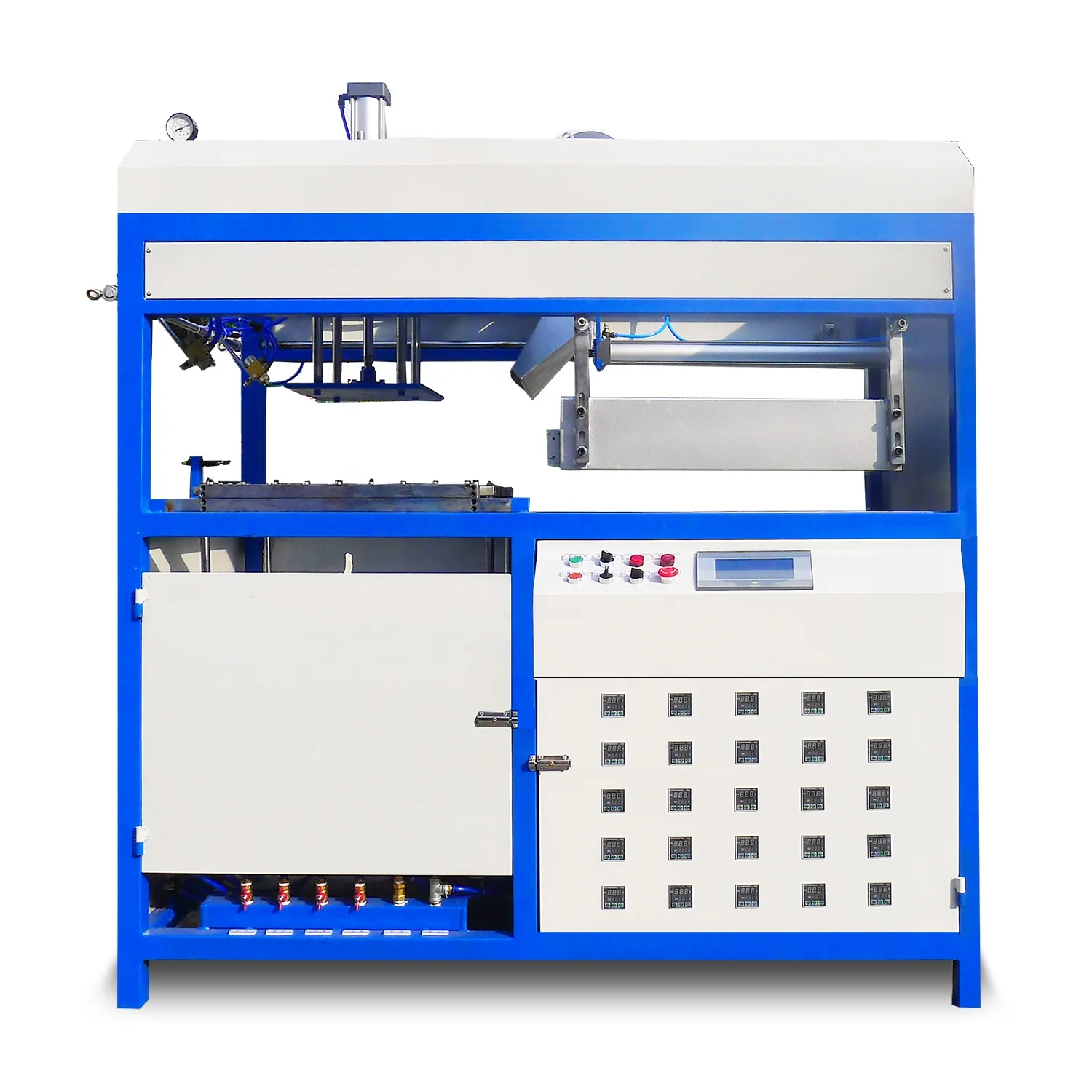

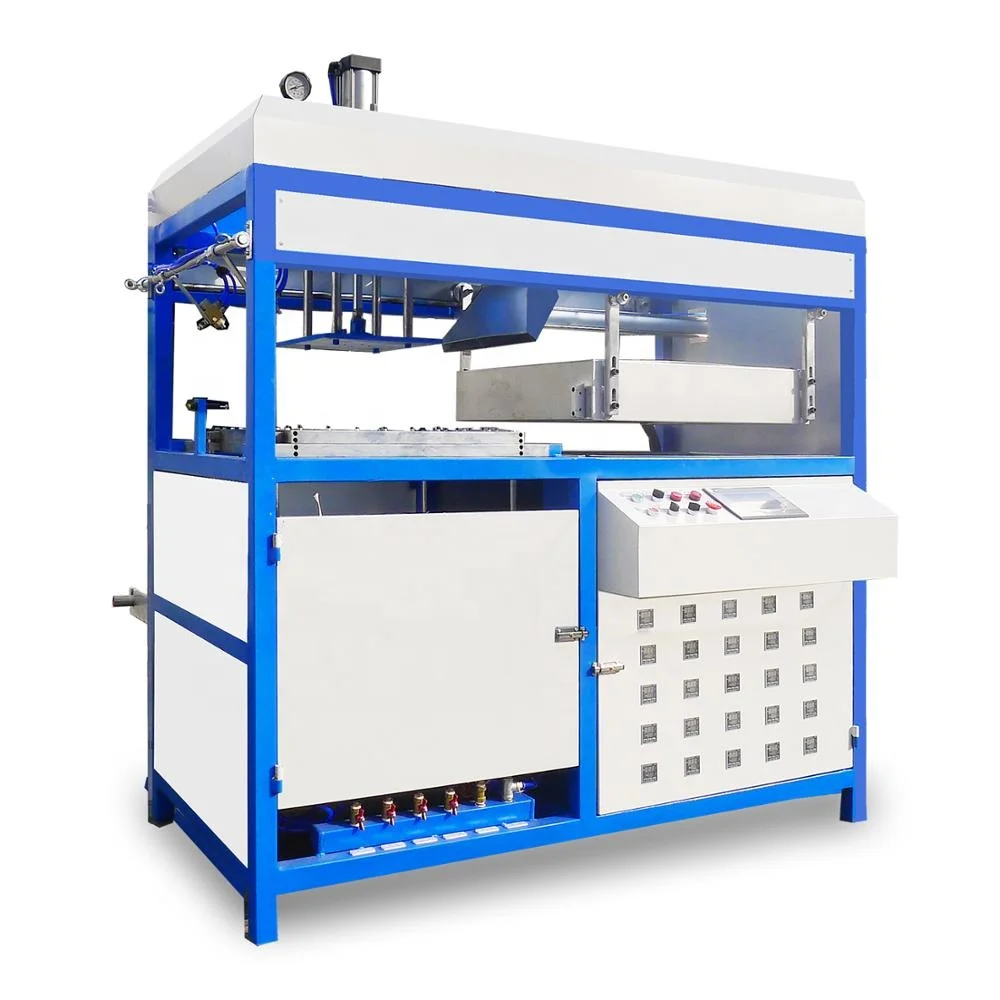

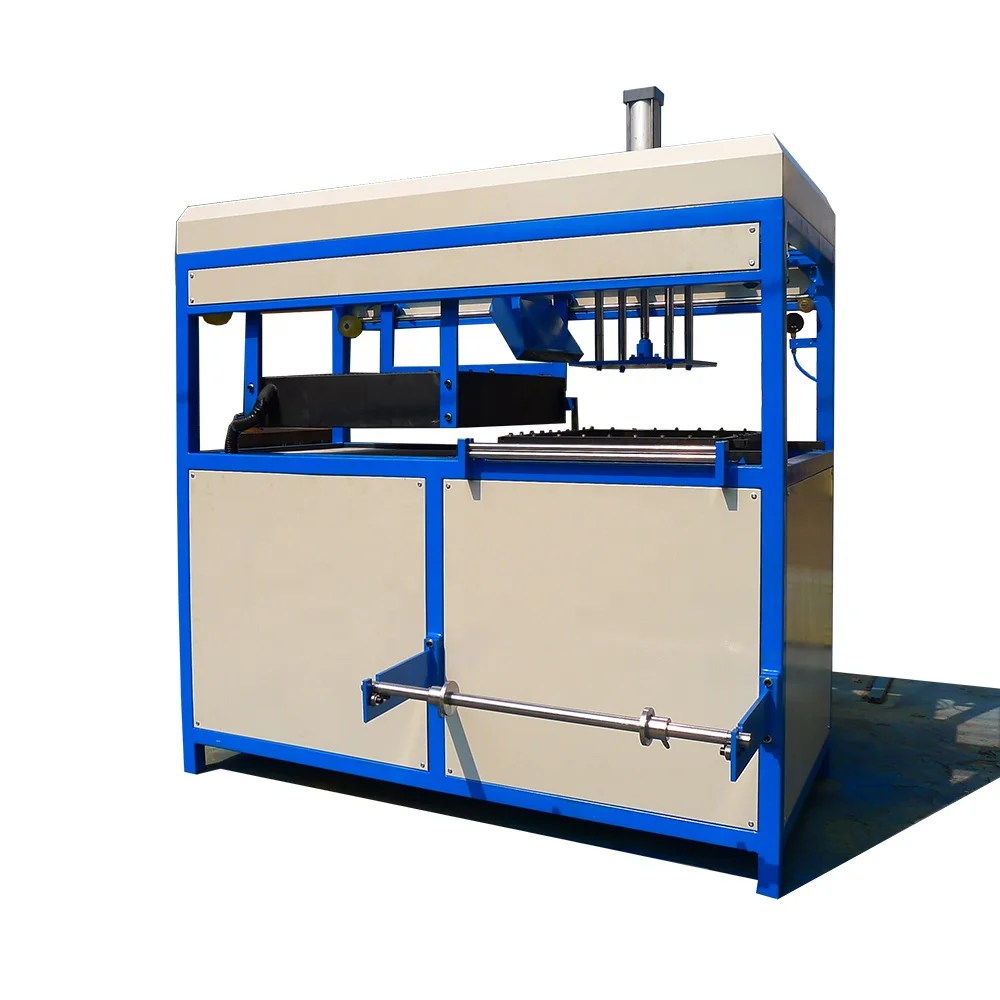

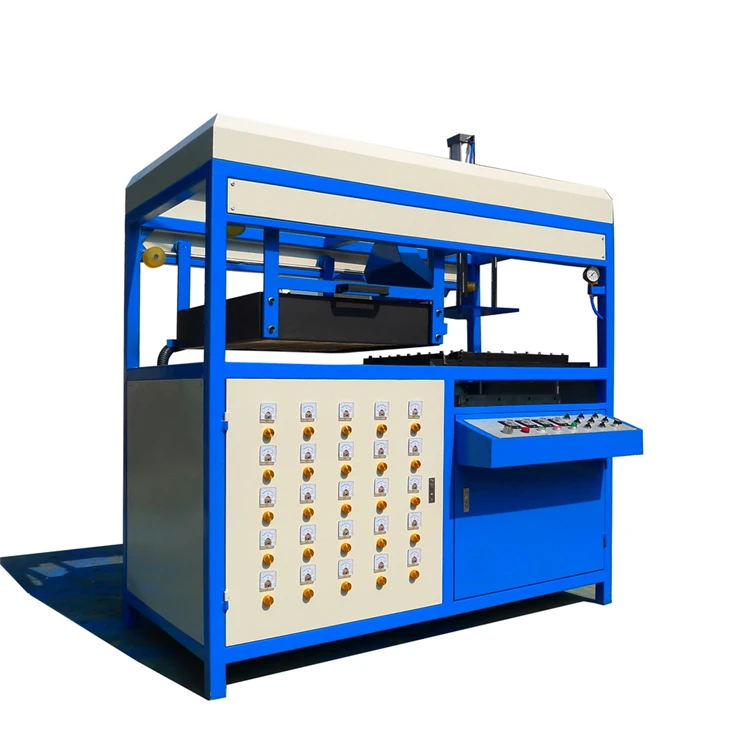

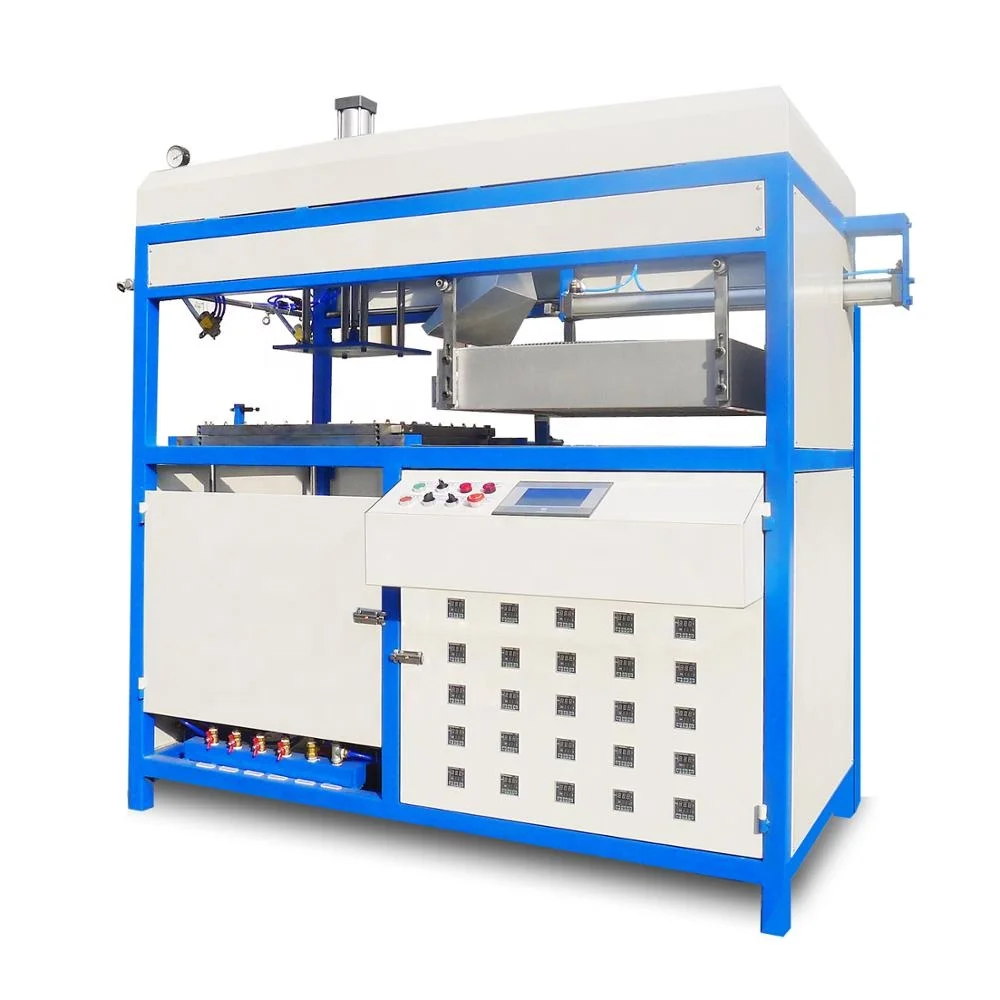

HX-2224 Series Semi-automatic Vacuum Forming/Thermoforming Machine

PLC touch screen control, HX-2224A a user friendly machine with the power and capability to form demanding shapes and materials. Rapid, energy efficient ceramic heaters with variable standby ,pneumatic table and clamping provides effortless operation, whilst the vacuum tank system fitted as standard facilitates ultra-fast response for demanding applications and fast cycle times.

Application
Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.

Types of  molds:
Wood Patterns;
Cast aluminum Molds;
Machined aluminum Molds;
Composite Molds;



Parameter

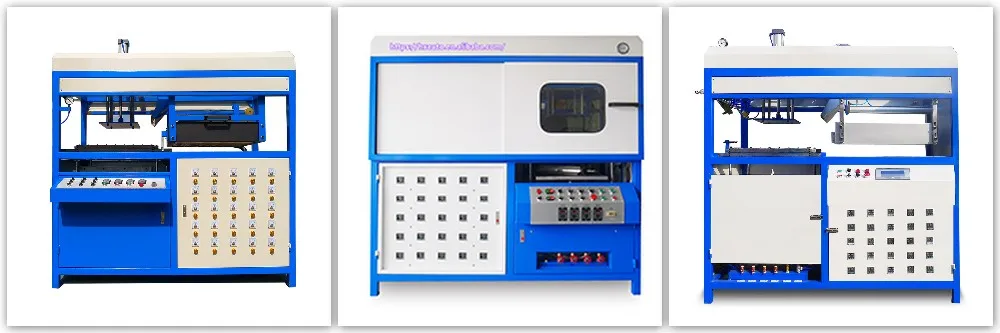

HX-2224C Lower cost

HX-2224B automatic oven


HX-2224A PLC control




Model
HX-2224C
HX-2224B
HX-2224A
Forming Length (mm)
610
610
610
Forming Width (mm)
560
560
350-560 adjustable
Roll Material width
610
610
400-610 adjustable
Heater(pcs)
25*600w
25*650w
25*650w
Heating Power (Kw)
15
16.25
16.25
Vacuum Pump(M³)
20
40
40
Cooling Fan
1
1
1
Upper Mold
●
●
●
Safety Cover
N/A
●
●
Spray Gun
N/A
●
●
Digital tempetature control
N/A
●
●
Pneumatic oven
N/A
●
●
PLC Control
N/A
N/A
●
Forming Width adjustable
N/A
N/A
●
Machine Weight(Kg)
350
400
450

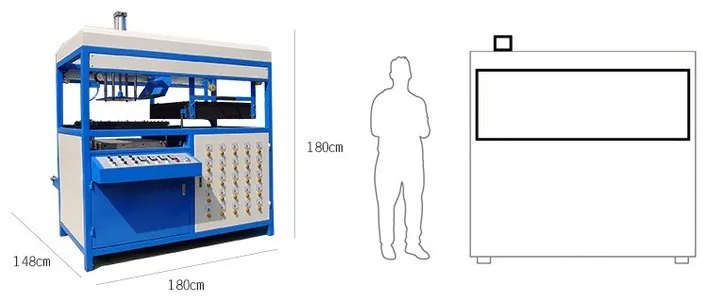

Machine Size (mm)
L1700×W1480×H1700
Material
PET,PVC,PP,PS,ACRYLIC,ABS
Material type
Sheet / roll, thickness:0.1-2.0mm


Function:

Ceramic Heaters with Full Temperature
25 Independently Controllable Heating Zones
Pneumatically Powered Clamping Frame Mold
20m³/40m³ Vacuum Pump

Powerful Cooling Fan

Vacuum Receiver Tank

Vacuum Flow Regulator

Vacuum and Pressure Gauges

Digital Timer



Extra function for HX-2224A/B

Pneumatic Oven, drive automatic

Digital tempetature control

2 spracy gun

Safety cover



Extra Function for HX-2224A

PLC Control

Mold table with cooling

Electronic mold table with Width adjust



Features:

1) 25pcs ceramic infrared heating boards which can be controlled separately, suitable for different size or different thickness material.
2) 25pcs Solid state voltage regulators, control heating boards simple and visualized.
3) Large-scale cooling fan which can cool the products quickly.
4) Cooling system which suitable for thick material. (optional)
5) Manual and Semi-auto style.

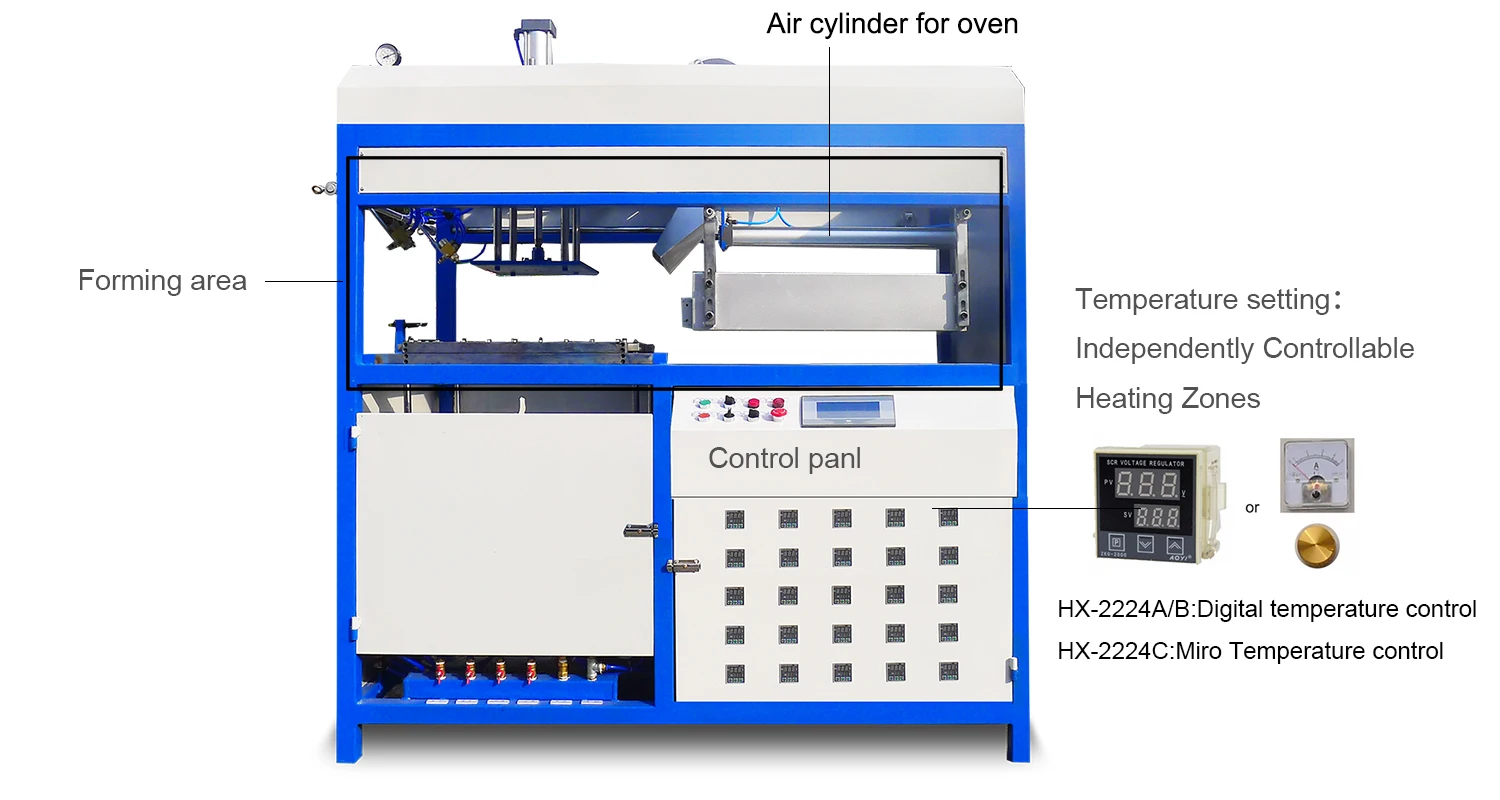

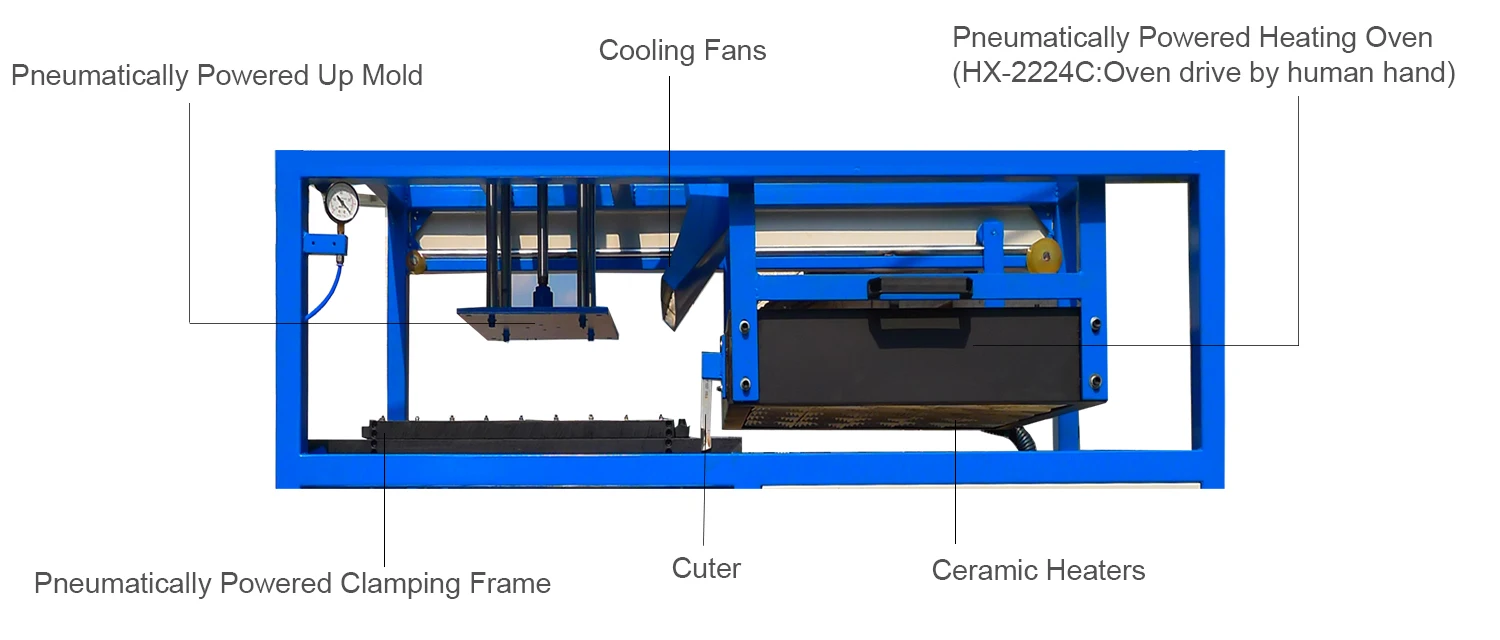

Forming part

Semi-Automatic Vacuum Forming Machine. HX-2224 is equipped with a max. forming area of 610 x 560 mm.

1.HX-2224A and 2224B setting pneumatically powered heating oven, HX-2224C move by human hand.

2.HX-2224A and 2224B use digital temperature control,HX-2224C micro temperature control



Adjustable mold table

1.HX-2224A forming width can be adjust from 350mm to 560mm;
2.HX-2224B and HX-2224C forming width invariable;





Detailed Parts


Industrial cooling fan

Name: cooling fan

Brand: HUAXIANG

Original: CHINA

Compared with other types of engine's cooling fan-driving system, our cooling system is more reasonable;




Electricity box

Brand: CHNT,OMRON
Original: Chinese,Japanese
The switch, electricity meter of the meter box are set in separate area;
The floor box provides a plurality of facilities, such as vacuum and electricity;
Japanese and Germany accessories




Ceramic heater/oven

Name: Heating system
Original: Germany or Chinese(Optional)
25 pcs Ceramic Heaters;
Power:16kw or 19Kw (every 0.65kw);
Heater size:12cm*12cm;
Save 10% power compare with competitors;




Temperature control

Name: Digital temperature or micro controller
Brand: AOYI
Original: Chinese
Digital temperature controller convenient, high precision ;25 Independently Controllable Heating Zone



Sample




Packing & Delivery


SIZE

1) The machine overs an area of 2.664m²;
2) Requires 20m² of space to place ;
3) In the open air environment;
4) Weight: 400kg





Packing

1. Wooden box or wooden frame, box: 30 USD/CBM, wooden frame: 15 USD/CBM;
2. Woodwork will be fumigated in many country;
3. If container  too tightly, we only use PE- film for packing or pack it according to customers special request.
4. Machines will be Split to facilitate placement.





Our Factory




HUAXIANG  is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the professional enterprise that specializ in the production of Vacuum Forming/Thermoforming Machine. Our machine are used a lot in plastic forming,plastic packaging field;


In order to help you choose the most suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material?
Q2: The size of your sample; length, width and thickness?

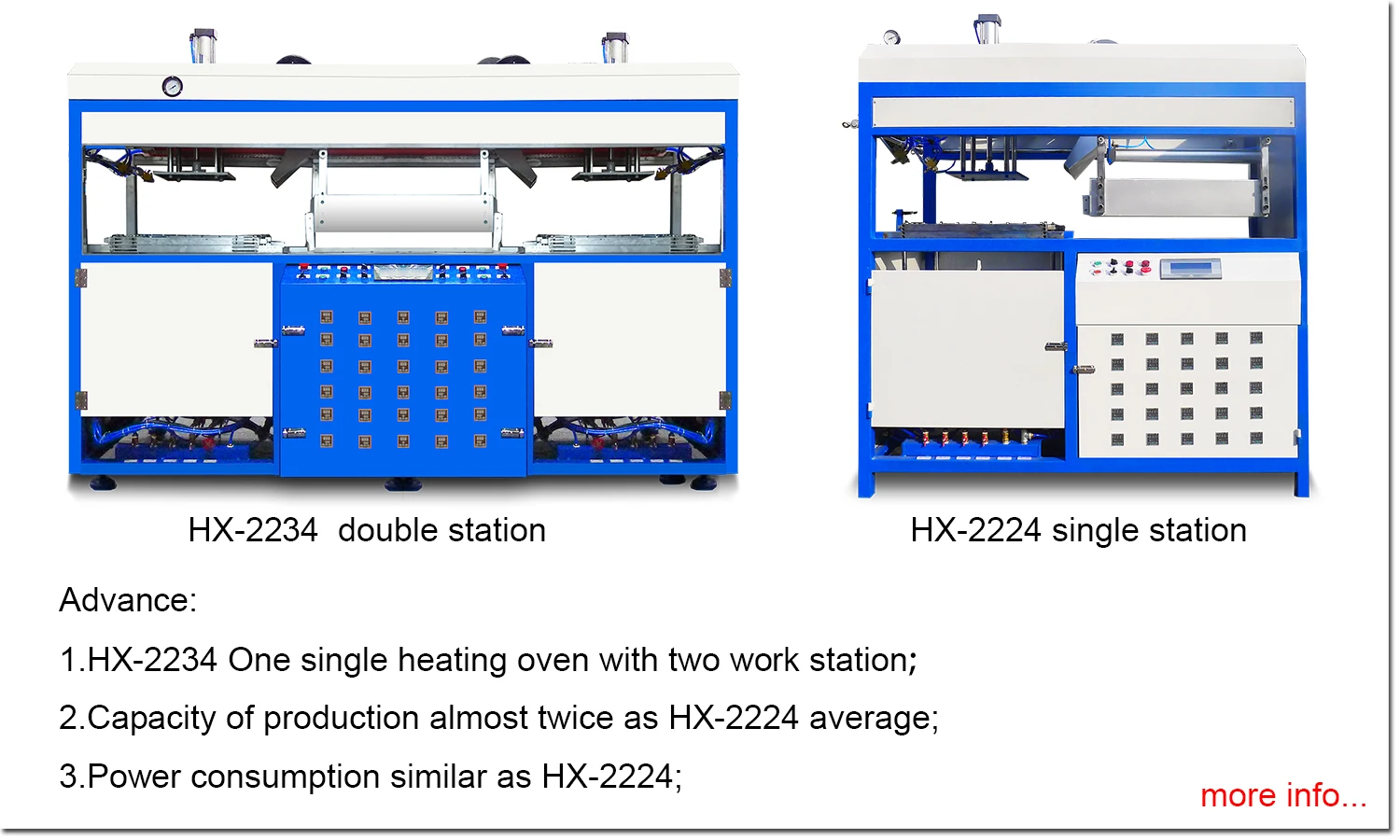

Machine recommend
