PoE to USBC Power Data Compatible with Tablet Computer Like Microsoft Surface Go, Samsung Galaxy Tab, Google Pixel Phones
- Category: Ethernet Modules & POE >>>
- Supplier: Shenzhen Zhangqing Electronic Ltd.
Share on (62370000784):
Product Overview
Description
PoE+ to USBC Power + Data Compatible with TabletComputer LikeMicrosoft Surface Go,
Samsung Galaxy Tab, Google Pixel Phones
PoE to USB-C-PD Power + Data (5V/3A, 12V/2A, 15V/1.5A, 20V, 1A) without USB-C cable
This device provides a powerful solution for delivering power and wired Ethernet data to a USB-C
device over 328ft of network cable. This splitter allows power to be carried on CAT-5e or CAT-6
network cables using either 802.3at standard or 56 volt passive PoE. 802.3af switches can also be
used – but only 12 watts can be delivered without overload. 10/100/1000 or 10/100 switches can
be used – the device will negotiate at 10/100 full duplex rates.
Intended for use with any 802.3at PoE switch – this active PoE solution negotiates with
the switch to activate power and provide it to the client device.
It is a compact and cost effective power solution.
The PoE switch supplies 48 or 56 volts DC at the source location.The higher DC voltage means the current is reduced by a factor of 9 compared to 5 volts, and then carried with 90% less loss over the Ethernet cable from the source, the 5v converter at the remote end allows you to extend the charge distance for this application up to 328ft or 100 meters.
PRODUCT DETAILS
-Delivers Both USB Type C Power and Gigabit Data on one cable
-10/100Mbps Data Capability
-25 Watt Output - (5v/3A, 9V/2.4A, 12v,2A, 15V,1.5A, 20V,1.25A)
-Compatible with IEEE 802.3at PoE+ Switch or Injector
PRODUCT SPECIFICATIONS

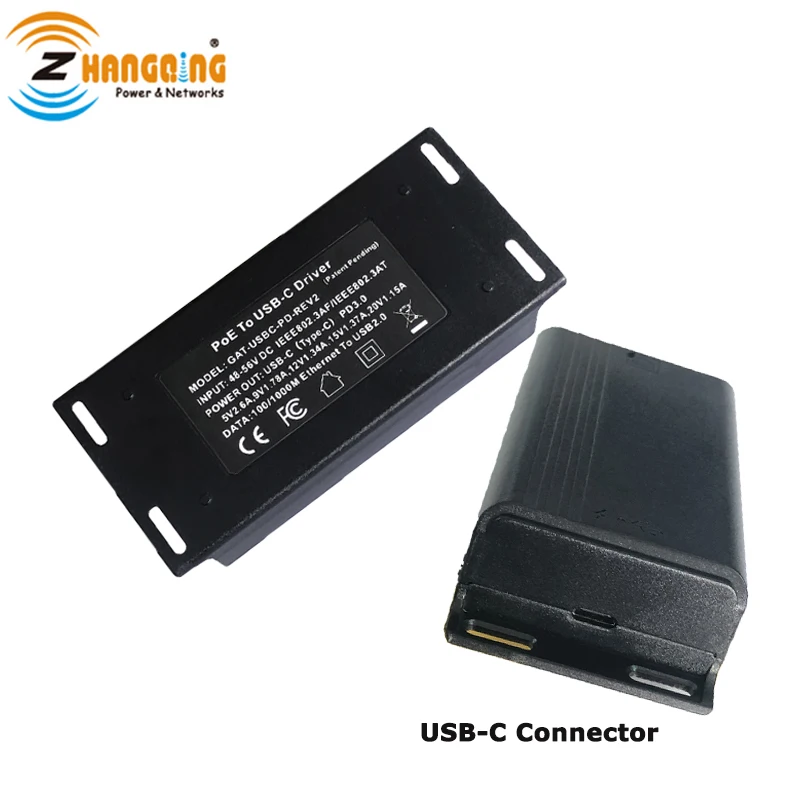

Connector Types: USB-C (Female) 1x RJ45 Input (Female) 1xRJ45 Output(Female)
Data Rate: 10/100Mbps (RJ45 Only)
Dimensions: 4.5x2x1 Inches
Input Voltage Range: 44-56 Volts (IEEE 802.3at Compliant)
LEDs Per Port: Green (POE) / Yellow (USB-C)
Max Power: 25 Watts
Operating Temperature: -10 to 60C
Operating Humidity: 5% to 90%
Output Voltage: 5v,3A; 9v,2.4A; 12v,2A; 15V,1.5A; 20V,1.25A
POE Method: IEEE 802.3at / PoE+ / Passive 30 watt
POE Mode/Pinout: Mode A (1,2 3,6) / Mode B (4,5 7,8)

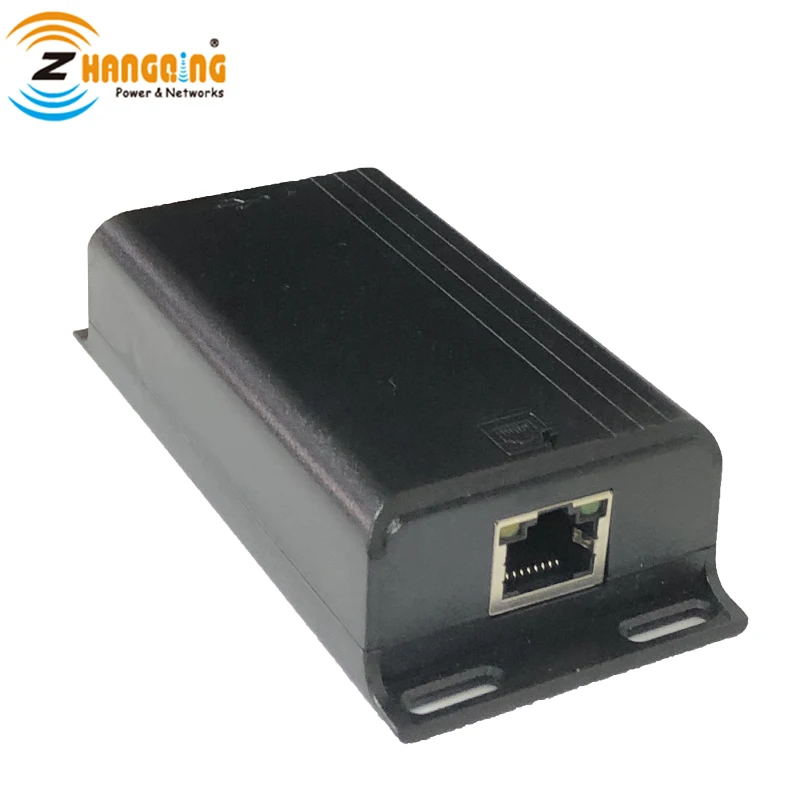

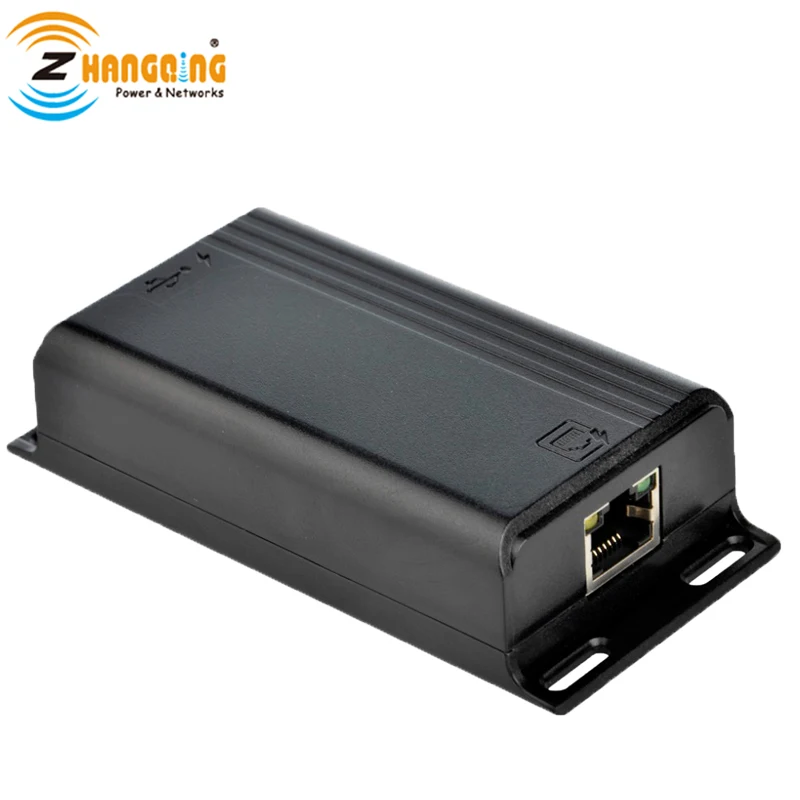

Product Photo
Simple usage:
Step a) connect your PoE switch to an internet router.
Step b) use an Ethernet cable to connect the RJ45 female to your PoE
switch up to 100 meter distance.
Step c) connect the USB-C output via a USB-C high current rated cable,
to your device.
Step d) run speed test.
