Industrial 8ft-24 ft giant hvls ceilign fan prix
US $920.00-$1220
7.3meters giant ceiling fan HVLS ventilation fans cooling fan
- Category: Ventilation Fans >>>
- Supplier: Kale Environmental Technology (Shanghai) Corporation.
Share on (62370026711):
Product Overview
Description
Product Description
7.3meters giant ceiling fan HVLS ventilation fans cooling fan
Brief Introduction of EURUS Series Fan
1. Large size of 3.6m-7.3m
2. Branded LENZE geared motor & Danfoss VFD
3. High effient & energy saving of max 1.5KW power
4. Area coverage up to 1400m2 per fan
SPECIFICATIONS | |||||||
Fan size Diameter | 12ft(3.6m) | 16ft(4.9m) | 20ft(6.1m) | 24ft(7.3m) | |||
Item NO. | D6BAA36 | D6BAA49 | D6BAA61 | D6BAA73 | |||
Max Air Volume | 10580m³/min | 11500m³/min | 12150m³/min | 13345m³/min | |||
Max Speed | 90RPM | 70RPM | 55RPM | 45RPM | |||
Fan Body Weight | 70KG | 87KG | 113KG | 130KG | |||
Rated power | 1.1KW | 1.1KW | 1.5KW | 1.5KW | |||
Full-loading Amps | 2.4amps/380V 4.2amps/220V | 2.4amps/380V 4.2amps/220V | 3.5amps/380V 5.7amps/220V | 3.5amps/380V 5.7amps/220V | |||
Area Coverage | 450-650m2 | 650-900m2 | 1250-1550m2 | 1550-2200m2 | |||
Notes:
1. Weight: the weight doesn't contain control box, top connection parts etc.
2. Size: the above-mentioned product size is standard, other sizes can be customized.
3. Noise: sound level measured in a distance of 1m from the motor, electromagnetic noise is less than 40DB.
4. Packing: export standard crates.
5. Area cover: effective area with average wind speed at 0.5m/s above, actually measured in open area.
Certifications

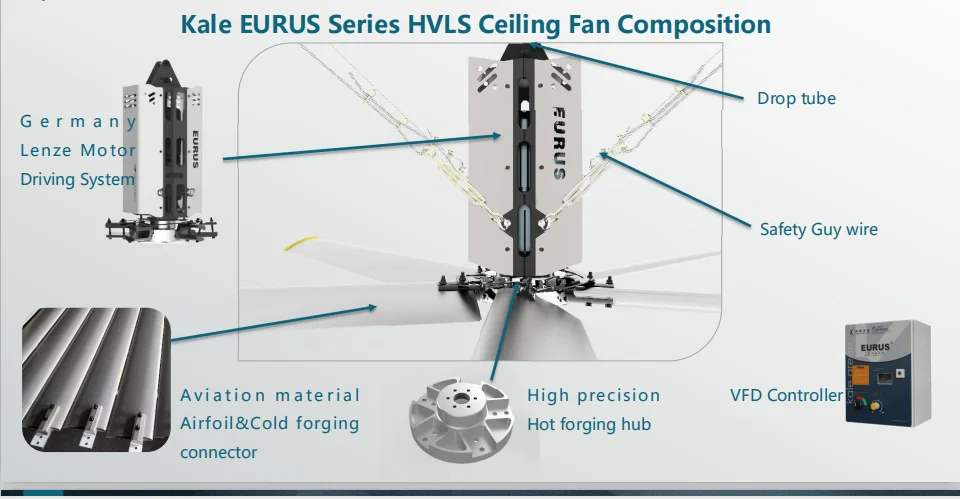

Key Components

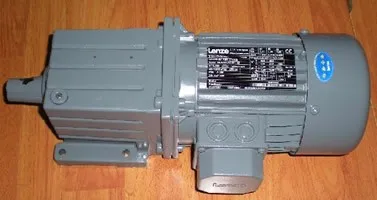

Motor System---imported Germany LENZE motor
1.Low backlash assembly process and gear grinding technique, lower noise.
2.Strength the bearing frame structure, increase oil seal and strength the motor structure with trapezoidal shaft structure, higher safety.
3.Adopt IE2 high efficient motor, save more 5-10% than IE1.
4.Passed CCC, CE, UL certificates
Control Sytem (VFD Controller)
1. Schneider electrical sets, with safety protection module inside which will interrupt the output automatically in case of some accidents.
2. Germany Rittal control cabinet, passed EMC by SGS and CCC certificates, meanwhile, passed anti-creeping tests which shields electromagnetic interference effectively.
Protection level is IP55, passing UL, EMC, LVD, ROHS certificates.
3. Danfoss VFD.

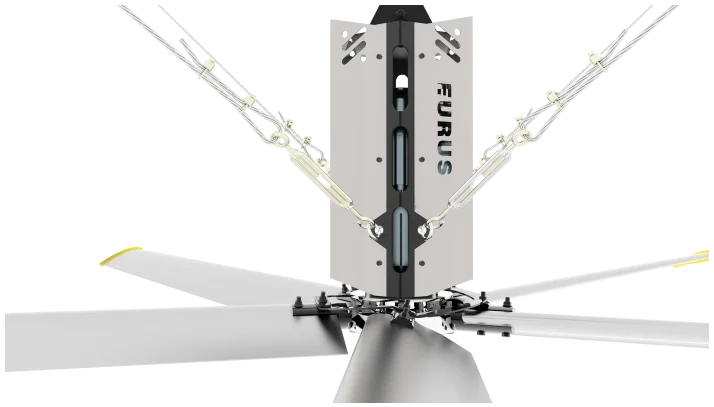

Driving Hub
Imported aluminum material and formed through 1500T hot forging+CNC lathe processing+CNC precious machincing technology. Processed by CNC, the precision error of chassis is within 100μm, making sure the precise dynamic balance.
Jacketed Connector
Grade 7050 hard aluminum material which is handled with heat to guarantee strength and toughness.It stood millions fatigue tests to avoid the problems of fan blade dropping due to long-time running.
Patented Kale Airfoil Blades™ Fan Blade
High strength aircraft grade magnalium, fluorocarbon paiting on surface, aerodynamic fan blade design. Patented Fan blade design: 3 sets reinforcing rib supports system inside, enhance the strength of fan blades and avoid sagging of fan tail and fatigue loss of connecting components.
Installation team
Packing & Delivery

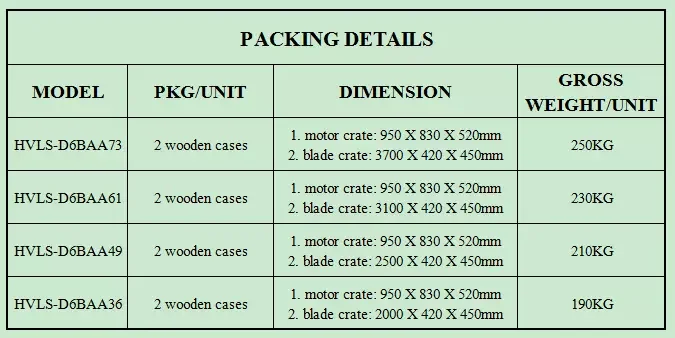

Packaging | ||
Pack | wooden box | |
Weight | seperated with motor and fans | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |

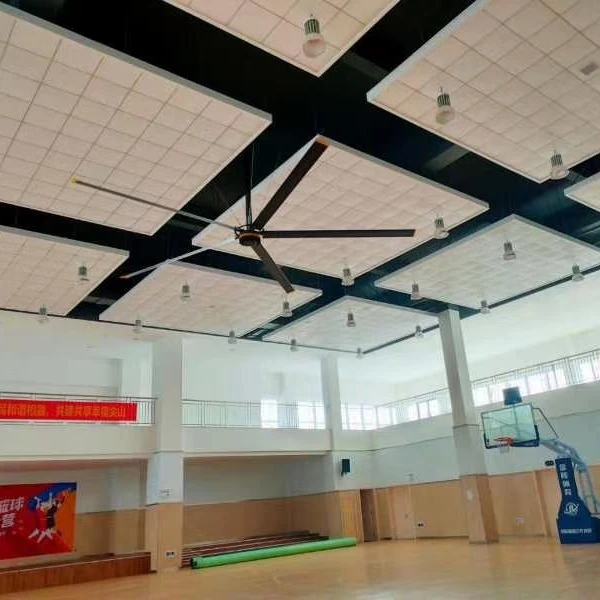

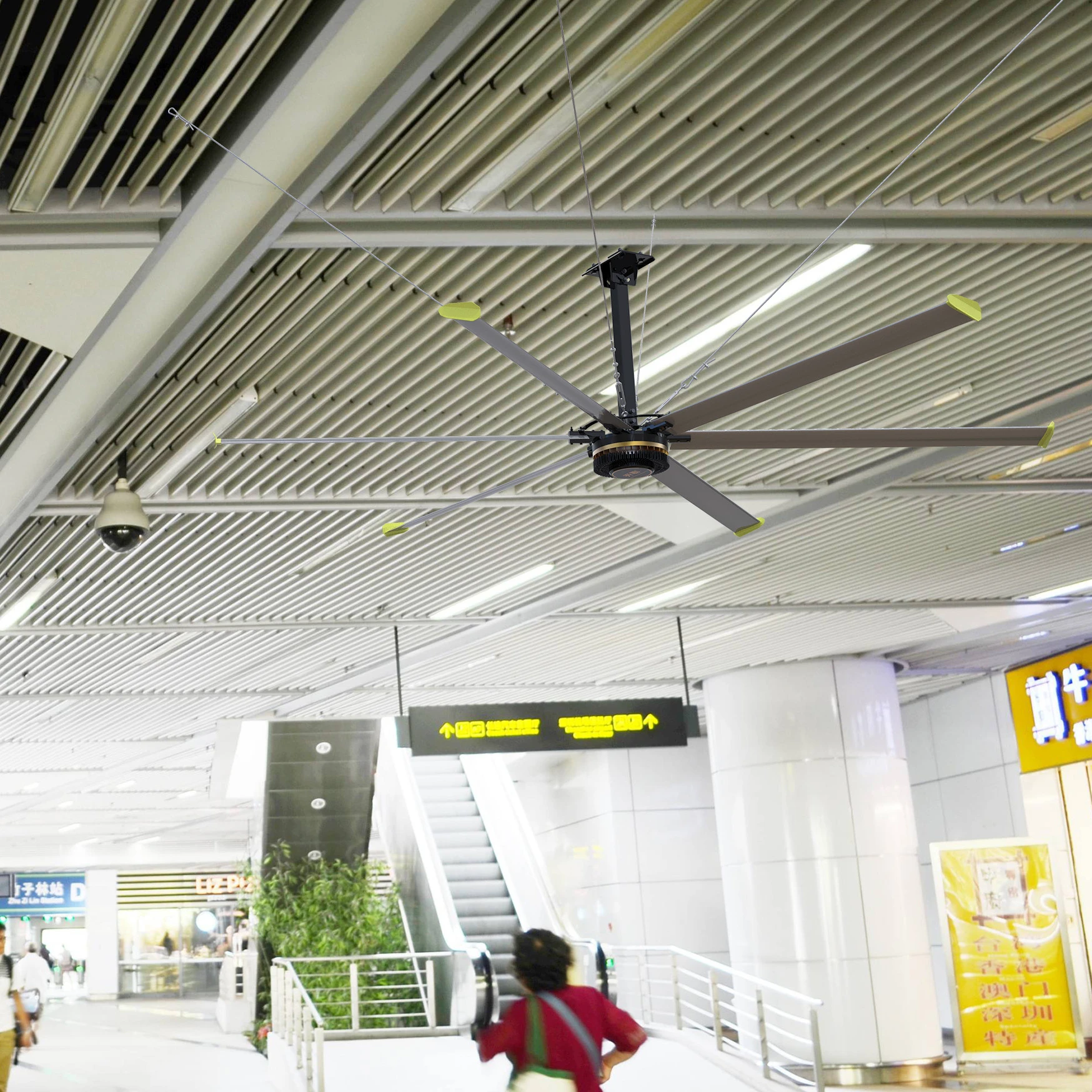

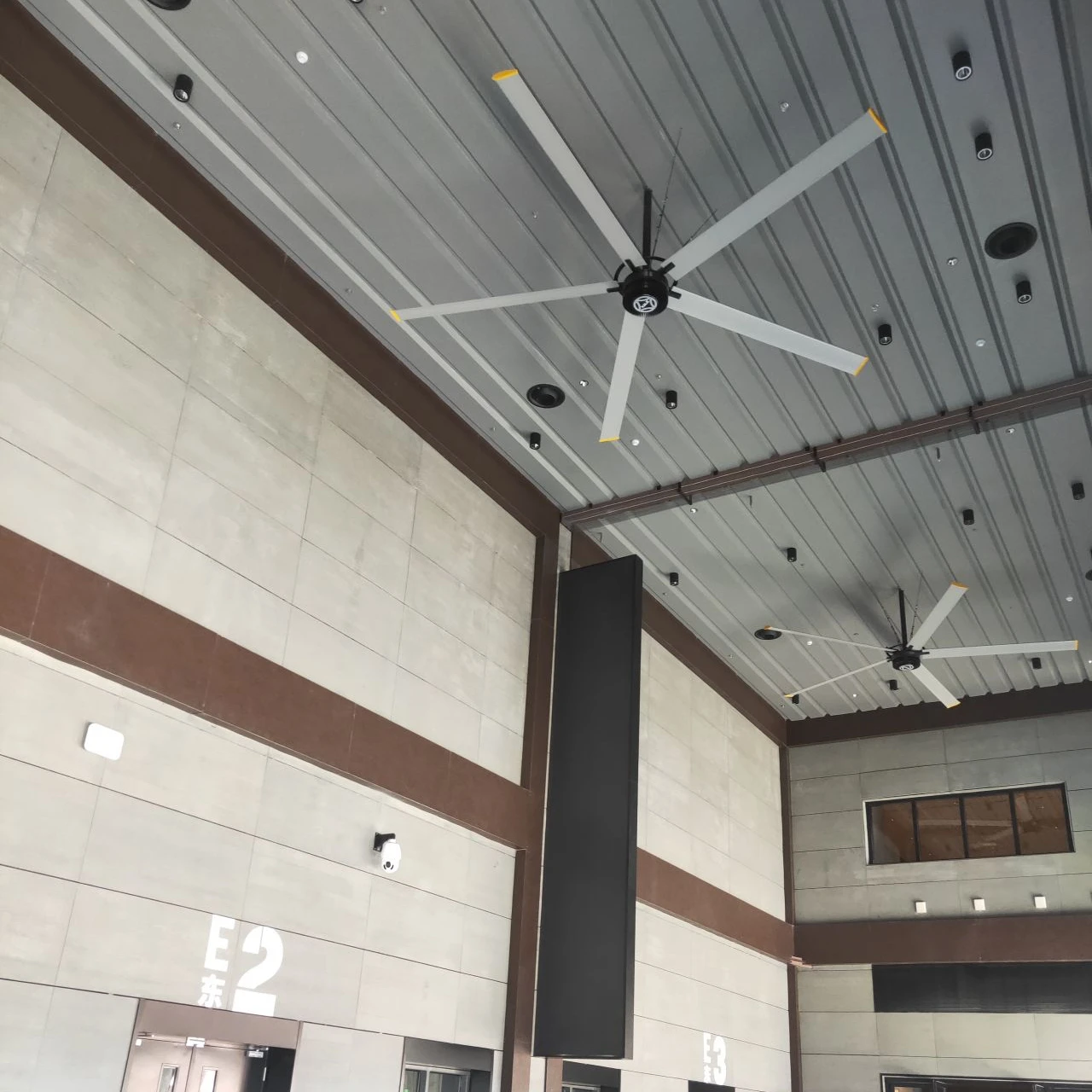

Application show
Farm

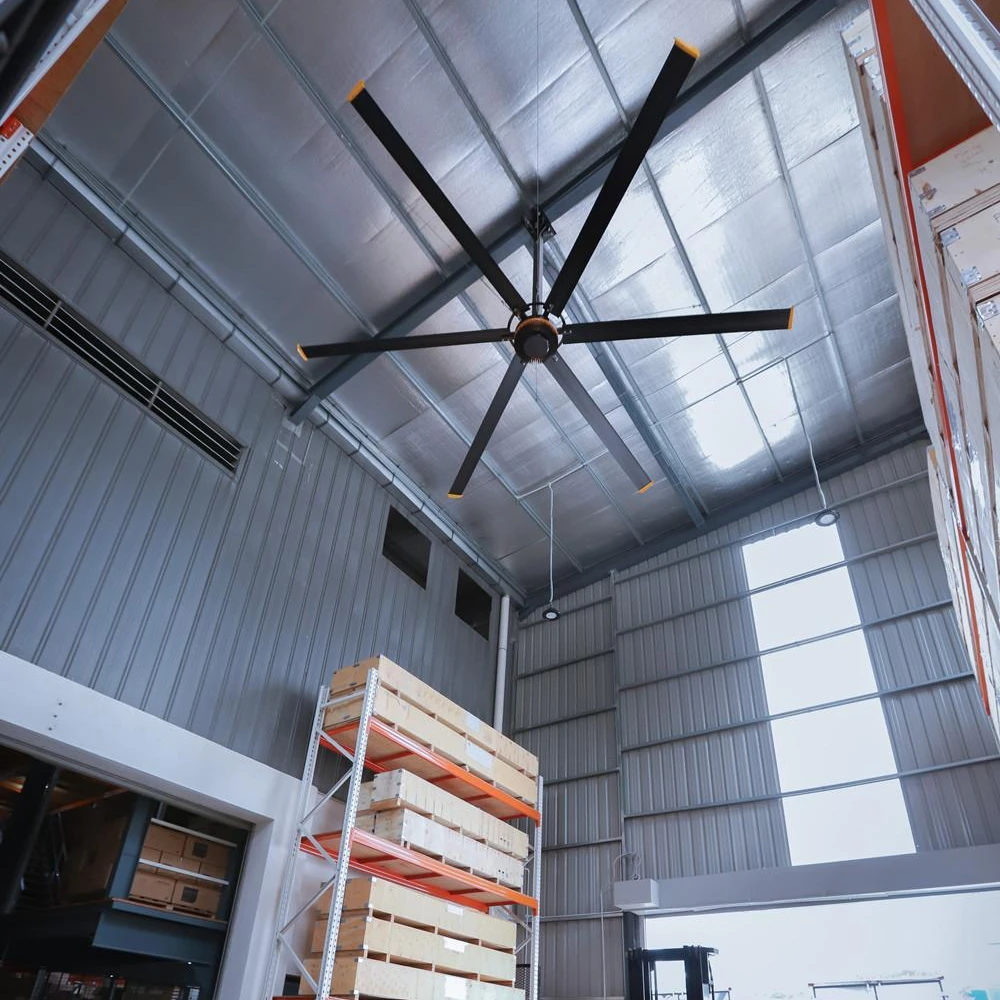

Warehouse venlilation

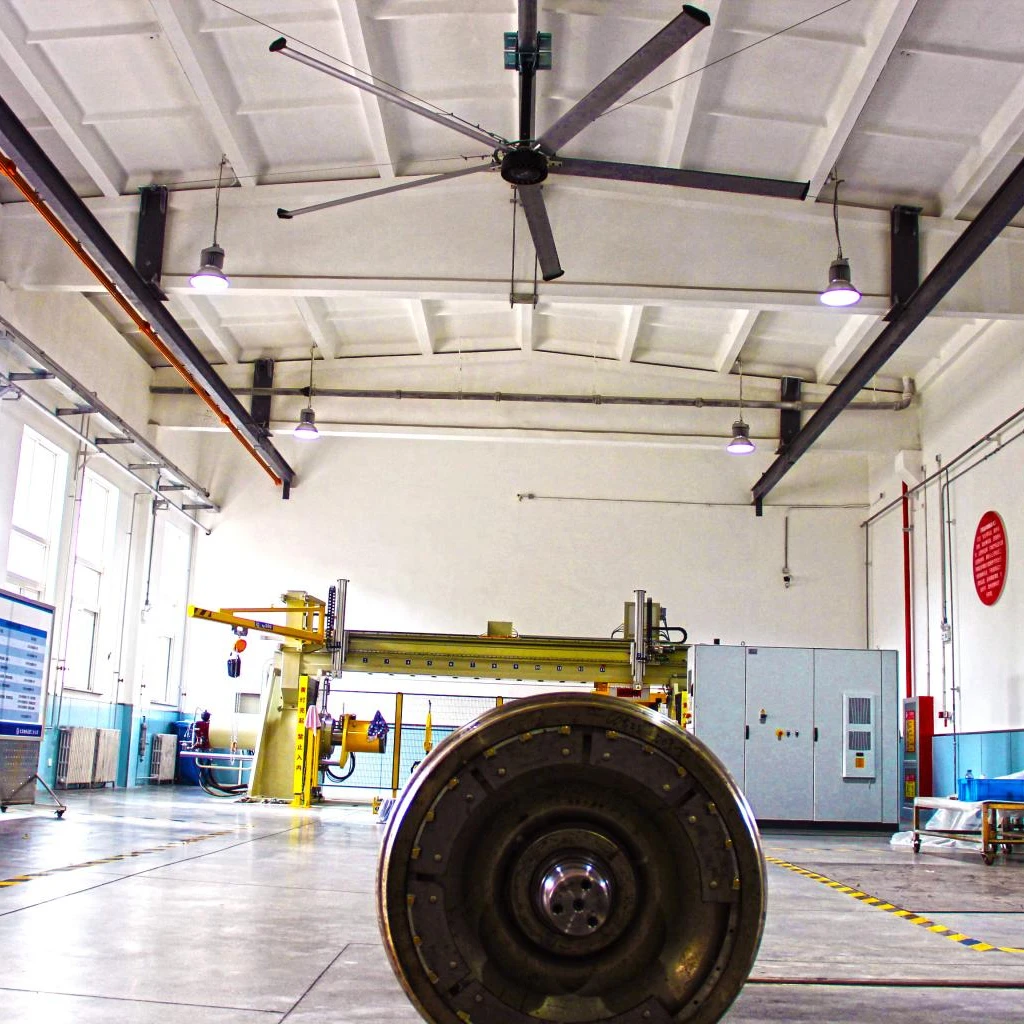

Factory workshop
Our Services
1. Every details we can concern: place order, manufacture, delivery, you just accept them.
2. 3-year warranty for each fan to guarantee.
3. Can customize as your reqiurements.
4. Free maintenance for the fan.
5. 24-hour per day service.
FAQ
Q: Are you manufature or trading company?
A: We are a factory in Shanghai, China. Focusing on large ceiling fans.
Q Where does your fan use in?
A: Ths fan is widely used in factory, logistics & warehouse, supermarket, halls etc.
Q: Is it powered electrcity?
A: Yes, it's power supply is electricity, but only 1.5KW or less, very energy-saving.
Q: What is the price?
A: That depends. We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 3-5 working days.
Q: How long is the warranty?
A: We offer 3-year warranty to guarantee the quality. Most importantly, its service life is 12-15 years.
