Agriculture vegetable/flower growing glass greenhouse with hydroponic growing system bucket

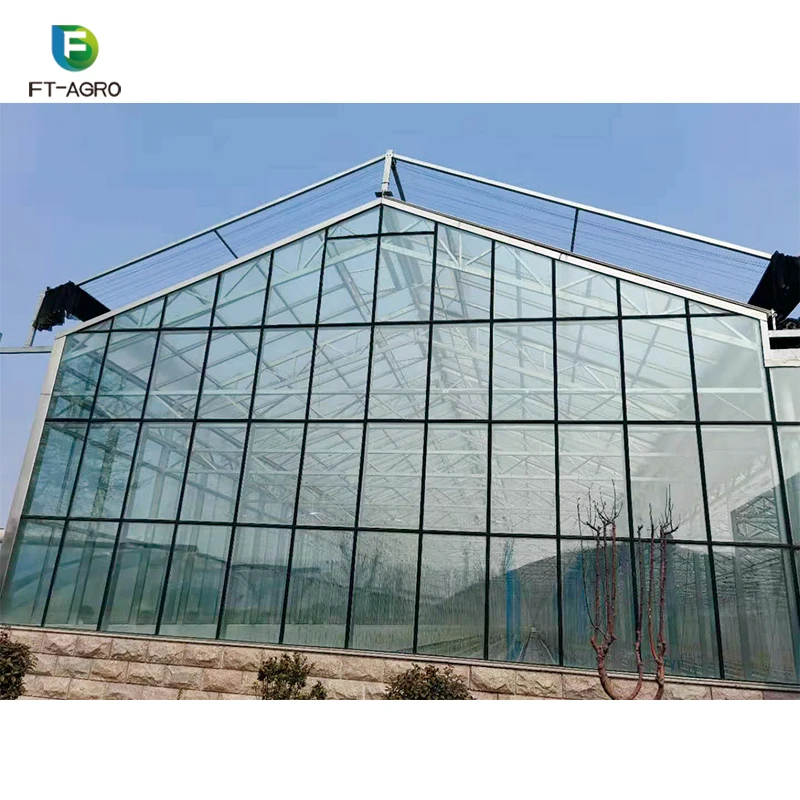

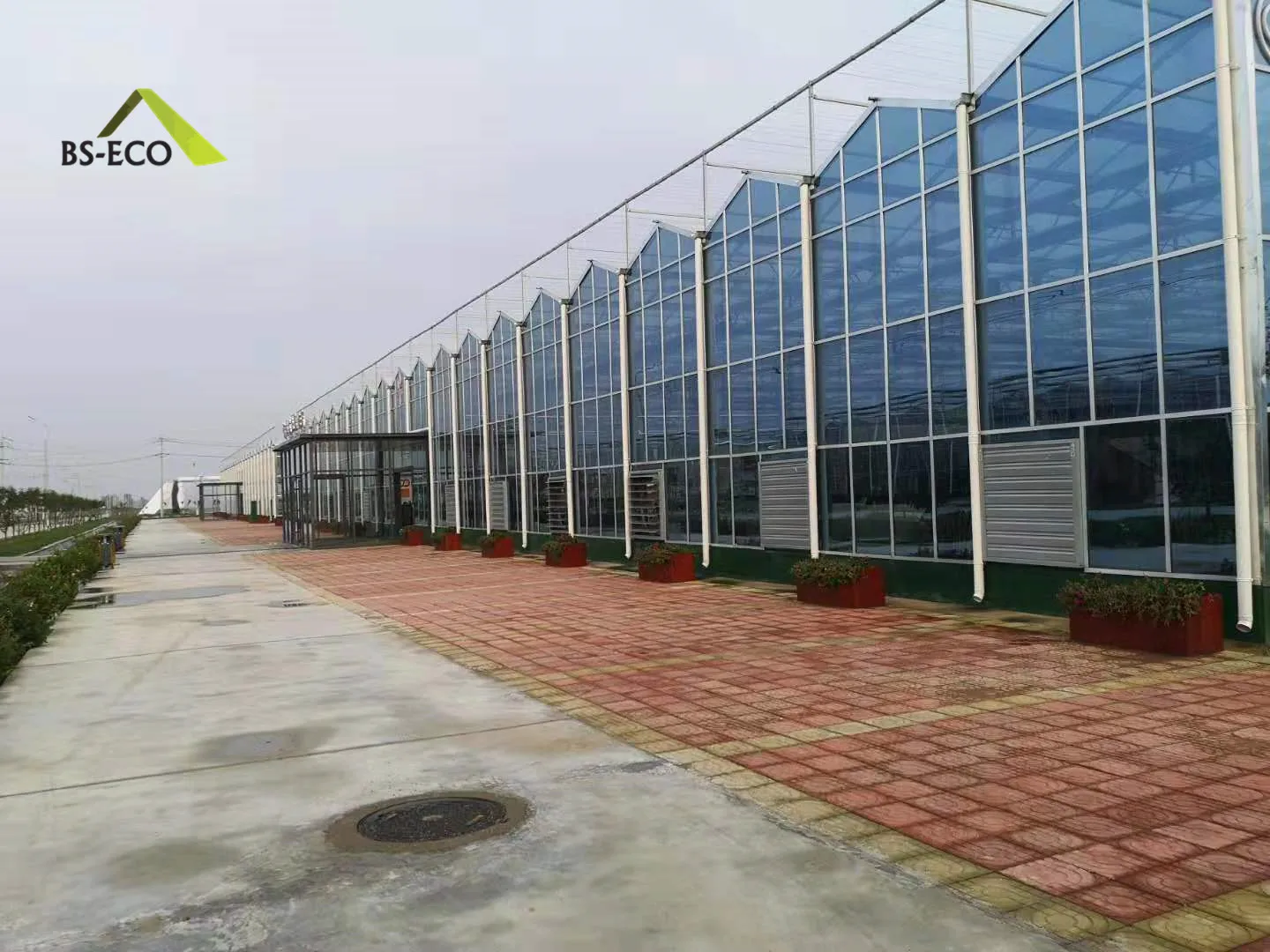

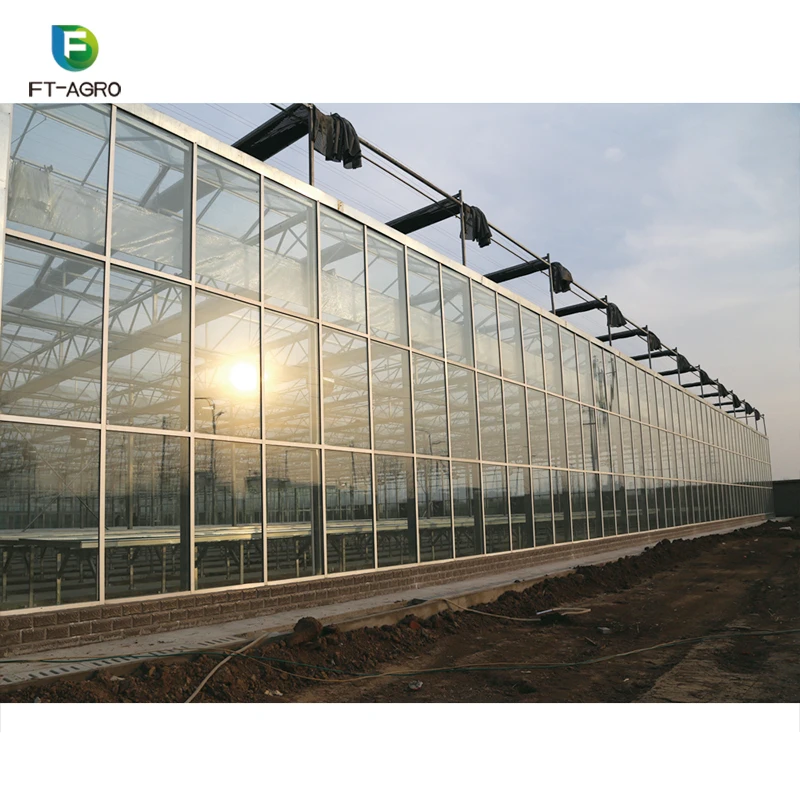

Glass greenhouses are luxurious, elegant and permanent.They are usually for commercial, research and luxury custom ecopark design. When you are inside of a glass greenhouse,the clarity of the glass will make you feel as if you are surrounded by your own cultivated paradise.This alone is enough reason for so many gardening enthusiasts to choose glass over PC sheet or plastic film for a greenhouse.

Glass Greenhouse Kits:

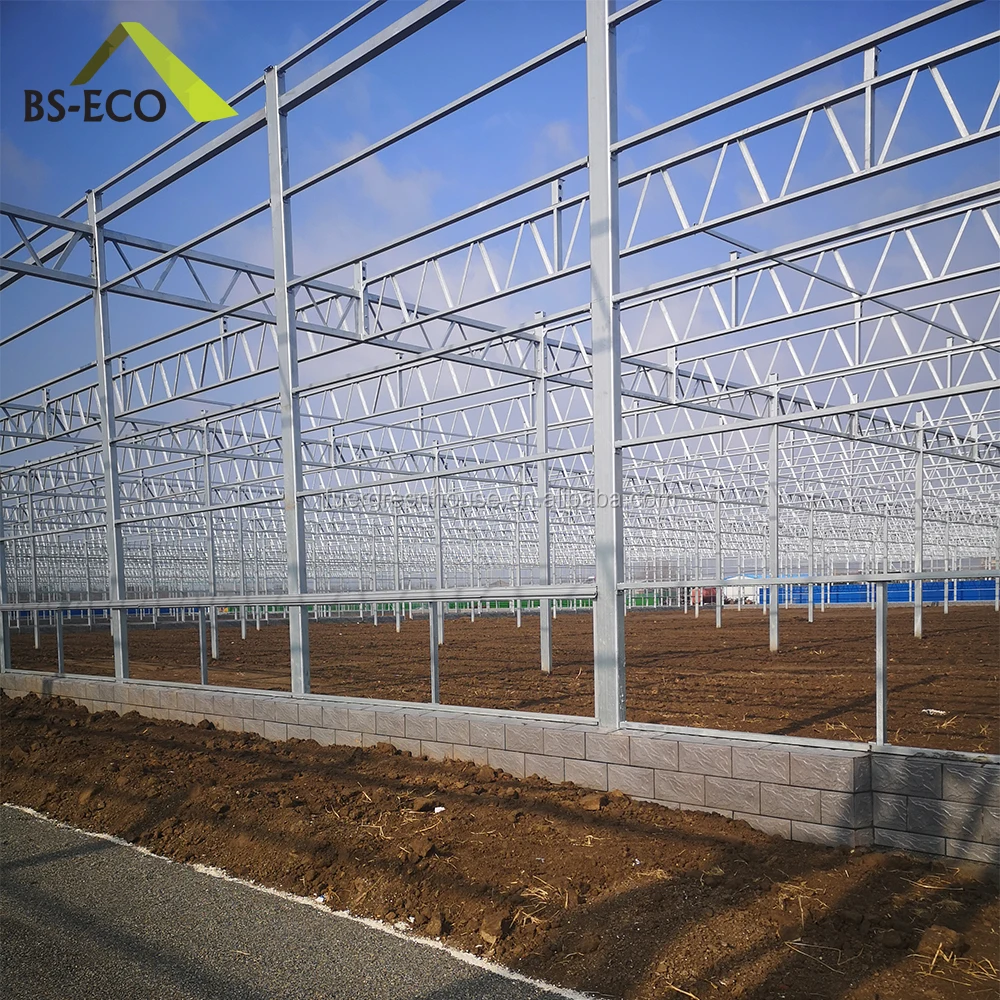

The greenhouse frame is made by the materials of hot dip galvanized steel pipes, connected by screws, bolts or suitable connectors. The roof can be pitched roof (supported by rectangular tubes) or arched roof (supported by circular tubes). The uprights of greenhouse is made by the rectangular tubes.The frame structure is anti-corrosion and high-temperature resistant.

Covering materials:

Glass is available on the roof or the side of the greenhouse,thickness of which can be 4mm or 5mm.and the glass greenhouses are luxurious, elegant and permanent. The clarity of the glass will make you feel as if you are surrounded by your own cultivated paradise. This alone is enough reason for so many gardening enthusiasts to choose glass over PC sheet or plastic film for a greenhouse glazing.

Optional system:

Ventilation system(side ventilation; top ventilation);

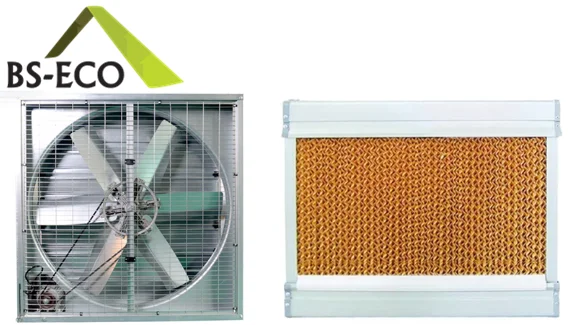

Cooling system(cooling pad; fan)

Heating system(boiler; heater fan)

Irrigating system(drip irrigation; spray irrigation)

Shading system(inside shading system;outside shading system)

Light compensating system

Power distribution system

Ventilation system()

The way of opening the top window includes one-side top window drove by rack and pinion, two-sides top window drove by rack and pinion, staggered top window drove by rack and pinion, electric roll top window, side window drove by rack and pinion, electrical roll side window, sliding window and etc.

The rack and pinion system has a number of rack and pinion racks. Under the action of the drive shaft, the greenhouse windows open. Due to conform to the direction of hot air flow, it can conducive to the flow of air and summer cooling and dehumidification. This system can effectively improve the greenhouse ventilation area, reduce costs, applicable to all types of greenhouse. Ventilation rate is up to 27%

Shading system

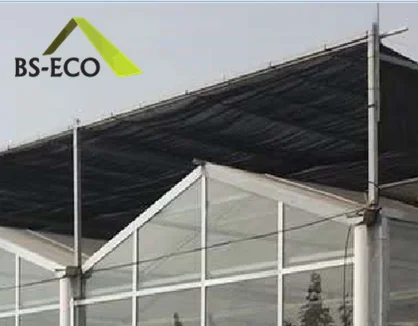

a. External shading system

The primary function of the system is to cool the heat in summer, the sun would diffuse into the greenhouse to ensure that crops from strong light burns. Due to blocking a significant amount of light into the room, it can effectively reduce the accumulation of heat in the greenhouse, drop 4°C to 6°C of room temperature.

Features:

Anti-ultraviolet, anti-hail, reduce the damage to the top of the greenhouse.

According to the different crops, use different shade curtains to meet the needs of various plants under the sunlight.

In summer, through the shade curtain can efficiently reflect part of the sunlight, drop room temperature 4 to 6 degrees Celsius.

b.Internal shading system

Anti-fog and anti-drip: After close the inner shading system, it will form two separate lower and upper spaces in the greenhouse, this can effectively prevent the formation of the fog in the greenhouse and the dewdrops. To increase the indoor insulation effect, we can use double shade system. The curtain has two types, breathable curtain, and insulated curtain, like waterproof space cotton insulation blanket. According to the need, we choose different light transmission capacity of the shade curtain or insulation curtain.

Energy saving and insulation: In winter and night, it can effectively prevent the heat inside the greenhouse through the radiation or heat exchange spill, thus reducing energy consumption and greenhouse operating costs.
