Горячая Распродажа, автоматический номер и буква, портативная штамповочная машина по металлу

Product Overview

Description

Hot sale automatially number and letter portable pin marking machine handheld





Competitive Advantage:

1. Fine marking effect with fast speed and high precision


2. Can be equiped with  special workpiece fixture to achieve fast clamping


3. Controlled by single chip microcomputer or industial computer


4. Full of marking functions and cost-effective for you


5. Good service and proven technology , you can rest assured to buy it!


6. Hot sale automatially number and letter portable pin marking machine handheld

Features



1. Marking automatically with whatever characters,such as Chinese,English,graphic,serial number,VIN code,etc


2. Marking clearly with the specially made alloy pin


3. Numerous option for fonts,supporting edit fonts


4. Marking depth is adjustable by controlling the air press


5. Save the marking contents,date and quantity automatically


6. Stable continuous working for 24hours


7. Can be Used for round surface such as flange,flywheel,brake flange,etc

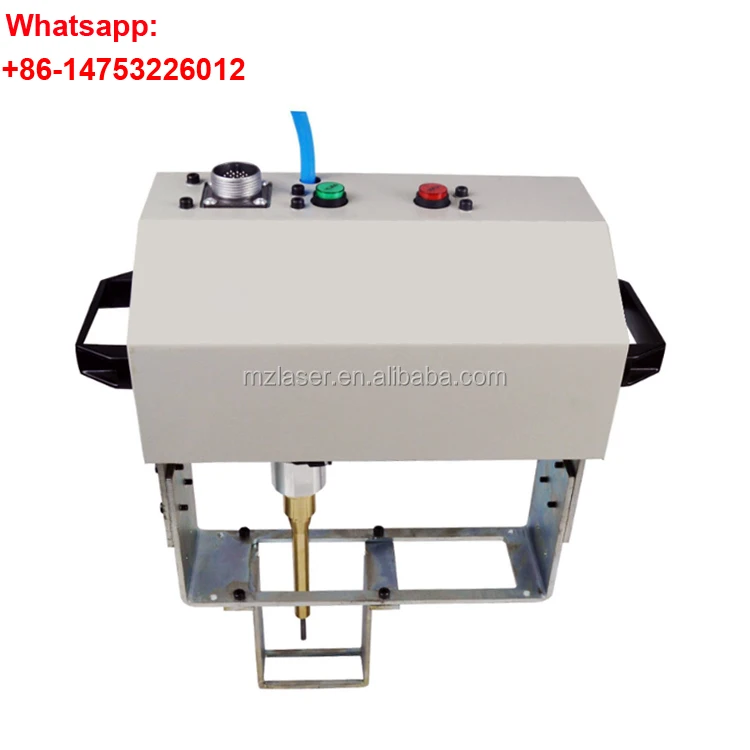

Hot sale automatially number and letter portable pin marking machine handheld IMAGE

Technical Parameters:



Operation System:	Windows98/2000/XP   win7 win8 win10            pin dot marking machine
Marking Area:	120*30mm, 150*30mm. 150×90mm 180x90mm
Min Character:	1×1mm for english (character size controlled by software)
Marking Speed:	3-6 characters/second
Marking Depth:	0.01 - 2mm (according to the material)
Marking Pin Hardness:	HRC95°
Impact Frequency:	300-400times/second
Marking Material:	All kinds of materials under the hardness of HRC65
Multiple Fonts:	Numerous fonds up to more than 100,supporting edit fonts
Weight Endurance:	Rotator holds up to 100KG workpiece,diameter 600mm(or customized)
Graphics:	Compatible with AutoCAD,CorelDRAW, CAXA
Accuracy Guarantee:	Character marking accuracy≤0.01 after 5years working
Rating Power:	150W
Compressed Air Supply:	0.2Mpa~0.5Mpa     Airflow:0.25L/S
Weight:	15KG                            dot pin marking machine handheld





Hot sale automatially number and letter portable pin marking machine handheld Samples:



Our after- sale service:



We have one year guarantee for the Hot sale automatially number and letter portable pin marking machine handheld and 3 months guarantee for consumables. We will provide an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.



Thanks for visiting Hot sale automatially number and letter portable pin marking machine handheld

Your inquiry is welcome!
