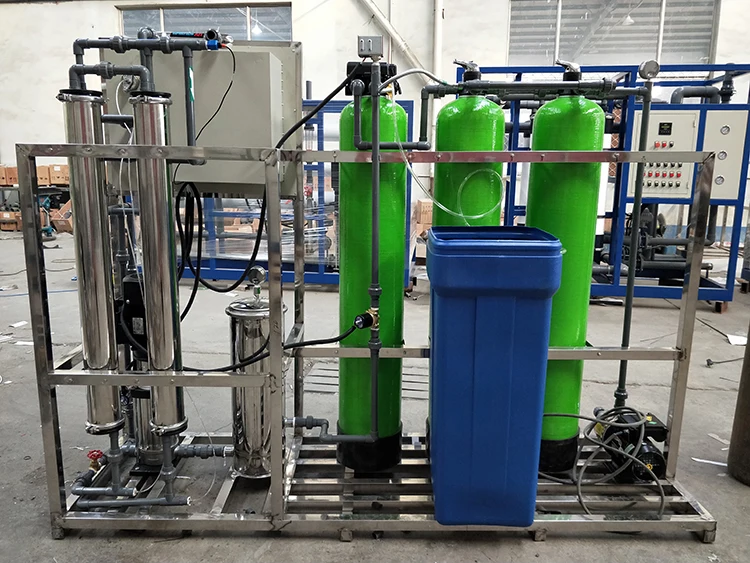

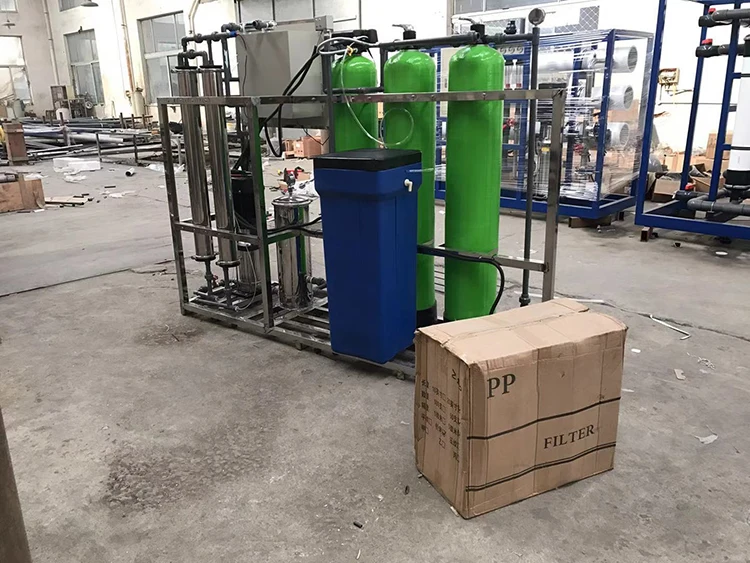

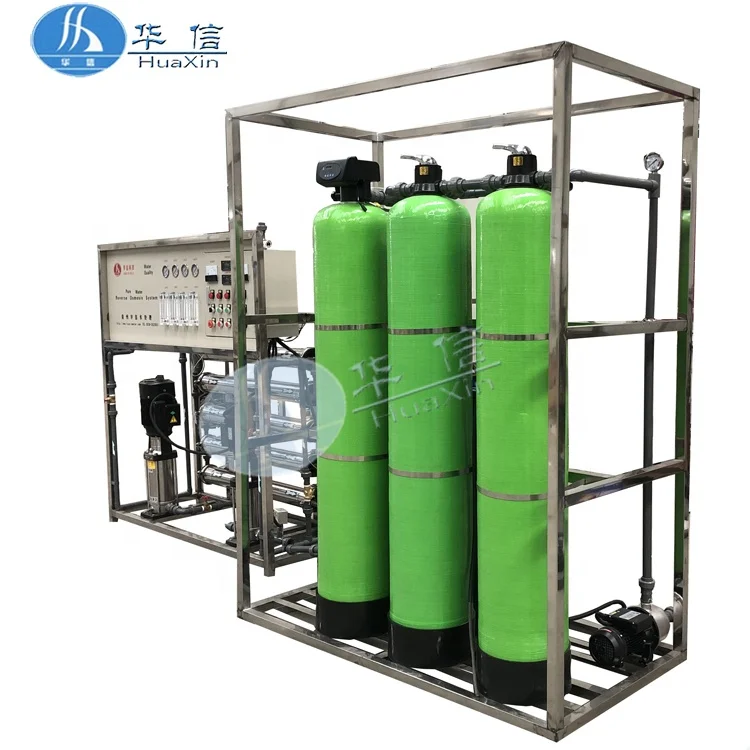

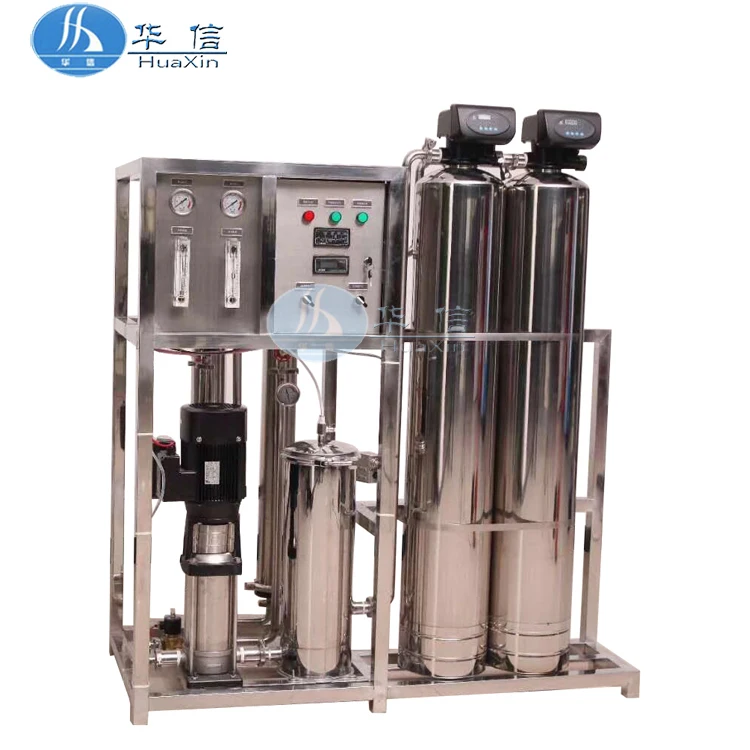

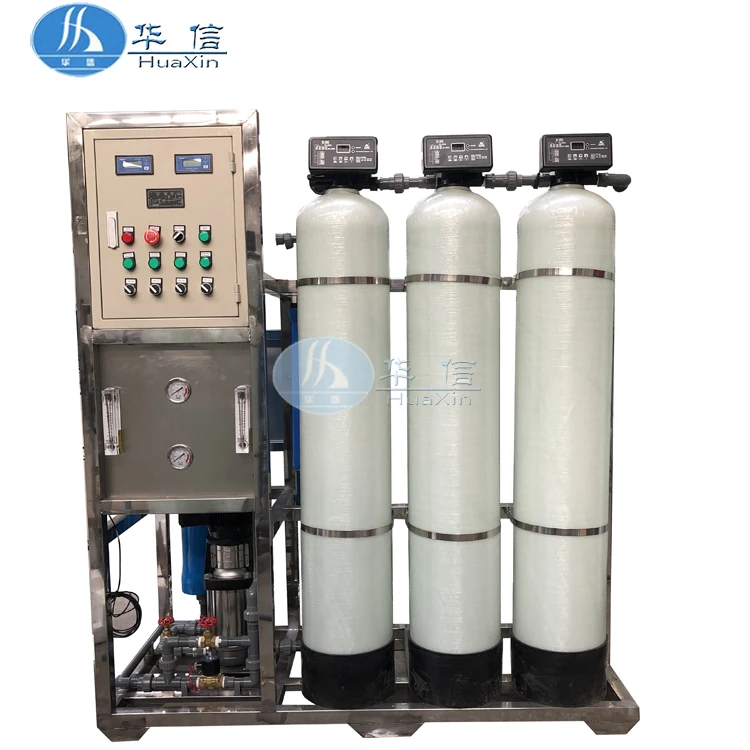

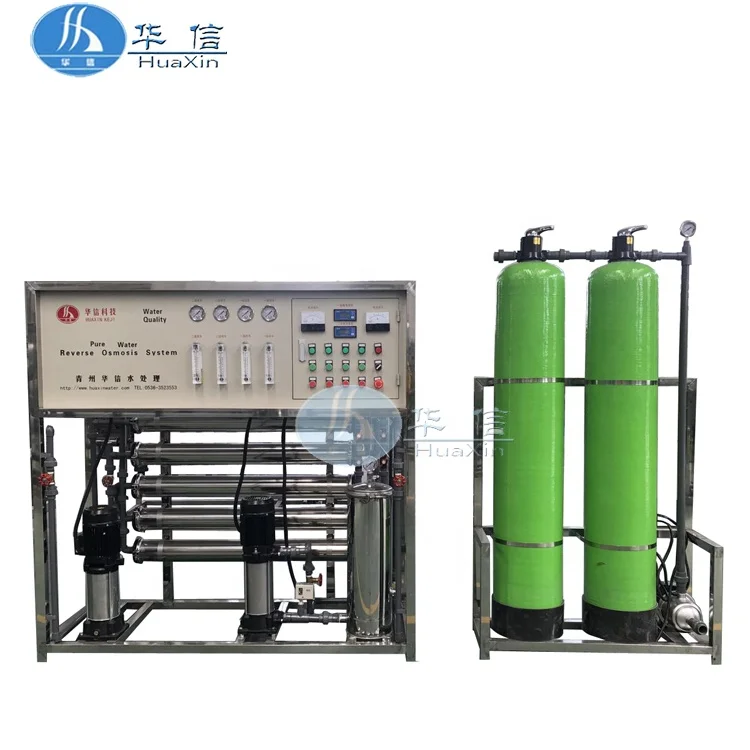

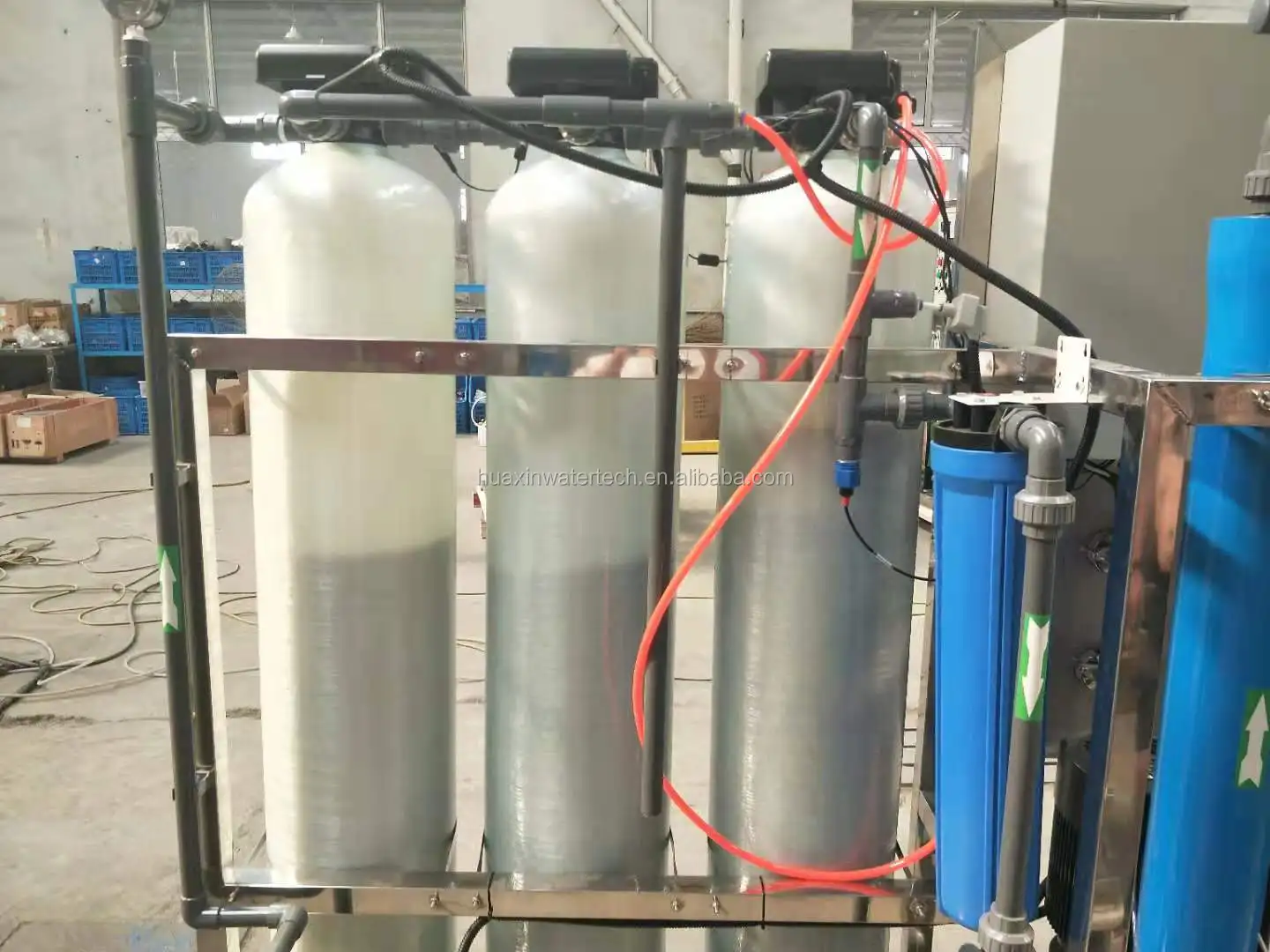

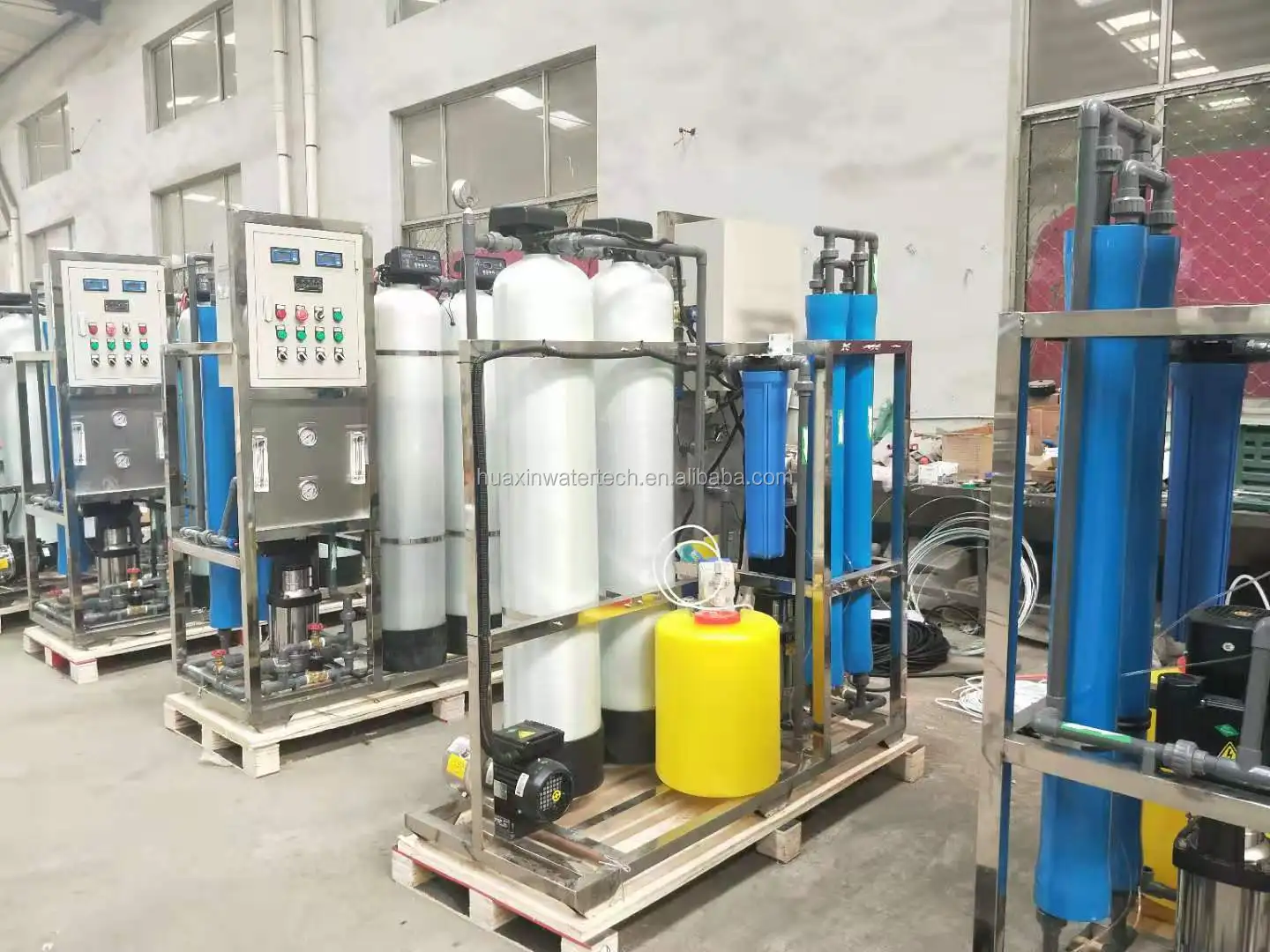

New products 2019 technology ro water treatment plant for dialysis

FLOW CHAT

raw water→raw water tank→ raw water pump→ sand filter→ carbon filter→softener (optional)→ security filter→ high pressure pump→ reverse osmosis system→ UV sterilizer (ozone generator) →pure water storage tank

1. Quartz sand filter -- mainly used for the removal of sediment from water.
2. Active Carbon filter-- mainly used for chlorine removal and other organic gases and to clear up the taste of water .
3. Water Softener-- exchange "ions" of calcium and magnesium with the most common and easiest method.
4. Precision filter-- mainly used for removing microorganisms,chlorine,part of the heavy metal ions more precisely
5. High pressure pump-- Provide the high pressure to RO membrane ro.
6. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions. RO membranes combine auto wash and manual wash together which can protect RO membrane easily.

7. Ozone generator - Kills 99.9 percent of known harmful bacteria.

Key part:

RO system is the key to the whole system .RO membrane filtration precision is 0.0001micron, desalination rate is 98-99%, all the salts and germs are removed.
