Product Overview
Description
Product Description

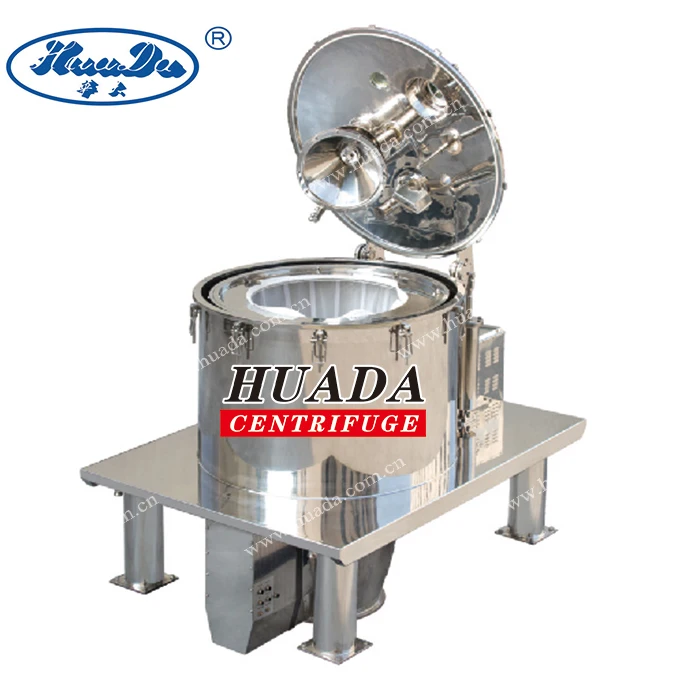

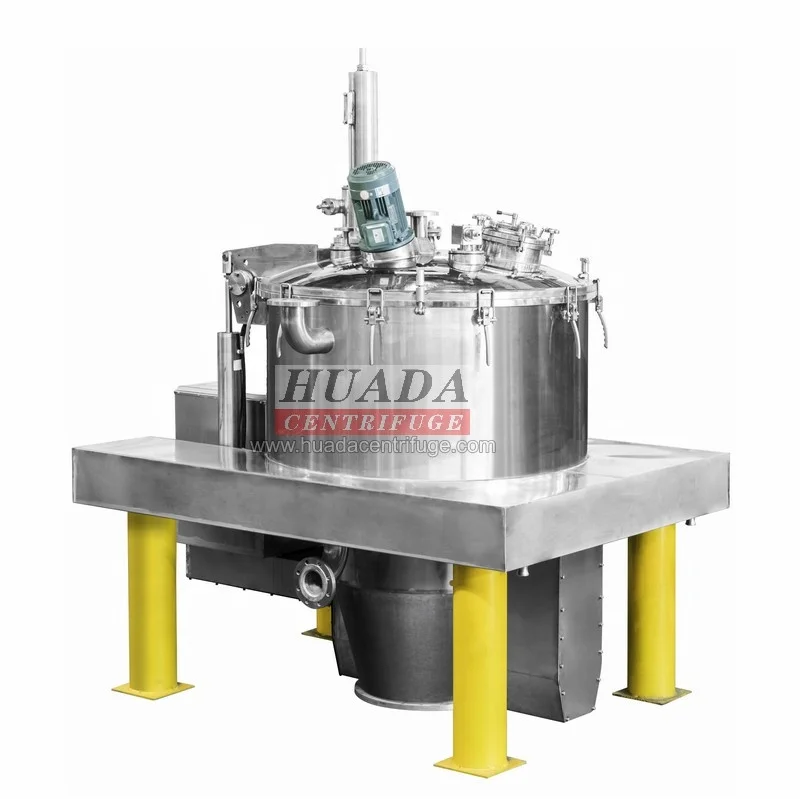

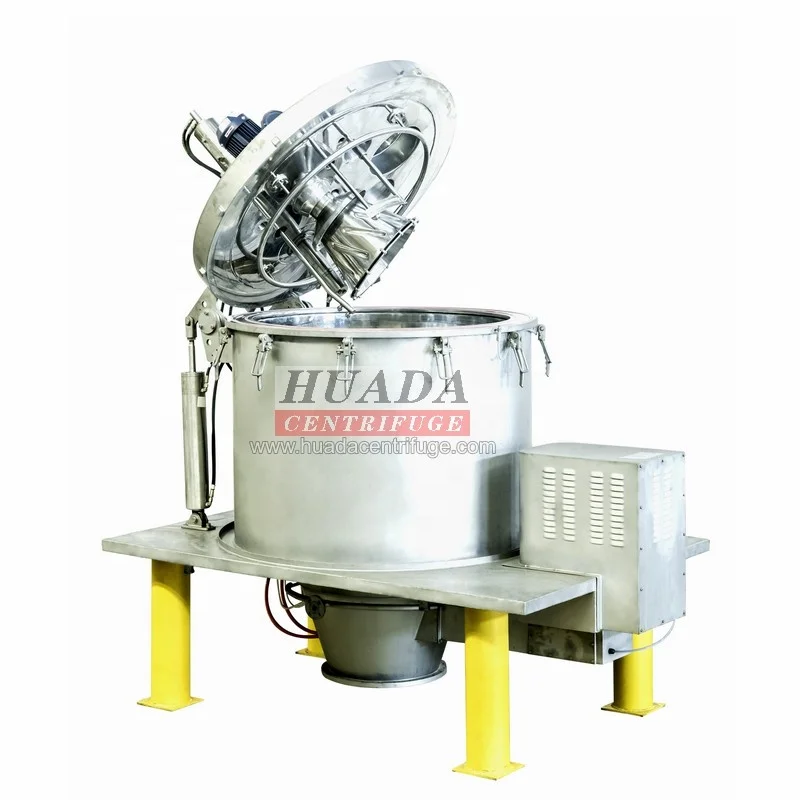

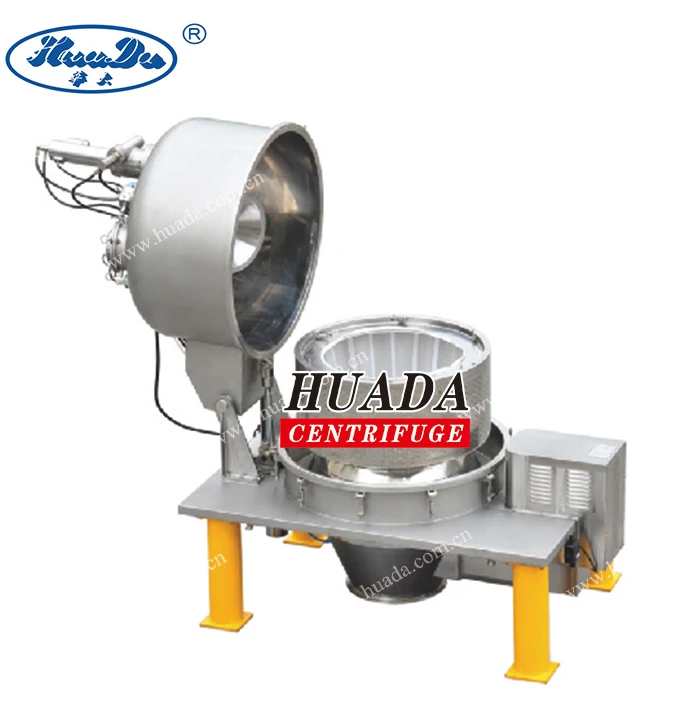

PLD series bag-pulling bottom discharge scraper centrifuge is a type of new product with fully independent intellectual property independently developed by us. This series centrifuge retains such primary functions offered in the LGZ series as the solid-liquid separation and scraper discharge, and adds such function as to remove the residual solid cake by pulling filter cloth with the removal rate higher than 99%. PLD series avoids crossing and mixing of different batches of separated products, and also eliminates the effects of the residual solid cake on the basket wall. It is mainly used in the solid-liquid separation process of crystallized materials in such industries as pharmacy, food, gourmet powder and chemistry.
Bottom Discharge Centrifuge in Operation Video:
//www.huada-video.com/pld-bag-pulling-bottom-discharge-scraper

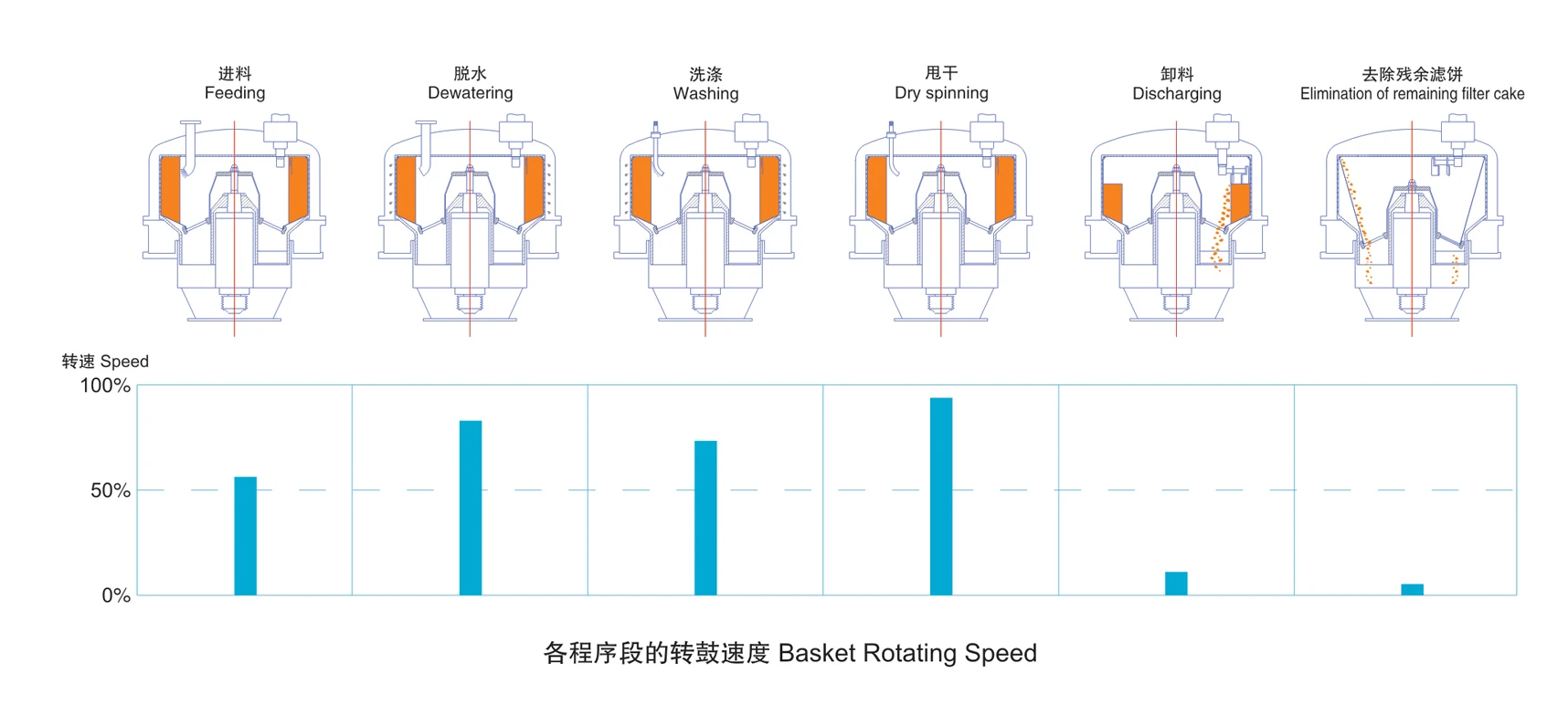

Material to be separated enters into the basket of the centrifuge that is rotating at high speed through a feeding pipe, and under action of the centrifugal field, the material passes through the filter cloth (screen) for filtration. Then the liquid phase discharges through the discharge pipeline, while the solid phase is retained in the basket. Feeding stops once the basket is filled with the material, then wash the solid cake, and discharge the washing liquid through filtration. The centrifuge continues to rotate to spin-dry the solid cake. After the solid cake meets the requirements for separation, the centrifuge reduces its speed, and removes the cake by means of the scraper, then discharges the cake out of the centrifuge. The centrifuge further reduces its speed so that the pneumatic pulling bag device moves reciprocally to shake off the residual solid cake, thus completely eliminating the solid cake.

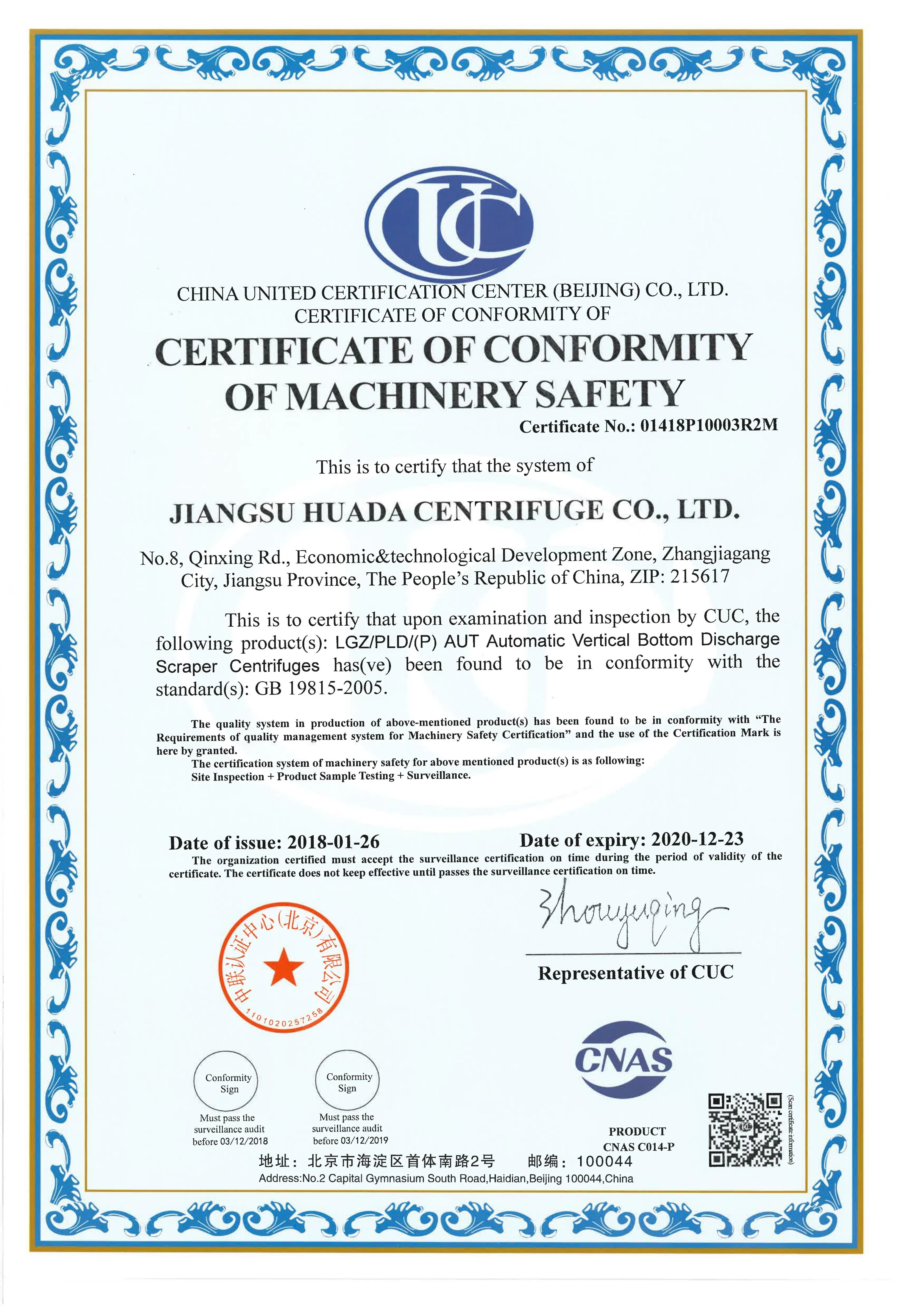

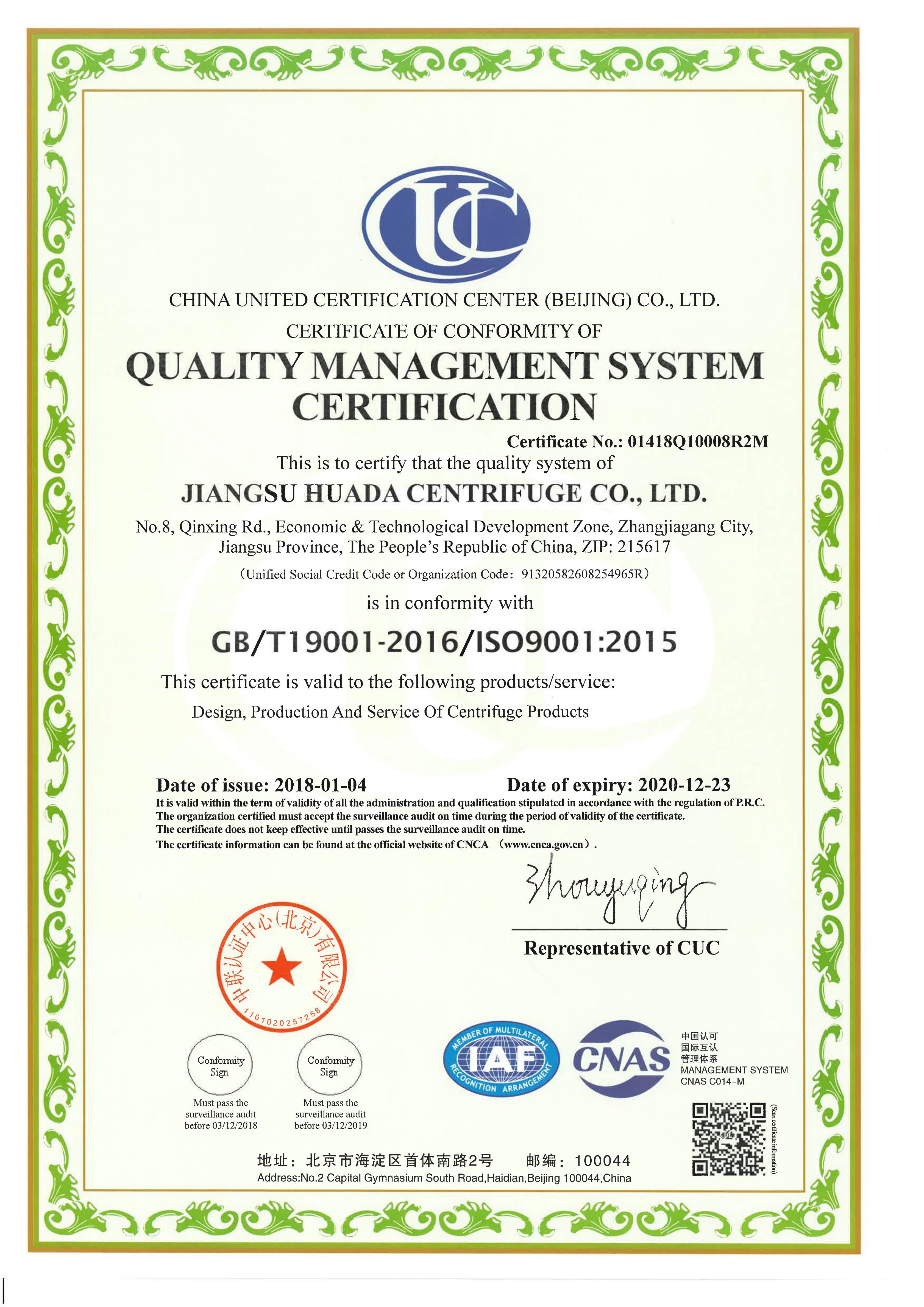

Certifications
Applications
Operation Procedures
It can be widely used to separate the suspension containing particles, but also fibers, especially the highly sticky, containing micro particles, poisonous and flammable materials, like antibiotics, vitamins, and minerals, salts, gourmet powders, foodstuff additives, amylum, sugar, chemical flavors, thiamin, plasters, sodium sulfate, bluestone, potassium chloride, borax, dyestuffs, pigment, resin, pesticides, and environmental protection. The centrifuge is highly automated, has large capacity and can be remote-controlled.It is mainly used in the solid-liquid separation process of crystallized materials in such industries as pharmacy, food, gourmet power and chemistry.
Main Features
In addition to all main features of the LGZ series centrifuge, the PLD series centrifuge features as follows: | ||||||||
◇Removing the residual solid cake by bad-pulling method. Eliminate all solid cakes left over the process of scraper discharging through reciprocal movement of the pneumatic pulling bag deice. | ||||||||
◇Design of removable lip ring in the basket with reliable self-locking, which is easy for changing the filter cloth. | ||||||||
◇External cylinder+ rod drive design, reliable in work. | ||||||||
◇Fully-enclosed discharge hopper design separating the material from the driving components of the centrifuge. | ||||||||
Configurations
◇External construction: Multiple constructions including big hinged cover, fully hinged cover and flat cover

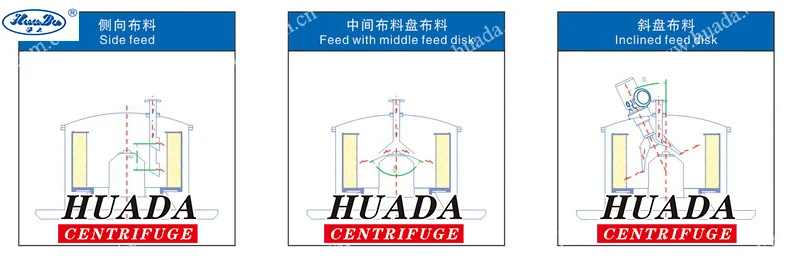

◇Feed type: inclined feed disk, side feed, middle feed pipe and material level detection device
◇Scraper discharge: Pneumatic, hydraulic and liquid-phase skimming disc
◇Motor drive: Common motor, inverter-duty motor and explosion-proof motor
◇Feed type: inclined feed disk, side feed, middle feed pipe and material level detection device
◇Scraper discharge: Pneumatic, hydraulic and liquid-phase skimming disc
◇Motor drive: Common motor, inverter-duty motor and explosion-proof motor
◇Safety protection: Nitrogen protection (anti-explosion) system, vibration protection, temperature protection, electric-mechanical interlocking, speed monitoring and overload protection.
◇CIP system: Cleaning ball and spray pipe
◇Washing mode: Atomized nozzle rinsing, feed disk washing, pulse type washing
◇Nitrogen protection system: Automatic control device, hydraulic sealing device and gas-liquid separator.
◇CIP system: Cleaning ball and spray pipe
◇Washing mode: Atomized nozzle rinsing, feed disk washing, pulse type washing
◇Nitrogen protection system: Automatic control device, hydraulic sealing device and gas-liquid separator.
Parameters
Items | Models | ||||||||
PLD800 | PLD1000 | PLD1250 | PLD1600 | PLD1800 | |||||
Basket Dia (mm) | 800 | 1000 | 1250 | 1600 | 1800 | ||||
Basket Volume (L) | 100 | 175 | 400 | 800 | 1250 | ||||
Max. Load (kg) | 135 | 235 | 500 | 1000 | 1500 | ||||
Max. Rotating speed (r/min) | 1200/1500 | 1100/1200 | 1000/1200 | 850 | 800 | ||||
Centrifuge Force | 645/1008 | 677/805 | 700/1008 | 647 | 645 | ||||
Motor (kW) | 7.5/11 | 15 | 22/30 | 37 | 55 | ||||
Dimension (L*W*H) (mm) | 2050*1250*2000 | 2350*1450*2350 | 2550*1800*2550 | 3200*2400*3000 | 3500*2500*2300 | ||||
Weight (kg) | 2000 | 3500 | 5000 | 10000 | 15000 | ||||

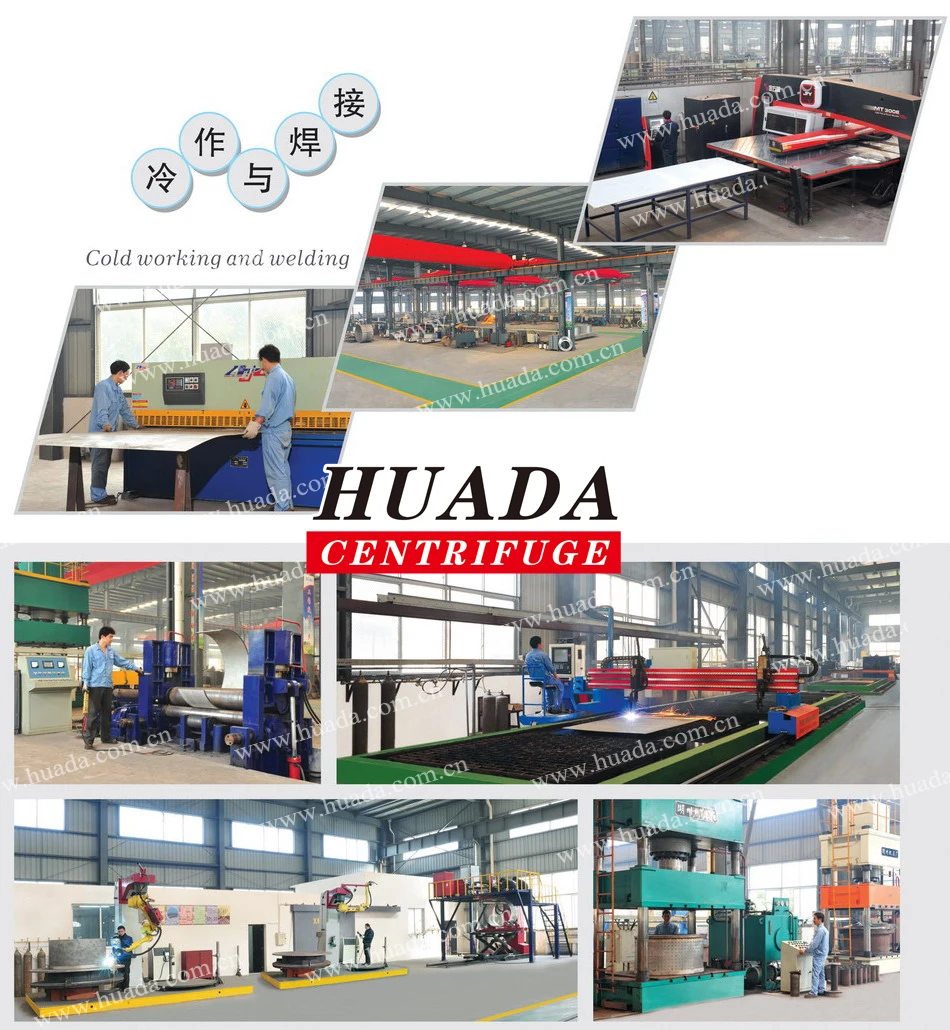

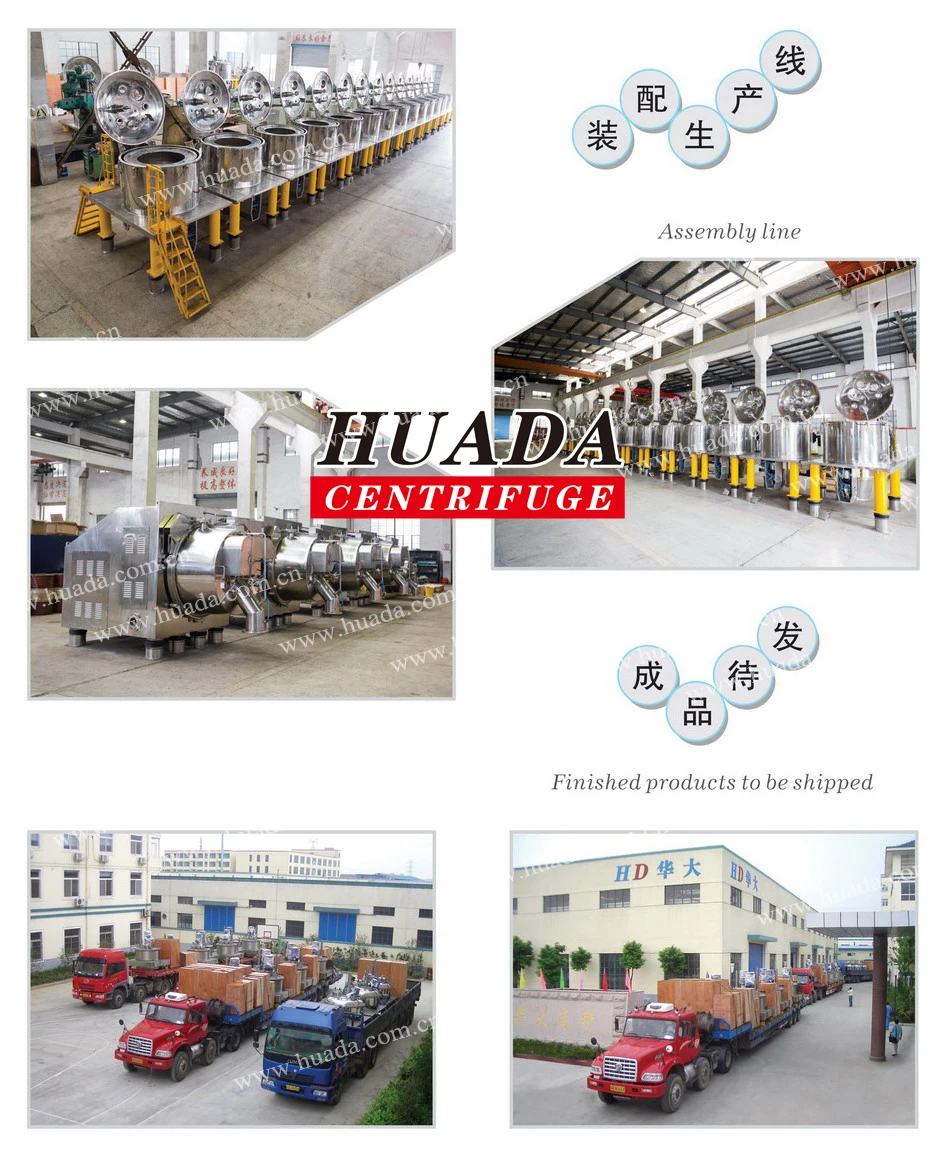

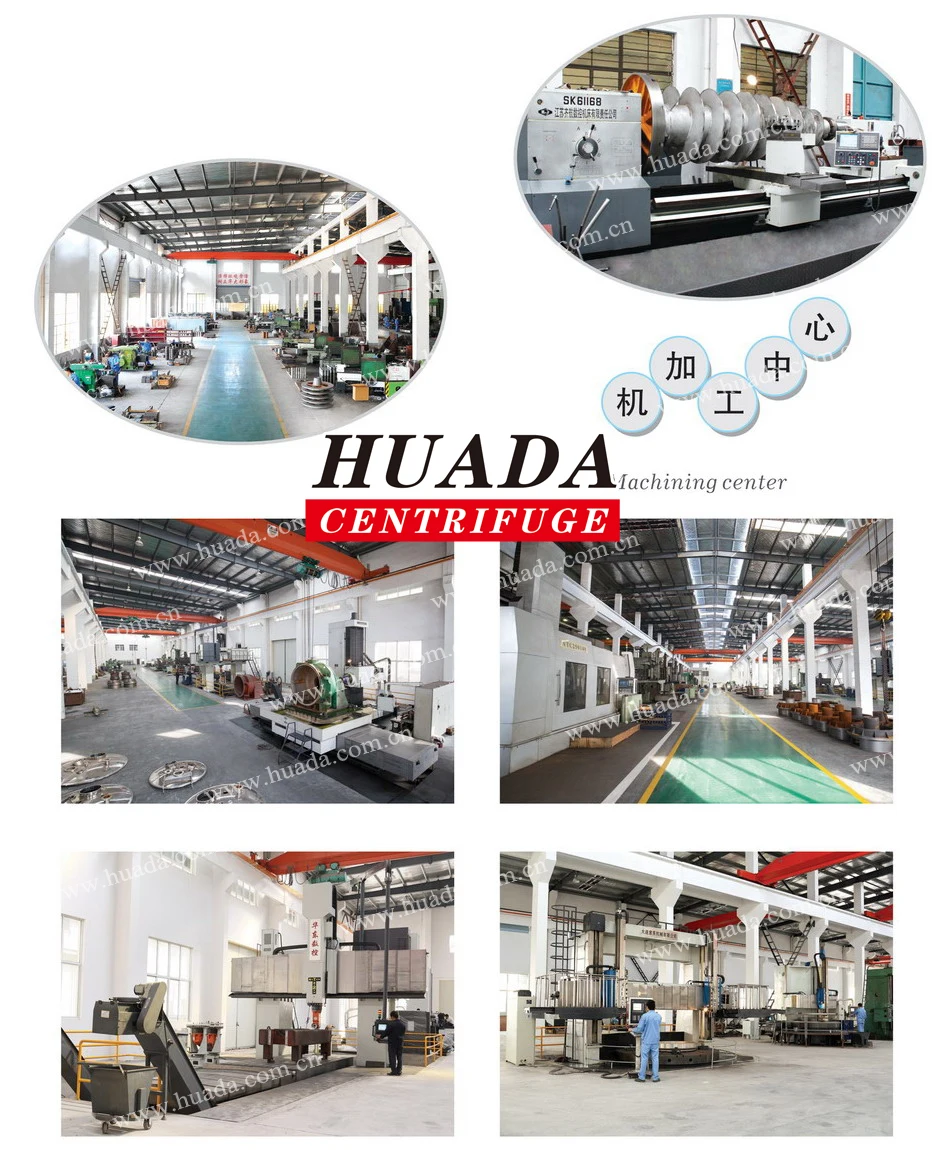

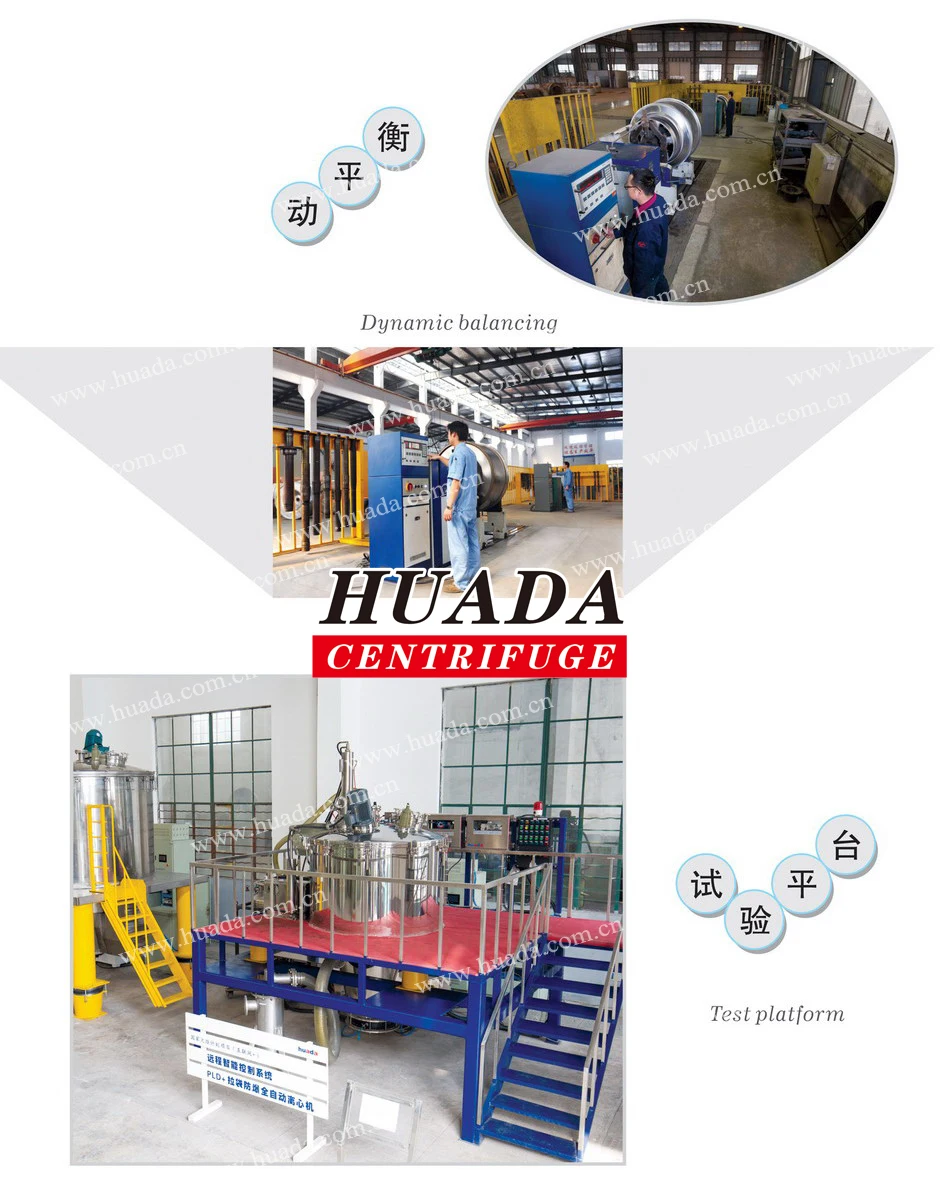

Production site
About us

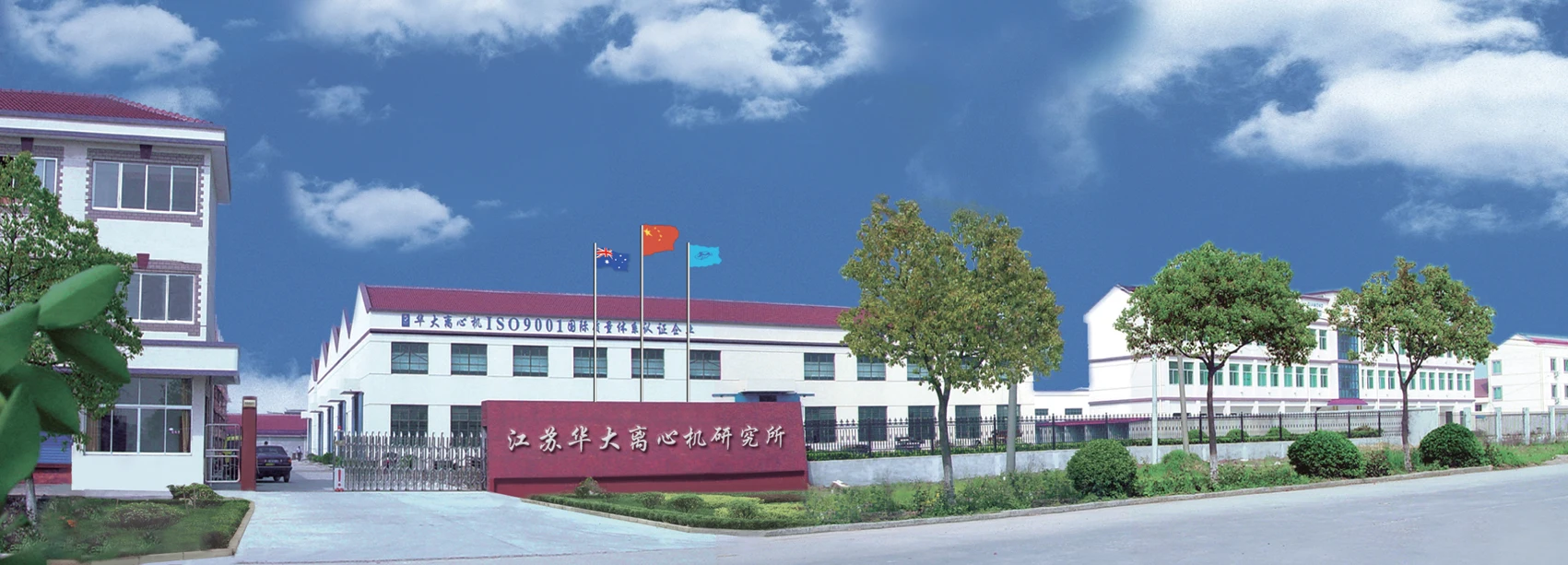

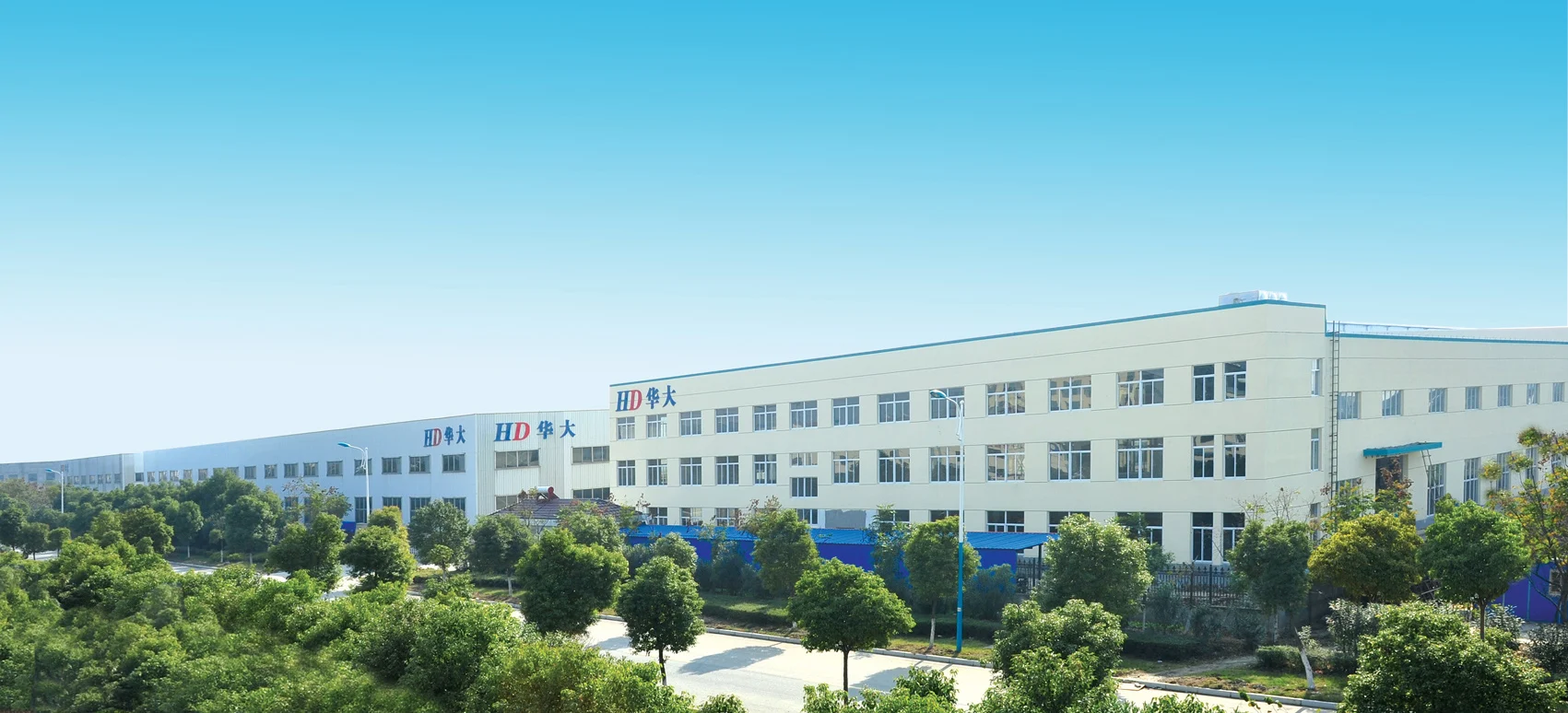

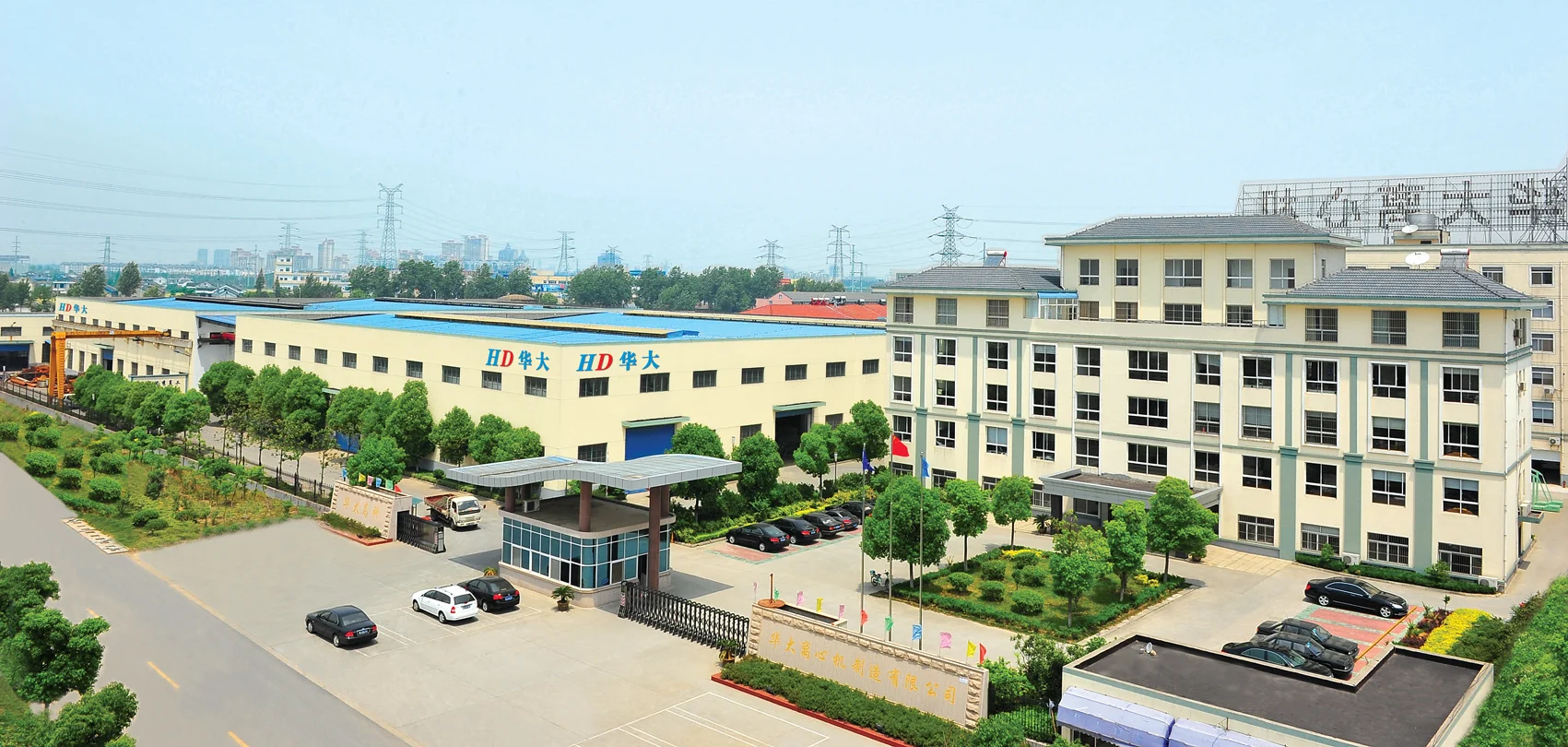

Found in 1993, Jiangsu Huada Centrifuge Co., Ltd. is located at Zhangjiagang City, an emerging port city in China, which is situated in China’s most economically advanced Yangtze River Delta region, with convenient traffic and beautiful environment.
Over 20 years. Huada had always been being devoted to research and development, production and marketing of filtration and separation machinery. With technical innovation as driving force of the enterprise to participate in market competition, we have developed series of centrifuges with high technical content, to meet the market demand; to gain the market by serving customers, we have accumulated extensive experience in application through years of technical research and development and sales application and can provide perfect pre-sale, sale and after-sale service; we ensure product quality with lean management and improve product reliability.
Over 20 years. Huada had always been being devoted to research and development, production and marketing of filtration and separation machinery. With technical innovation as driving force of the enterprise to participate in market competition, we have developed series of centrifuges with high technical content, to meet the market demand; to gain the market by serving customers, we have accumulated extensive experience in application through years of technical research and development and sales application and can provide perfect pre-sale, sale and after-sale service; we ensure product quality with lean management and improve product reliability.

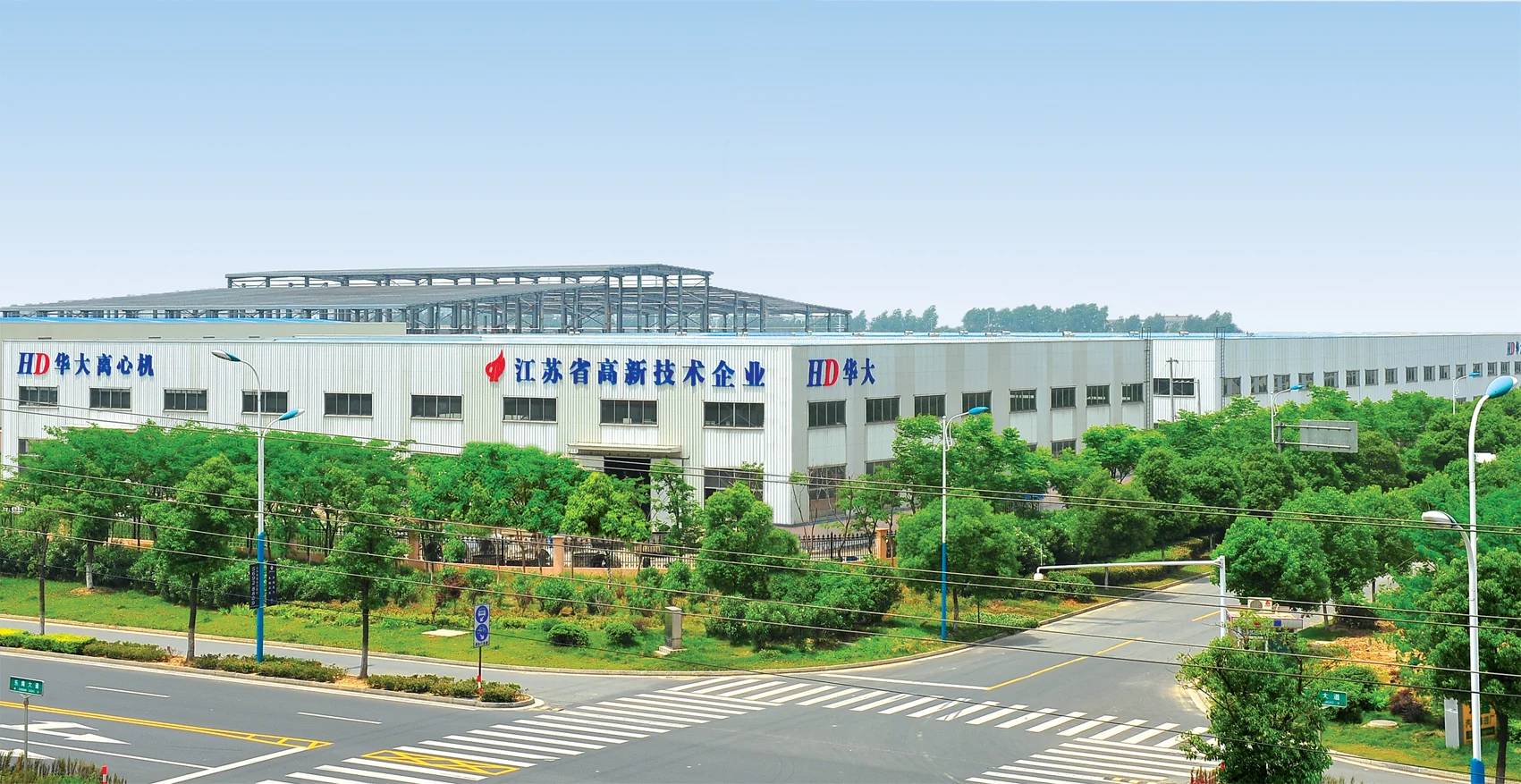

Huada currently has two production bases, covers floor area of 100000 square meters and plan area of 45000 square meters, as well as owns more than 500 sets of various mechanical processing equipment among which there are over 50 sets of numerical control equipment and more than 100 sets of various testing equipment.
Our business philosophy is scientific and reasonable design, more perfect manufacturing, professional and standard service. We will provide service to our customers with constant technical innovation, perfect products and professional experience in application.
Our business philosophy is scientific and reasonable design, more perfect manufacturing, professional and standard service. We will provide service to our customers with constant technical innovation, perfect products and professional experience in application.
