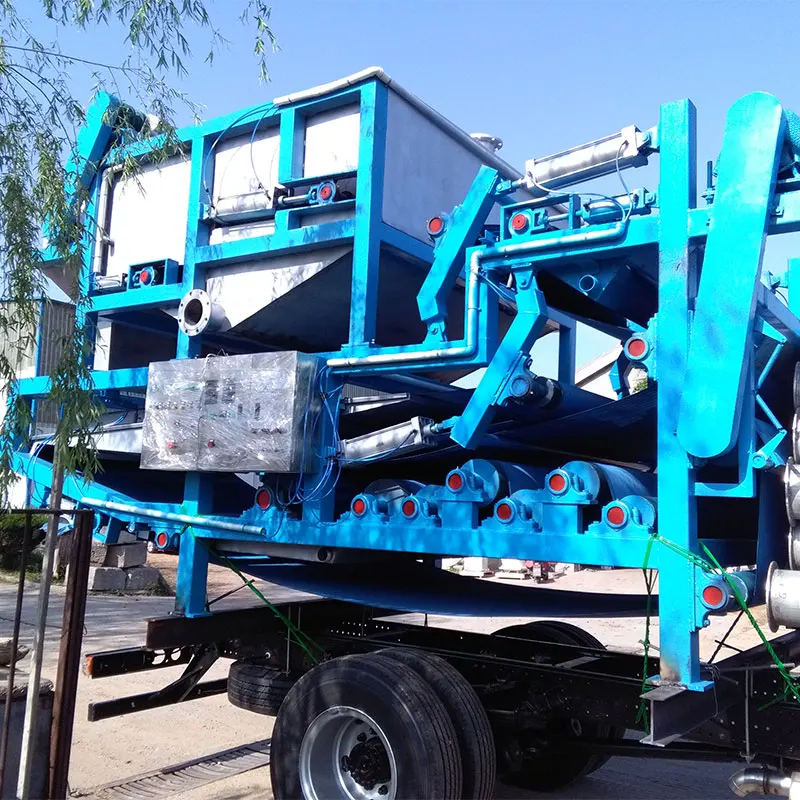

Solid liquid Separation Processes Sludge Belt Filter Press
- Category: >>>
- Supplier: Shandong Kangtailong Intelligent Equipment Co. Ltd.
Share on (62370470615):
Product Overview
Description
Products Description
Integrated sewage treatment equipment
The sludge dehydrator (sludge filter press) is equipped with a vertical thickening and pre dehydration unit, which enables the dehydrator to flexibly handle different kinds of sludge. The sludge concentration can be from 1% to 8%, and the sludge dryness can be more than 20%. The vertical driving unit is used in the concentration section and the pressure filter section, and different types of filter belts are used respectively. The whole frame of the equipment is made of stainless steel, and the bearing is made of high polymer wear-resistant and corrosion-resistant material, which makes the dehydrator more durable and reliable, with less maintenance.

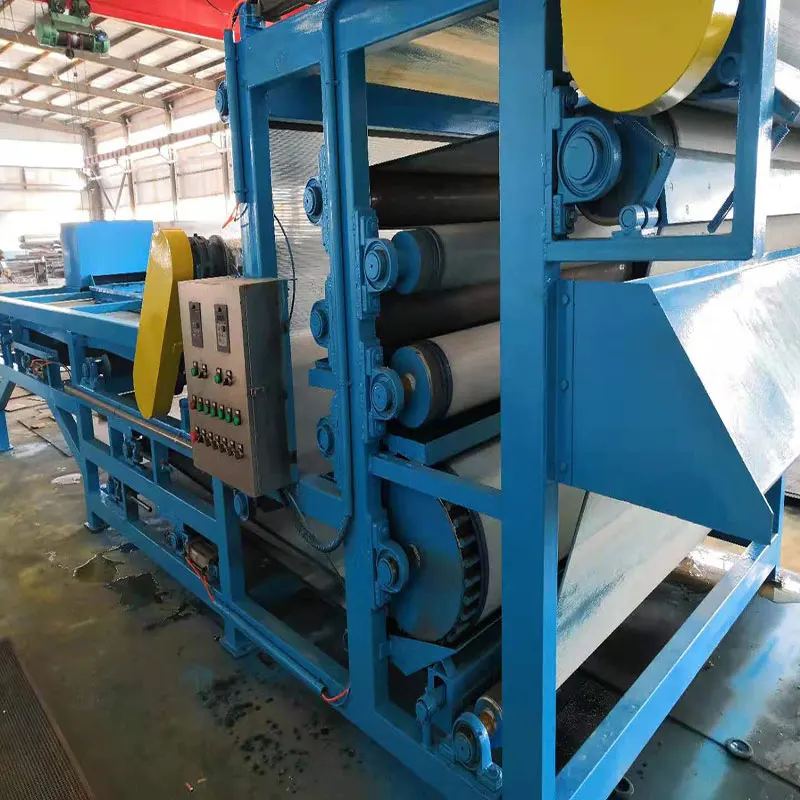

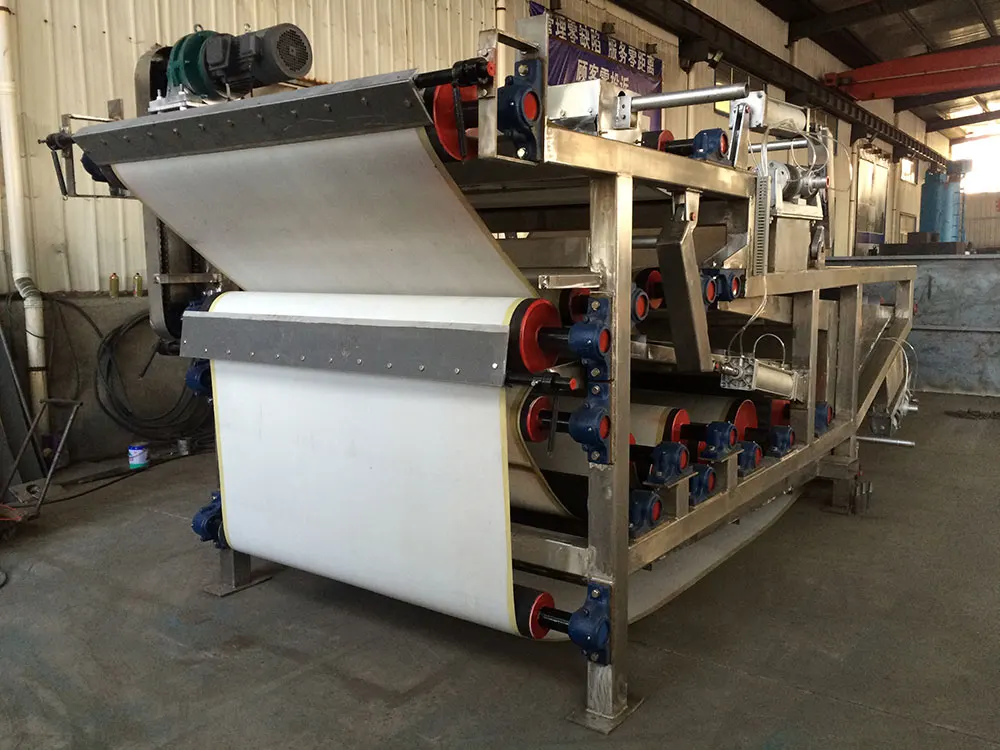

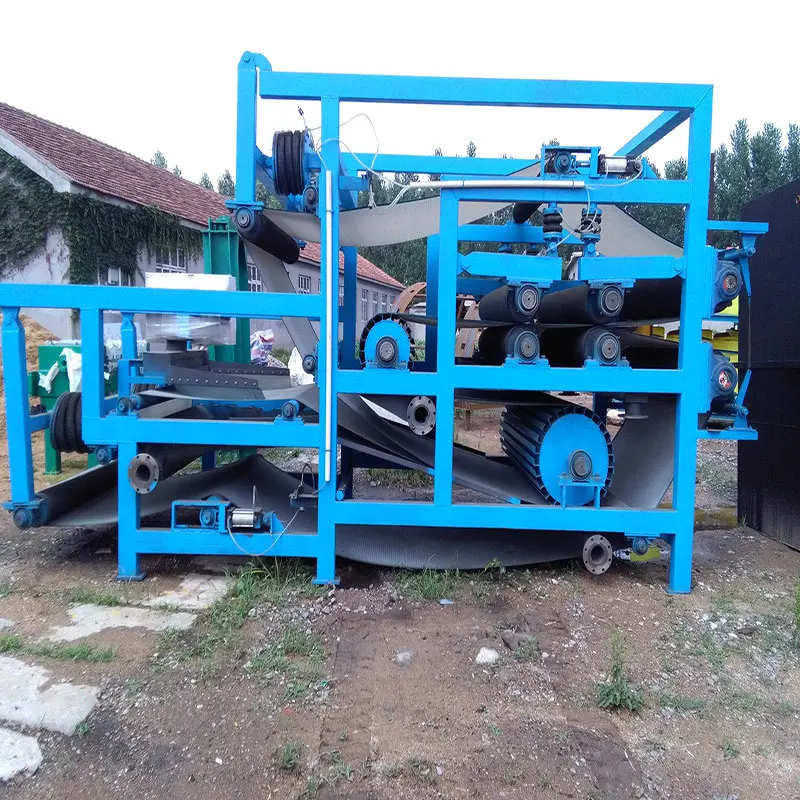

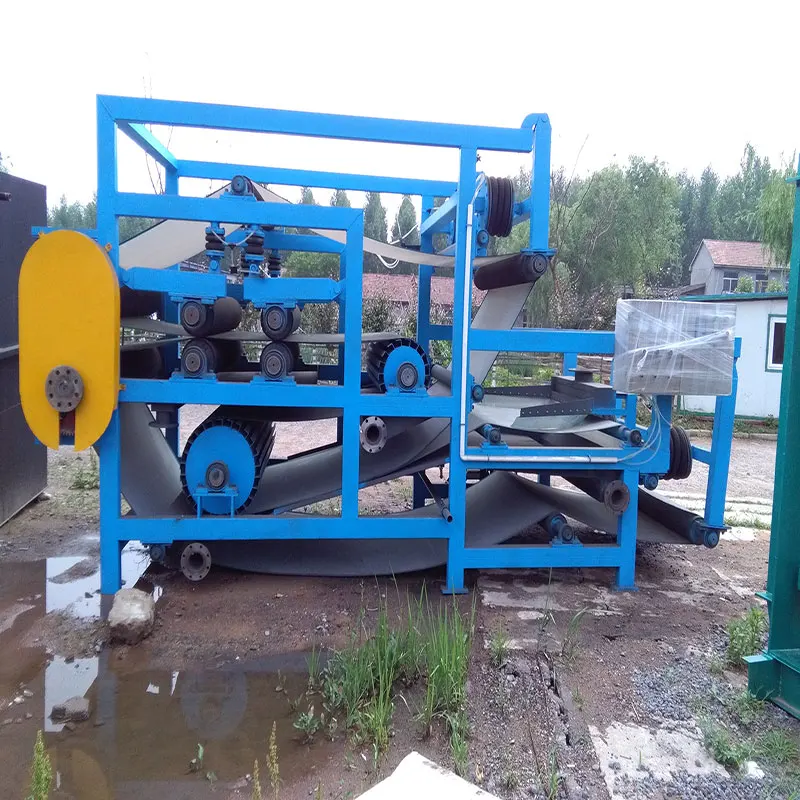

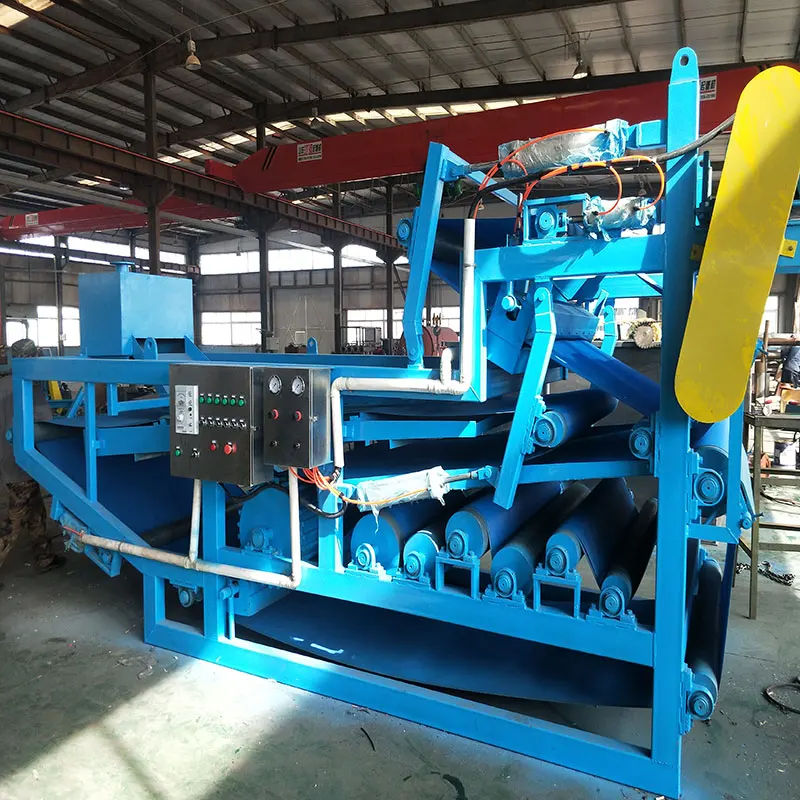

Images
Product Paramenters
Model | Driving motor | Air compressor | bandwidth | Processing capacity |
DY-500 | 1.1kw | 1.5kw | 500mm | 0.5-3m3/h |
DY-650 | 1.1kw | 2.2kw | 650mm | 1.5-4.5m3/h |
DY-1000 | 2.2kw | 2.2kw | 1000mm | 3-6.5m3/h |
DY-1500 | 3kw | 3kw | 1500mm | 4-9.5m3/h |
DY-2000 | 3kw | 4kw | 2000mm | 5-13m3/h |
DY-2500 | 4kw | 5.5kw | 2500mm | 7-16m3/h |
DY-3000 | 5.5kw | 5.5kw | 3000mm | 8-20m3/h |
About products
Structural characteristics
The belt filter press has compact structure, novel style, convenient operation and management, large processing capacity, low moisture content of filter cake and good effect. Compared with the same type of equipment, it has the following characteristics:
1. The first gravity dewatering section is inclined, which makes the sludge up to 1700mm from the ground, increases the height of sludge in the gravity dewatering section, and improves the gravity dewatering capacity.
2. The gravity dewatering section is long, and the first and second gravity dewatering sections are more than 5m in total, which makes the sludge fully dehydrated and lose its fluidity before pressing. At the same time, the gravity dehydration section is also equipped with special mechanisms such as reverse rotation, which can make the sludge filter cake obtain less water content through the functions of wedge-shaped and S-shaped pressing.
3. The first dewatering roller adopts "t" type water drain tank, which makes a large amount of water quickly discharged after pressing, thus improving the dewatering effect.
1. The first gravity dewatering section is inclined, which makes the sludge up to 1700mm from the ground, increases the height of sludge in the gravity dewatering section, and improves the gravity dewatering capacity.
2. The gravity dewatering section is long, and the first and second gravity dewatering sections are more than 5m in total, which makes the sludge fully dehydrated and lose its fluidity before pressing. At the same time, the gravity dehydration section is also equipped with special mechanisms such as reverse rotation, which can make the sludge filter cake obtain less water content through the functions of wedge-shaped and S-shaped pressing.
3. The first dewatering roller adopts "t" type water drain tank, which makes a large amount of water quickly discharged after pressing, thus improving the dewatering effect.
4. Automatic control device is set for belt deviation. The belt tension and moving speed can be adjusted freely, and the operation and management are convenient.
5. Low noise, no vibration.
6. Less chemicals
6. Less chemicals
Our Advantages
1. Customized design according to the specific working conditions. To be the optimal structure design.2. Quick delivery time
andone-stop service for convenience and time saving.
3. After-sales service, video guidance, engineers can be door-to-door service.
4.Guarantee the service life of the equipment for 20 years.
andone-stop service for convenience and time saving.
3. After-sales service, video guidance, engineers can be door-to-door service.
4.Guarantee the service life of the equipment for 20 years.
Customer Photos
Company Profile
Shandong kangtailong Intelligent Equipment Co., Ltd. is a design and manufacturing enterprise of various chemical rubber equipment, sewage treatment equipment, waste gas treatment equipment, food machinery equipment, solid waste treatment of domestic garbage (harmless treatment of animal carcasses), various environmental protection heating equipment, wood anti-corrosion equipment. With a registered capital of 5 million yuan, the company has complete qualifications, advanced equipment, strong technical force, complete testing means and a sound and stable quality assurance system. It is committed to the R & D and design of rubber vulcanization equipment, sewage and waste gas equipment, heating and heating equipment. Is a set of design, manufacturing, installation as one of the modern new enterprises.

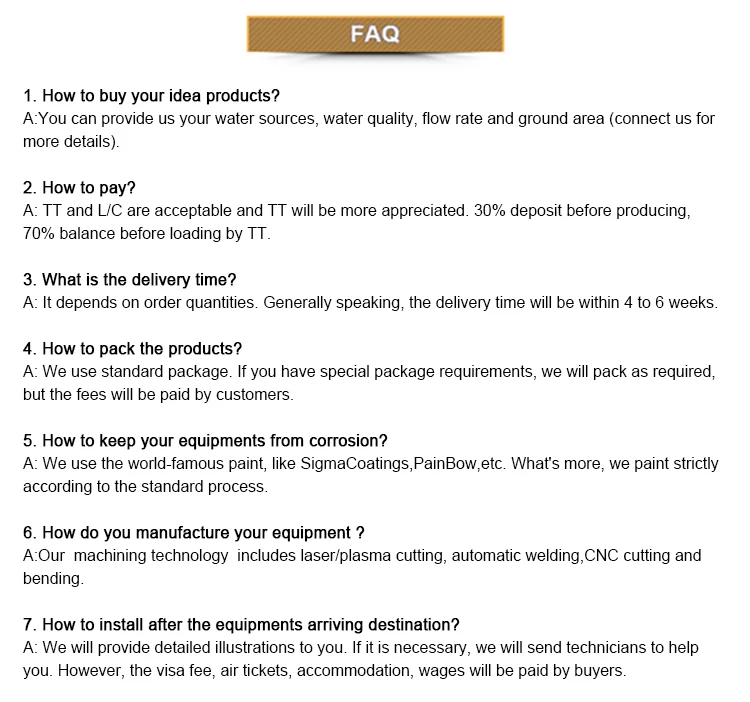

FAQ
