Bitumen regeneration truck mounted asphalt mixing plant used for asphalts road construction

Bitumen regeneration truck mounted asphalt mixing plant used for asphalts road construction

Category: Asphalt Mixers >>>
Supplier: Shandong,Youyi,Machinery,Technology,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Configure Advantages

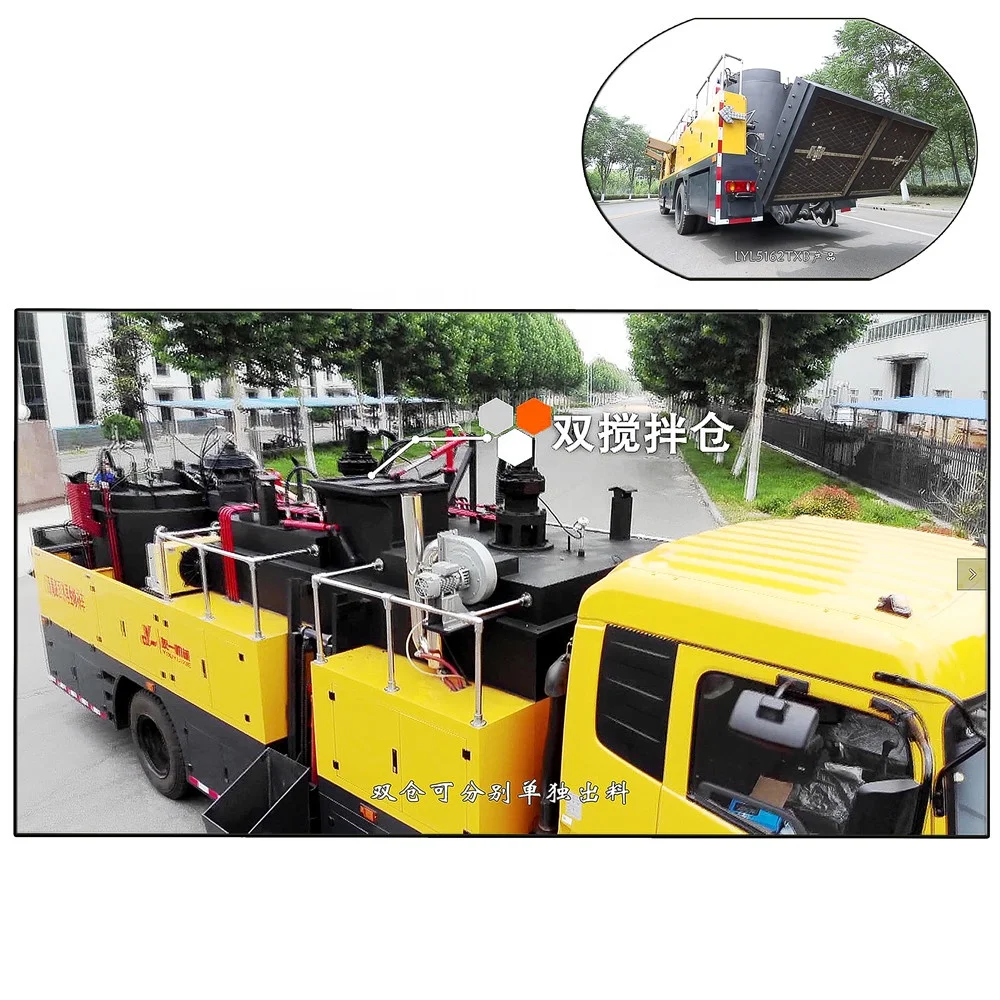

Bitumen regeneration truck-mounted asphalt mixing plant used for asphalts road construction

-69996896_2

Technical Date
Heating system	Mixer tank burner power	310KW
Heating system	Asphalts tank burner power	60KW
Hydraulic system	System pressure	16Mpa
Hydraulic system	Rated total flow	140L/Min
Dedusting system	Dedust mode	(Cyclone+water )dust remove
	Dedust dynamics	Hydraulic engine
	Dedust ability	1100m3/h
Loading system	Loading type	Single hydraulic cylinder lift chain climb-type
Loading system	Hopper capacity	300KG
Emulsified asphalt spraying system	Asphalt tank capacity	100-200L
	Spraying speed	10-60L/Min
	Highpressure air self-clean pipeline	0.7Mpa
Asphalts regeneration Mixer system	Single regeneration capacity	2000kg/time
	Regeneration Ability	12-16T/h
	Fuel consumption	4-6L /T
	Mixing mode	Double hydraulic driven vertical forced mixing
	Discharge mode	Continuous discharge Worked by Single tank discharge or double tanks discharge simultaneously
	Asphalts discharge Temp.	120-180 ℃
	Heating mode	Burner heating or hot air circulation heating
Asphalts spraying system	Asphalts tank capacity	500-1000L
	Asphalt measurement method	Continuous unlimited metering
	Temp. control Range	120-180 ℃
	Electric heating hose	6m/ full heating/360o rotate
	Spraying speed	80-100L/min
	Asphalts heating time	1000L/2-3h
The heating wall system	Heating mode	Fuel gas infrared heating+Blue flame thermal radiation technology
	Heating area	2000*1000mm (1/4 area, can work along)
	Reversal mode	Hydraulic driving,90o reversion
	lateral movement	To move Left or right of 35mm
	Height movement	100mm
Application	Road pothole repair/Road surface spraying/ crack-sealing
Equipment	Equipped with hydraulic crane, construction equipment small road roller, etc

Function+Repair step

1). Select Dongfeng truck chassis, power steering, air conditioning, air conditioning, suitable for all kinds of conditions.2). Adopt cyclone dust removal device, smokeless and dust free, energy saving and environmental protection.3). It adopts vertical forced mixing to mix asphalt concrete.4). The whole vehicle is driven by full hydraulic pressure. The main hydraulic components are American Eaton products, which are easy to operate and safe to work.5). Asphalt pipes and asphalt pumps are built-in and are free of cleaning after use.

6). With asphalt measuring device, according to the need, measure the amount of asphalt per kettle to ensure the oil-stone ratio of the mixture.7). The asphalt tank is equipped with intelligent automatic temperature control device and liquid level control alarm device to ensure the temperature of asphalt and the loading of asphalt.8). The mixing bin is equipped with an infrared scanner to effectively control the temperature of mixing and discharging.9). Adopt the tail-feed design to reduce the road surface during construction and avoid traffic jams 10). The side design is used for discharging, and the discharging can directly go to the pit, which reduces labor intensity and improveswork efficiency.

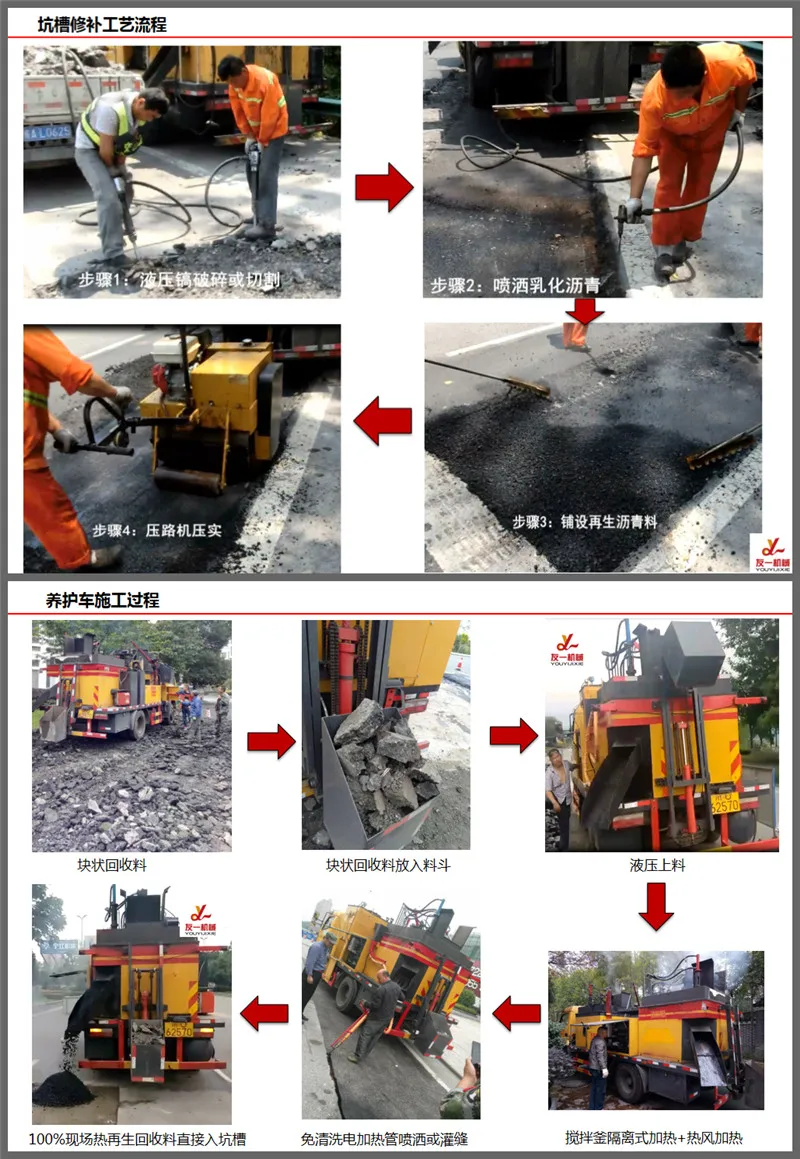

800feedubg road repatch process._

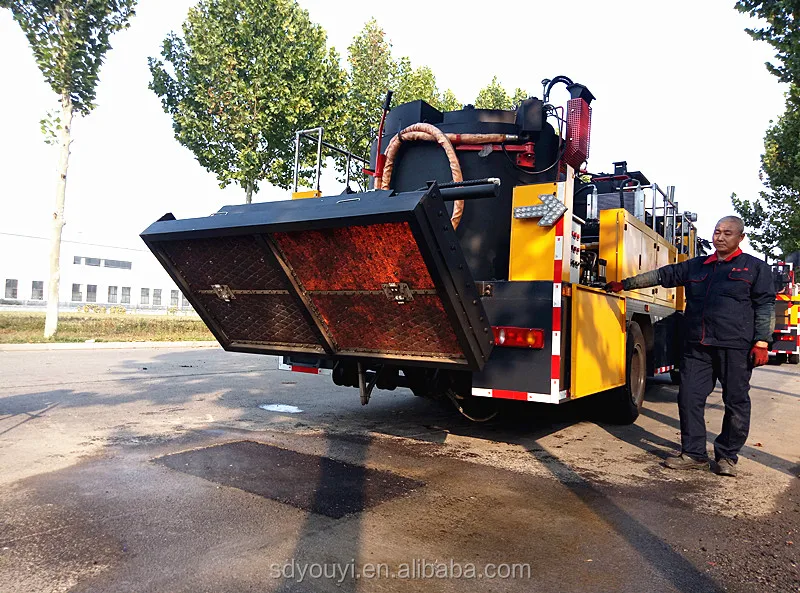

infrared heat wall

In addition, the equipment can be equipped with the world's leading gas infrared heating-wall, which can be controlled dividedly , the construction is more flexible, and it is effective against vibration and wind resistance. The construction takes only 10-15 minutes. 123123 1570679565(1)_800
