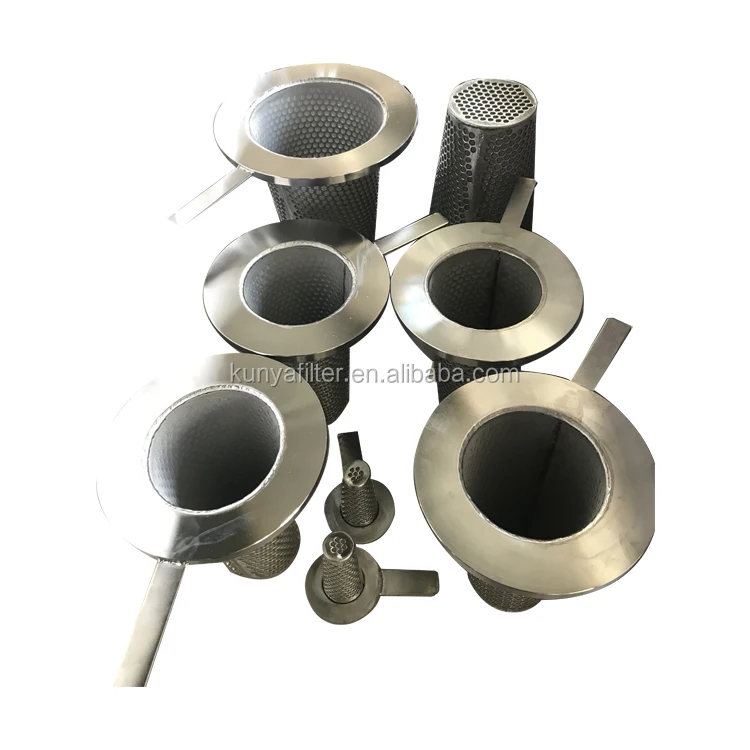

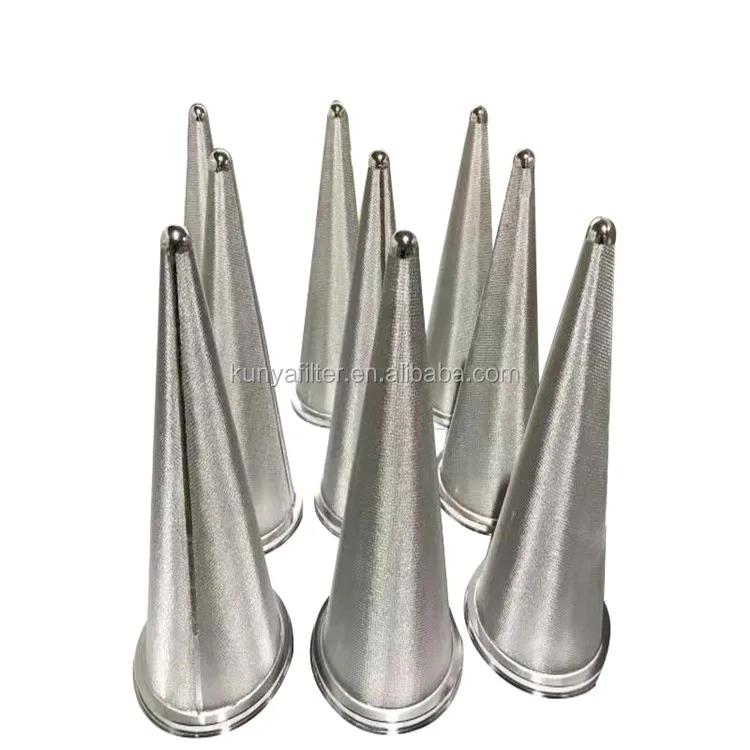

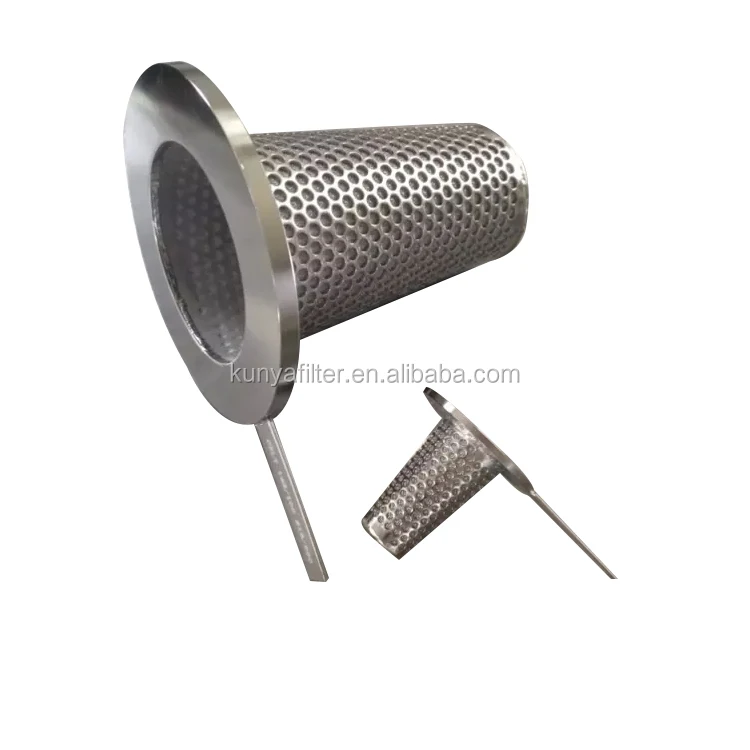

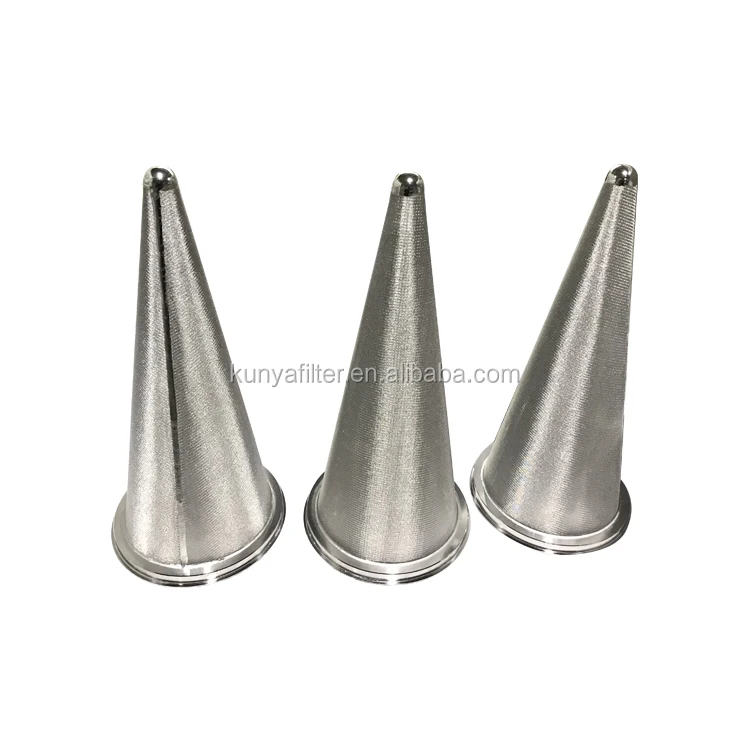

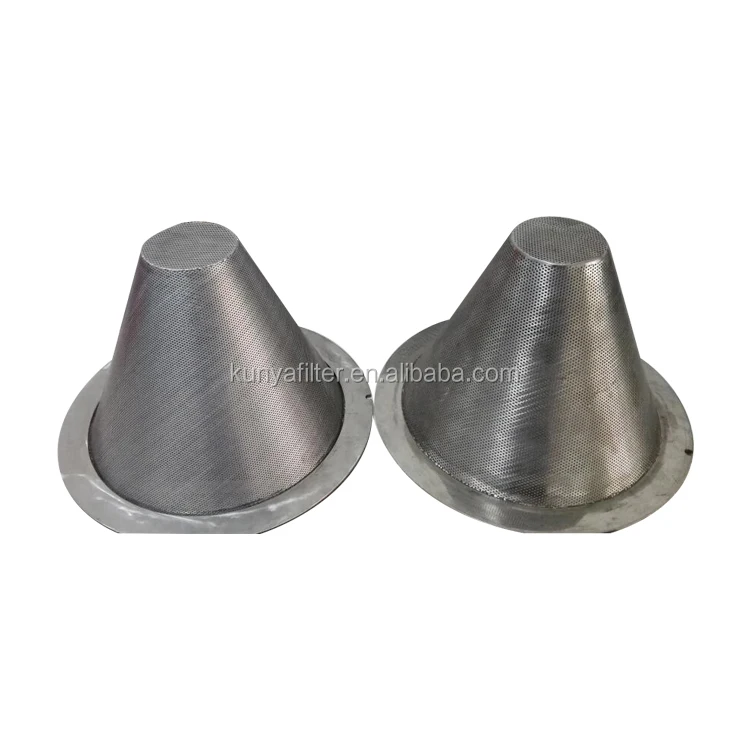

Stainless steel wire mesh conical basket filter with perforated metal frame

Product Overview

Description



Filter rainting	1μm-200μm
Materials	SUS 304,316,316L
Size	500*1000mm,600*1000mm customized
Thickness	2.0-5.3mm

Product Description:
This type of Sintered Wire Mesh Laminate is made by taking several layers of woven wire mesh and sintered them to a layer of perforated metal.The woven wire mesh layers consist of a filter layer,a protective
layer and possibly a buffer layer between the fine mesh layer and the perforated plate.The perforated plate is then added as the base and the entire structure is sintered together to form a very strong yet
tractable plate.Due to the support of the perforated plate,this type of sintered wire mesh laminate has a high resistance to pressure and high mechanical strength.It is suitable for a variety of applications
which require fine filtration,but also the need to protect and preserve the filtration layer.One example of an application is in oil wells,where fine particles need to filtered under extremely high pressure
condition.
