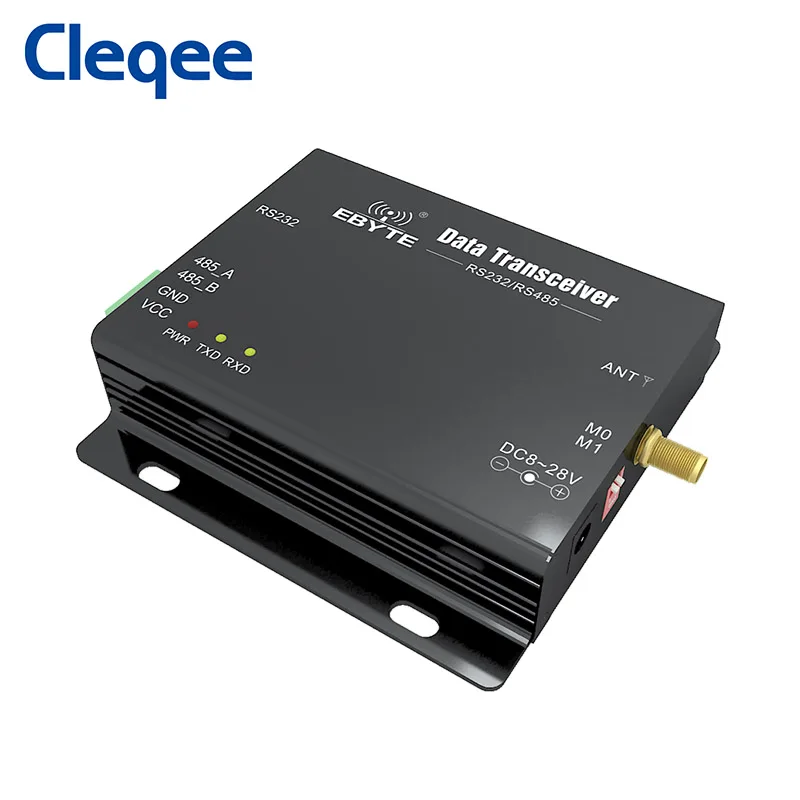

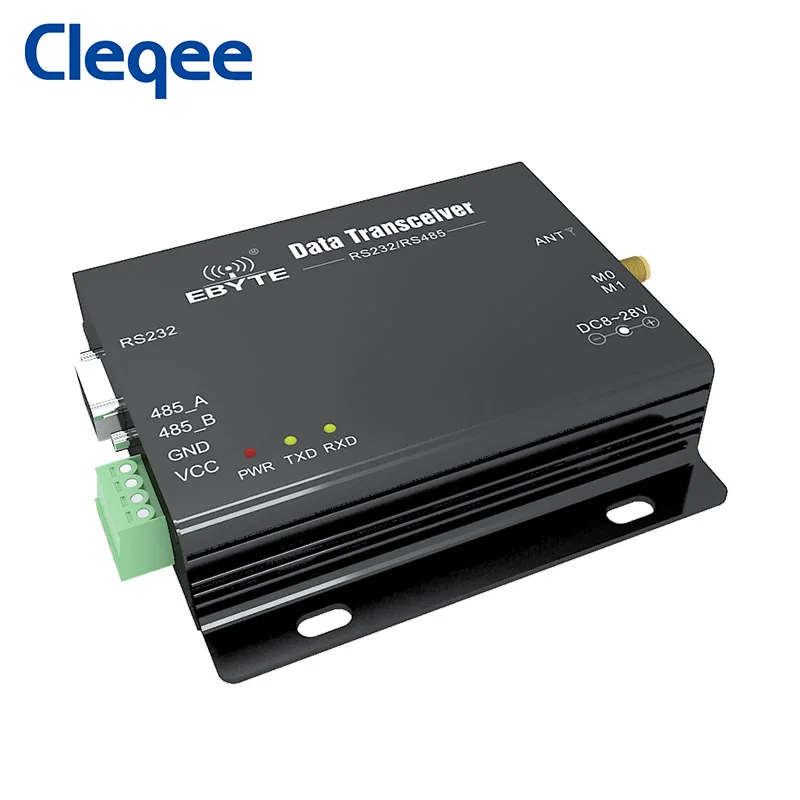

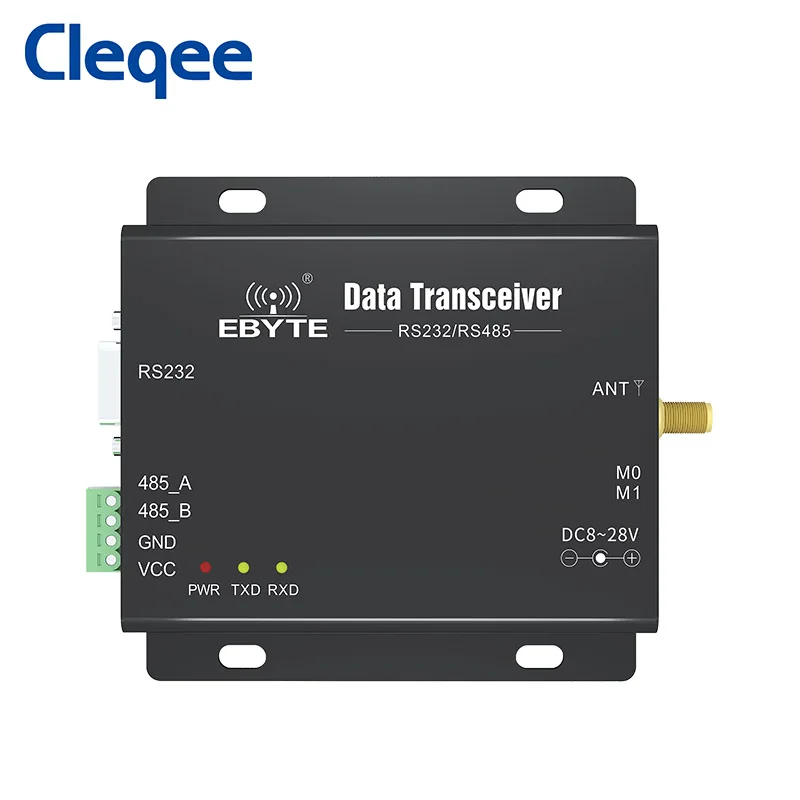

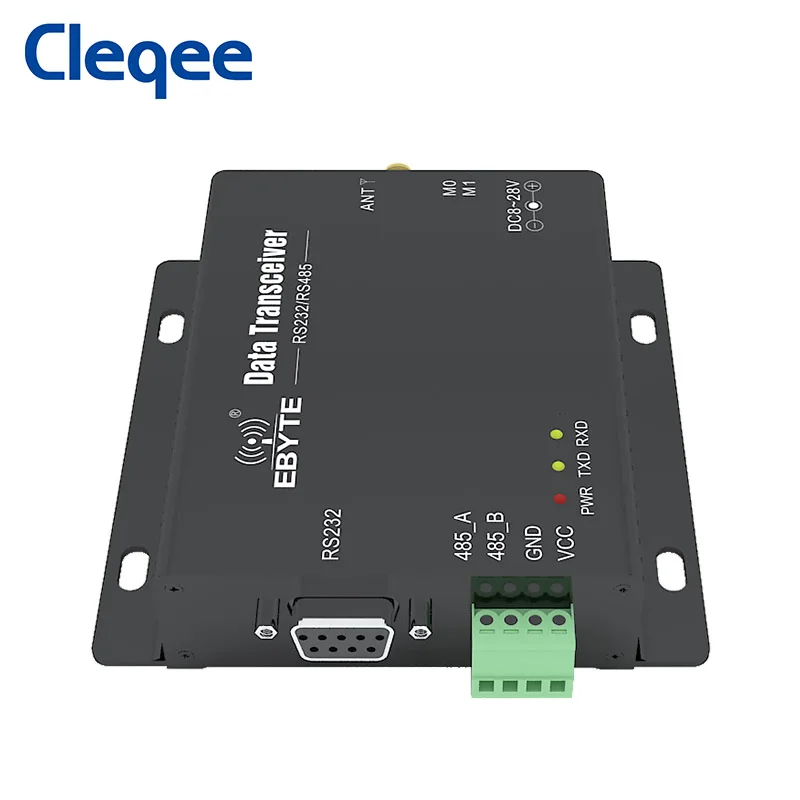

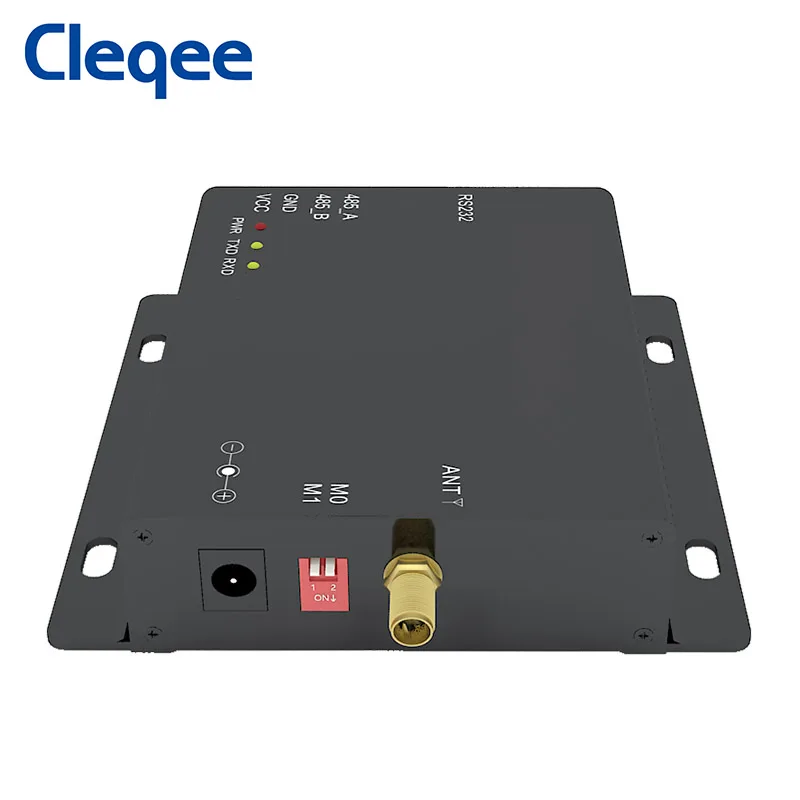

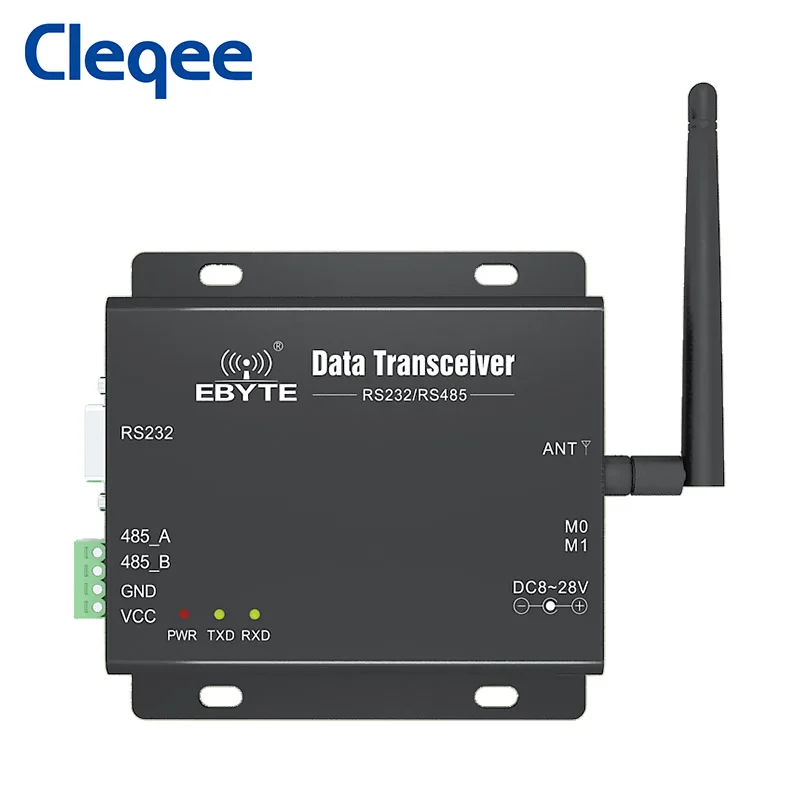

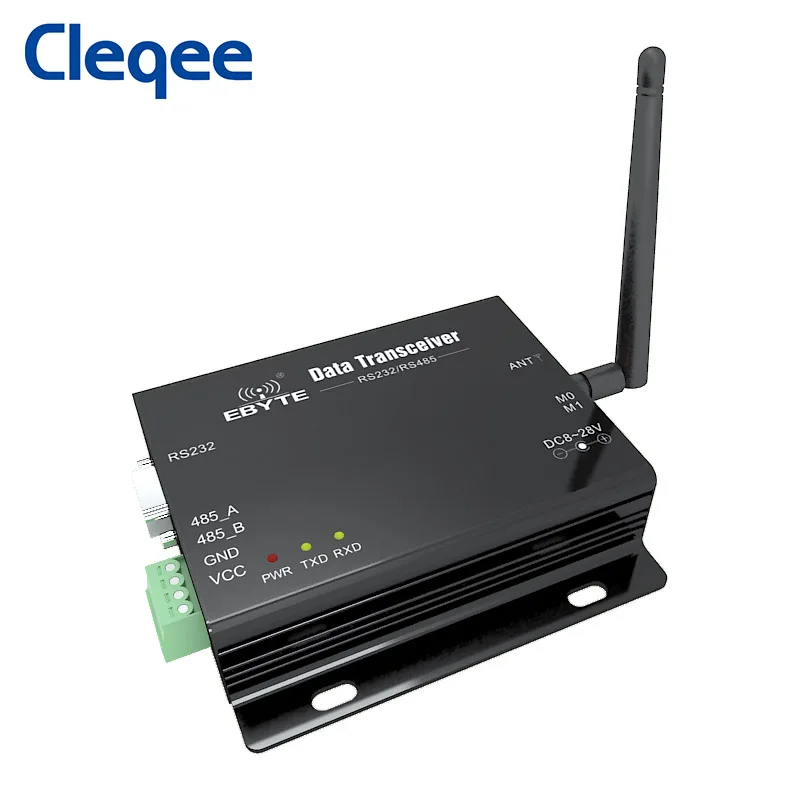

Cleqee 2 E34 DTU(2G4D20) nrf24l01 2.4GHz 100mW RS232 RS485 2km Long Range Full Duplex Wireless Receiver & Transmitter

Product Overview

Description

Cleqee-2 E34-DTU(2G4D20) nrf24l01 2.4GHz 100mW RS232 RS485 2km Long Range Full Duplex Wireless Receiver & Transmitter





Model : E34-DTU(2G4D20)







Specification:

• Frequency : 2400MHz(2.4~2.518MHz)
• Power : 20dBm (100mW)
• Distance : 2km
• Interface : RS232/RS485
• Supply voltage: 8 ~ 28V DC



Featrue:

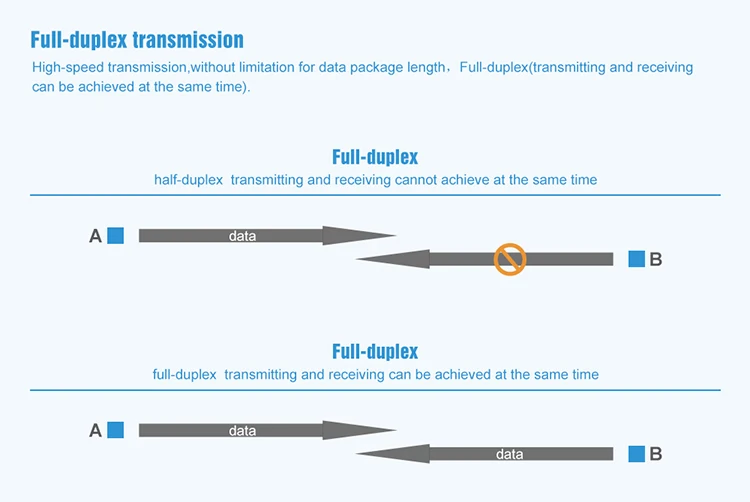

High-speed DTU E34-DTU(2G4D20) with RS232/RS485 interface, 8V~28V, operating at 2.4~2.518GHz features full-duplex, unlimited package length, concentrated power density, long transmitting distance & high data rate, transmitting and receiving at the same time. It supports data encryption & compression. File transfer is available.







RF Parameter	Value	Remark
Working frequency	2400~2505 MHz	Default: 2.4GHz
Transmitting power	20 dBm	About 100mW
Receiving sensitivity	-102 dBm	Air data rate: 250kbps
Air data rate	-	Self-adapted baud rate
Test distance	2000 meter	In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,  air data rate: 250kbps



Hardware Parameter	Value	Remark
Size	82 * 62 * 25 mm
Antenna type	SMA-K
Communication interface	RS232 / RS485	Baud rate: 1200~115200, default: 9600
Package	DB-9 / Screwing	Standard DB9 Hole/3.81 connecting terminal
Buffer	1024 bytes buffer	Automatically sub-packaging with 29 bytes per package



Electronic parameter	Min.	Typ.	Max.	Unit	Condition
Power supply	10	12	28	V
Transmitting current	130	145	159	mA	20dBm(100mW)
stand-by current	45	50	55	mA
Operating temperature	-40	20	+85	℃
Operating humidity	10	60	90	%
Storage temperature	-40	20	+125	℃
