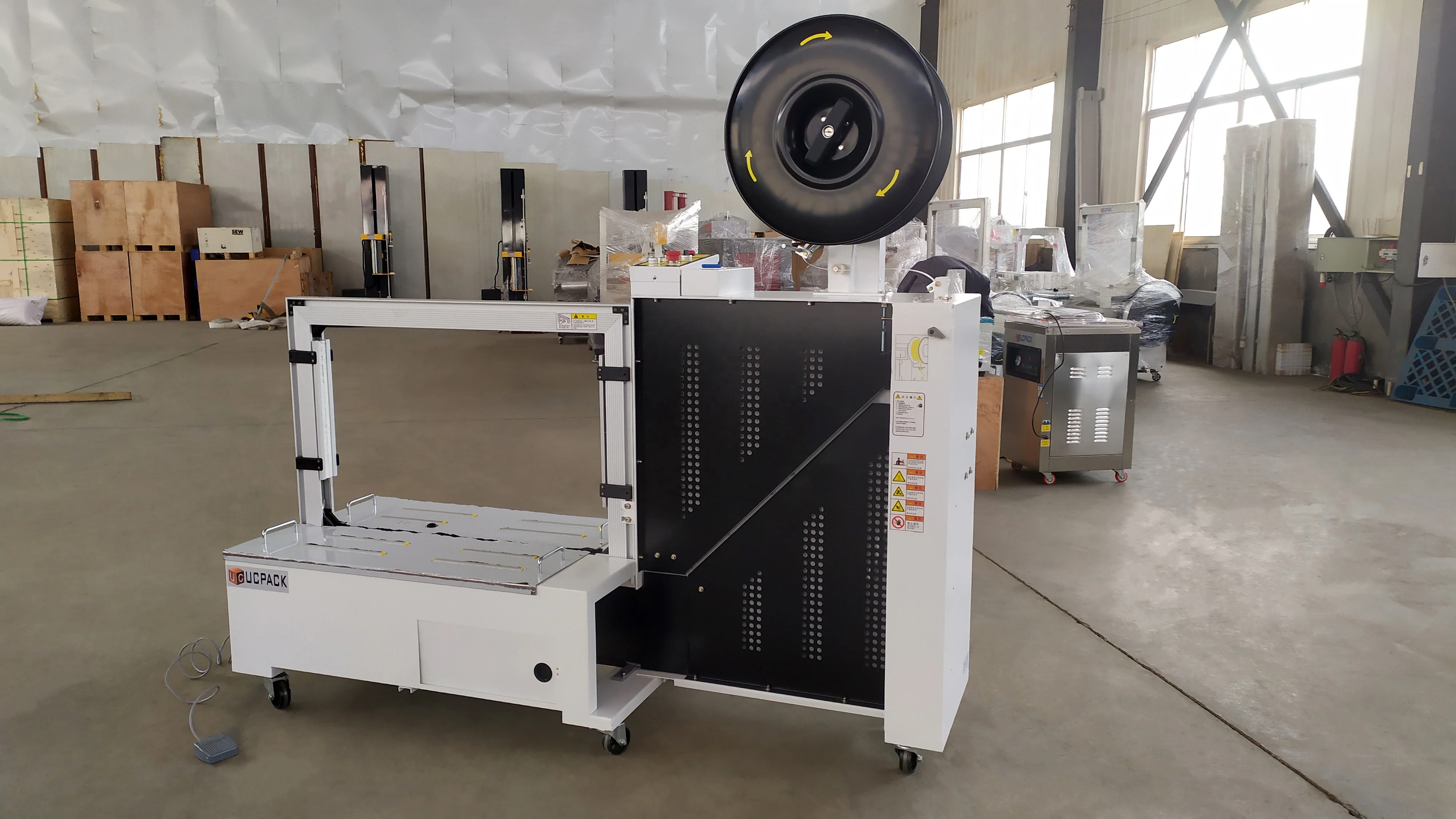

UDB 101B Automatic PP Strap Low Table Arch Strapper / Strapping Machine
- Category: >>>
- Supplier: Qingdao Youchuang Packaging Equipment Co. Ltd.
Share on (62371063410):
Product Overview
Description
Product Description
At UCPACK We Offer a Wide Range of Strapping Machines from Semi-Automatic, Automatic, Fully Automatic, High-Speed to Pallet Strapping Machines as Well as a Full Range of PP & PET Strap. Our Fully Customizable Wide Ranges Should Work with Any Package Specifications and Importantly All are Strong and Lightweight Designed for Minimum Maintenance. Contact Us Today, We Can Advise the Strapping Solutions Depending on Your Budget and Output for Your Business.

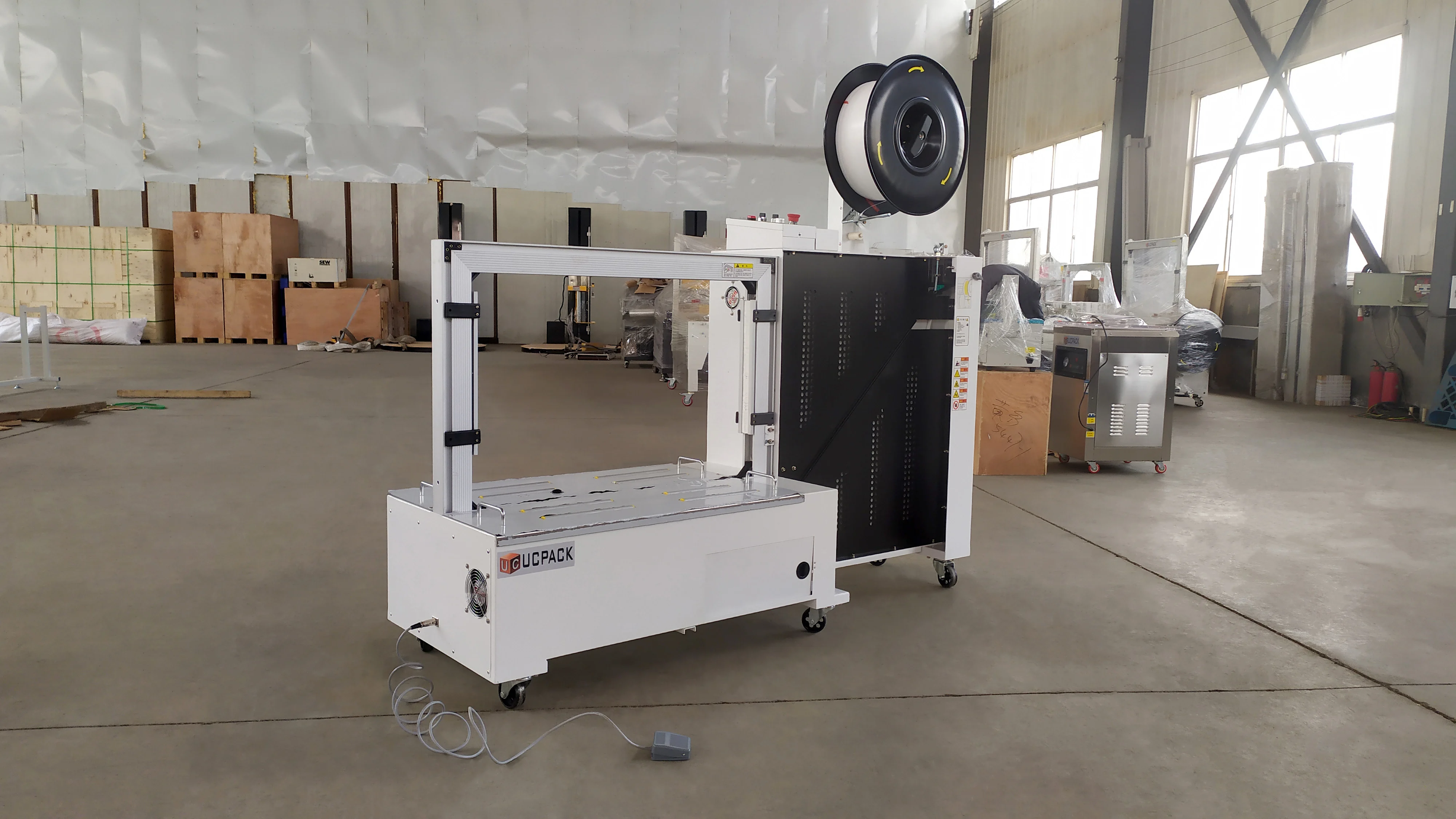

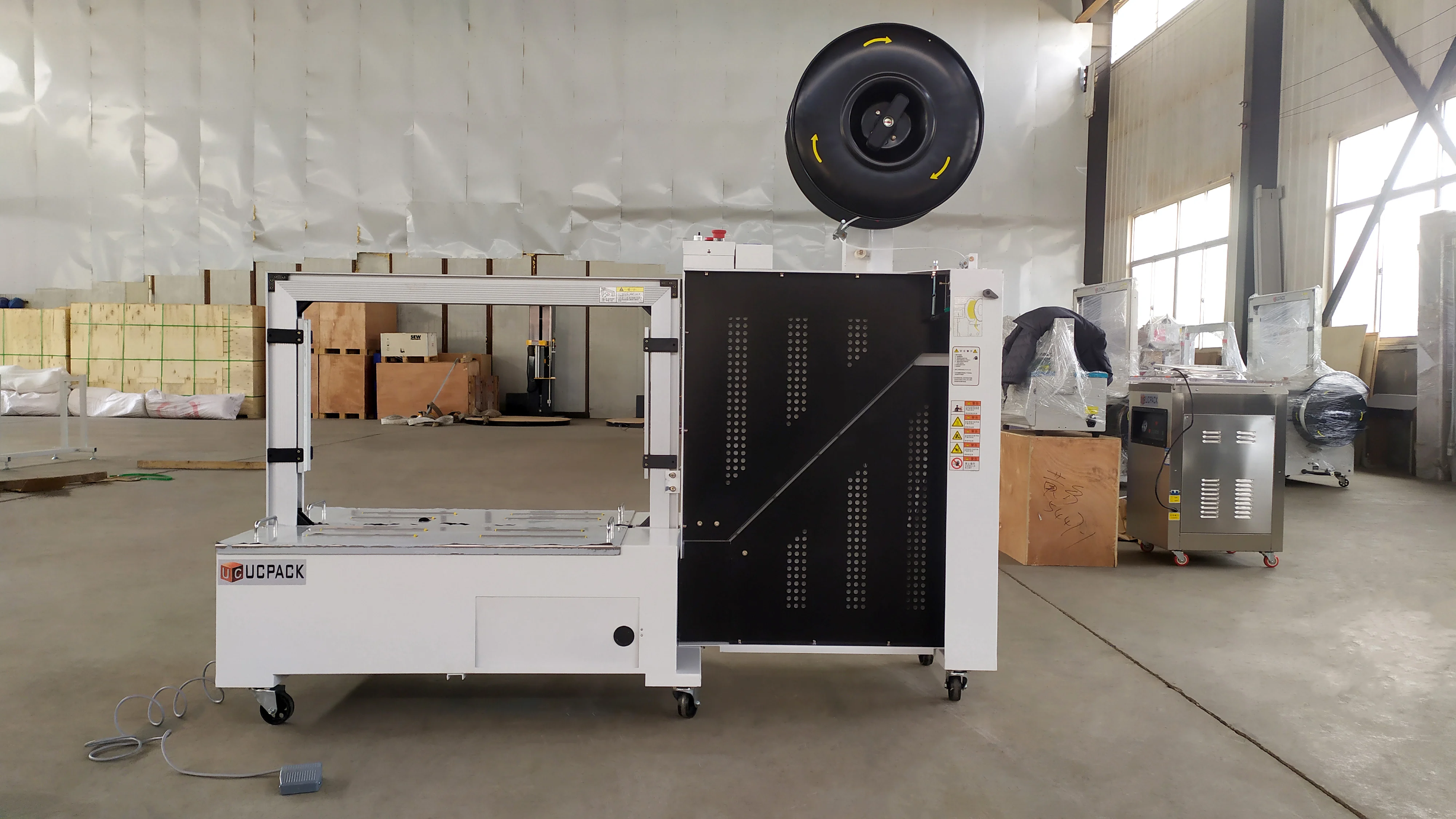

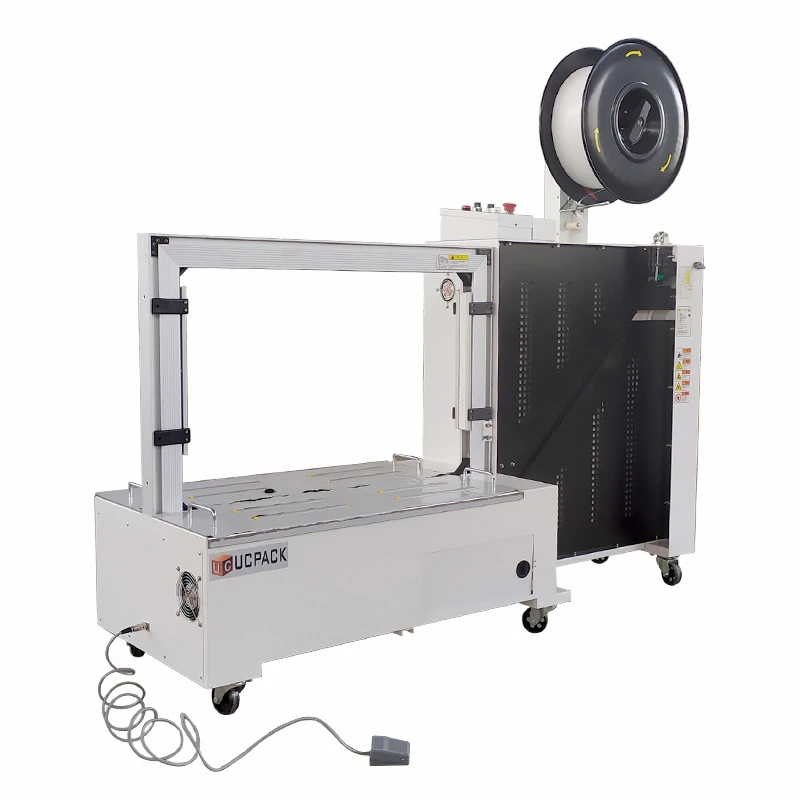

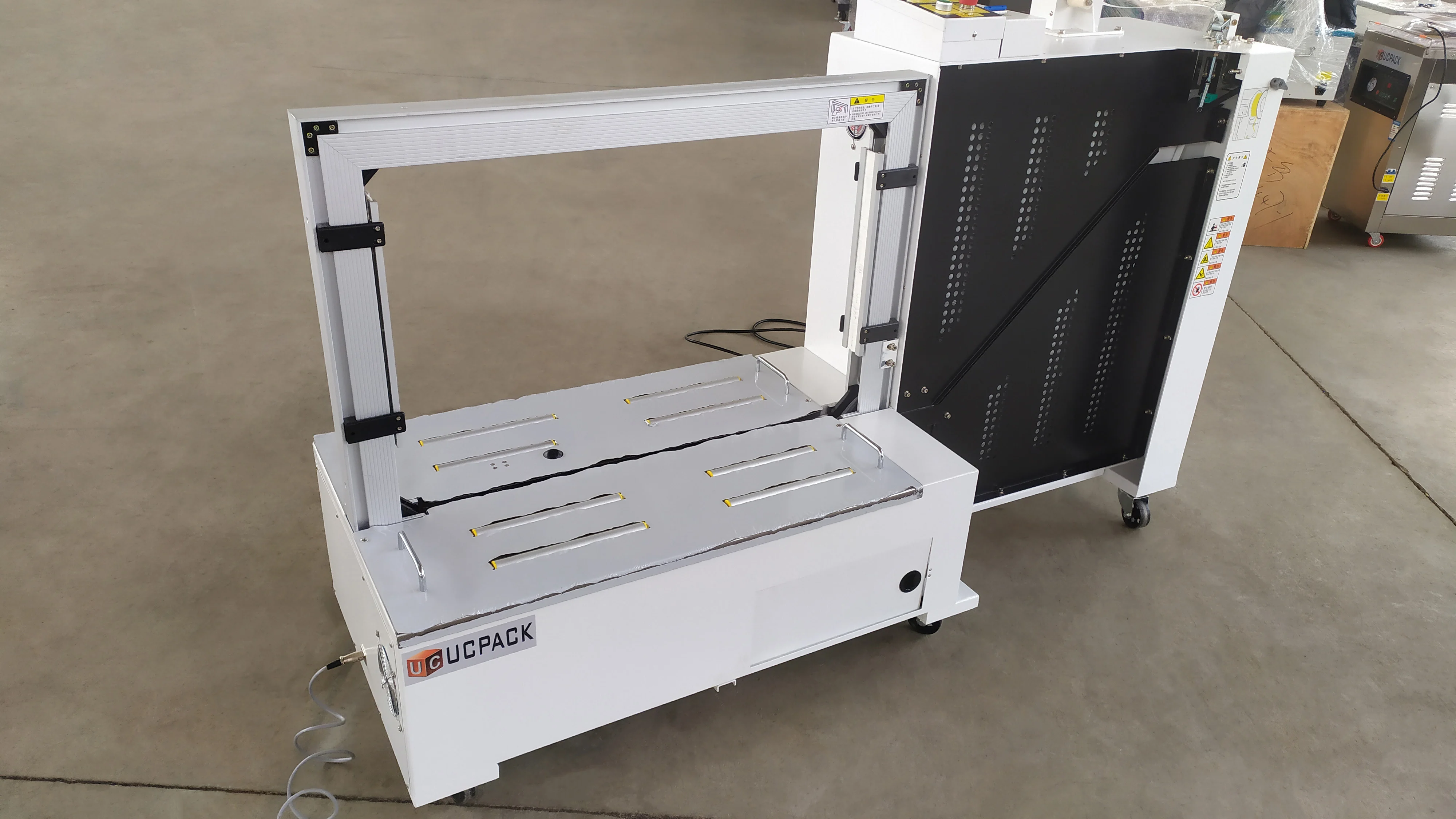

UDB-101B Low Table Automatic Strapper
The UDB-101B Low Profile Automatic Strapping Machine has All the Features of the UDB-101A Except for Worktable Height Down to 450 mm Which Allows for Easy Strapping and Movement of Big Cartons ON & OFF the Table. Other Features Include a W 800 mm × H 600 mm Aluminum Arch, a Free Roller Table in 450 mm Height, 3 Pcs Powerful AC Motors (380 V 3 Ph), 3 Kinds of Strapping Mode (Automatic, Continuous & Manual Mode), Easy Strap Roll Replacement, Fast Heat-Up and Automatic Strap Threading. Using with 9 – 15 mm Width (Specific) PP Strap and Strapping Speed Up to 2.5 Second/Strap.
Specifications
Model | UDB-101B |
Arch Size | W 800 mm × H 600 mm |
Packing Size Min. | W 80 mm × H 60 mm |
Speed | ≤ 2.5 sec/strap |
Tension | 0 - 60 kg, adjustable |
Worktable Height | 450 mm |
Strap | 9 - 15 mm width × 0.55 - 1.2 mm thickness PP strap |
Strap Roll | W: 160 - 190 mm; Inner diameter: 200 - 210 mm; Outside diameter: 400 - 450 mm. |
Sealing Method | Heating Element |
Control System | PLC Control |
Voltage | 380 VAC 3 ph 50/60 Hz |
Power | 1.0 kw / 5 A |
Noise | ≤ 75 dB(A) |
Machine Size | L 1900 mm × W 620 mm × H 1750 mm |
Machine Weight | 270 kg |
Features
Std. W 800 mm x H 600 mm Arch
Light Duty Aluminum Arch;
Std. Arch Size: W 800 mm x H 600 mm;
Arch Size Customizable;

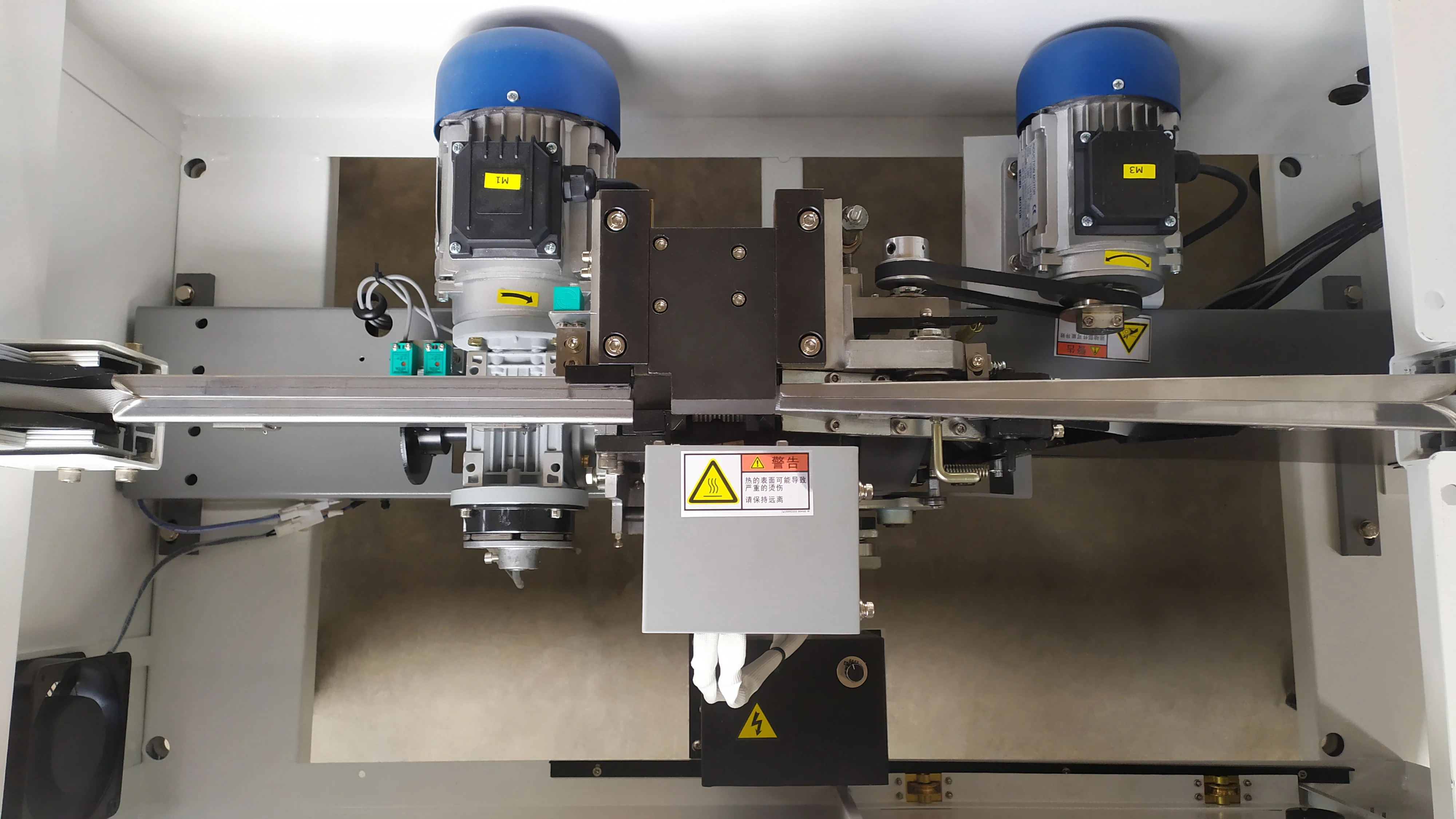

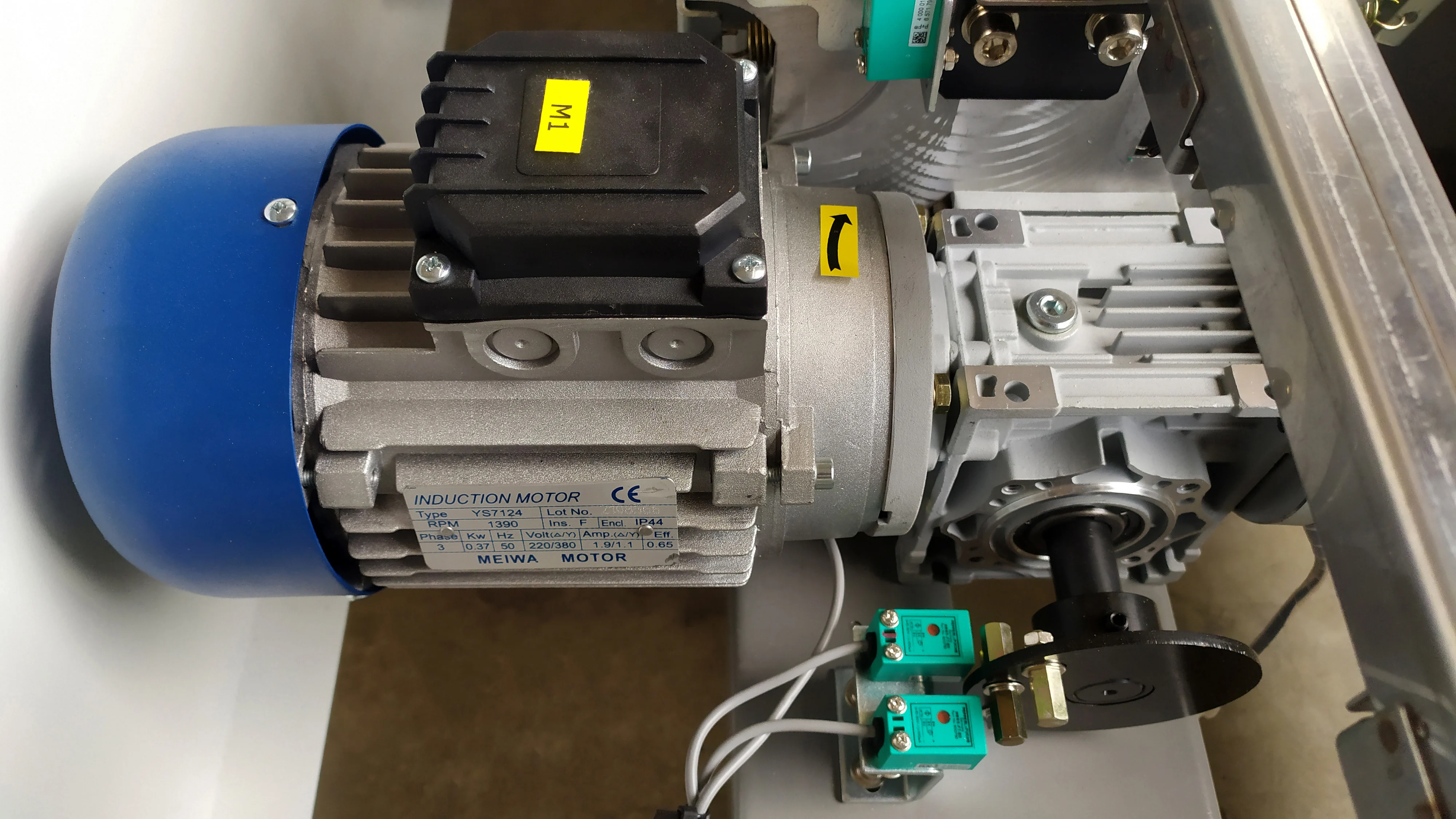

3 Powerful AC Motors
3 Powerful AC Motors: 0.37 kw + 0.25 kw + 0.25kw;
Using with 380 VAC 3 ph 50/60 Hz Power Supply;
Voltage Customizable;
Tension and Temperature Adjustment
Tension Force Knob Adjustment;
Heating Temperature Knob Adjustment;
Free Roller Table
Free Roller Table Helps the Movement of Goods.
Worktable Heigth 450 mm;

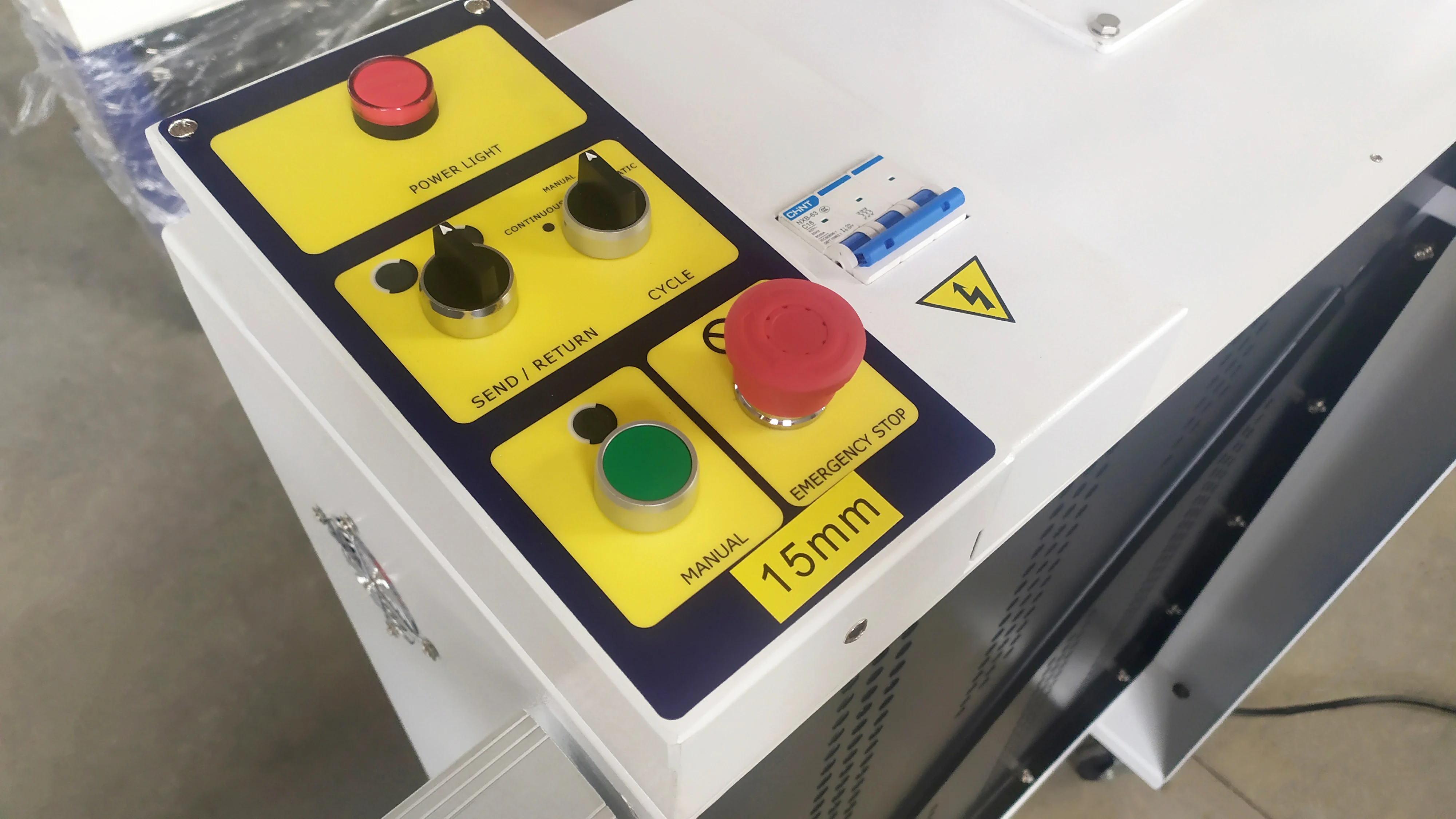

Control Panel
Power Light;
Strap Send/Return Switch - Manual Feed / Reverse the Strap;
3 Strapping Modes Selector Switch:
* Continuous: Strapping at Regular Intervals (Interval Time Adjustable);
* Manual: Manual Push Button or Foot Pedal Controls;
* Automatic: Ball Switch on Roller Table Controls;
Manual Strapping Push Button;
Emergency Stop:
Using with 9 - 15 mm Width PP Strap

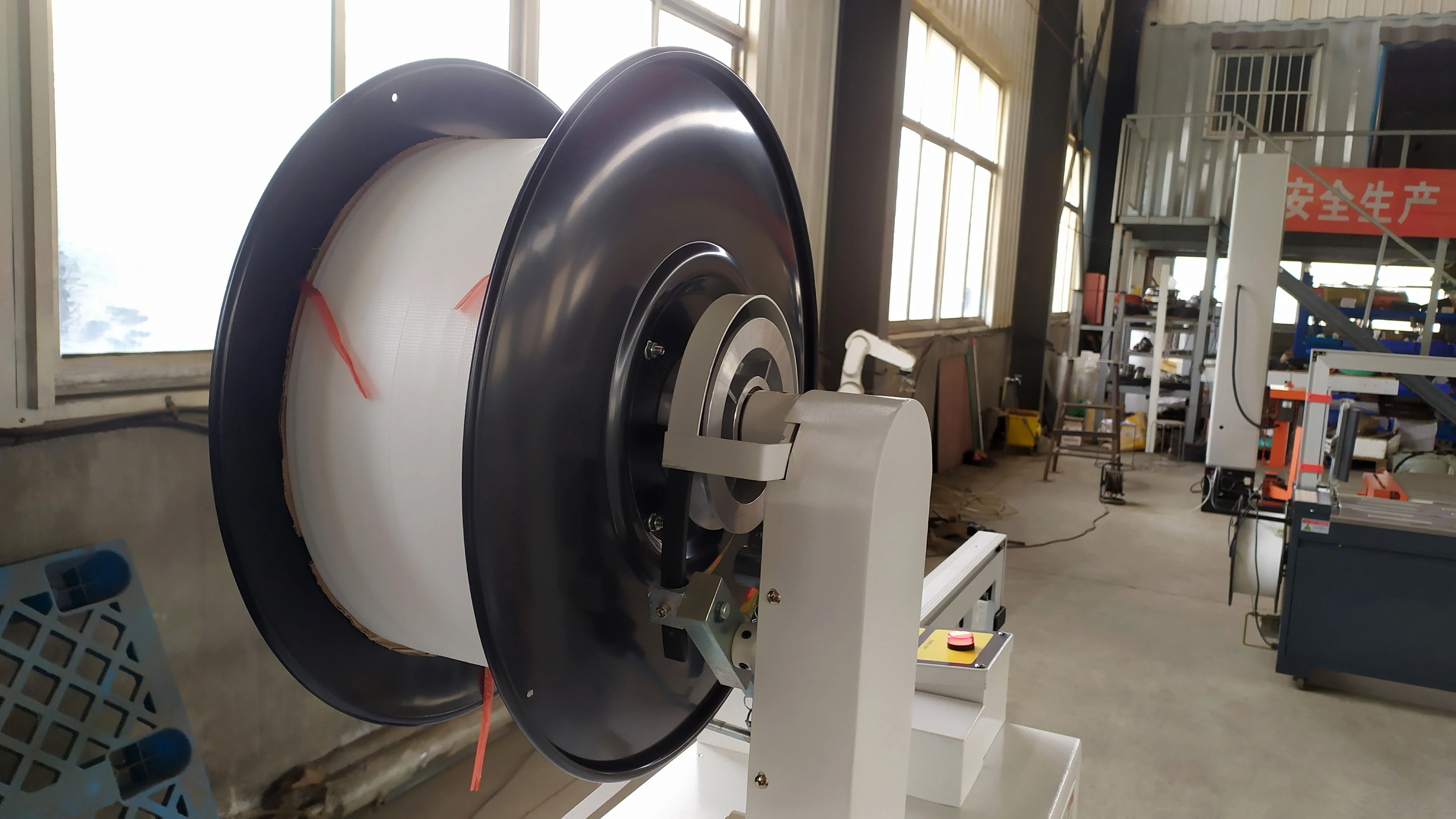

External Strap Roll Holder, Easy for the Replacement of Strap Roll;
Using with 9 - 15 mm Width x 0.55 - 1.2 mm Thickness (Specific) PP Strap;
Using with 9 - 15 mm Width x 0.55 - 1.2 mm Thickness (Specific) PP Strap;
PLC Control
PLC Control;

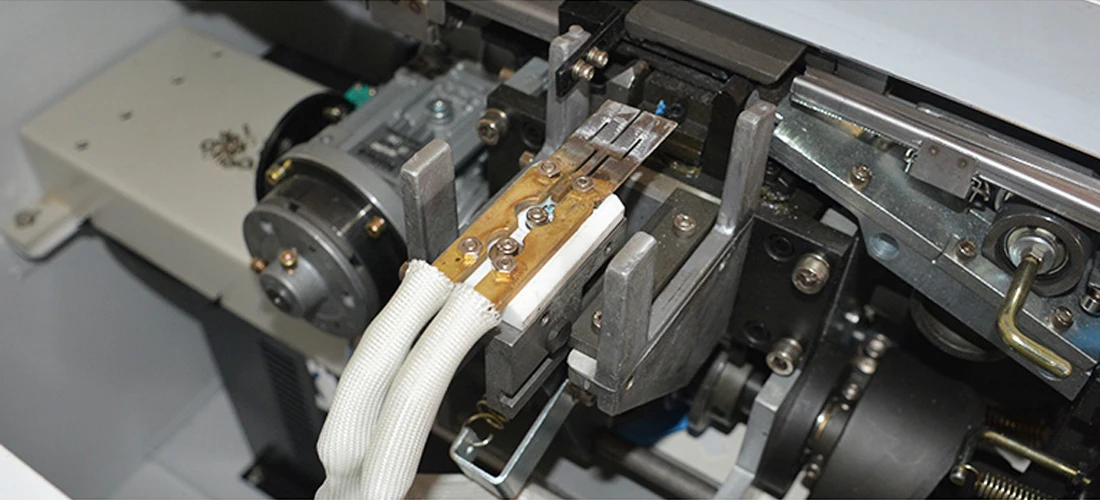

Heating Head
Long Service Life and Modular Designed Heating Head;
Left + Middle + Right 3 Pcs Sealing Bar;
Options
* Arch Size;
* Voltage;
* Top Presser;
Gallery
Packaging & Shipping
Plywood Seaworthy Wooden Pallet + Carton for LCL;
Plywood Seaworthy Wooden Pallet + Carton and PET Strap Reinforce for FLC;
Certifications
1. Source Factory with More Than 10 Years of Manufacturing and Solution Experience;
2. National High-Tech Enterprise with Multiple Patents, Strong Technical Strength;
3. All Our Machines with CE Norms;
4. Excellent Pre and After-sales Team for 7 x 24 Hours OnlineService;
5. Gold Supplier of Alibaba, Factory SGS Field Certification, Capital Security is Guaranteed;
2. National High-Tech Enterprise with Multiple Patents, Strong Technical Strength;
3. All Our Machines with CE Norms;
4. Excellent Pre and After-sales Team for 7 x 24 Hours OnlineService;
5. Gold Supplier of Alibaba, Factory SGS Field Certification, Capital Security is Guaranteed;
About Us
Established in 2015 and located in seaside city of Qingdao, Qingdao Youchuang Packaging Equipment Co., Ltd. was specialized in the design, development and manufacturing of packaging machinery as well as automation packaging solutions.
With the continuous growth, we can now offer more than 100 kinds of machines in 8 series including Pallet Wrapper, Shrink Wrapper, Strapper, Case Erector, Case Sealer, Vacuum Packing Machine, Palletizer and Conveyor System. Especially in the area of Shrink Wrapping, Pallet Handling and Timber Handling, we are experienced and knowledgeable to provide customization overall solutions to meet the various needs of customers.
All our machines have passed CE certification and benefit from our experienced engineer team, we have obtained
a number of patented technologies in Shrink Wrapper and Conveyor System. Reply on our excellent product quality and service, we have won lots of customer in the market of North America, Europe, Australia etc.
a number of patented technologies in Shrink Wrapper and Conveyor System. Reply on our excellent product quality and service, we have won lots of customer in the market of North America, Europe, Australia etc.
From the beginning of our company, we believe People Make the Difference, and without our highly trained sale team and experienced engineer team we would not be able to provide you with the excellent service which we are known for in the past years.
Commit to the highest standards in both our product and our staff, we are eager to please, so please let us know how we can help.
