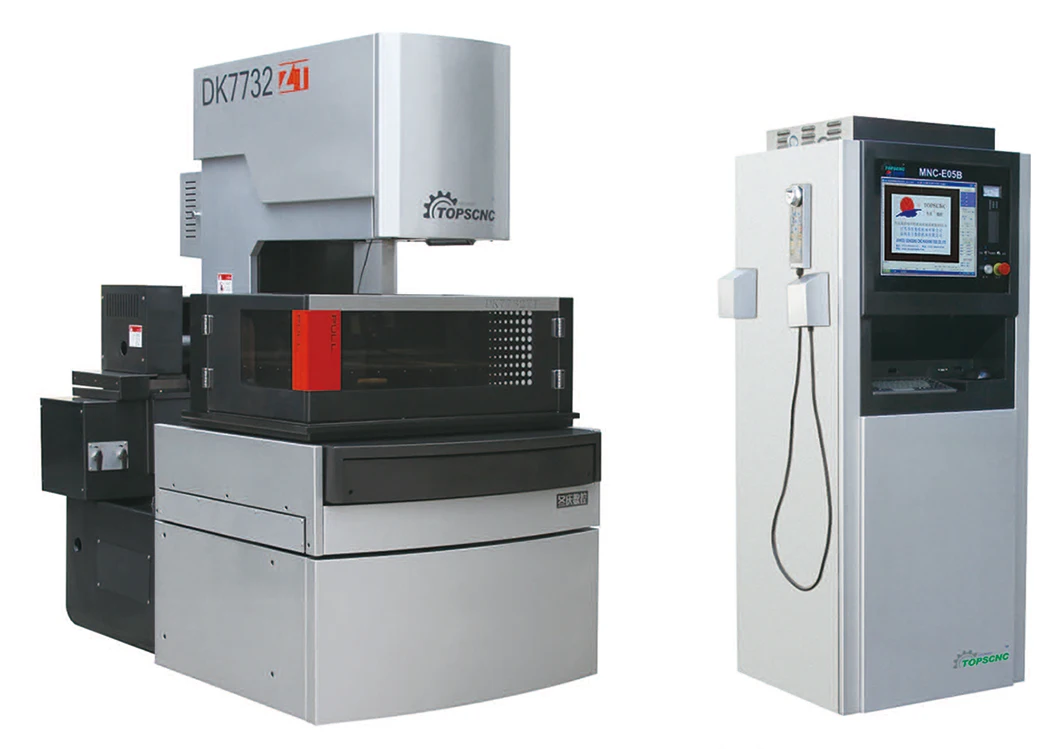

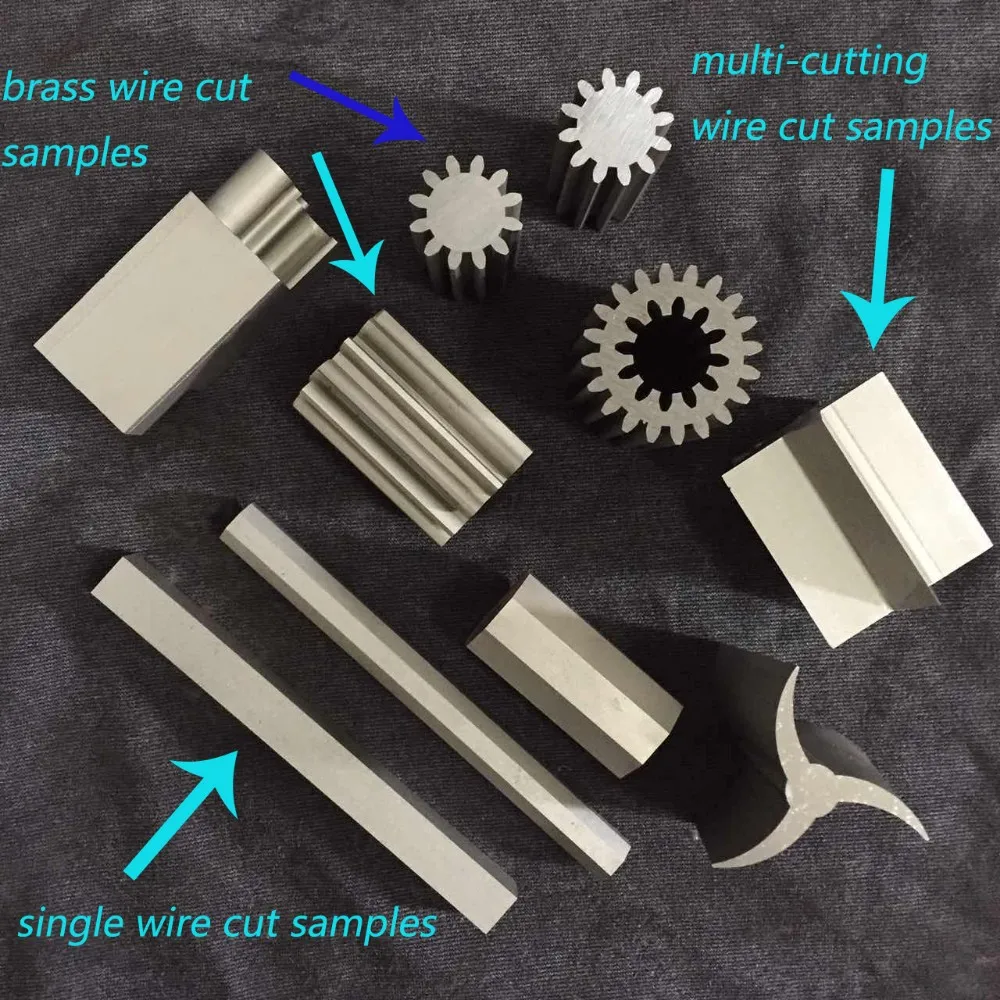

ZT I Series hybrid control intelligent bidirectional closed loop tension cnc wire cutting edm machine

ZT-I Series hybrid/servo control intelligent bidirectional closed loop tension wire cutting

Technical parameter

Unit

DK7732ZT-I

DK7740ZT-I

DK7750ZT-I

DK7763ZT-I

Table size

mm

740×460

840×540

1020×640

1180×750

Table travel (X*Y)

mm

400×320

500×400

630×500

800×630

Max.workpiece dimension

mm

820x520

980x600

1200x700

1300x800

Max. thickness of workpiece

mm

300

350

Max. workpiece weight

kg

600

1000

1600

2000

Z axis vertical stroke

mm

250

300

Taper U,V shraft trip

mm

±20 × ±20  linear guide rail

Max. taper angle/ workpiece thickness

±3°/80mm

Control and connection mode

X,Y,U,V by hybrid or servo motor(direct connect)

Z-axis control

electronic control

Linkage control axis number

X,Y,U,V ( or can match 5 axis)

Max.trip wire cylinder

mm

200

Dia of molybdenum

mm

φ0.1~φ0.25 ( standard φ0.18 )

Max. wire feed rate

m/sec

1~11.4m/sec  frequency adjustable

Machining precision

mm

≤0.008

Max.lay aside wire length

m

250

Max. machining speed

mm2/min

200

Machining precision

mm

≤0.008

Surface roughness

μm

one time Ra≤2.5,three times Ra≤1.0 five times Ra≤0.8

Min. control pace

mm

0.001

Power supply

3N-380V/50Hz

Max. working current

A

10

Power consumption

Kw

≤6

Work liquid

JR3A

Water tank

L

90

Filtering mode

Paper filter/Italy pump

Machine weight

kg

2100

2500

3100

3800

Machine dimension

mm

1730×1010×1970

2050×1720×2160

2230×1860×2265

2520×2180×2265
