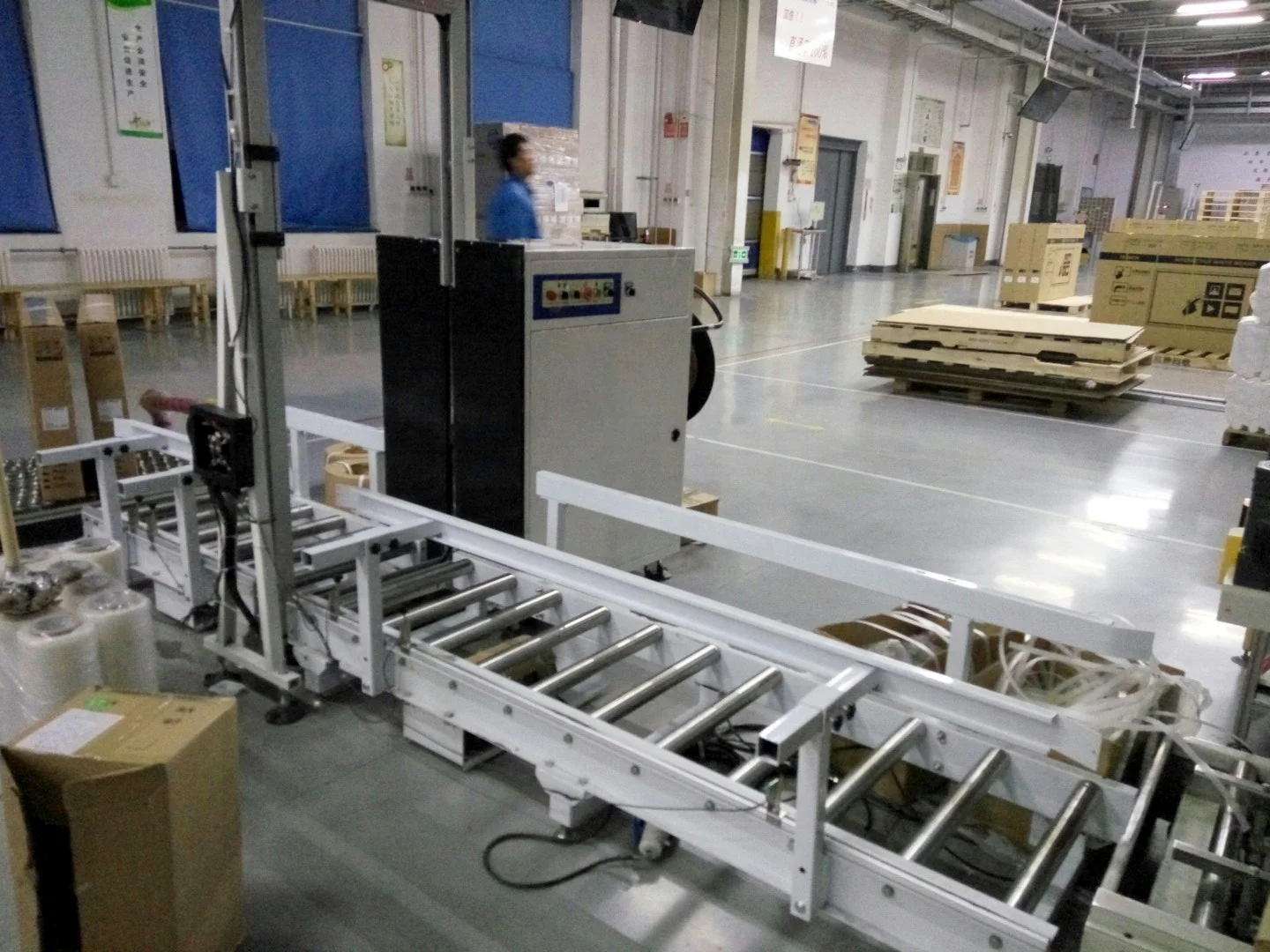

UDB 103A Automatic PP Side Seal Strapping Machine with Free Roller Table
- Category: >>>
- Supplier: Qingdao Youchuang Packaging Equipment Co. Ltd.
Share on (62371116780):
Product Overview
Description
Product Description

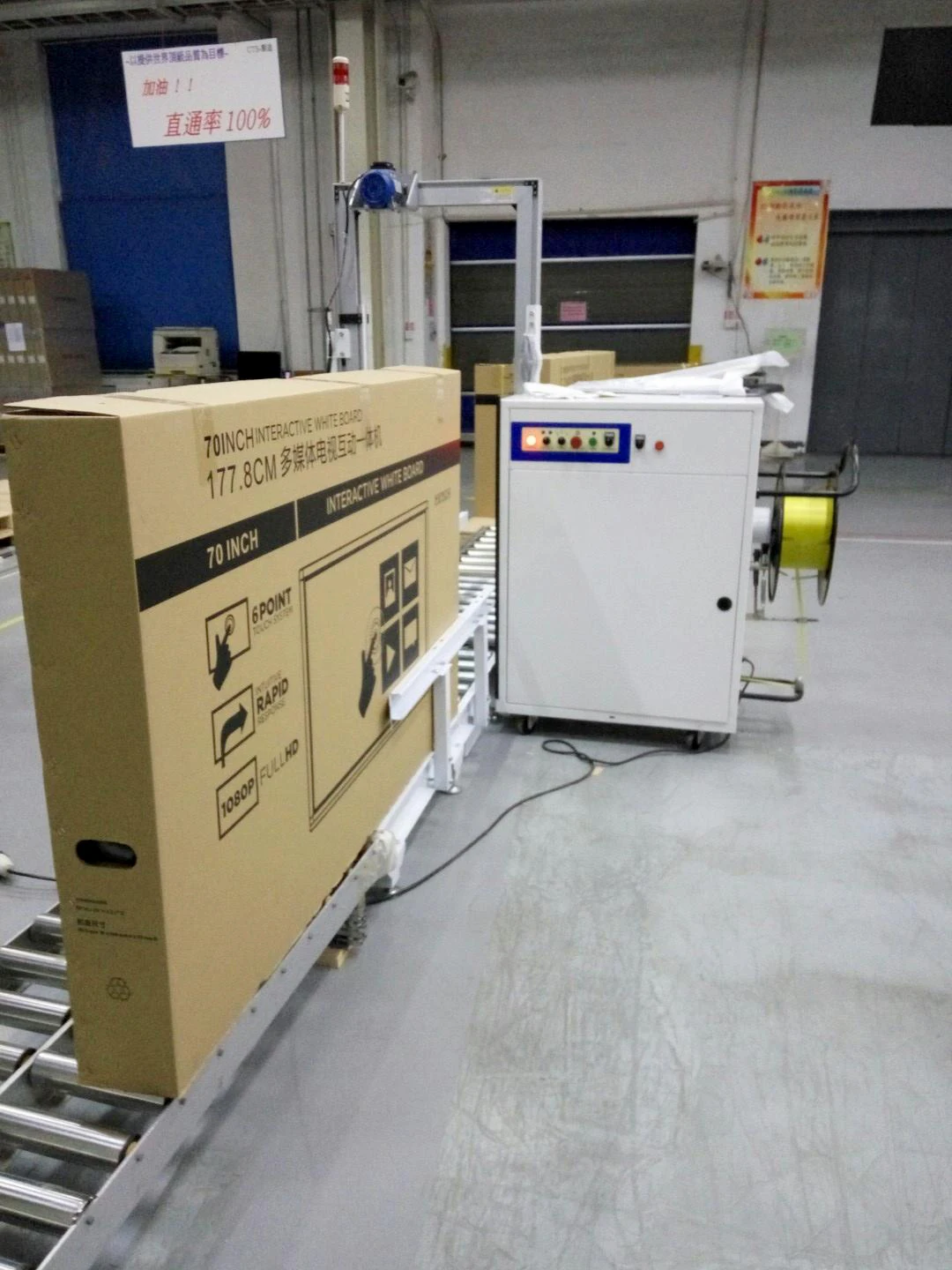

With its Heating Head Mounted on the Side, The Side Seal Strapping Machine allows Items to be Strapped from the Side Rather Than Bottom Which is Suitable for the Strapping of Oversized Products.
Equipped with Free Infeed and Outlet Roller Table (UDB-103A) or Powered Infeed and Outlet Roller Table (UDB-103B), This Model Can be both Manual Stand-alone Using or Integrated into your Existing Production Line.
Equipped with Free Infeed and Outlet Roller Table (UDB-103A) or Powered Infeed and Outlet Roller Table (UDB-103B), This Model Can be both Manual Stand-alone Using or Integrated into your Existing Production Line.

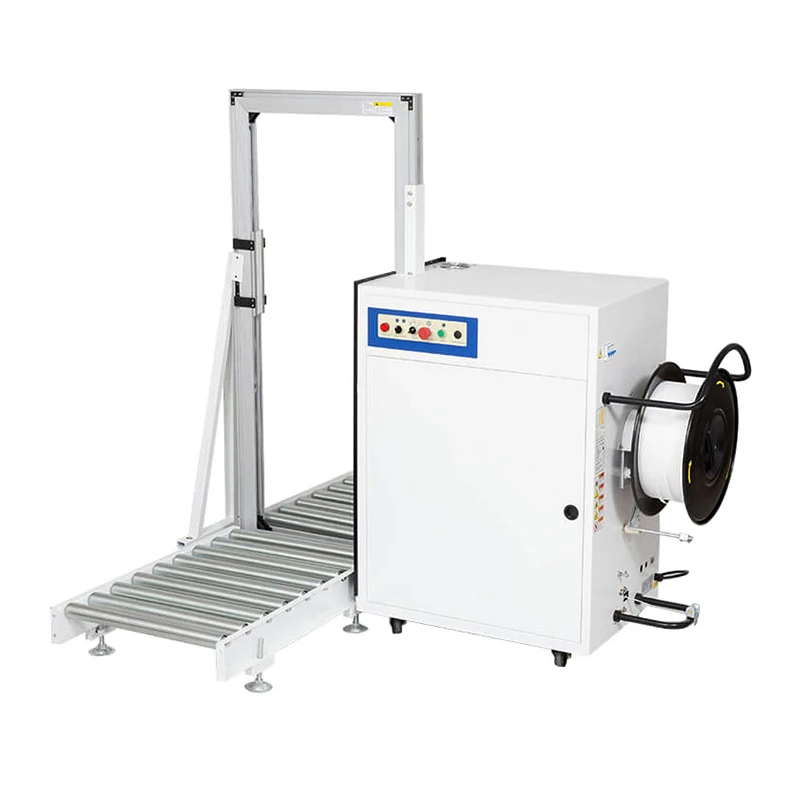

UDB-103A Automatic Side Seal Strapping Machine
Equipped with Free Infeed and Outlet Roller Table (Sold Separately), The UDB-103A Automatic Side Seal Strapping Machine Comes Standard with a W 600 mm × H 800 mm Aluminum Arch, 3 Pcs Powerful AC Motors (380 V 3 Ph) and 3 Kinds of Strapping Mode (Continuous, Manual & Automatic Mode). Also Features Easy Strap Roll Replacement, Fast Heat-Up, Automatic Strap Threading and Electronic Tension Adjustment. Using with 9 – 15 mm Width (Specific) PP Strap and Strapping Speed Up to 2.5 Second/Strap.
Specifications
Model | UDB-103A |
Arch Size | W 600 mm × H 800 mm |
Packing Size Min. | W 80 mm × H 100 mm |
Heating Head Position | Side, 420 mm above bottom arch |
Speed | ≤ 2.5 sec/strap |
Tension | 0 - 60 kg, adjustable |
Strap | 9 - 15 mm width × 0.55 - 1.2 mm thickness PP strap |
Strap Roll | W: 160 - 190 mm; Inner diameter: 200 - 210 mm; Outside diameter: 400 - 450 mm. |
Automatic Package Detector | No |
Sealing Method | Heating Element Side Adhesion |
Control System | PLC Control |
Voltage | 380 VAC 3 ph 50/60 Hz |
Power | 1.0 kw / 5 A |
Noise | ≤ 80 dB(A) |
Machine Size | L 1860 mm × W 628 mm × H 1350 mm |
Machine Weight | 290 kg |
Features

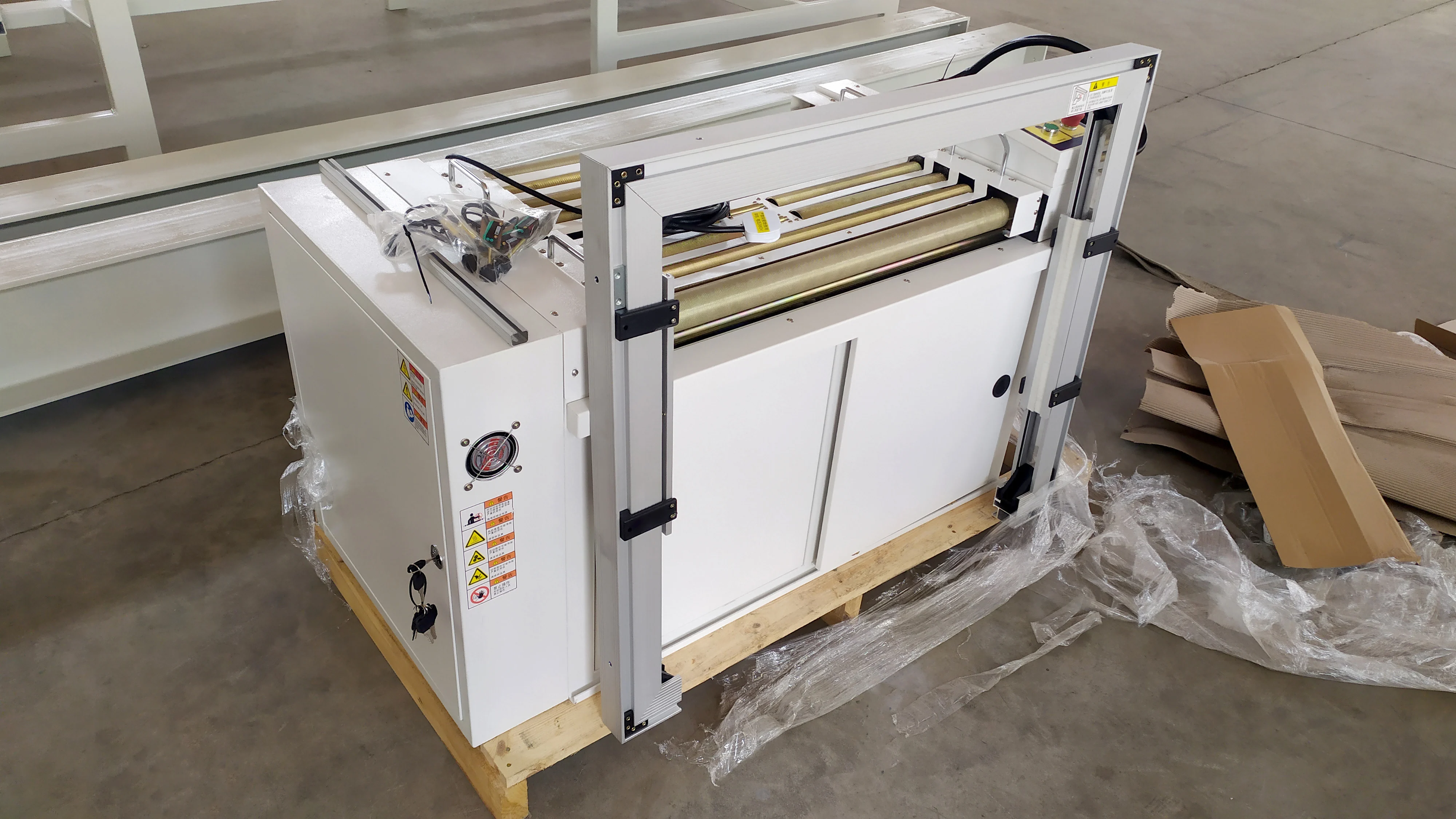

Std. W 600 mm x H 800 mm Arch
Light Duty Aluminum Arch;
Std. Arch Size: W 600 mm x H 800 mm;
Arch Size Customizable;

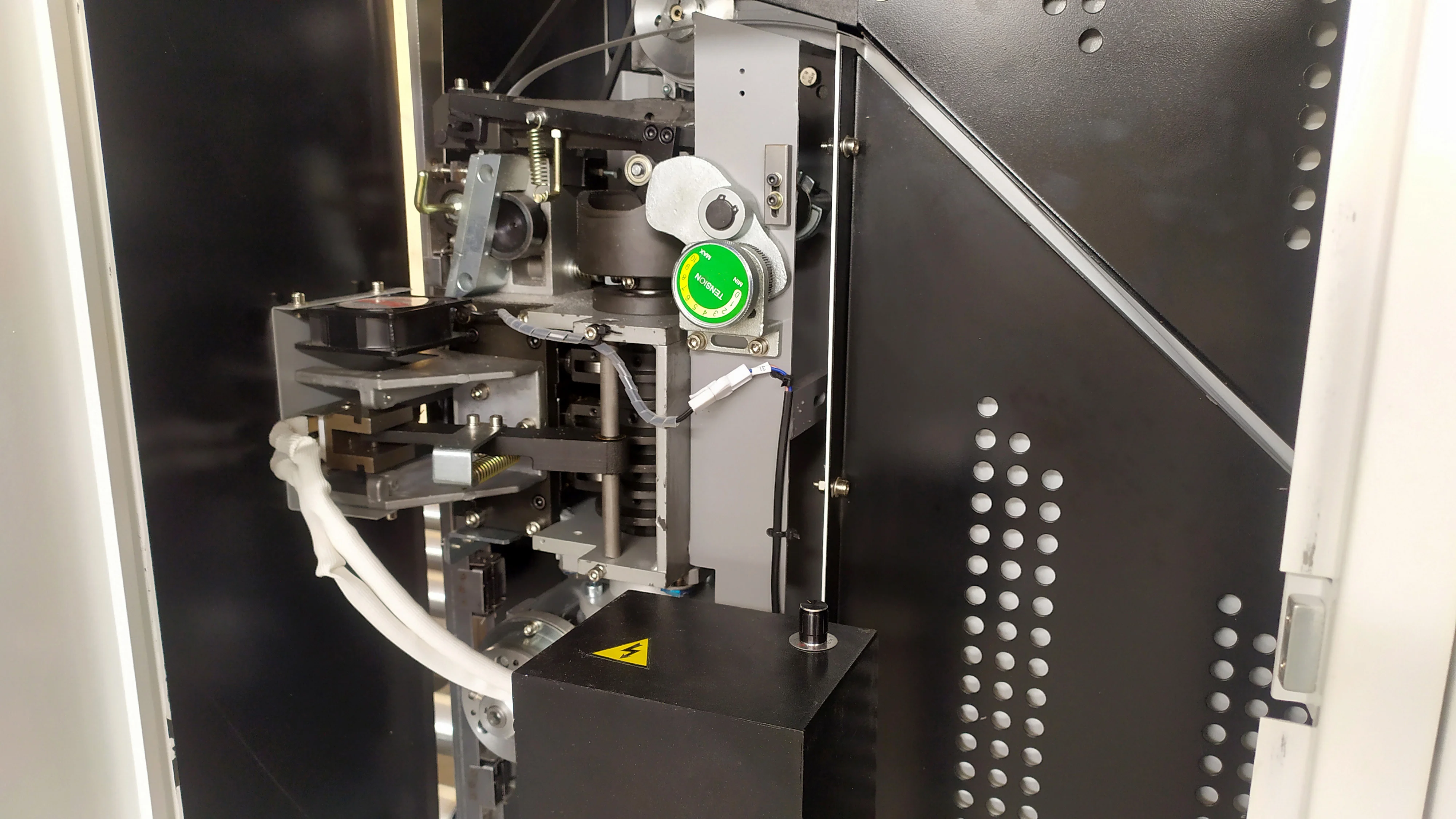

Side Mounted Strapping Head
Strapping and Heating Head Mounted on the Side Which allows Items to be Strapped from the Side Instead of Bottom;

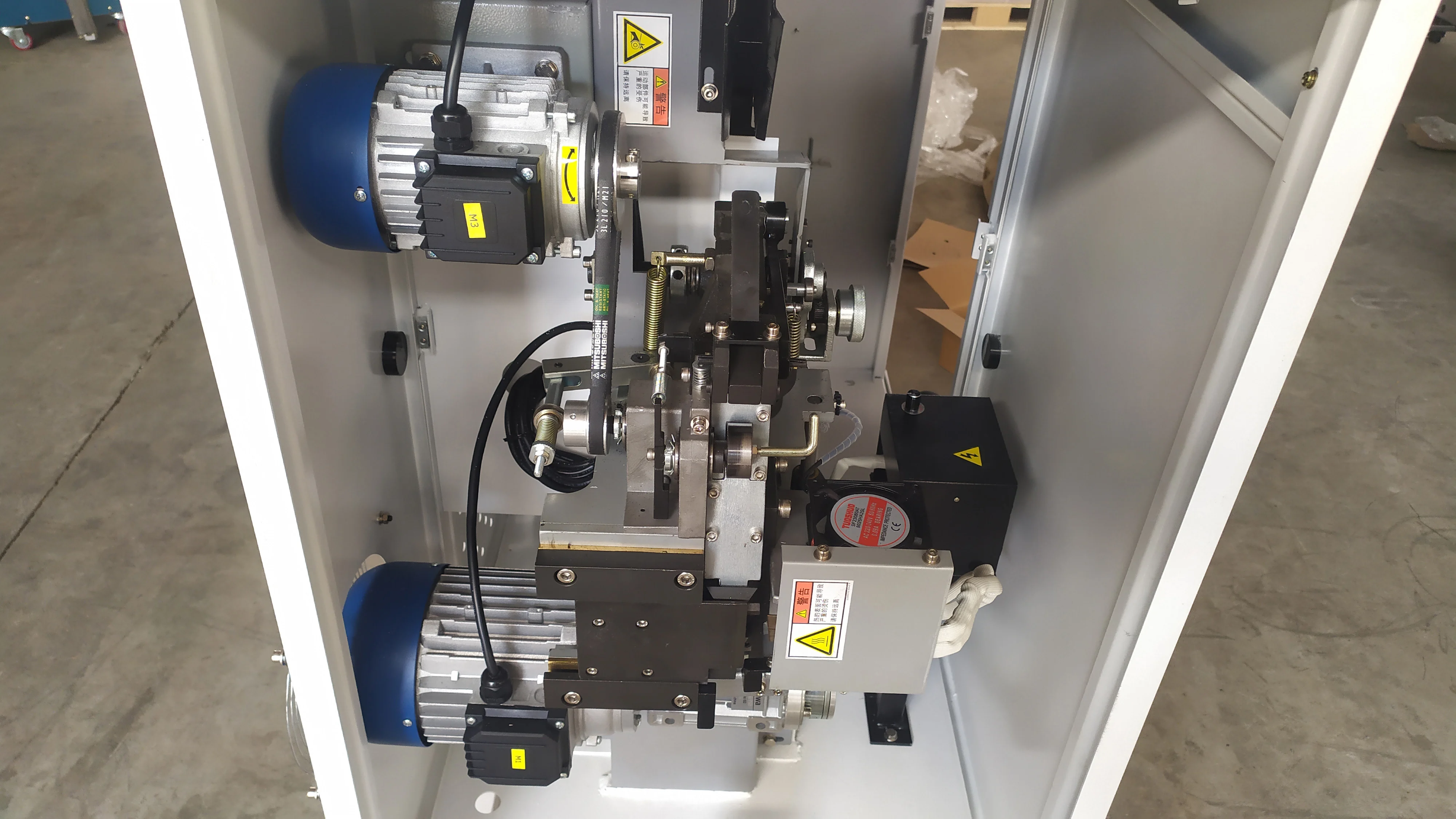

3 Powerful AC Motors
Core Structure with 3 Powerful AC Motors: 0.37 kw + 0.25 kw + 0.25 kw;
Using with 380 VAC 3 ph 50/60 Hz Power Supply;
Voltage Customizable;
Tension and Temperature Adjustment
Electronic Tension Force Knob 0 - 60 kg Adjustment;
Heating Temperature Knob Adjustment;

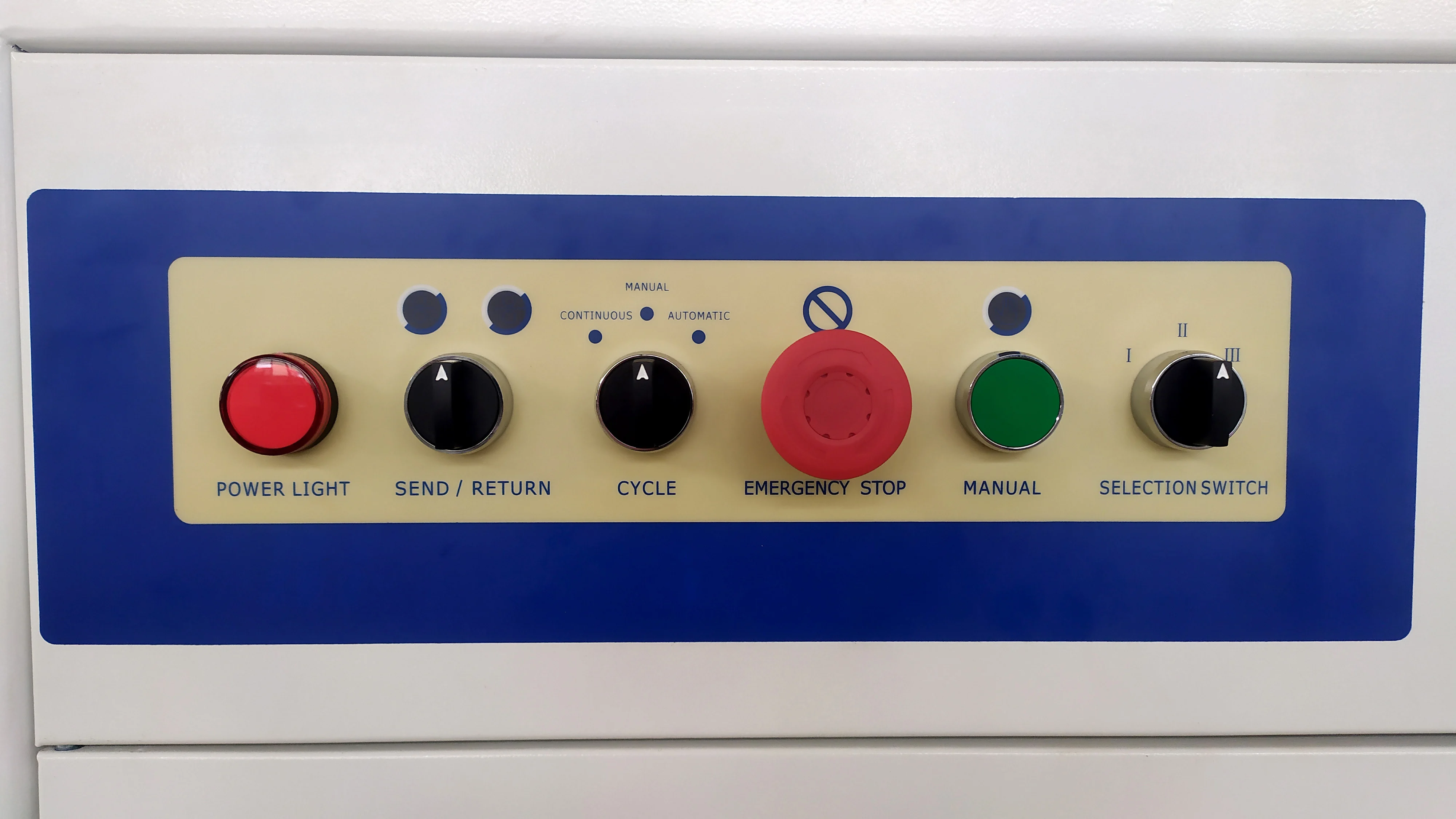

Control Panel
Power Light;
Strap Send / Return Switch: Manual Feed / Reverse the Strap;
3 Strapping Modes Selector Switch:
* Continuous: Strapping at Regular Intervals (Interval Time Adjustable);
* Manual: Manual Push Button Controls;
* Automatic: Ball Switch Controls;;
Emergency Stop;
Manual Strapping Push Button;
Number of Straps Selection Switch: No Using;

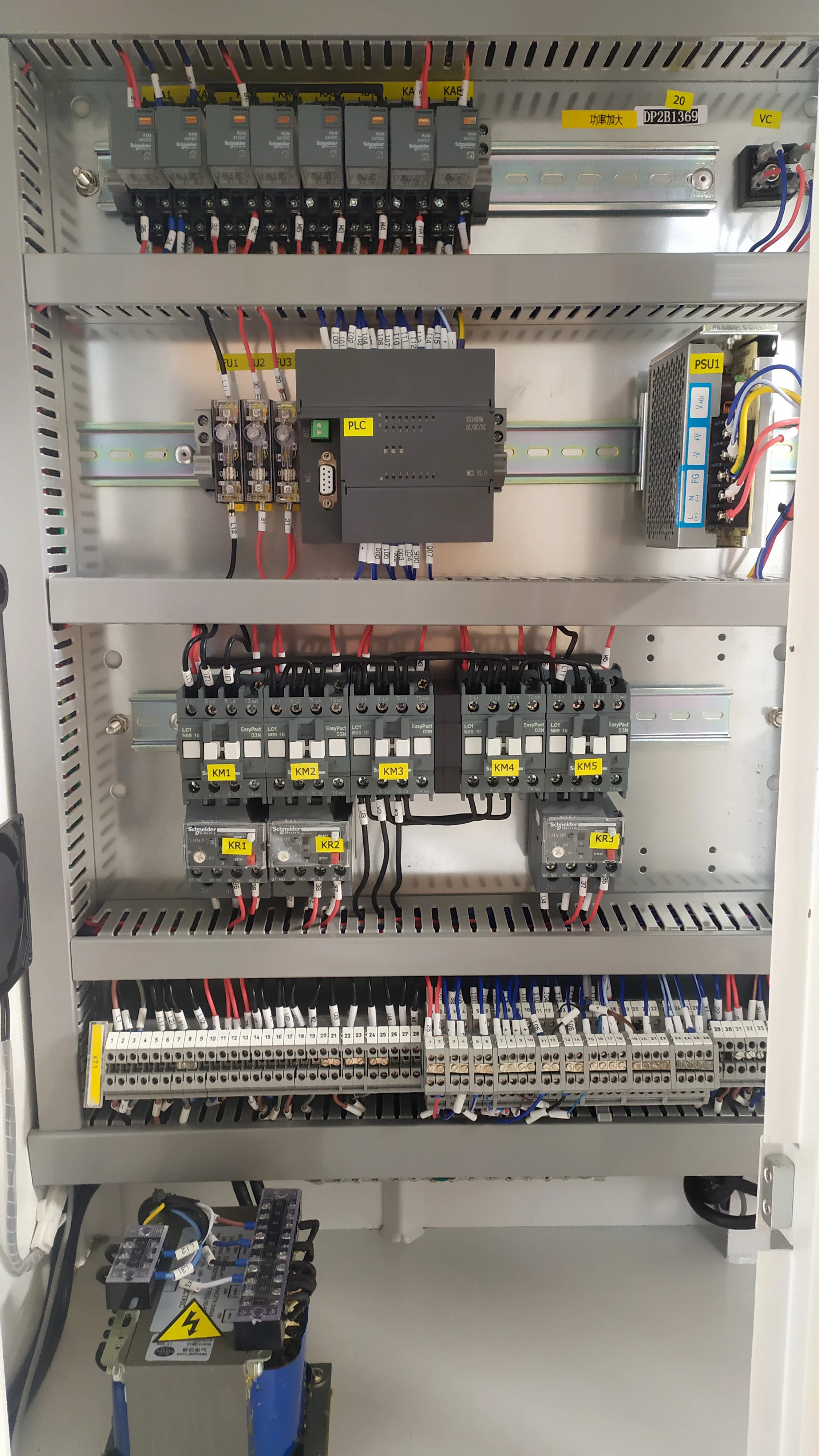

PLC Control
PLC Control;
Using with 9 - 15 mm Width PP Strap

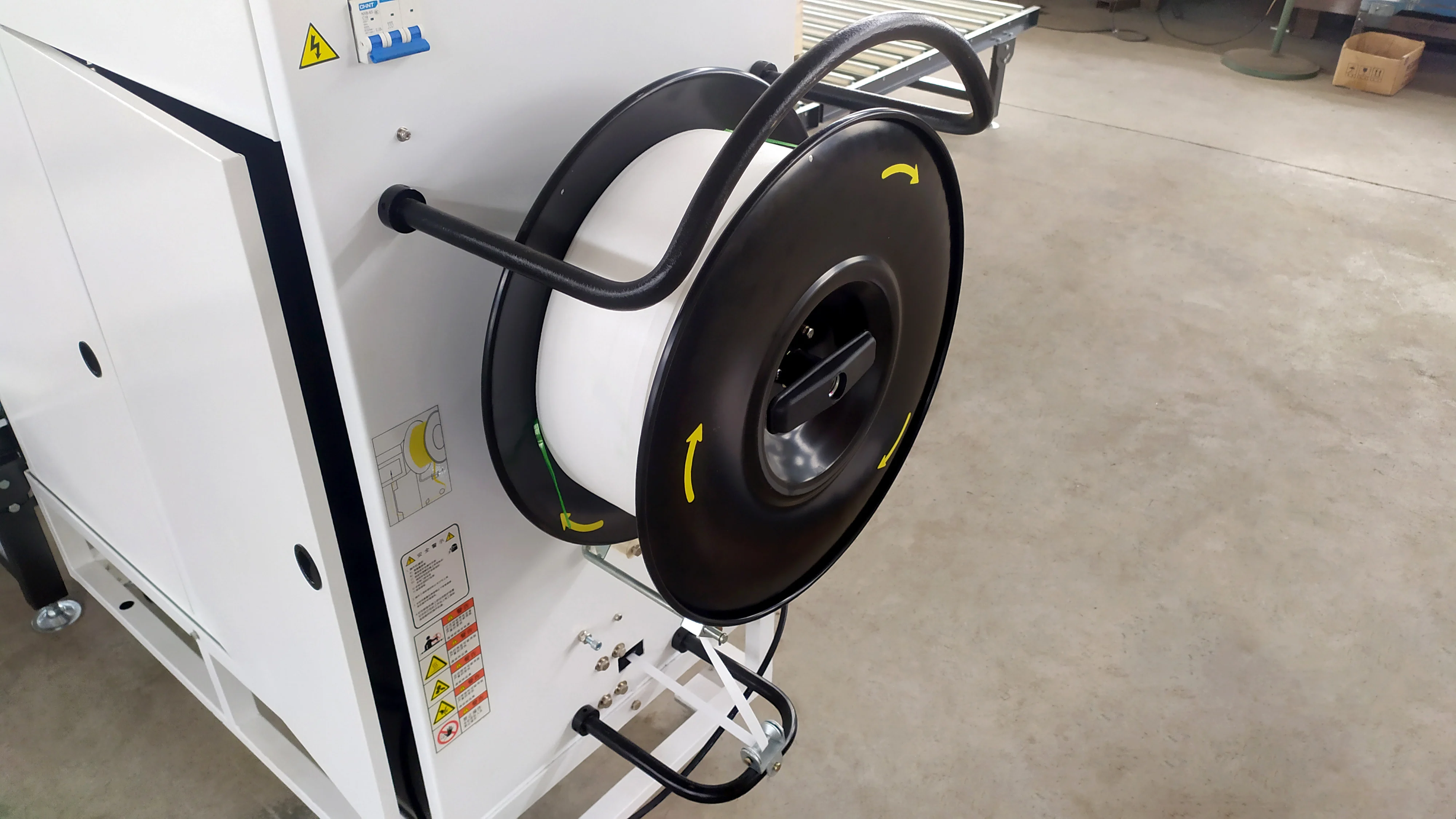

External Strap Roll Holder, Easy for the Replacement of Strap Roll;
Using with 9 - 15 mm Width x 0.55 - 1.2 mm Thickness (Specific) PP Strap;

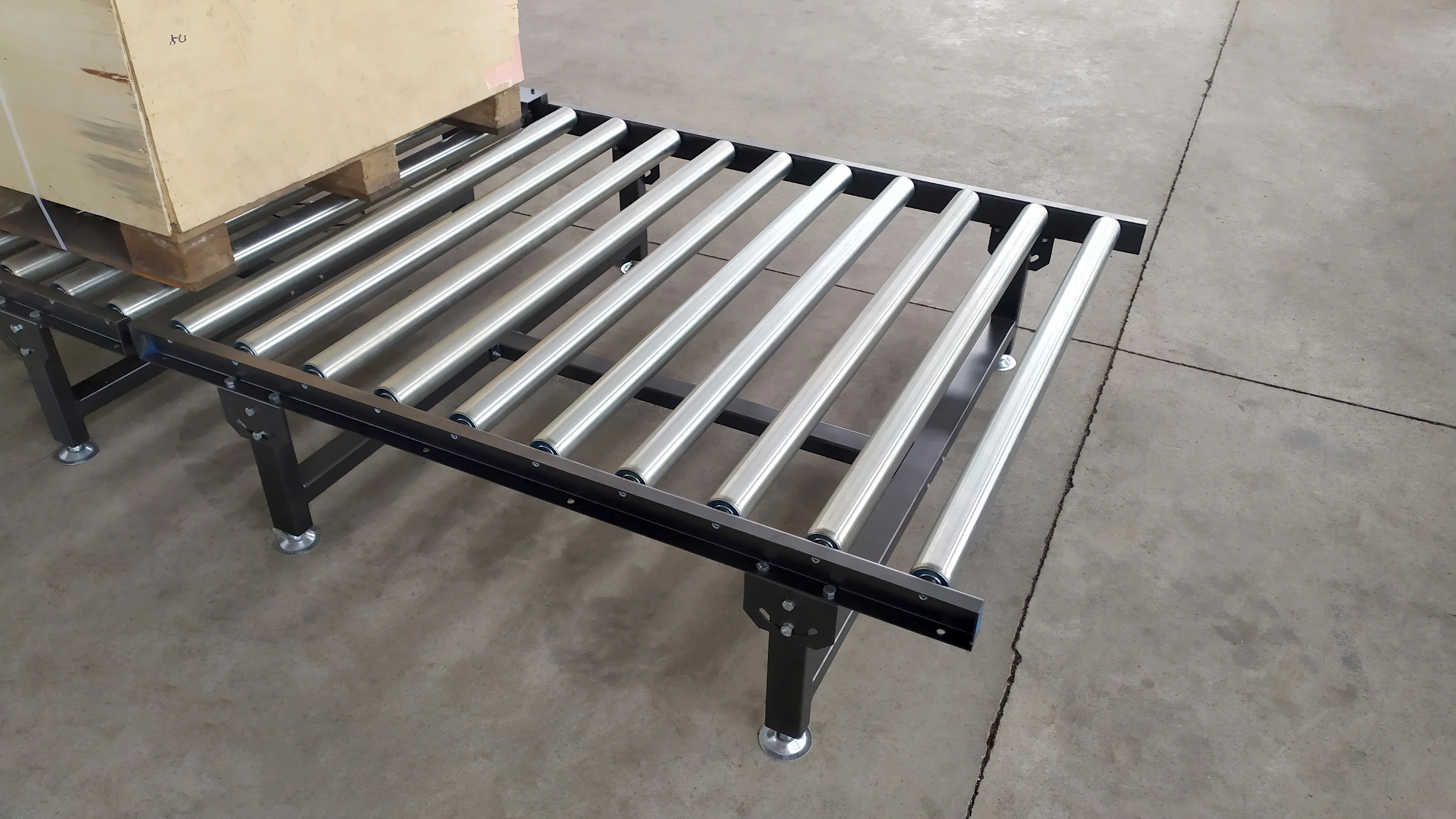

Equiped with Free Roller Table
Free Roller Table Helps the Movement of Packages.
Roller Table Height Customizable;
Solution

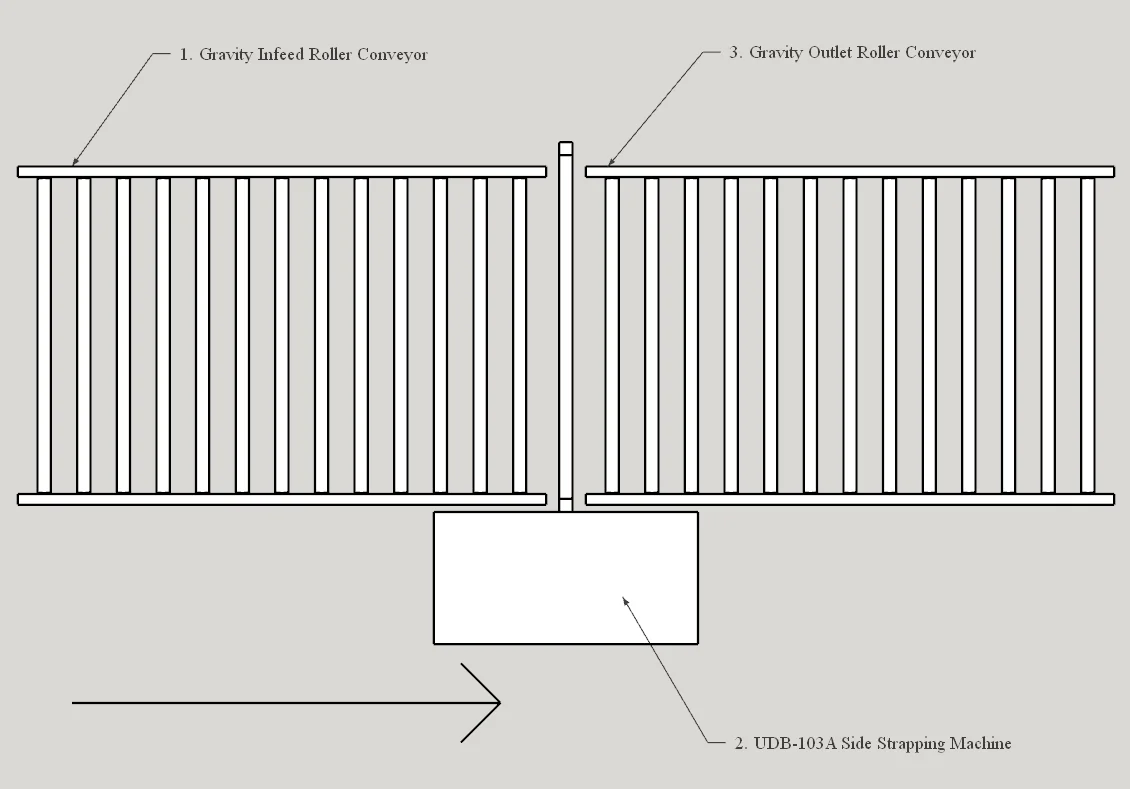

The Whole Strapping Solution Consist of 3 Sections:
Free Infeed Section + UDB- 103A Side Seal Strapping Machine + Free Outlet Section (Conveyor Sections Sold Separately);
Free Infeed Section + UDB- 103A Side Seal Strapping Machine + Free Outlet Section (Conveyor Sections Sold Separately);
Options
* Enlarged Arch Size;
* Infeed and Outlet Conveyor;
* Top Presser;
* Voltage;

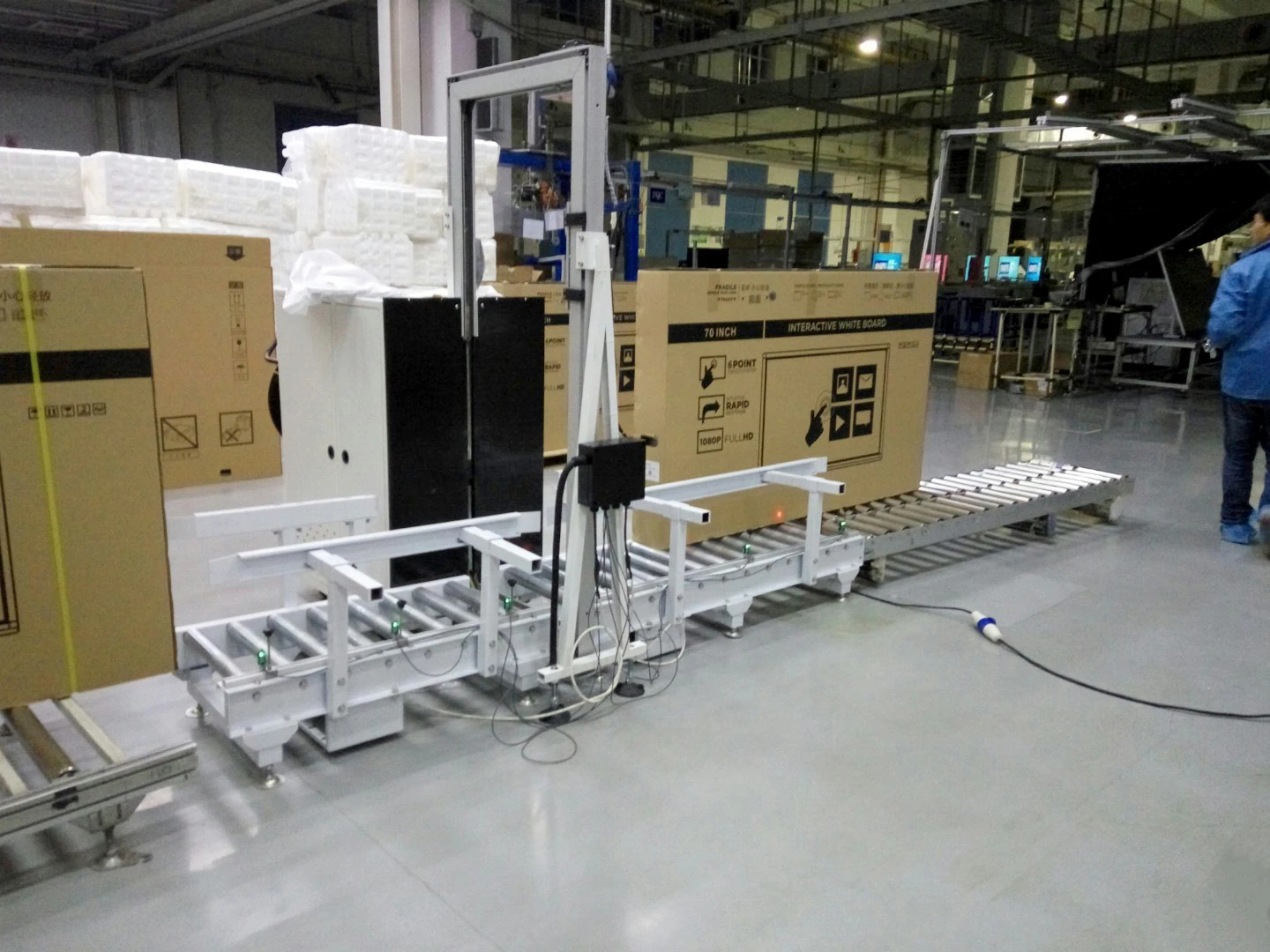

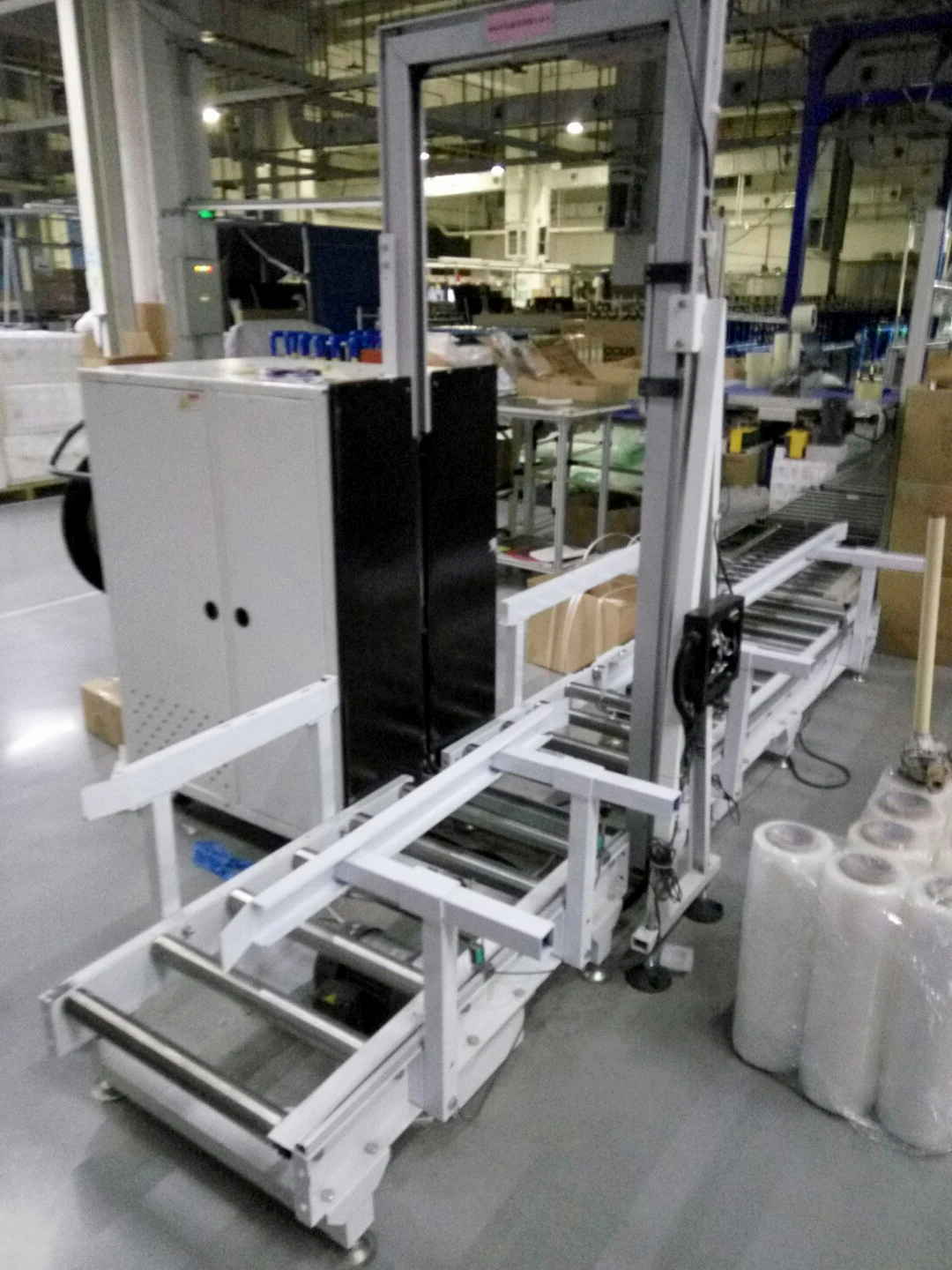

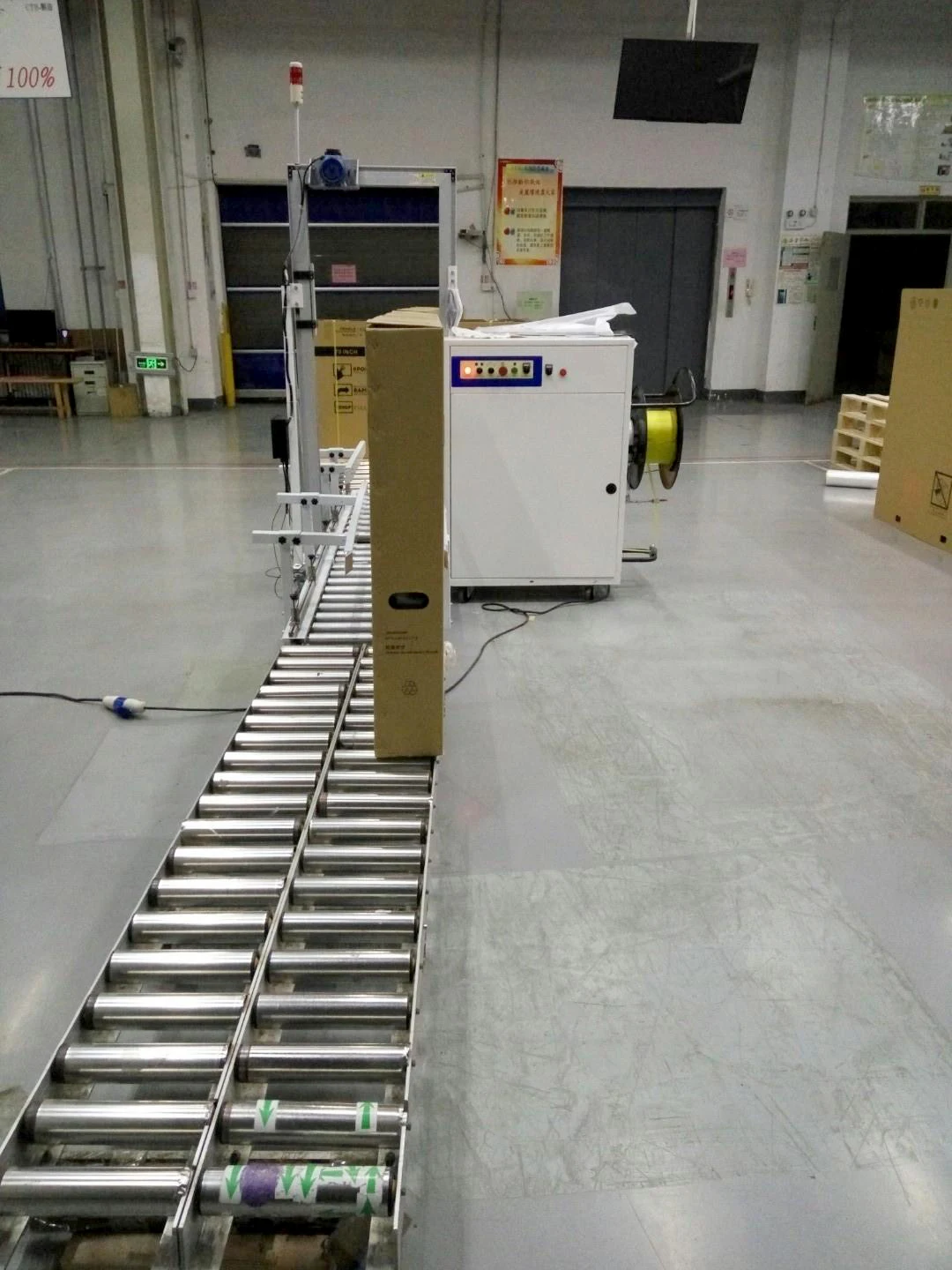

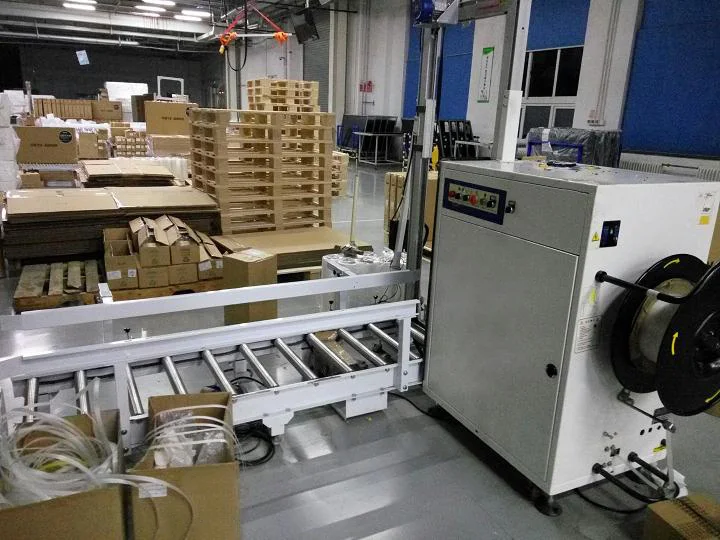

Gallery
Packaging & Shipping

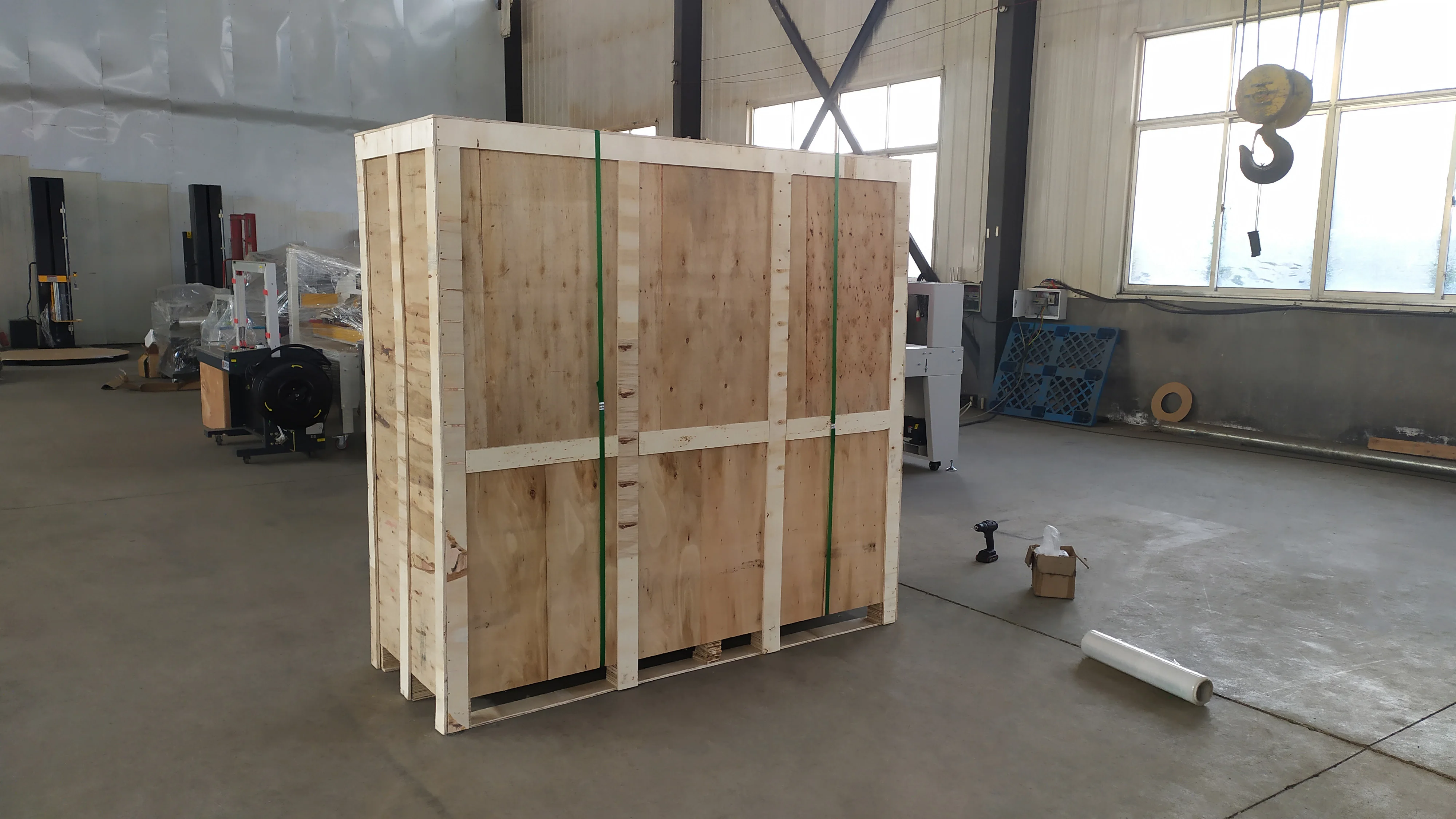

Plywood Seaworthy Wooden Pallet + Carton for LCL;
Plywood Seaworthy Wooden Pallet + Carton and PET Strap Reinforce for FLC;
