Fanless Hardware Firewall Pfsense Mini PC Kaby Lake 3865U 3855U With 6*RJ45 LAN Firewall Router Support AES NI 4*USB3.0
- Category: >>>
- Supplier: Shenzhen Inctel Technology Co. Ltd.
Share on (62371197673):
Product Overview
Description
Firewall Router Fanless pfSense 6 LAN Mini PC 12V
1. This computer only works with RAM at DDR4.
2. Barebone system means no ram no storage, and we won't install OS to you .
3. The Operating System is just for testing, copied but NOT activated and not licensed, please install the licensed one by yourself if you prefer.
1. Intel Kaby lake Celeron 3865u dual Core 1.8GHz.

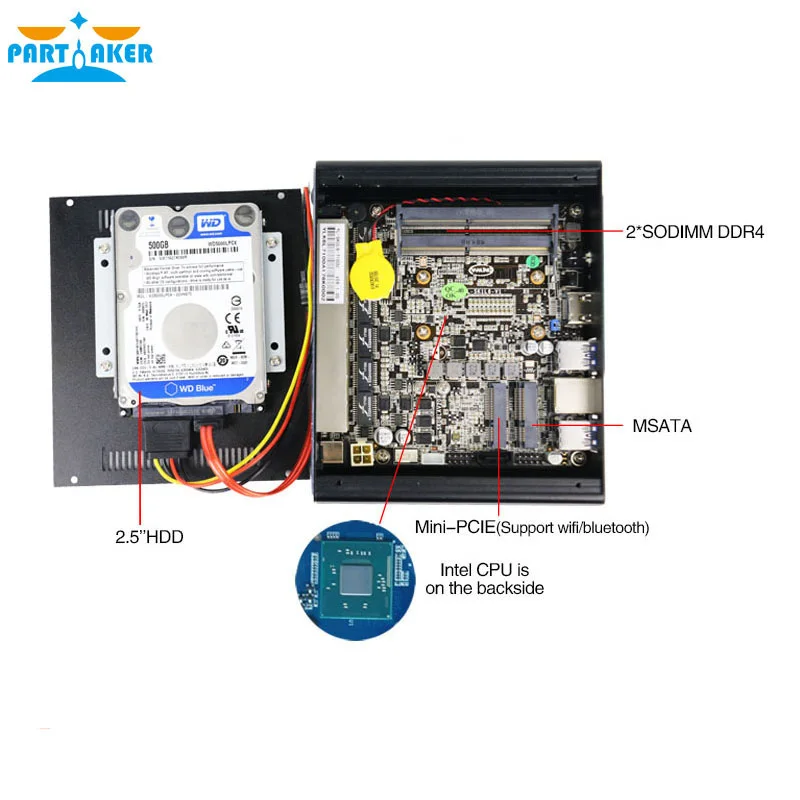

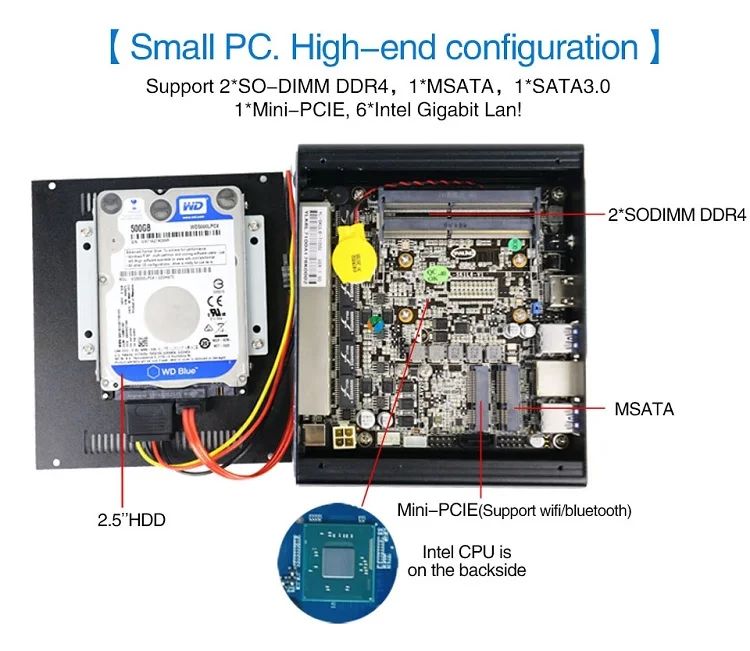

2. Support 2*DDR4 1866/2133MHz, max 32G;

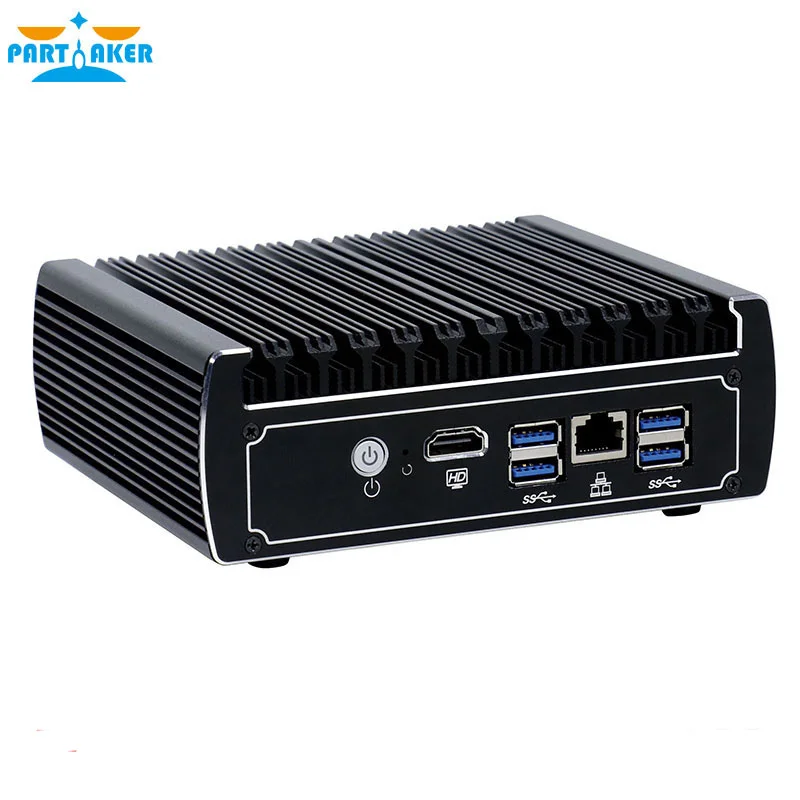

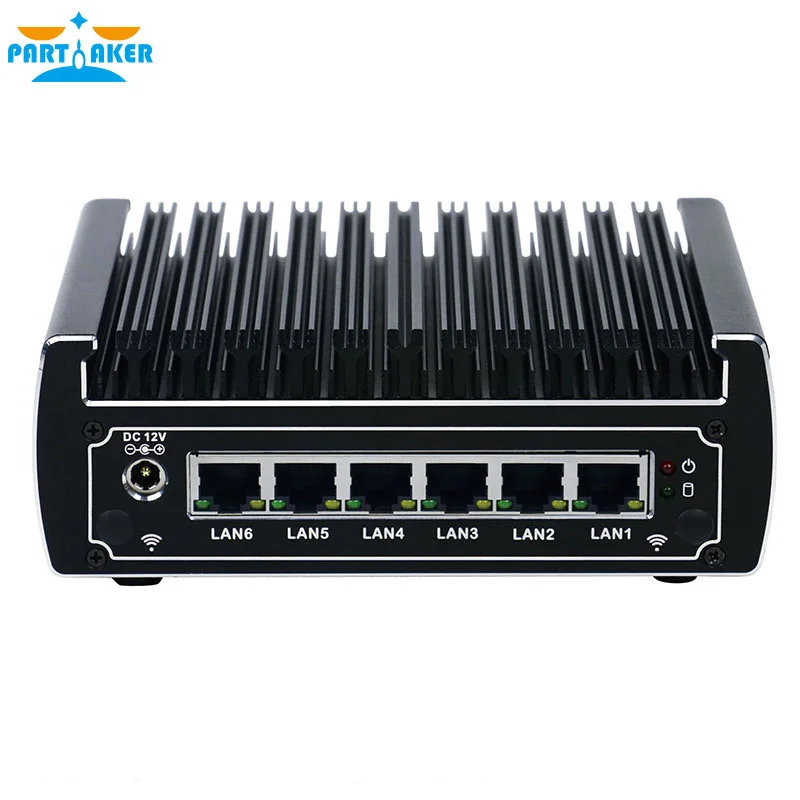

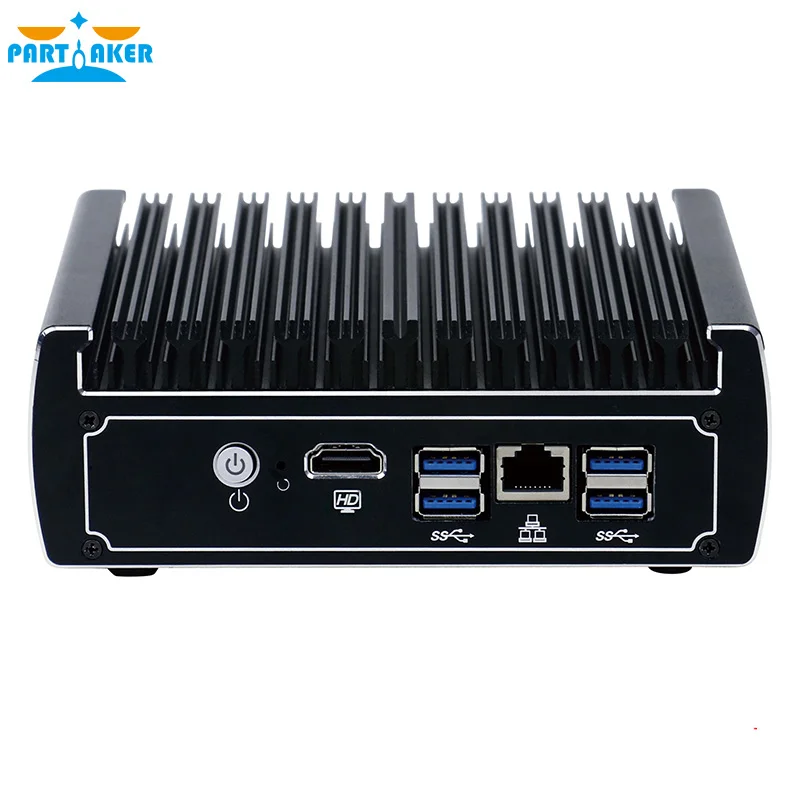

3. 1*HDMI+ 4*USB3.0 +6*intel LAN+1*RJ45 COM(support console)+1*Power switch;
4. 6*Intel 82583V 1000M lan card, support wake on lan;
5. 1*MSATA, 1*SATA3.0, 1*mini-PCIE( support wifi / bluetooth,add extra $10);
6. AMI 64MB Flash ROM .support RPL/PXE diskless boot, electricity boot, WDT
7. DC-IN 12V power supply and AC power adapter;

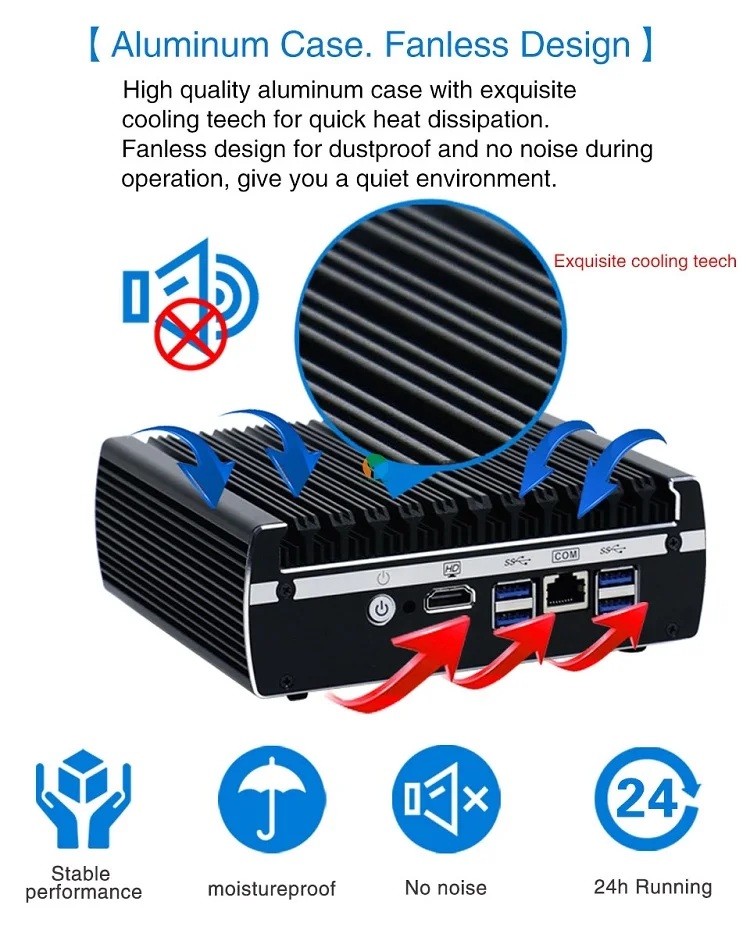

8. High-quality Fanless pure aluminum Case;
9. Applied in Firewall, Network Server, Network Security, VPN Router etc.
Processor has 3 options suitable for the same motherboard:
| Model | Partaker I7 Fanless Mini PC |
| CPU | Intel Kaby lake Celeron 3865u dual core 1.8GHz Mini PC |
| Chipset | Intel express chipset |
| Material of case | High quality pure aluminum mini pc case |
| Memory | support 2*DDR4 1866/2133MHz, support max 32G |
| Storage | 1*SATA3.0, 1*MSATA(32G/64G/128G/500G/1TB optional) |
| Network | 6*Intel 82583V 10M/100M/1000M Lan |
| Graphic Card | Integrated HD Graphic Card fanless mini pc |
| I/O | 4*USB3.0 |
| 1*RJ45 COM(support console) | |

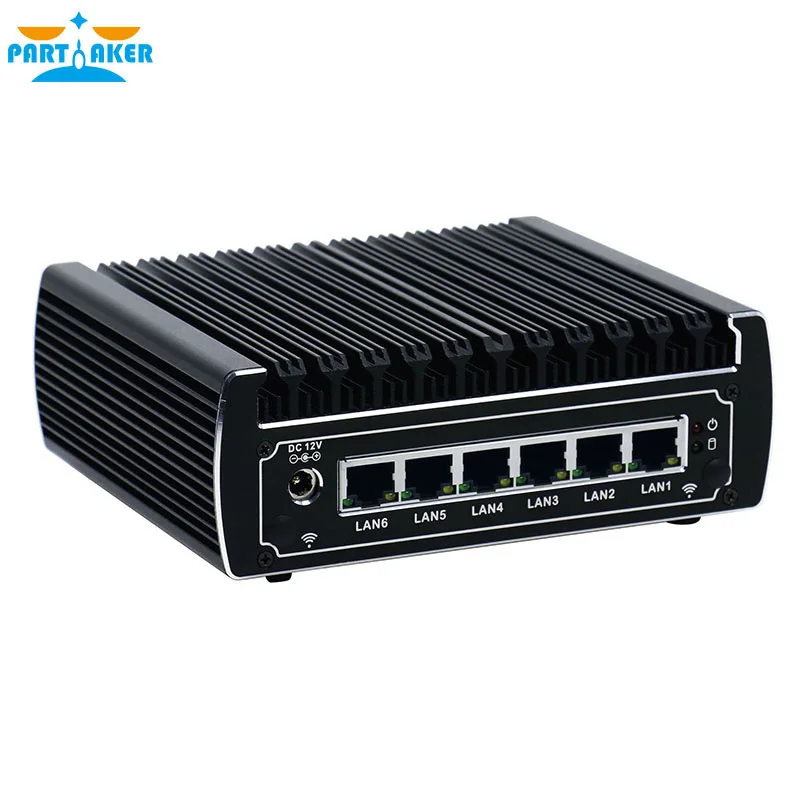

| 6*RJ45 Lan | |
| 1*HDMI(No sound output) | |
| 1*DC-IN 12V | |
| 1*HDD LED | |
| 1*Power LED | |
| 1*Power Switch | |
| 2*Wifi hole | |
| Built-in I/O | 1*Mini-PCIE Connector |
| 1*Mini-SATA 3Gb/s connector | |
| 1*SATA port | |
| 1*MSATA port | |
| BIOS | AMI 64Mbit Flash ROM |
| Expansion slot | 1*Mini-PCIE(support wifi/bluetooth) |
| Mainboard | 120*120mm Nano ITX mainboard |
| Support OS | Windows 7, Windows 8, Windows 10, linux, pfsense |
| Power Supply | DC-IN 12V power supply and AC power adapter |
| Operation Temp | -10~60°C |
| Work Humidity | 0%~90% non-condensing |

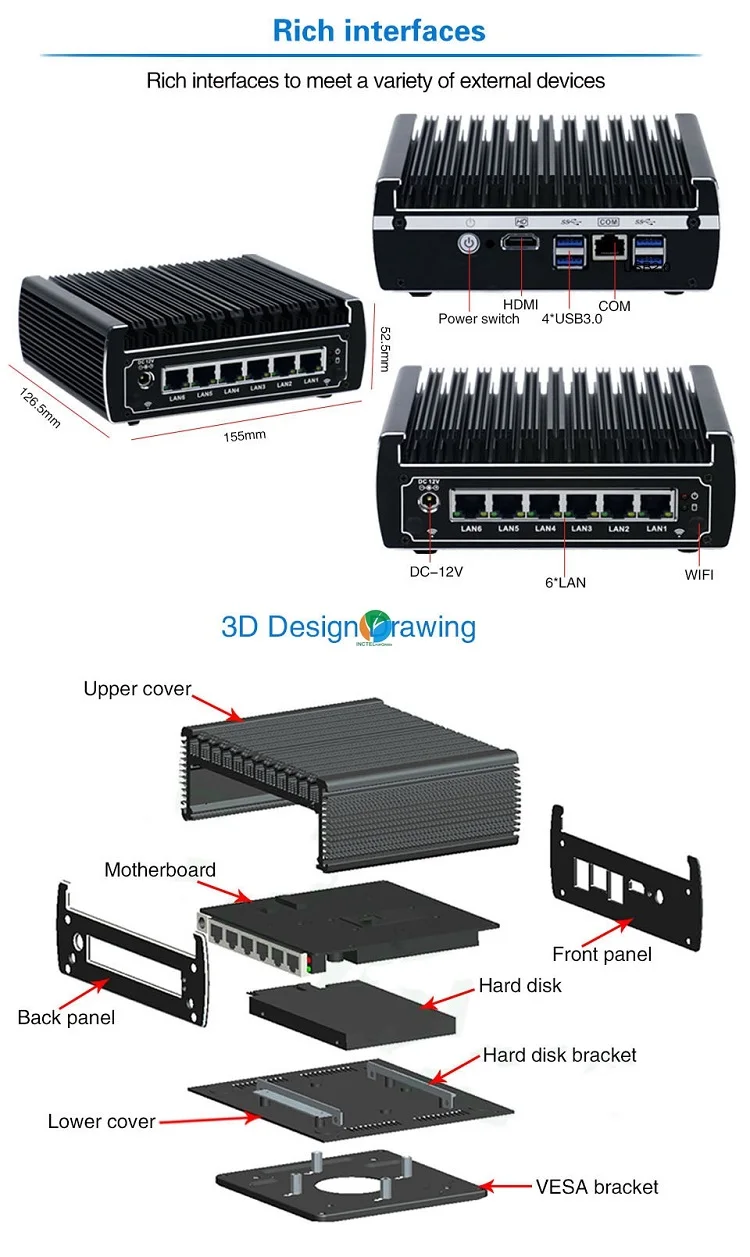

| Dimension | 155*126.5*52.5mm |
