Распродажа, хорошее качество по заводской цене, охлаждающая башня круглого или квадратного типа

Распродажа, хорошее качество по заводской цене, охлаждающая башня круглого или квадратного типа

Category: Cooling Towers >>>
Supplier: Shanghai,Elan,Industry,Co.,ltd

Price:1 499,00 $ - 1 999,00 $

Price in USD:Details

Quantity:

Product Overview

Description

INTRODUCTION

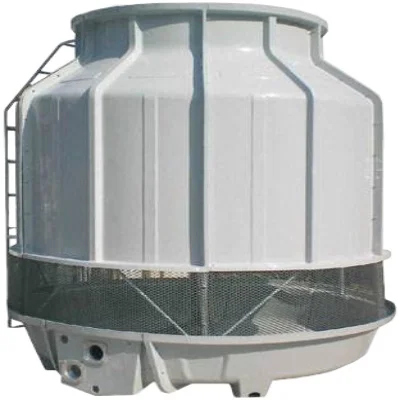

YLCT series cooling tower utilizes water and air contact, and the waste heat generated by the cooling water system of the chiller/ central air conditioner is discharged to the atmosphere through the evaporation function, so that the purpose of reducing the cooling water temperature is realized.

YLCT series cooling tower can be used independently, the waste heat (hot water) generated in the industrial production process is directly cooled

TECHNICAL DATA

INSTALLATION DIMENSION (R type)

YLCT(***)
YLCT(***)	W	H	h1	h2	DN1	DN2	DN3	DN4	DN5
030FSS/(L)	1650	3000	2150	160	80	100	25	50	50
030FMS/(L) 010-020FHS	1650	4050	3000	160	80	100	25	50	50
040FSS/(L)	1850	3500	2600	160	100	150	25	50	50
040FMS/(L) 030FHS	1850	4200	3200	160	100	150	25	50	50
050FSS/(L)	1875	3800	2750	160	100	150	25	50	50
050FMS/(L) 040FHS	1875	4300	3300	160	100	150	25	50	50
075FSS/(L)	2370	3700	2750	180	150	200	25	50	50
075FMS/(L) 050FHS	2370	4400	3300	180	150	200	25	50	50
100-125FSS/(L)	2700	3950	2850	180	150	200	25	50	50
100-125FMS/(L) 075FHS	2700	4450	3350	180	150	200	25	50	50
150FSS/(L)	3000	4250	3000	180	150	200	25	50	50
150FMS/(L) 100-125FHS	3000	4850	3650	180	150	200	25	50	50
200FSS/(L)	3460	4550	3200	210	200	250	25	50	50
200FMS/(L) 150FHS	3460	5050	3700	210	200	250	25	50	50
250FSS/(L)	3750	4550	3200	210	200	250	25	50	50
250FMS/(L)	3750	5050	3700	210	200	250	25	50	50
300FSS/(L)	4250	5050	3450	240	250	300	32	65	65
300FMS/(L) 200FHS	4250	5750	4150	240	250	300	32	65	65
