Power quality analyzers offer a variety of current sensors to suit a variety of locations

Host Model

ETCR5000 Power Quality Analyzer

Power Supply

Rechargeable lithium battery pack 9.6V, 4500mAH, external charger; working current is about 490mA, battery works continuously for 8 hours

Battery Indicator

Battery symbol 5 grid     Display power, when the battery power is too low, prompt automatically shut down after 1 minute

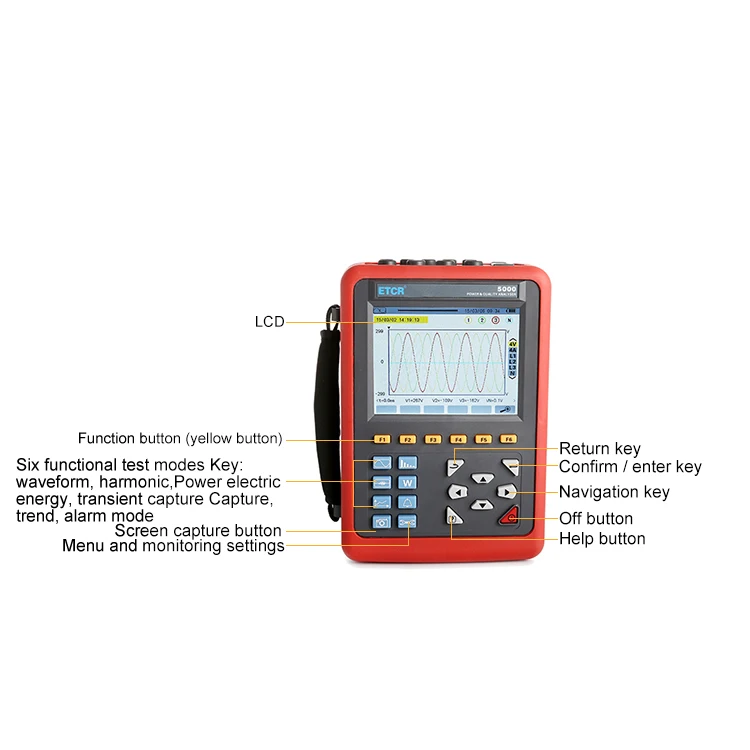

Display Mode

LCD color screen, 640dots × 480dots, 5.6 inches, display field 116mm × 88mm

Current Test

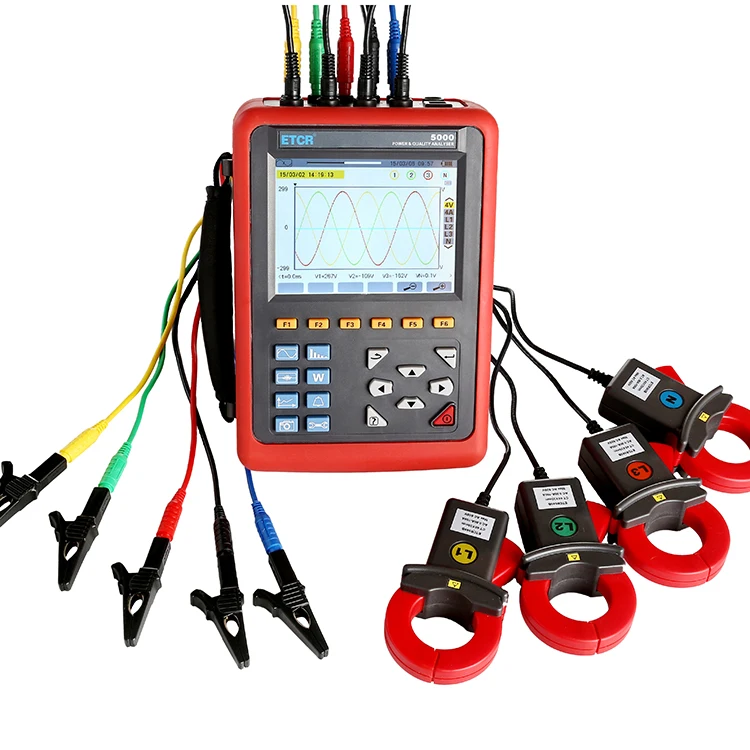

Current sensor: 008B; 040B; 068B; 300F (optional)

Voltage Test

Line voltage: 1.0V ~ 2000V; phase voltage: 1.0V ~ 1000V

Electricity Energy Parameter

W,VA,var,PF,DPF,cosφ,tanφ;Wh,Varh,Vah

Number of Channels

4 voltages, 4 currents

Three-Phase Unbalance

Y

Frequency

40Hz~70Hz

Start Current Mode

Y,100 seconds

Harmonic Wave

0 to 50 times

Peak Value

Y

Total Harmonic Distortion

Y, 0 to 50 times, each phase

Phasor Diagram Display

automatic

Expert Mode

Y

Screenshot Capacity

60PCS

Number of Transient Record groups

150 set

Menu Language

Chinese, English

Voltage Flicker

Y

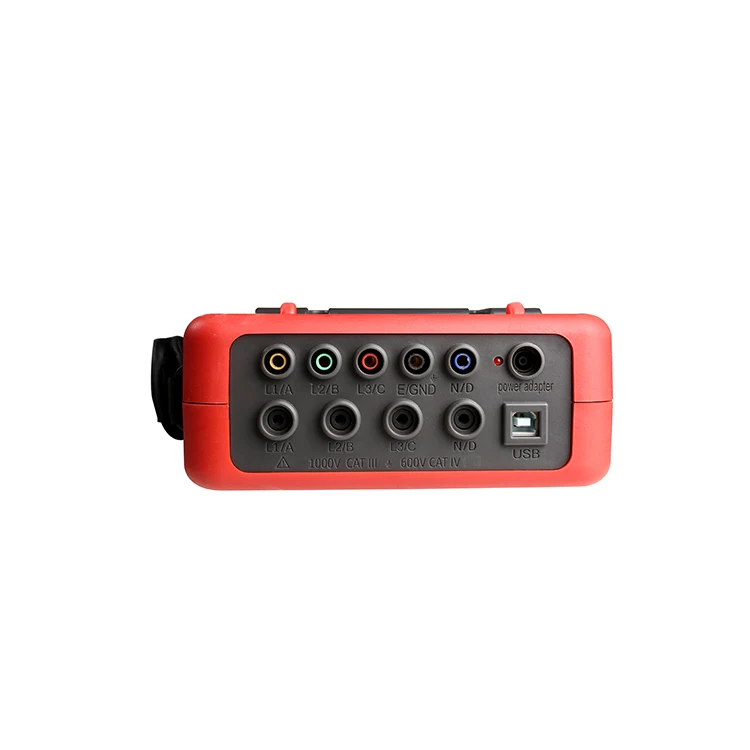

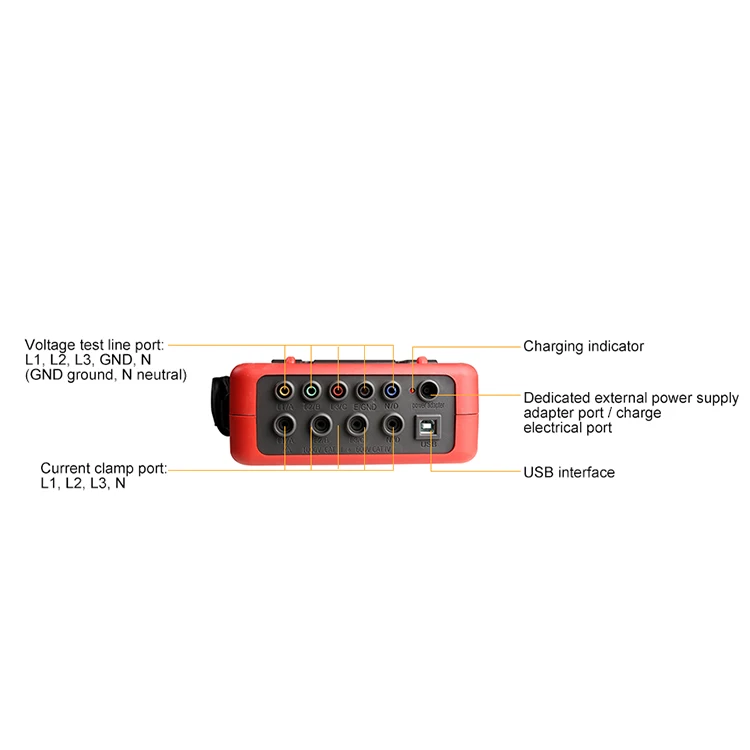

Communication Interface

USB

Record

300 days (20 parameters are recorded at the same time, 1 points are recorded every 5 seconds)

Min/Max Recorded Value

Yes, the max min value can be measured for a period of time

Warning

40 different types of parameter selection, 12800 group alarm logs

Automatic Shut-down

In the alarm/trend graph recording/transient capture mode (waiting or in progress), the instrument does not automatically shut down

In other test modes, there is no button operation within 15 minutes, prompting to automatically shut down after 1 minute.

Backlight Function

Yes, suitable for dark places and nighttime use

Meter Size

240mm×170mm×68 mm

Weight

G.W: 10.5Kg

Input Resistance

Test voltage input impedance is: 1MΩ

Safety Regulations

IEC 61010 1000V Cat III / 600V CAT IV,IEC61010-031,IEC61326,Pollution Degree 2

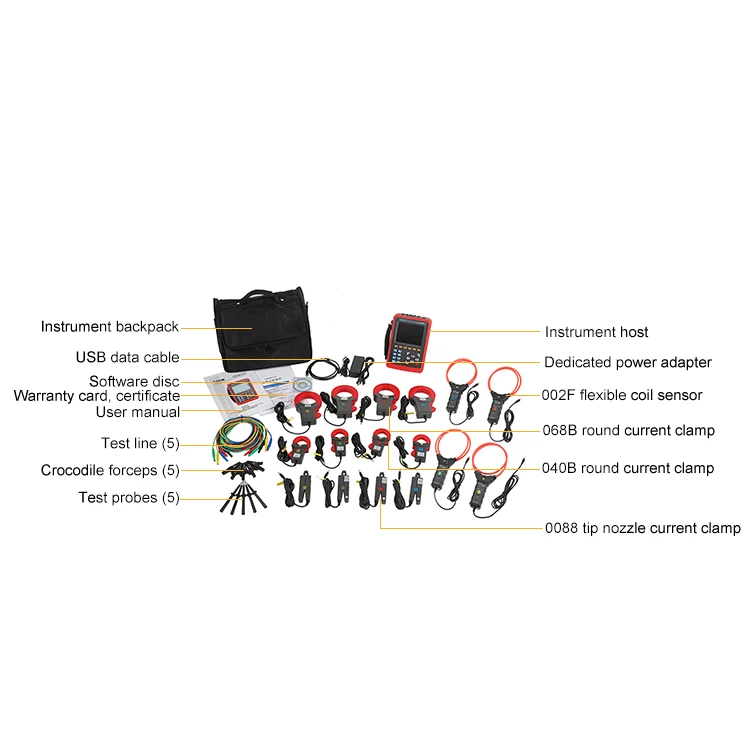

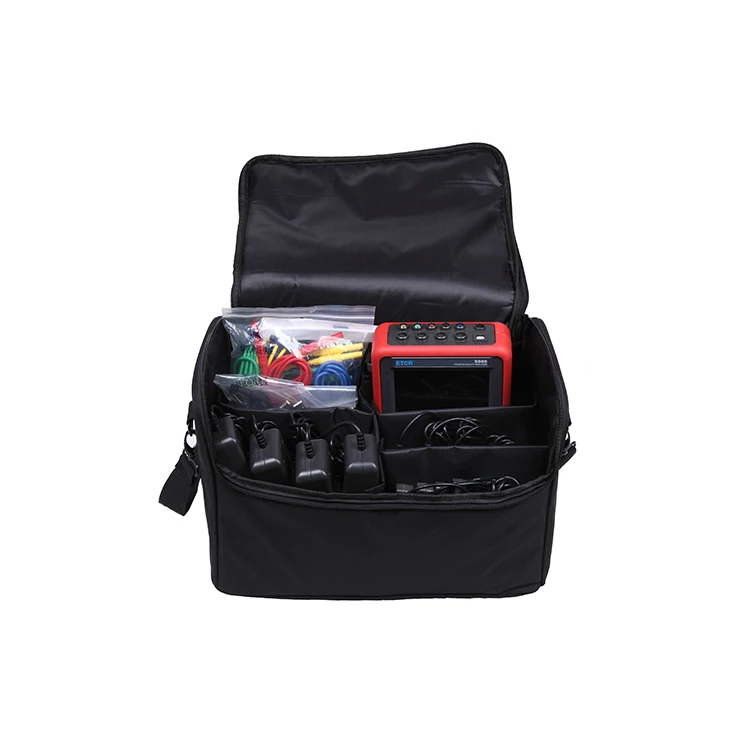

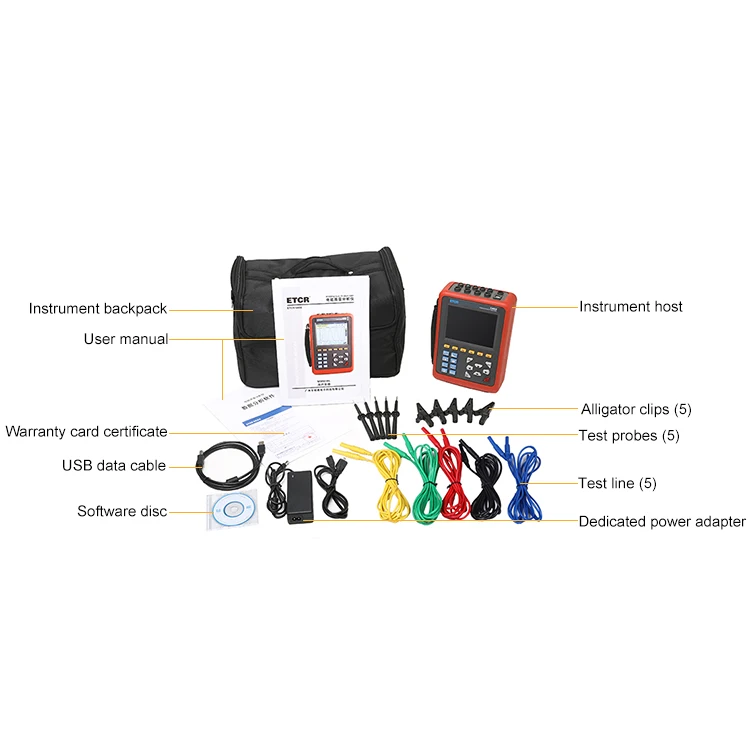

Accessories

Host: 1pcs; Case: 1pcs; Cable:5pcs(yellow, green, red, blue, black ); Alligator clip 5pcs; Pin 5pcs; Charger 1pcs; Soft ware 1pcs; 2Gmemory card(in host) 1pcs. Current Clamp: (optional)
