UCR T1650D Top Presser Semi Auto Turntable Pallet Stretch Wrapper Wrapping Machine
- Category: >>>
- Supplier: Qingdao Youchuang Packaging Equipment Co. Ltd.
Share on (62371252883):
Product Overview
Description
Product Description
Pallet Wrappers in Dispatch Operations Significantly Increase Output, Eliminate Worker Strain and Reduce the Likelihood of Damaged in Transit. At UCPACK We Offer a Range of Pallet Wrappers from Base Models Through to Fully Automatic Models, And are Fully Customized with a Variety of Optional Functions to Meet the Various Requirements of Customers. Contact Us Today, We Can Advise the Pallet Wrapper Solutions Depending on Your Budget and Output for Your Business.

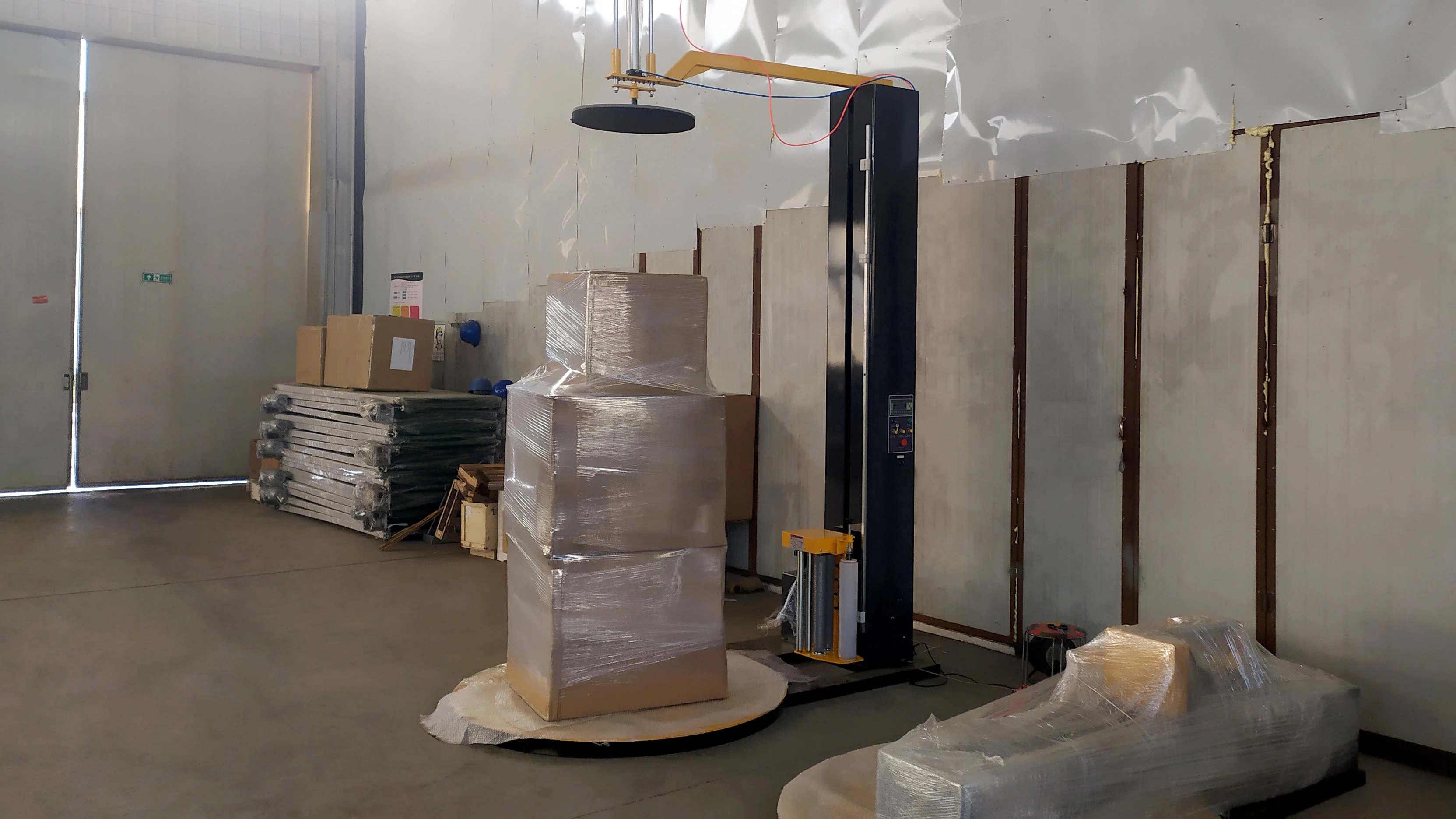

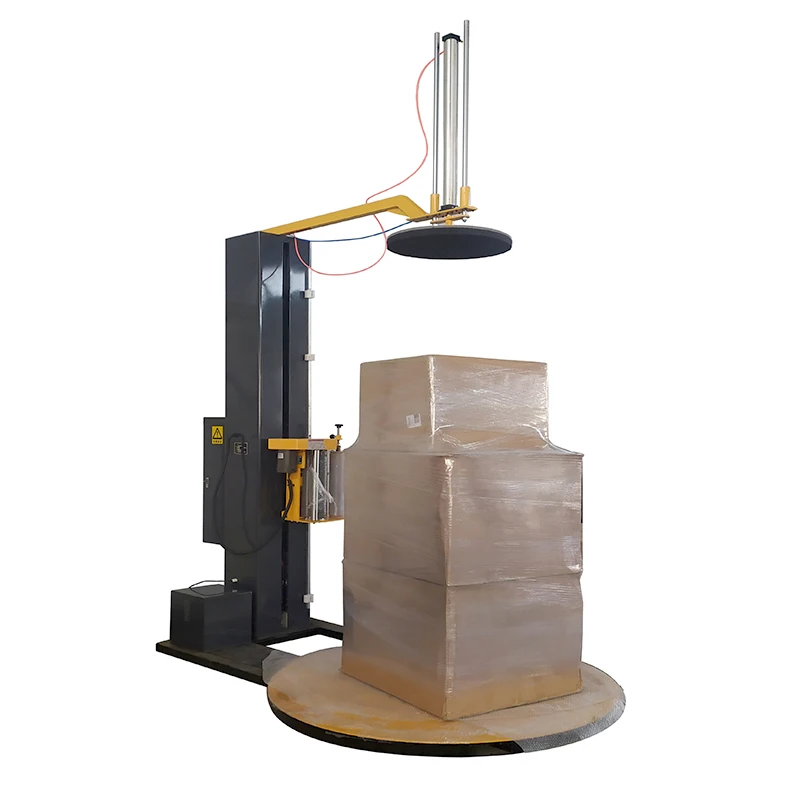

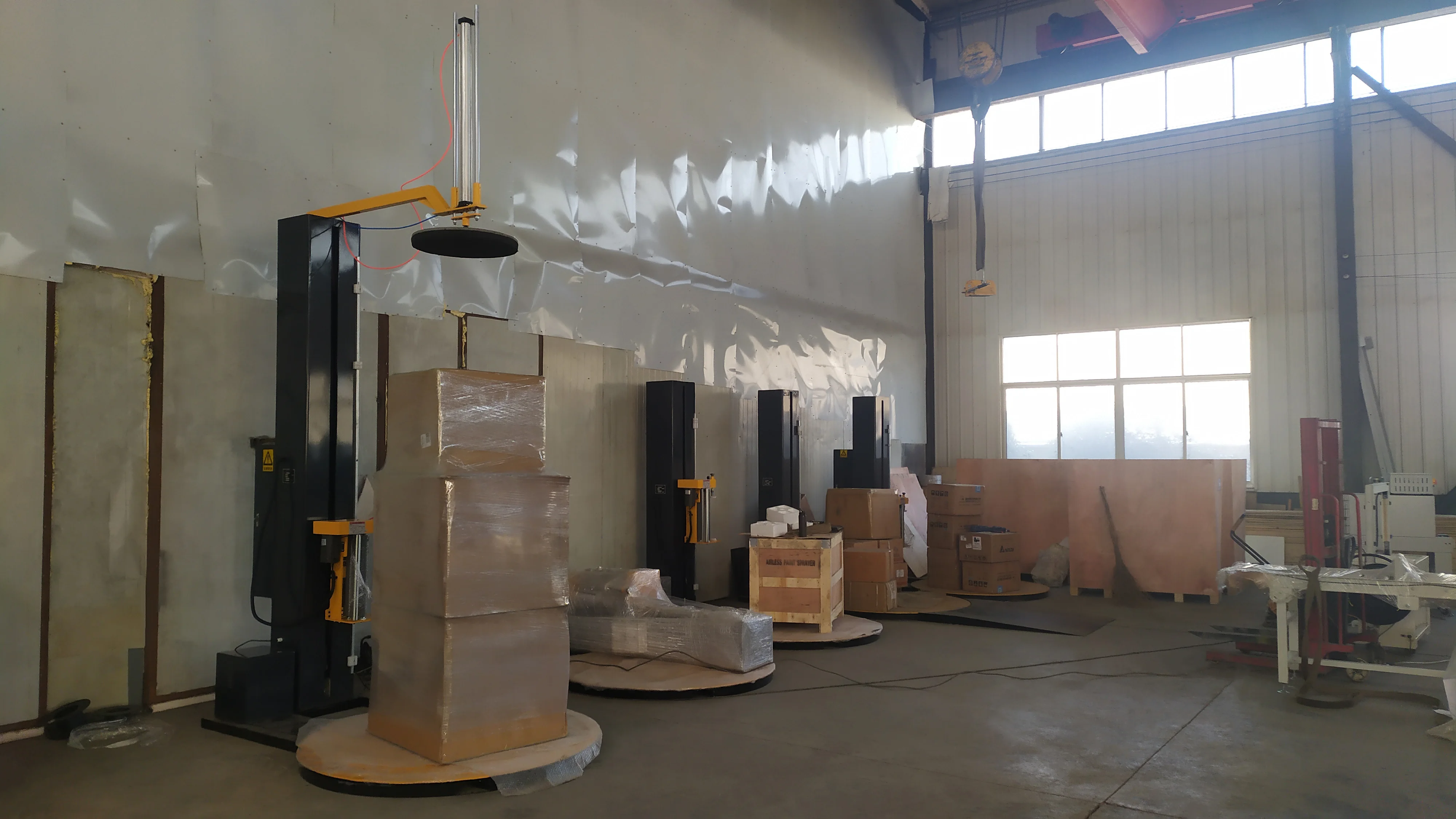

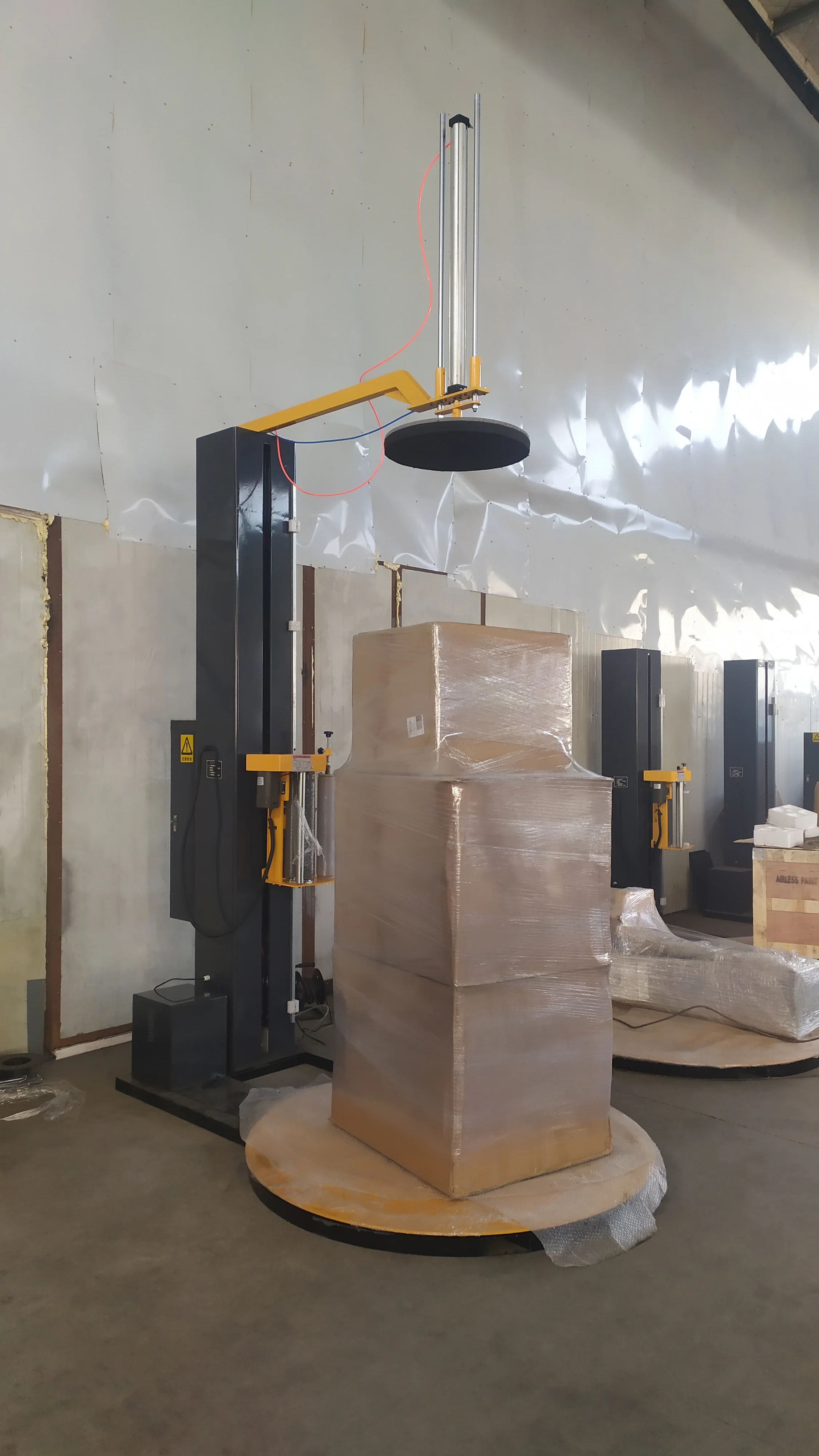

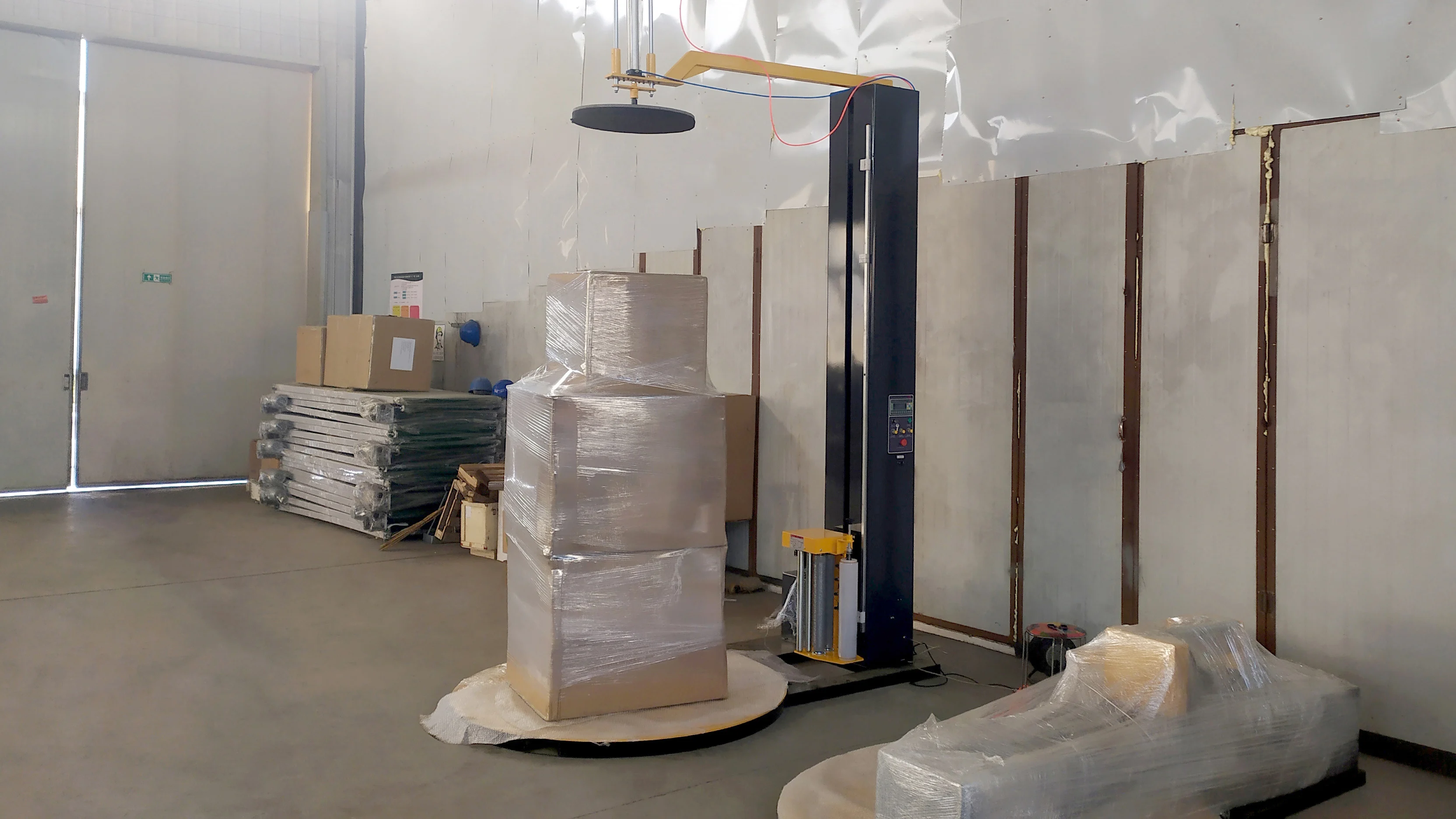

UCR-T1650D Top Presser Semi-Auto Turntable Pallet Stretch Wrapper Wrapping Machine
UCR-T1650D Top Presser Semi-Auto Pallet Stretch Wrapper Comes Standard with a Pneumatic Operated (Electric Operated Optional) Top Presser Provides Extra Pressure on Top of Loads to Improve the Stability of Loads During Wrapping Process.
Other Features Include a Dia. 1650 mm × 12 RPM Variable Speed Turntable with Max. 2000 kg Load Capacity, Photocell Auto Load Height Detector and a Film Pre-Stretch Delivery System Up to 300%.
Suitable for Max. L 1200 mm x W 1100 mm x H 1800 mm Pallet with Loose Loads.
Specifications
Model | UCR-T1650D - Pneumatic Operated Top Presser | UCR-T1650D - Electric Operated Top Presser |
Packing Size Max. | W 500 - 1100 mm × L 500 - 1200 mm | W 500 - 1100 mm × L 500 - 1200 mm |
Turntable Diameter | 1650 mm | 1650 mm |
Wrapping Height Min. | 1100 mm | 500 mm |
Wrapping Height Max. | 1800 mm | 1800 mm |
Top Presser | Pneumatic Operated (Electric Operated Option) | Electric Operated (Pneumatic Operated Option) |
Load Capacity | 2000 kg | 2000 kg |
Efficiency | 20 - 40 loads/h | 20 - 40 loads/h |
Turntable Height | 85 mm | 85 mm |
Turntable Speed | 0 - 12 rpm, variable | 0 - 12 rpm, variable |
Pre-Stretch | Up to 300% | Up to 300% |
Stretch Film | LLDPE Stretch Film in 500 mm width × 15 - 35 um thickness; Film Reel in 76 mm core diameter × Max. 250 mm OD | LLDPE Stretch Film in 500 mm width × 15 - 35 um thickness; Film Reel in 76 mm core diameter × Max. 250 mm OD |
Voltage | 220 VAC 1 ph 50/60 Hz | 220 VAC 1 ph 50/60 Hz |
Air Supply | 5 - 7 kg/cm2 | / |
Power | 1.55 kw | 2.0 kw |
Machine Size | L 2550 mm × W 1650 mm × H 2485mm | L 2550 mm × W 1650 mm × H 2485mm |
Machine Weight | 620 kg | 650 kg |
Features

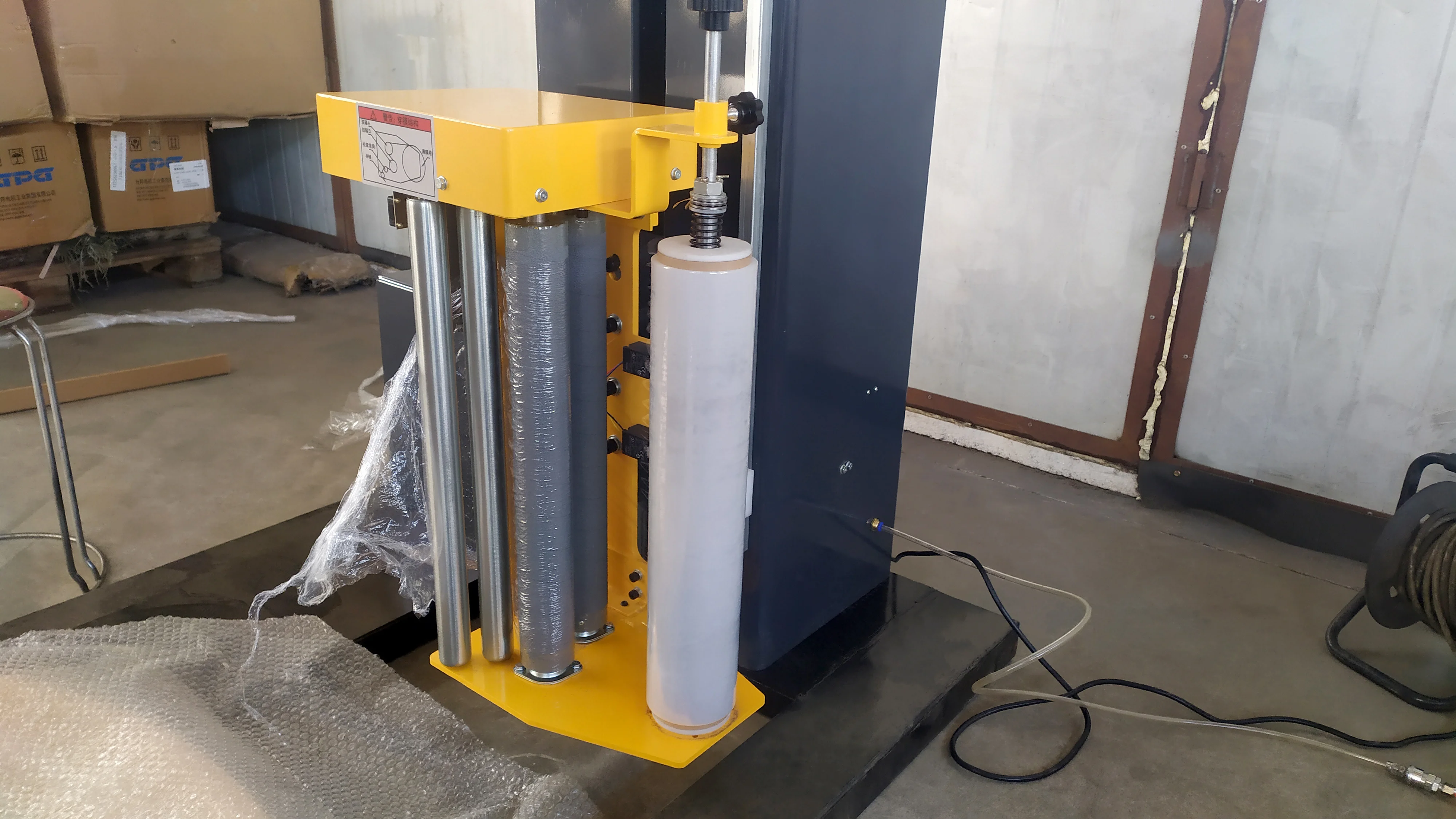

Pre-Stretch Up to 300%

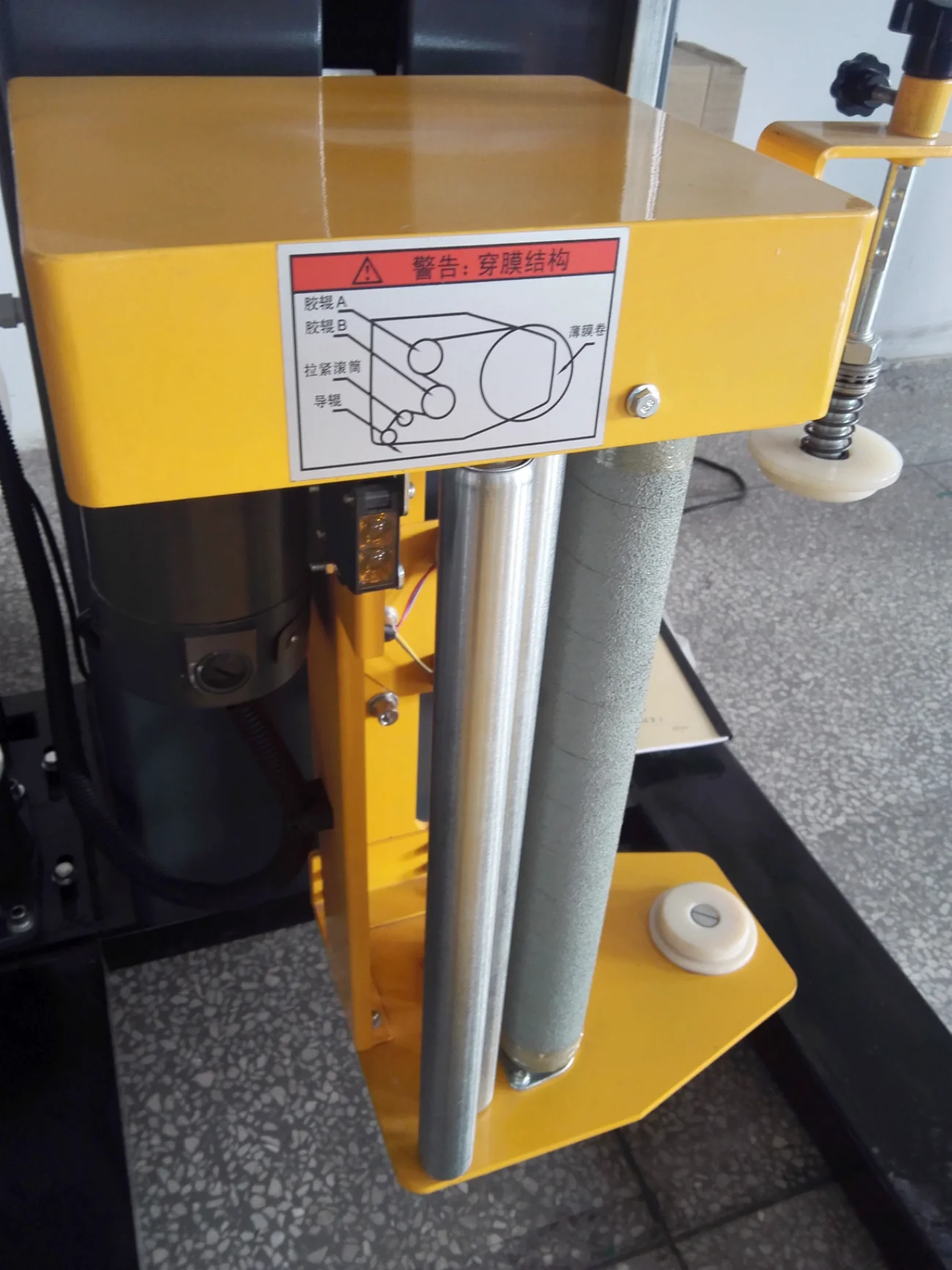

Film Carriage with Powered Rollers Pre-Stretch System (DC Motor) Pre-Stretch Film Up to 300% and Electric Film Tension (Wrap Force) Adjustment;
Photocell Auto Load Height Detecter
Photo Electric Eye Automatically Senses Pallet Height in Auto Mode with Safety Trip Switch for Extra Security Assurance;
1800 mm Max. Packing Height
Std. Packing Height with Pneumatic Operated Top Presser from 1100 mm to 1800 mm;
Opt. Packing Height with Electric Operated Top Presser from 500 mm to 1800 mm;
Increased Wrapping Height Customizable;

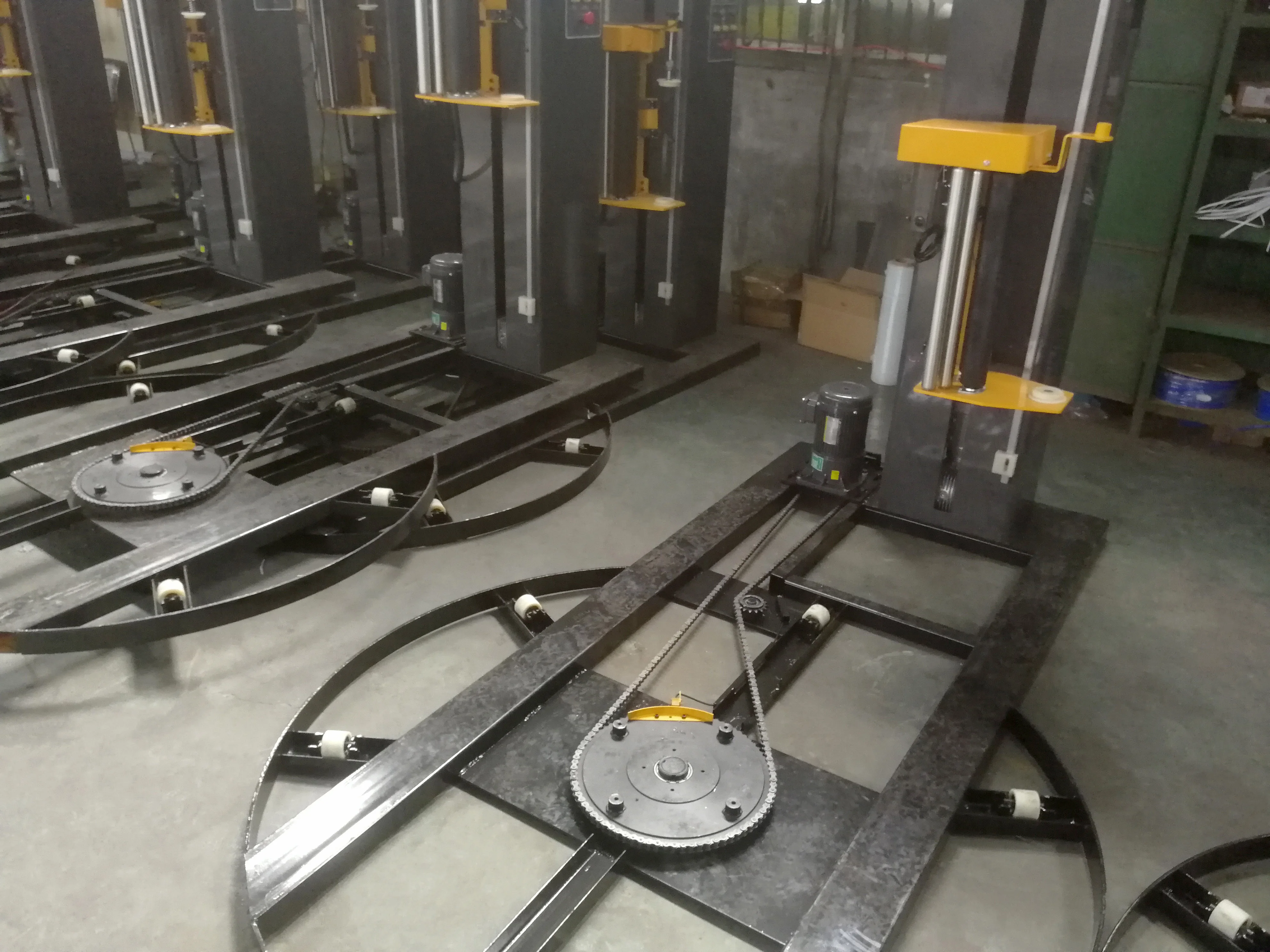

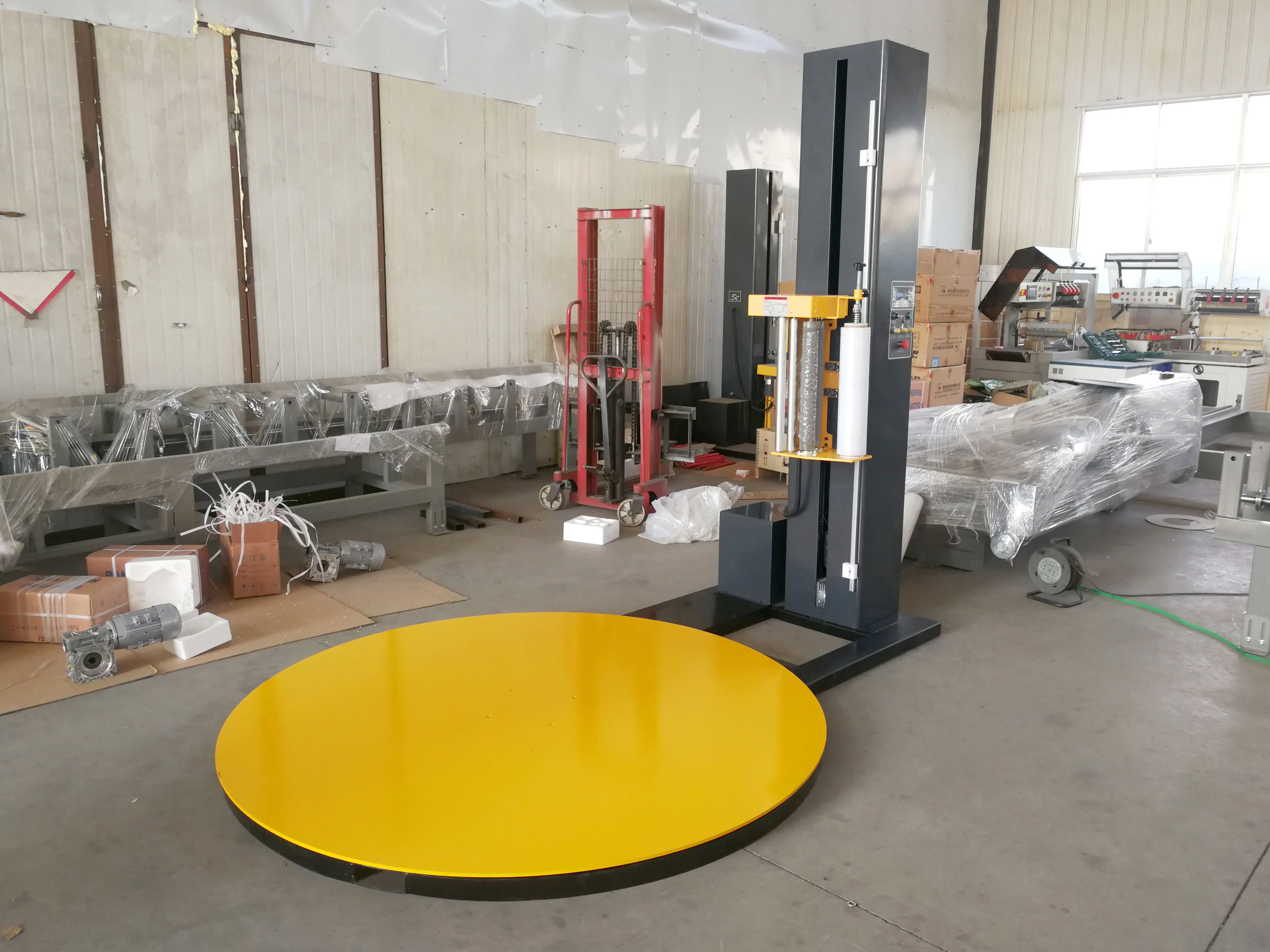

Dia. 1650mm x 12 RPM Variable Speed Turntable
Dia. 1650 mm × 12 RPM Variable Speed Turntable;
Max. 2000 kg Load Capacity;
Soft Start and Stop and Always Stopped at the Same Home Position;
Forklift Slots Allow for Easy Re-location from Either Side;
Apply to Max. W 1100 mm × L 1200 mm Pallet;
Enlarged Turntable Customizable;

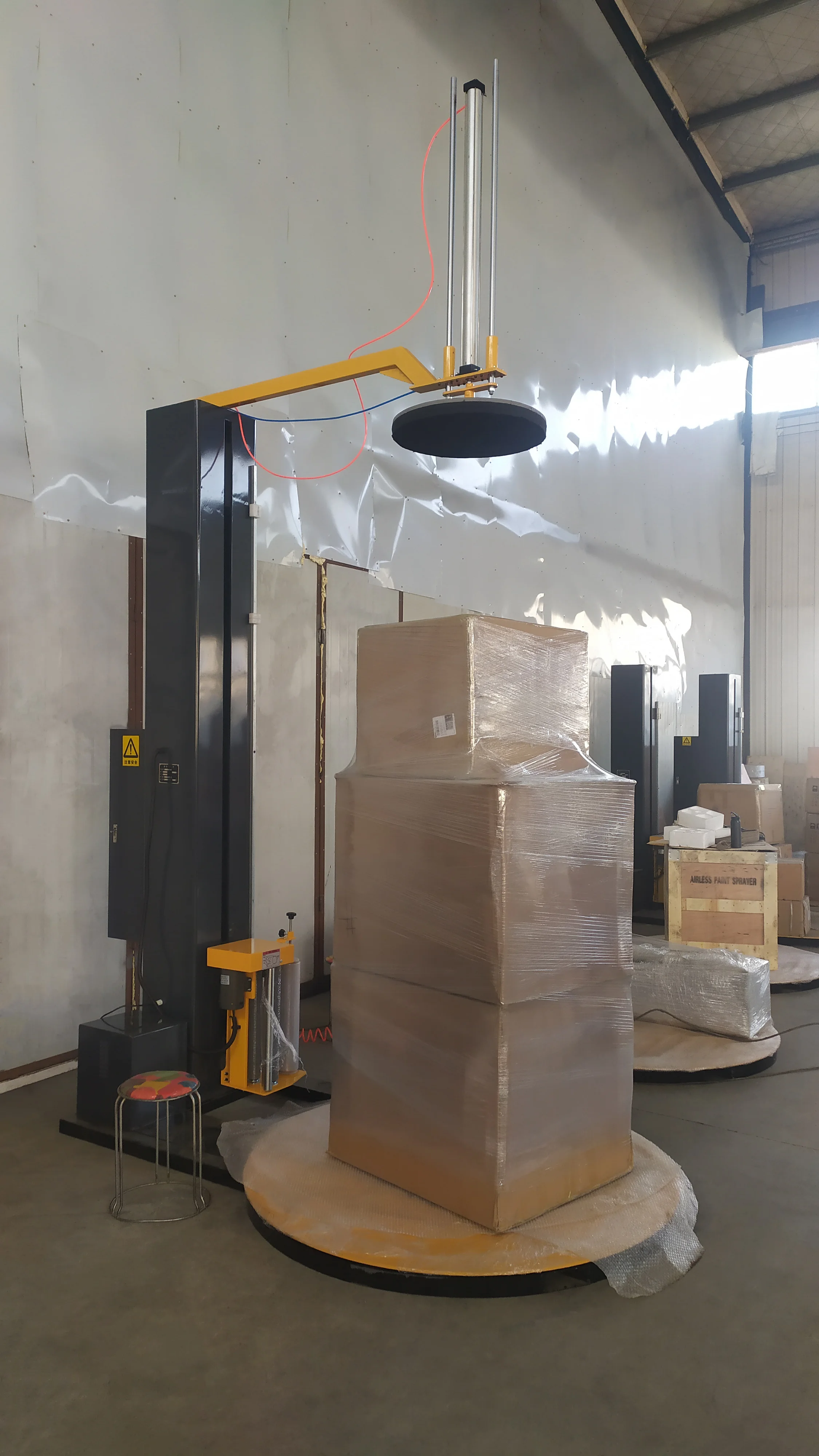

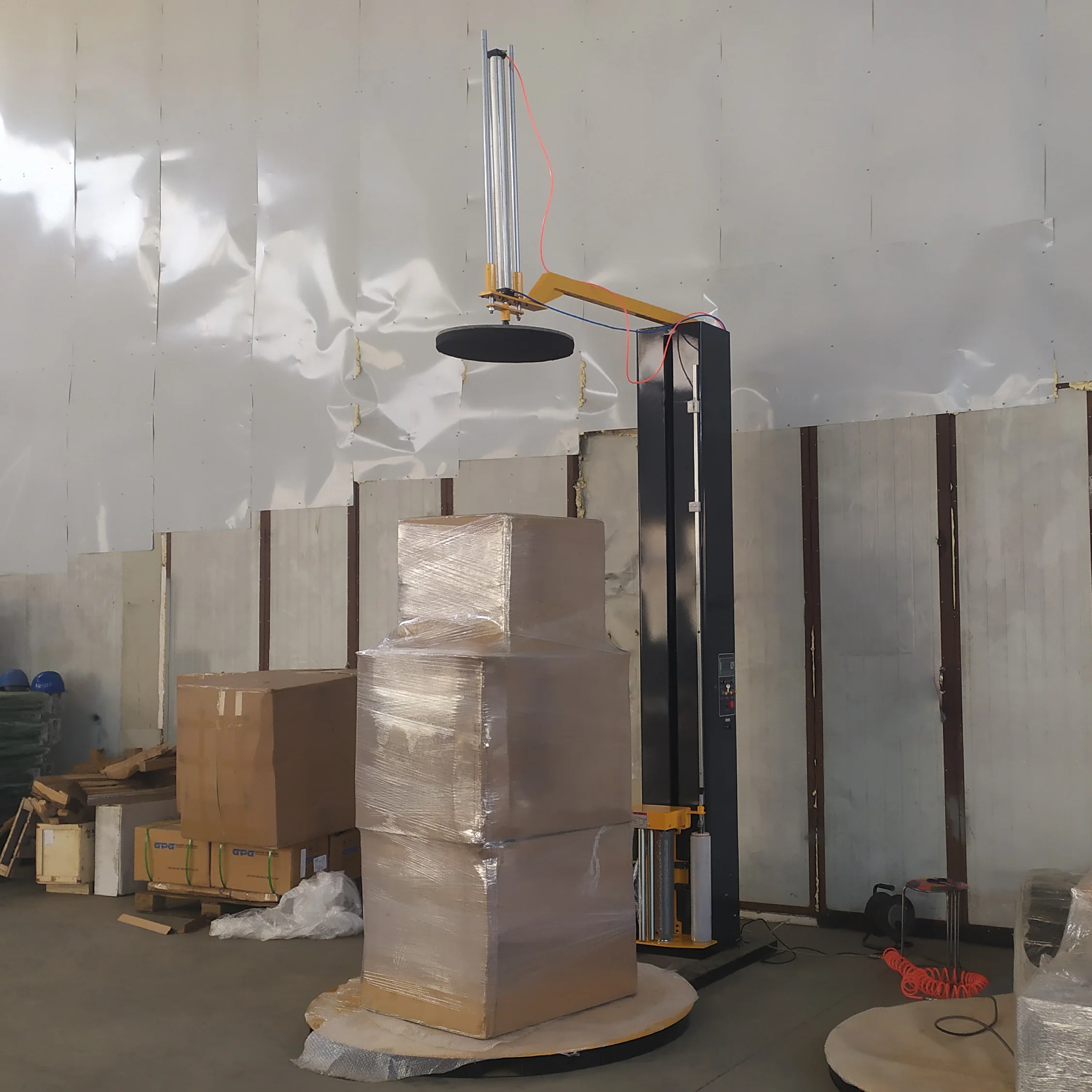

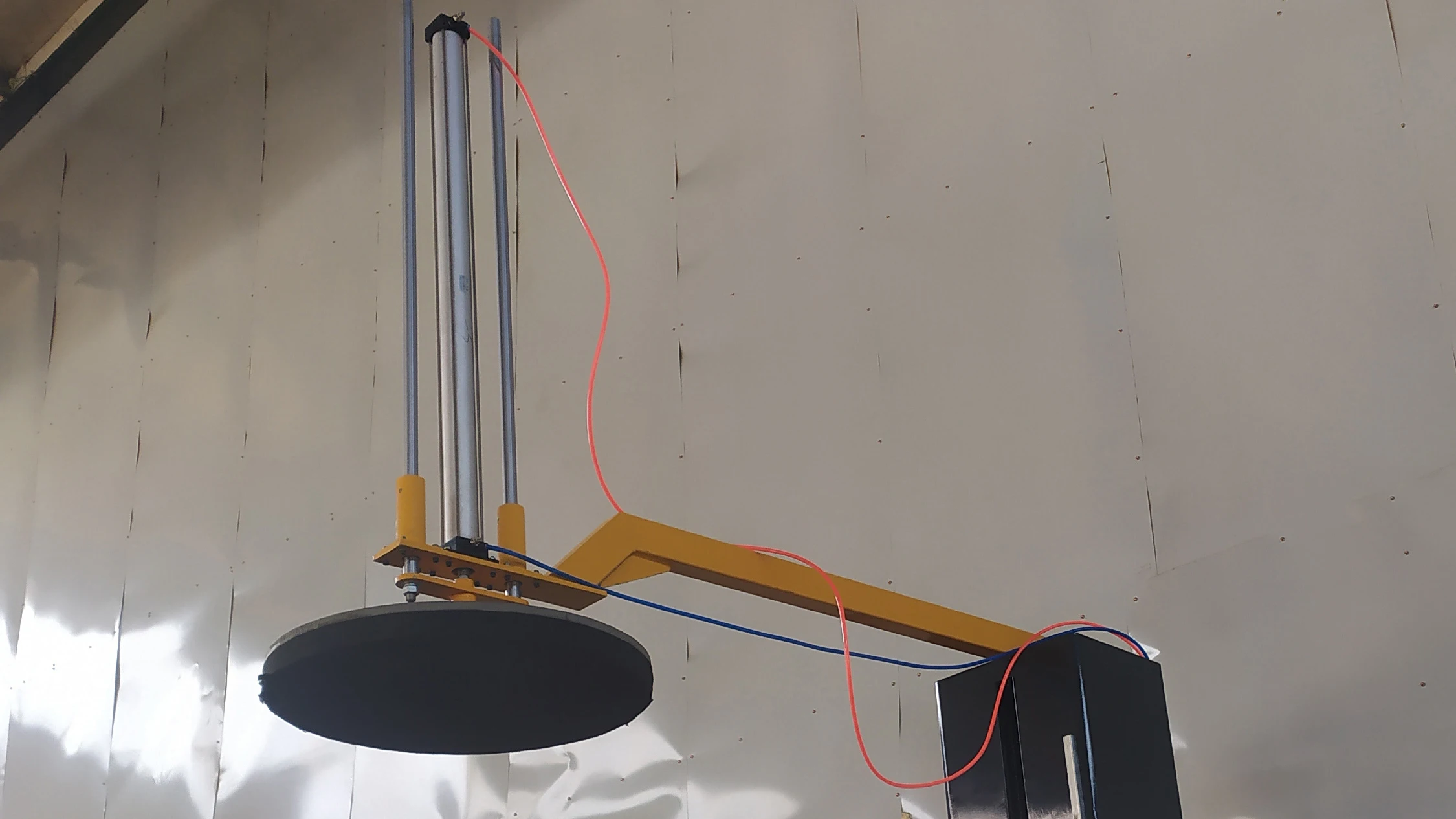

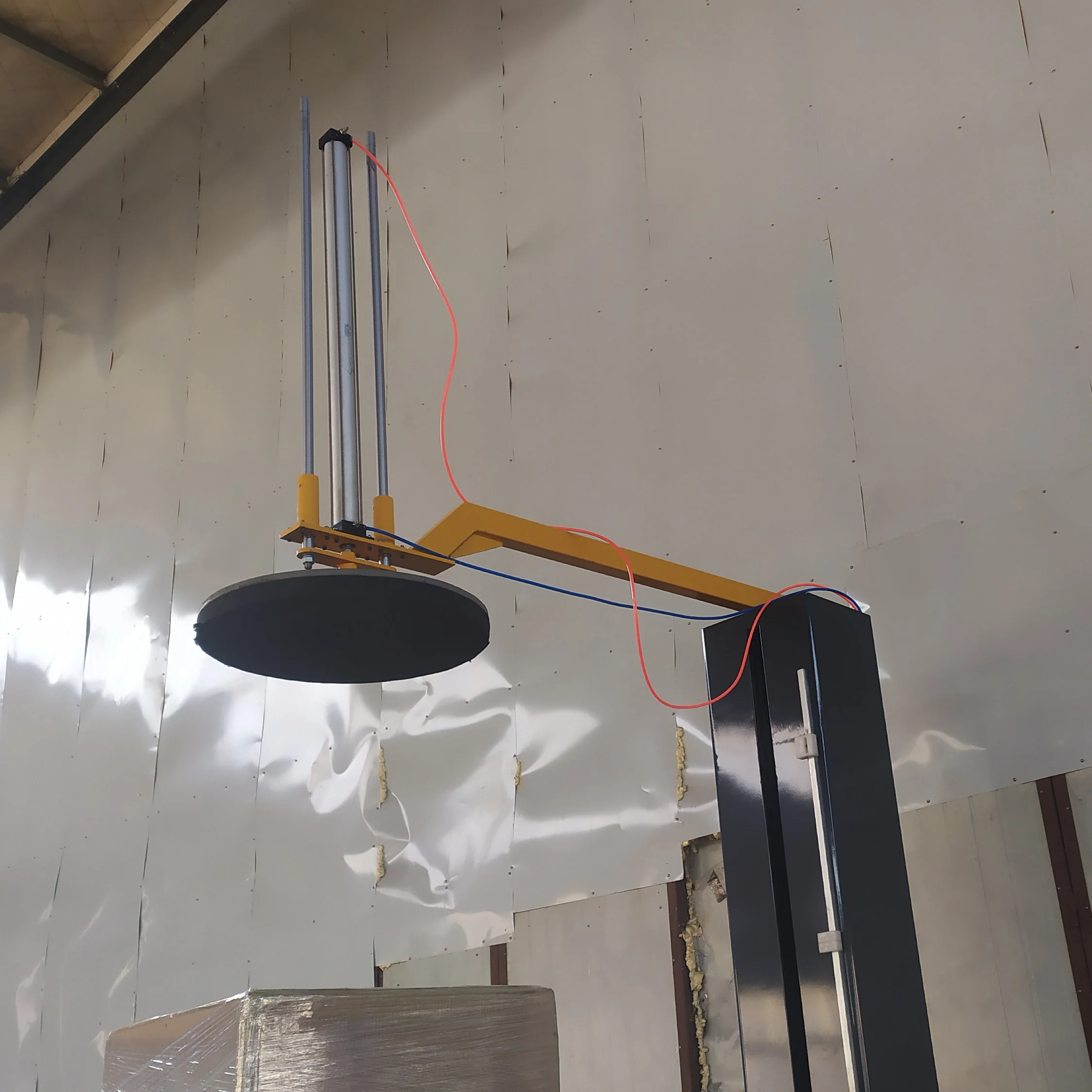

Std. Pneumatic Operated Top Presser
Top Presser Provides Extra Pressure on Top of Loads to Improve the Stability of Loads During Wrapping Process.
Std. Pneumatic Operated Top Presser (1100 mm - 1800 mm) and Opt. Electric Operated Top Presser (500 mm - 1800 mm) Different in Packing Height Range.

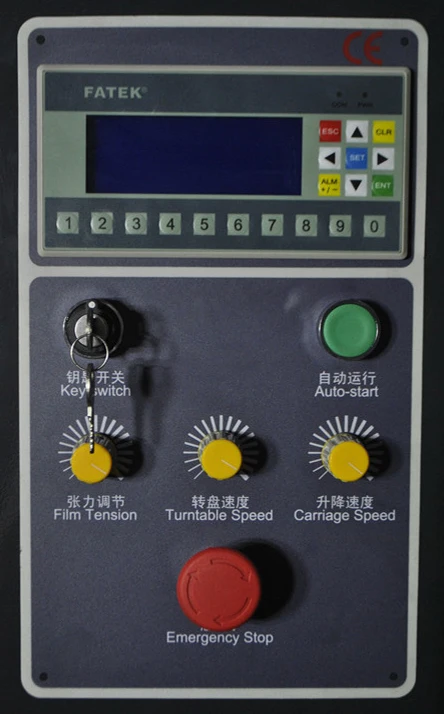

Simple to Operate
* In Auto Wrapping Mode: Simply Specify an Up/Down Cycle Then Specify the Reinforcing Wraps as Required at the Top or Bottom or Both. Adjust Film Carriage Speed and Turntable Speed Then Press the Start Button;
Turntable Rotation Speed, Film Carriage Up/Down Speed and Film Tension Force Adjustable Whilst an Automatic Wrapping Cycle is in progress.;
* In Manual Wrapping Mode: Digital Screen Pushbutton Turntable and Film Carriage Totally Control.
Film Carriage Up/Down Times, Top and Bottom Reinforce Wraps with Individually Programmable;
Turntable Rotation Speed, Film Carriage Up/Down Speed and Film Tension Force Adjustable Whilst an Automatic Wrapping Cycle is in progress.;
Std. Electrical Configurations
PLC: FATEK
Inverter: SJZO
Upright Motor: Deli
Turntable Motor: ZD
Film Carriage Motor: HJ (DC Motor)
Photo Electric Eye: Panasonic
Limit Switch: Omron
Proximity Switch: Omron
SSR: FOTEK
Inverter: SJZO
Upright Motor: Deli
Turntable Motor: ZD
Film Carriage Motor: HJ (DC Motor)
Photo Electric Eye: Panasonic
Limit Switch: Omron
Proximity Switch: Omron
SSR: FOTEK
Optional Electrical Configurations
Siemens PLC;
Schneider Inverter;
Other Specific Configurations Available;

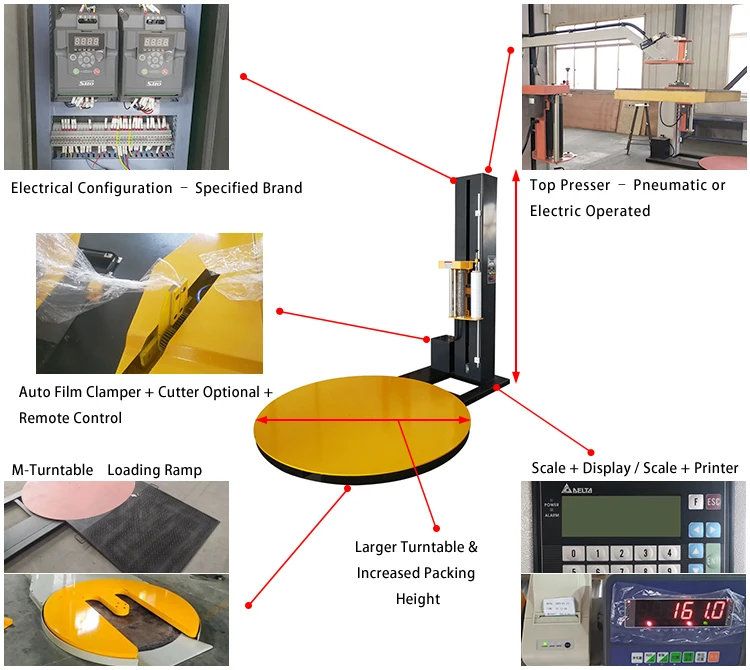

Options
* Loading Ramp;
* Top Presser: Pneumatic Operated or Electric Operated Top Presser Optional;
* Scale + Display / Scale + Display + Printer;
* M-Type Turntable for Hand Pallet Truck Loading & Unloading;
* Auto Film Clamper & Cutter;
* Remote Control;
* Larger Turntable: Dia. 1800 / 2000 / 2200 / 2400 mm Turntable Optional;
* Increased Pallet Height: 2200 / 2400 / 2800 / 3000 mm Max. Packing Height Optional;
* Slewing Bearing Mechanism for Heavier Load Capacity Up to 3000 kg;
* Top Presser: Pneumatic Operated or Electric Operated Top Presser Optional;
* Scale + Display / Scale + Display + Printer;
* M-Type Turntable for Hand Pallet Truck Loading & Unloading;
* Auto Film Clamper & Cutter;
* Remote Control;
* Larger Turntable: Dia. 1800 / 2000 / 2200 / 2400 mm Turntable Optional;
* Increased Pallet Height: 2200 / 2400 / 2800 / 3000 mm Max. Packing Height Optional;
* Slewing Bearing Mechanism for Heavier Load Capacity Up to 3000 kg;
Gallery

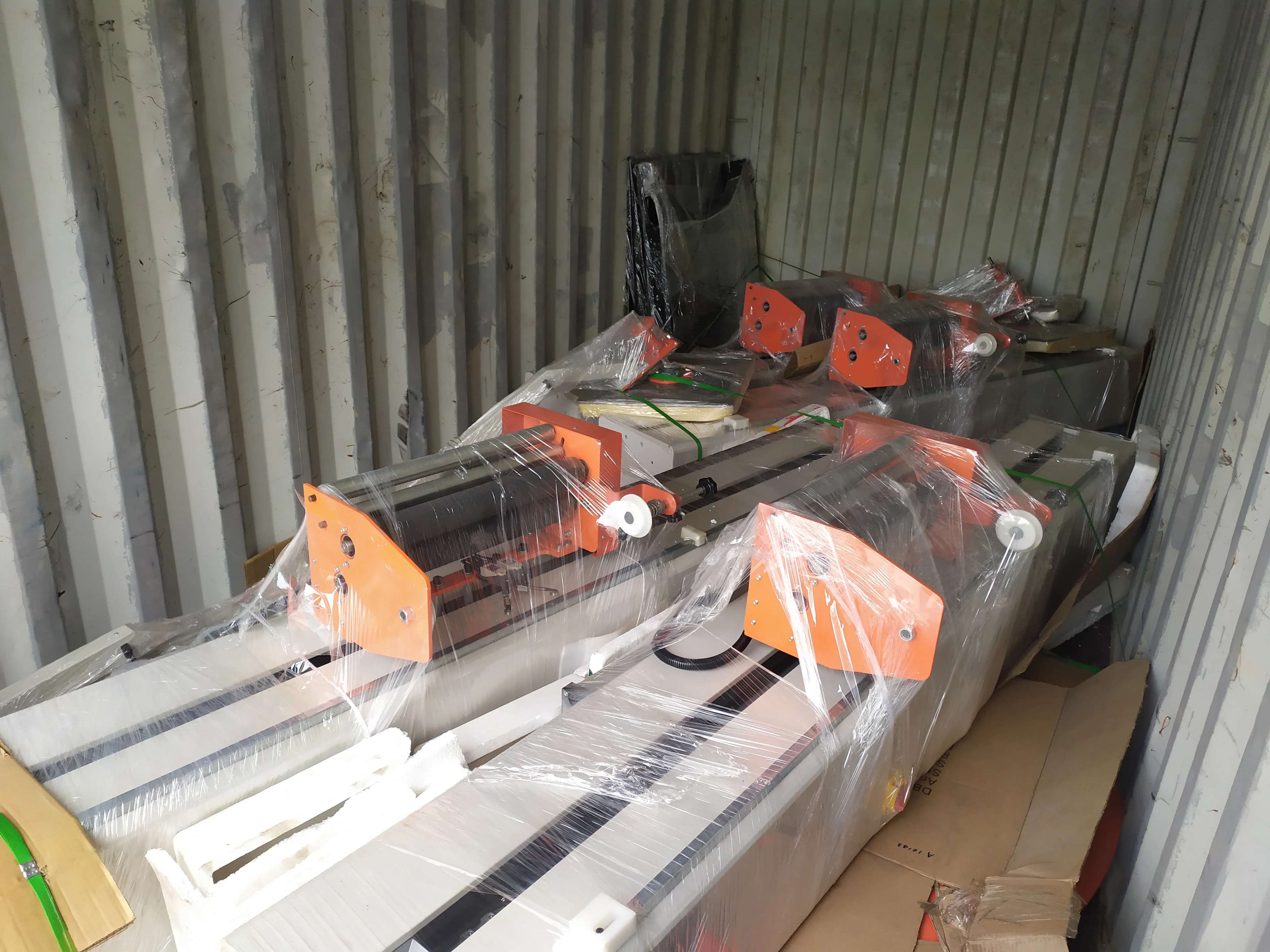

Packaging & Shipping
Plywood Seaworthy Wooden Case for LCL;
Stretch Wrapping and PET Strap Reinforce for FLC;
