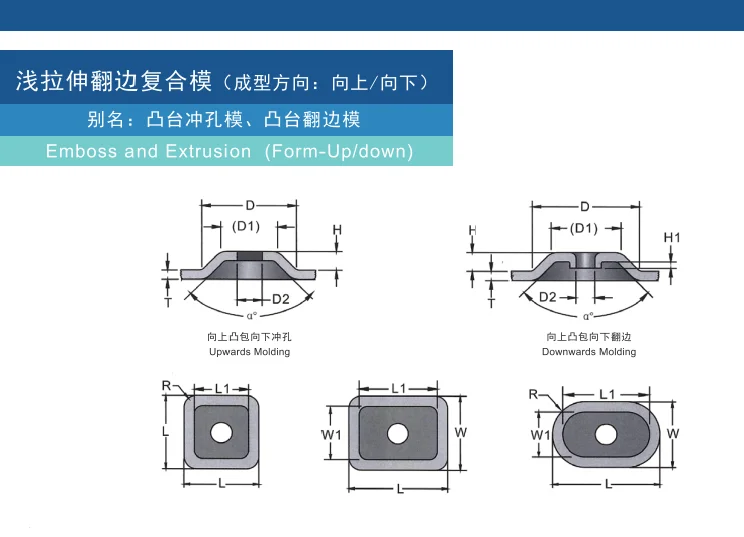

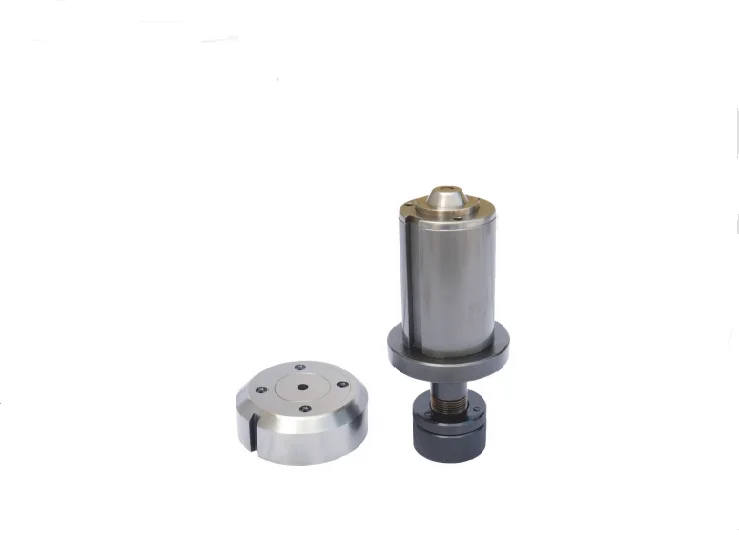

Manufacture forming tool Emboss and Extrusion mold metal stamping custom made cnc punch press

Product Overview

Description



Order Parameters:



Machine Model	Material Type	Requested Station	size
The above information should be provided by customers









 Warm Notice:

 1. Reasonable angle and round angle ensure a better molding.

 2. The special heigh angle and deeper moldings will add more materials.

 3. For those higher and deeper moldings, the materials should be smooth

     or lubricate the panels when processing.

 4. The reasonable angle should be 90 degree.

 5. The best high of the molding is less than 3 times of the thickness of the

     panel.

 6. In order to prevent weakening the inrensity of lower die when punching,

     it must ensure thatØD>5t+Ød.

 7. Process program must leave unload time, prevent pulling sheet.
