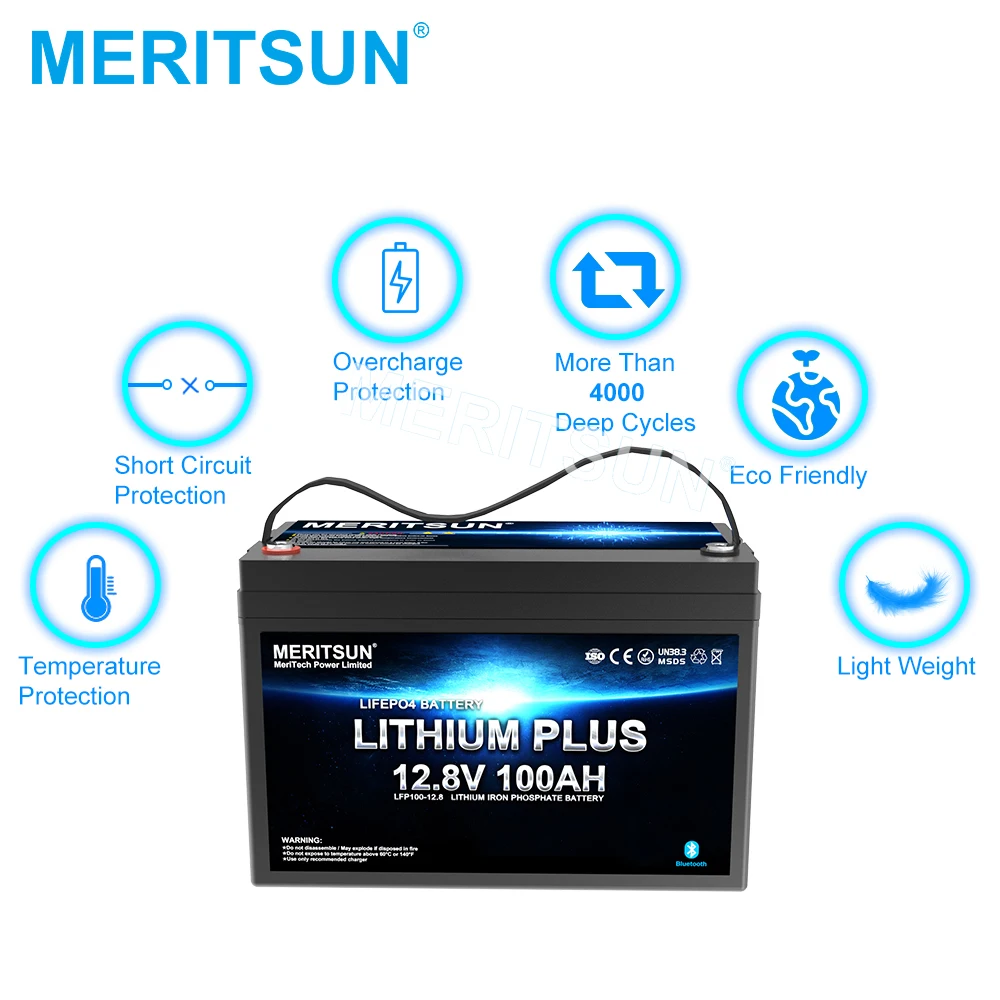

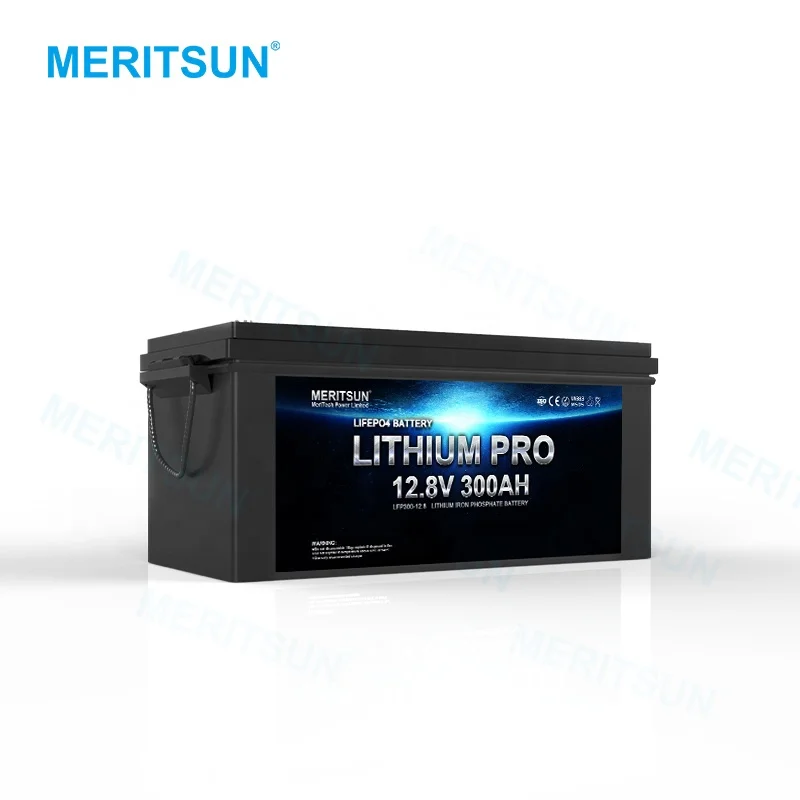

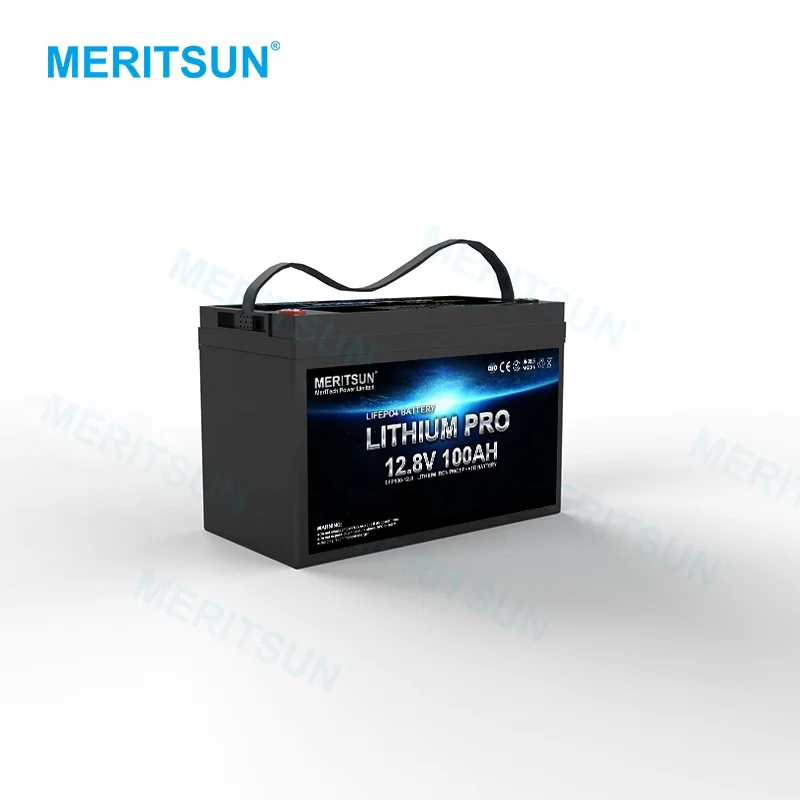

Deep Cycle Lithium Titanate Battery Solar Energy Storage 12v 100ah Meritsun Lifepo4 Battery
- Category: >>>
- Supplier: Guangzhou Meritech Power Co. Ltd.
Share on (62371334864):
Product Overview
Description
VR
Products Description
Product parameter
Model | LFP100-12 | LFP200-12 | LFP300-12 |
Nominal Voltage(V) | 12.8 | 12.8 | 12.8 |
Nominal Capacity(Ah) | 100 | 200 | 300 |
Usable Capacity(Wh) | 1280 | 2560 | 3840 |
Dimension(mm) | 330*175*215 | 485*175*240 | 520*268*220 |
Weight(Kg) | 11 | 25 | 30 |
Cycle Life | ≥4000 @ 25℃ | ≥4000 @ 25℃ | ≥4000 @ 25℃ |
Working Temperature ℃ | -20~55 | -20~55 | -20~55 |
Discharge Voltage (V) | 12.8 | 12.8 | 12.8 |
Charge Voltage(V) | 13.5~14.6 | 13.5~14.6 | 13.5~14.6 |
Internal Impedance(mΩ) | ≤20 | ≤10 | ≤10 |
Charge / Discharge Current (A) | charge:50 | charge:40 | charge:60 |
discharge:50 | charge:40 | charge:60 | |
Design Life(Years) | 20 | 20 | 20 |

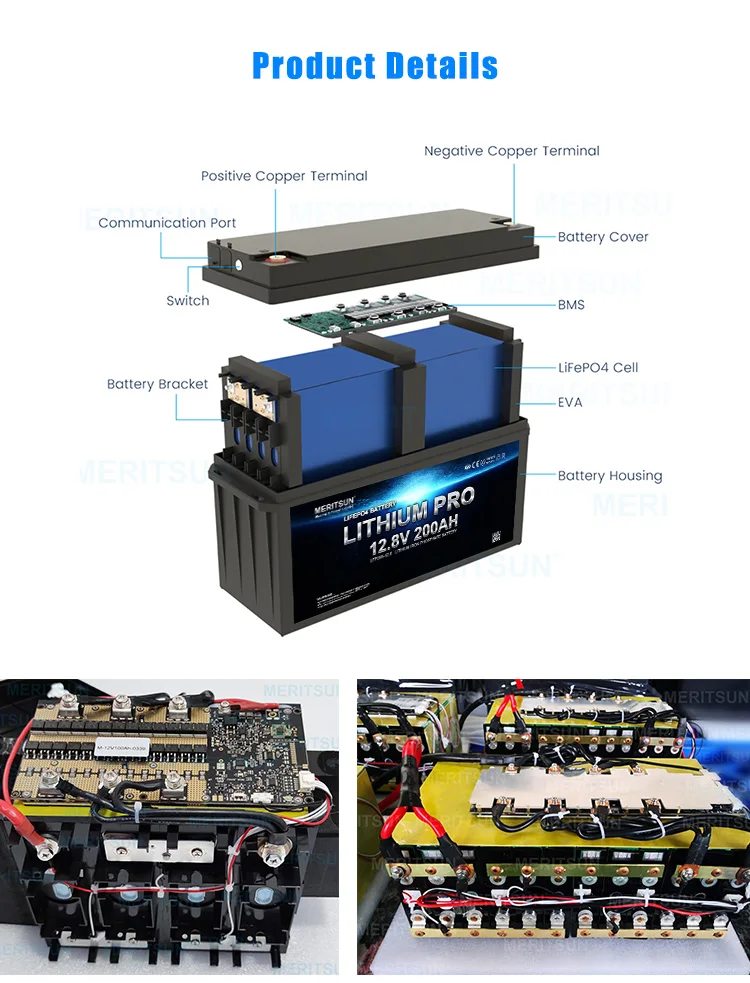

Details Images

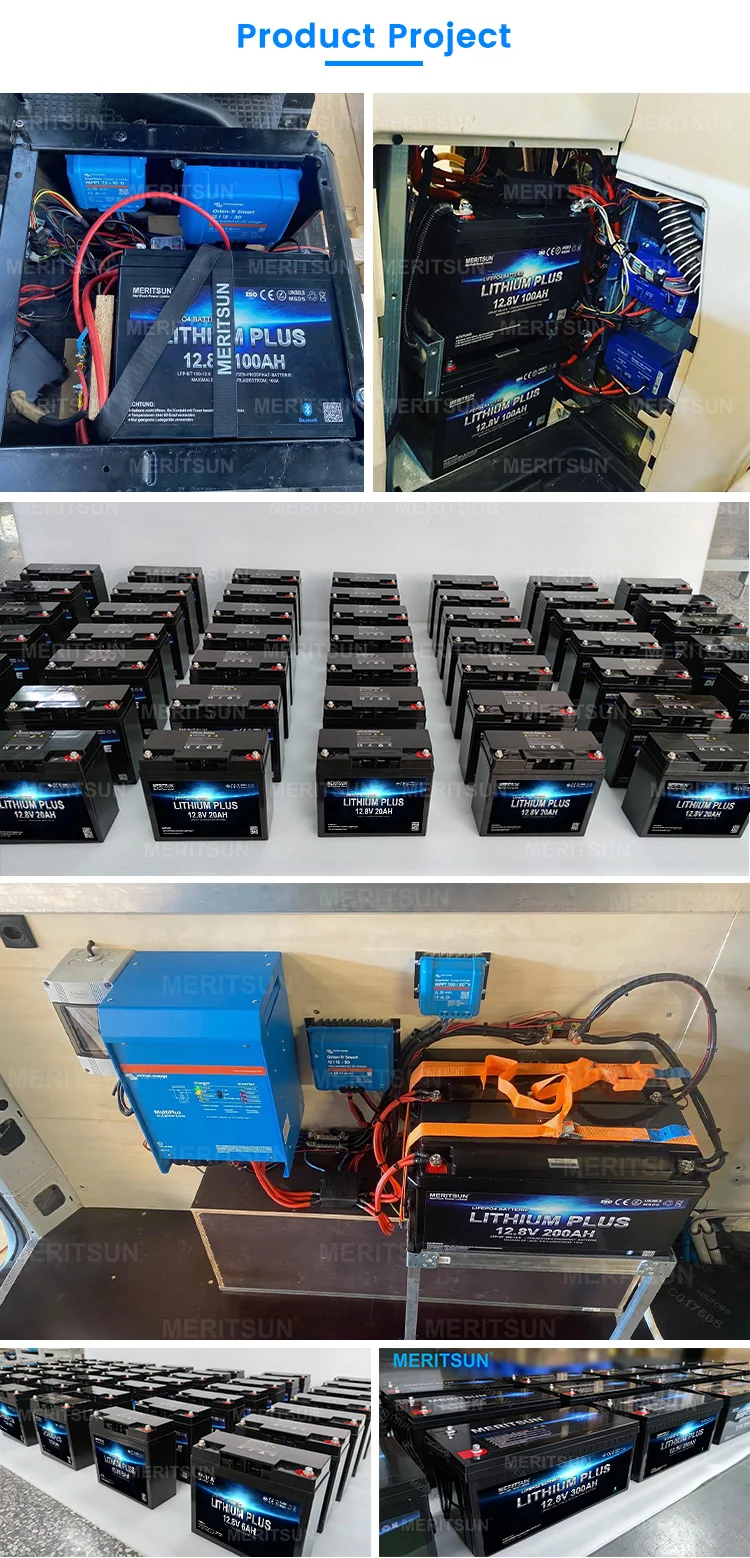

Application
Why Choose Us
