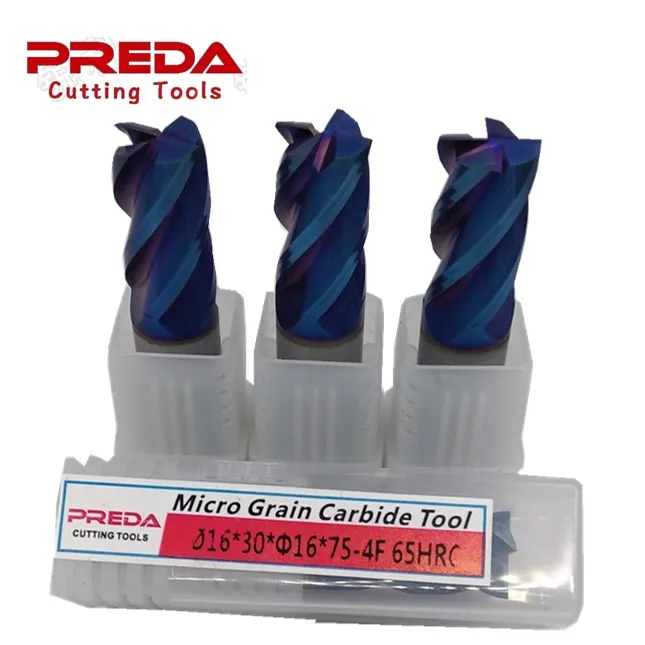

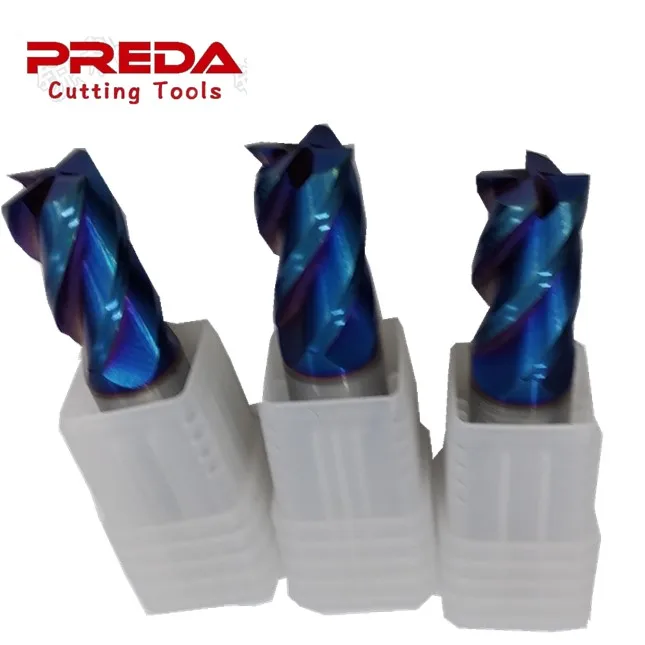

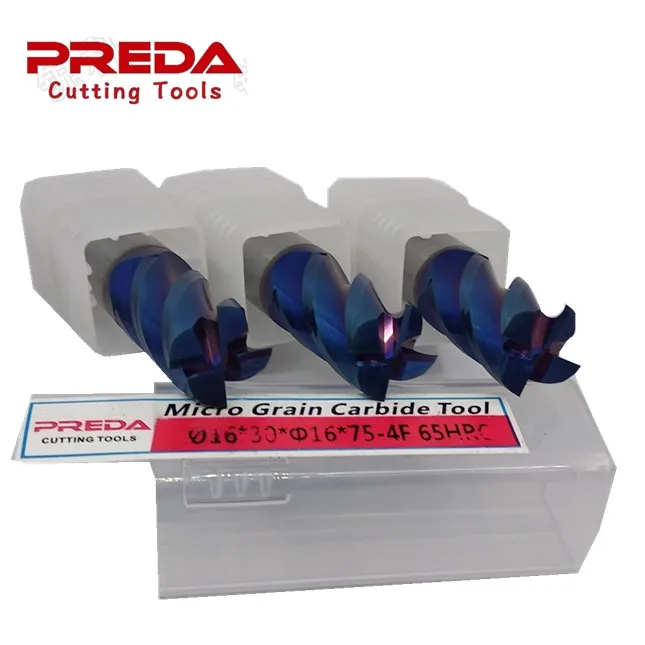

Preda Cutting Tool HRC65 Carbide Cutter 4 flutes end mill with NANO coating 75mm length
- Category: Milling Cutter >>>
- Supplier: Changzhou Raiko Cutting Tools Co. Ltd.
Share on (62371368420):
Product Overview
Description
Product Description
1. CNC Machine Tools -- Carbide End Mills
2. HRC: 45-65
3. TIAIN/TICN/Diamond / ALTIN/ NANO Coating
4. 1mm-25mm ; 1/16" to 3/4 "
5. 1/2/3/4/6 Flute(s)
6.Precision: High Precision

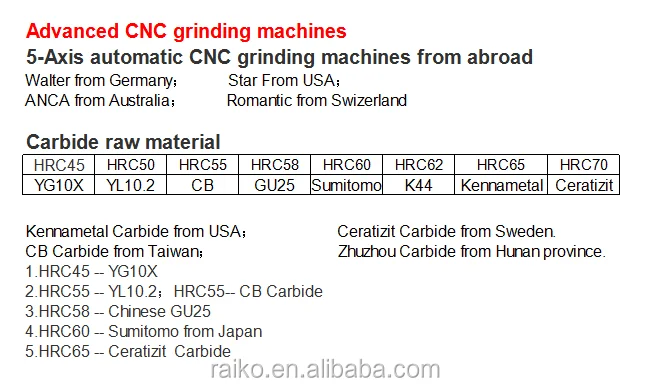

Raw Materials

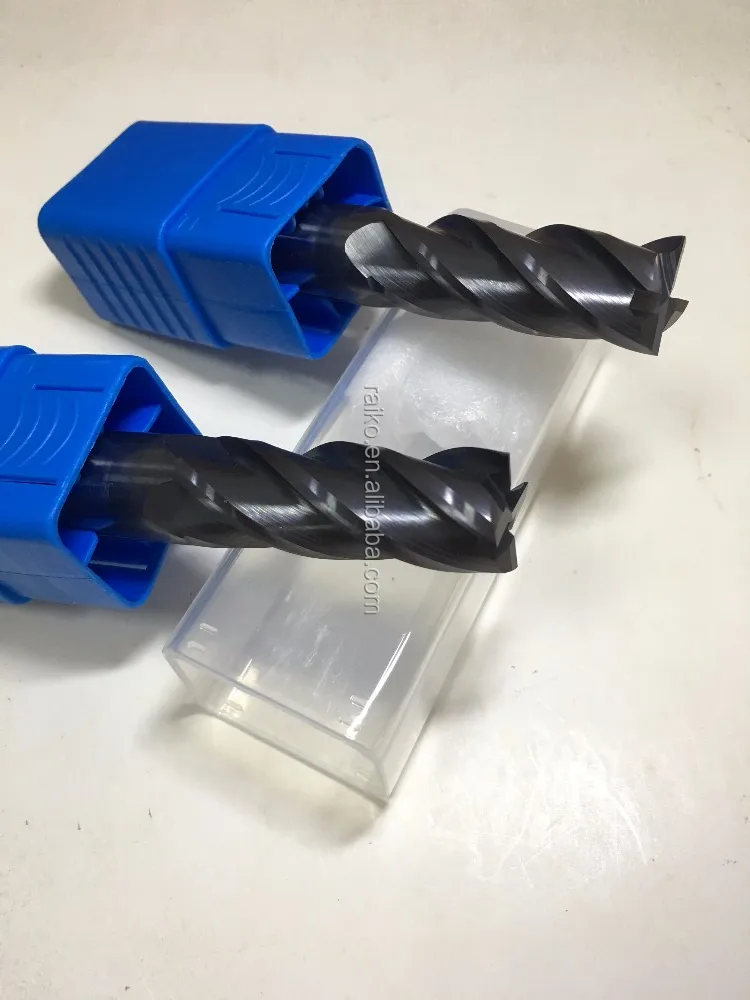

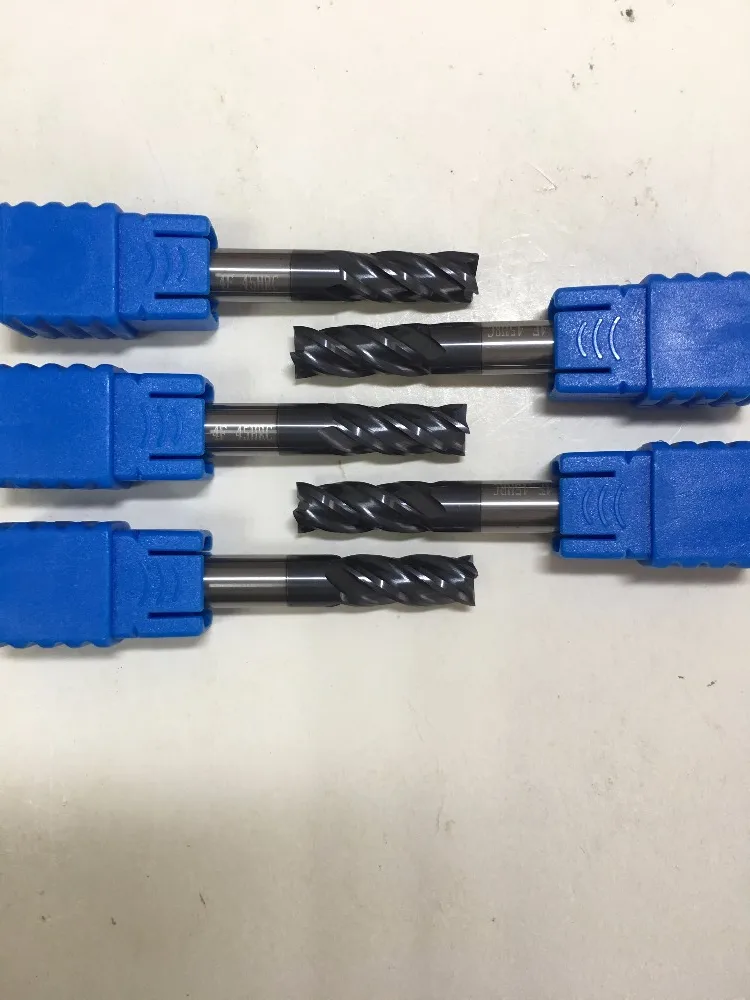

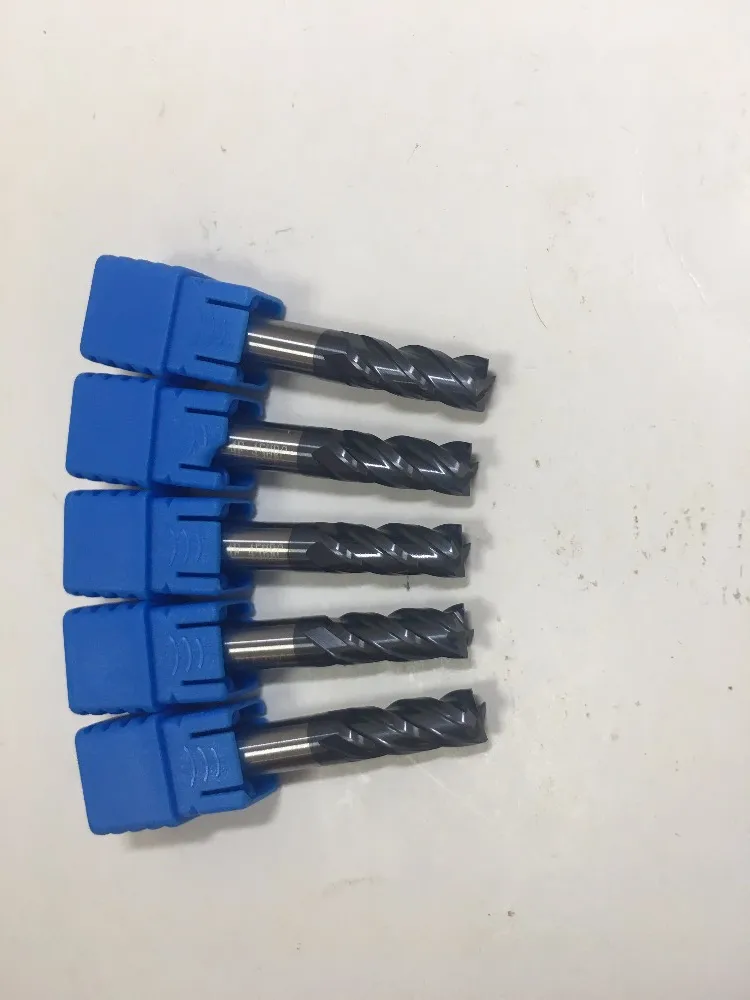

Detailed Images
Title goes here.
1. SurfaceTiCN/TiN/TiAlN/Uncoated Flexural
2. Strength2500-4000N/mm2 Controling ModeCNC
3. UsageMetal Chemical Composition6%-12%Co-WC
4. Density14.45-14.90g/cm3
5. Chemical Composition: 10%Co-Wc
6. Raw Material: Super Micro grain with Diameter less than 0.2UM
7. International Industrial Standard: K10, K05-K15, K20-K30, K20-K40
8. Application areas: Machining of cast iron, nonferrous alloy,chill cast iron,hard steel,stainless steel,plastic materials,fiberglass,carbon fiber and other non-metallic.
9. Served industries: Aerospace,Transportation, Medical Equipment,Military Manufacturing,Mold Development,etc.

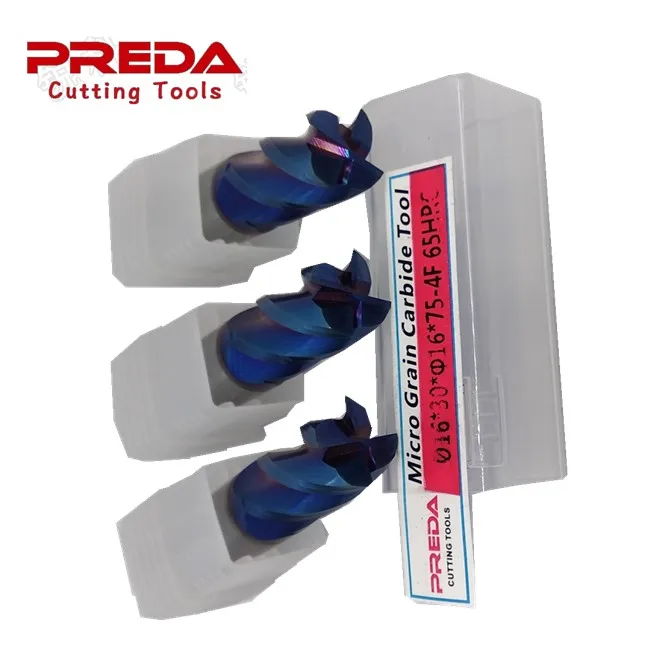

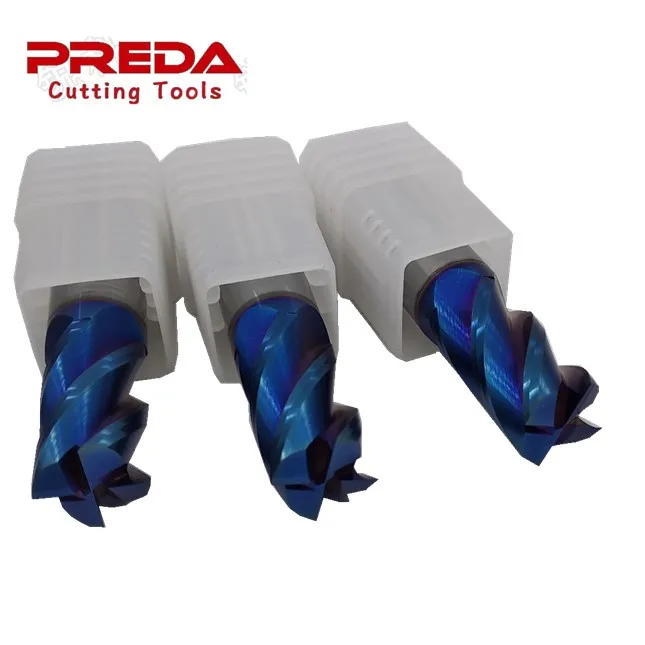

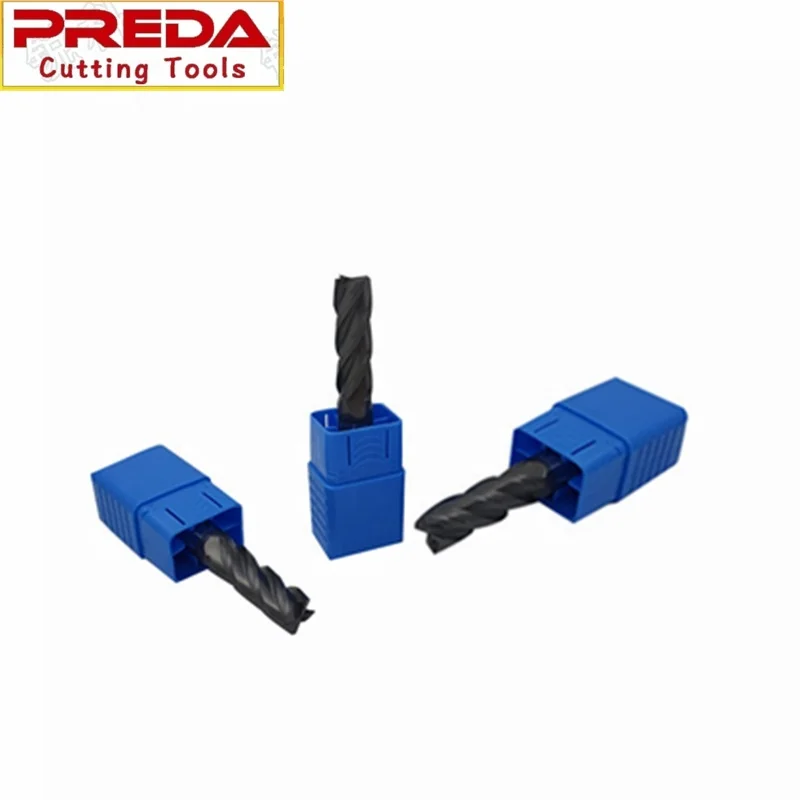

Product Image
Specifications
CODE | DIA | FLUTE LENGTH | OVERALL LENGTH | SHANK |
4SEM04010050 | 1 | 3 | 50 | 4 |
4SEM04015050 | 1.5 | 4 | 50 | 4 |
4SEM04020050 | 2 | 6 | 50 | 4 |
4SEM04025050 | 2.5 | 7 | 50 | 4 |
4SEM04030050 | 3 | 8 | 50 | 4 |
4SEM04040050 | 4 | 11 | 50 | 4 |
4SEM06050050 | 5 | 13 | 50 | 6 |
4SEM06060050 | 6 | 15 | 50 | 6 |
4SEM08080060 | 8 | 20 | 60 | 8 |
4SEM10100075 | 10 | 25 | 75 | 10 |
4SEM12120075 | 12 | 30 | 75 | 12 |
4SEM14140100 | 14 | 45 | 100 | 14 |
4SEM16160100 | 16 | 45 | 100 | 16 |
4SEM18180100 | 18 | 45 | 100 | 18 |
4SEM20200100 | 20 | 45 | 100 | 20 |
4SEM25250100 | 25 | 45 | 100 | 25 |

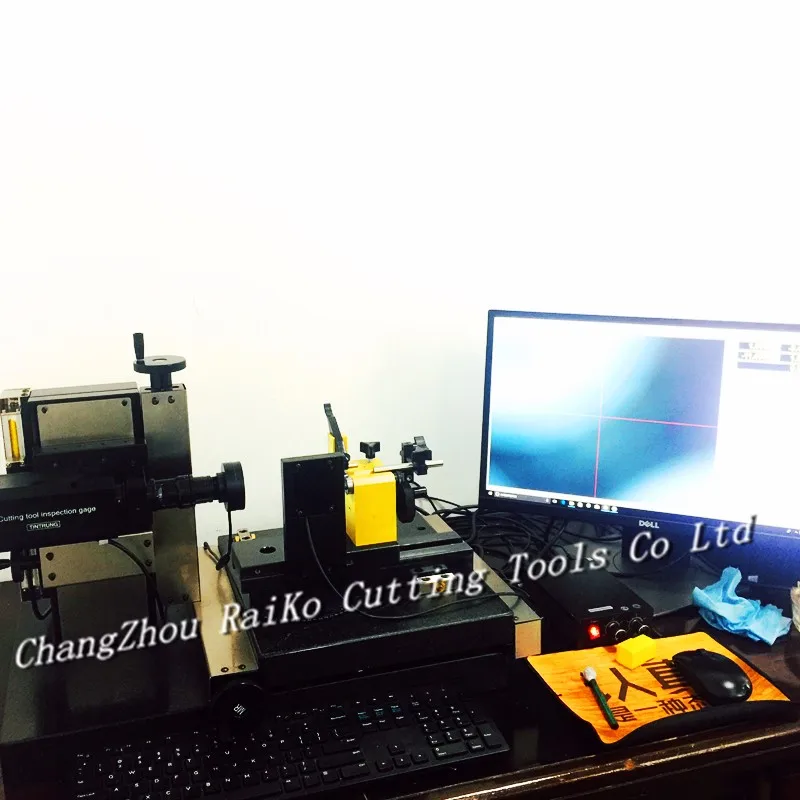

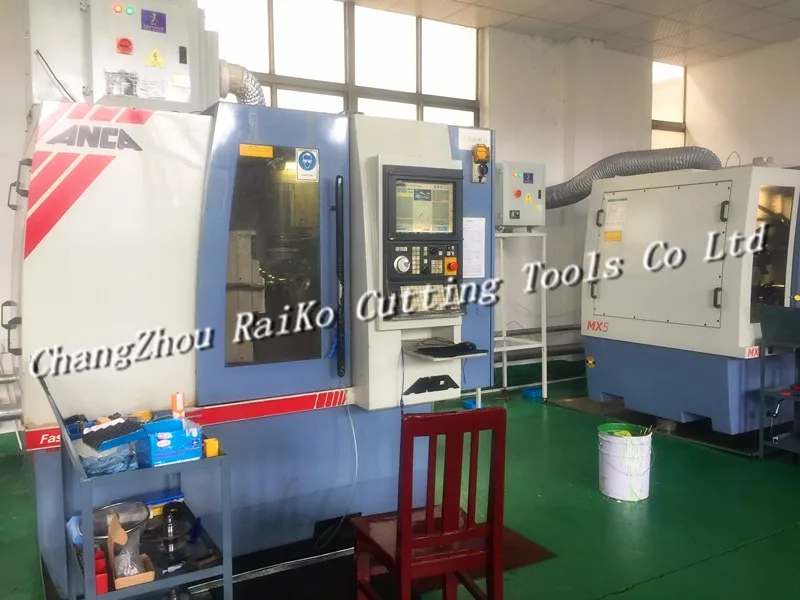

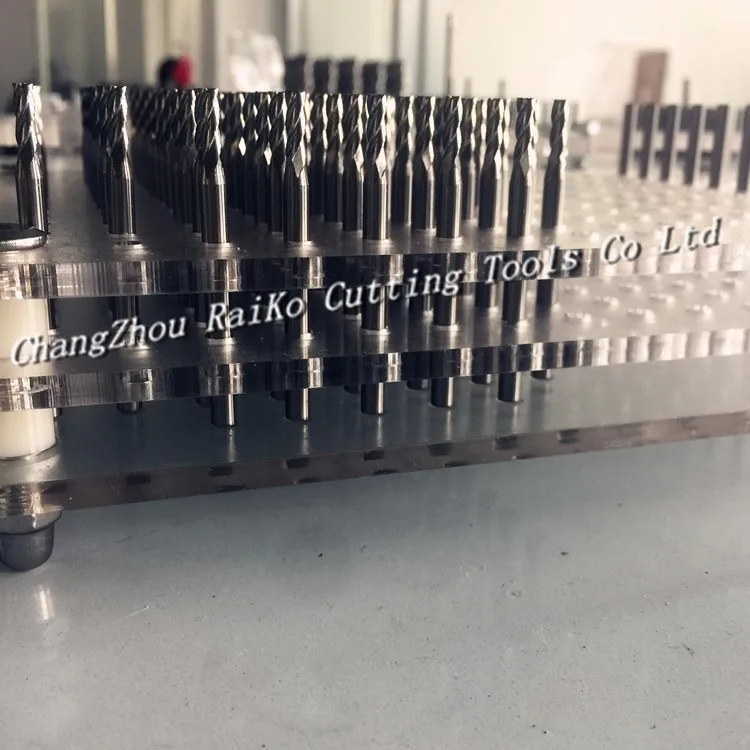

Factory Photo

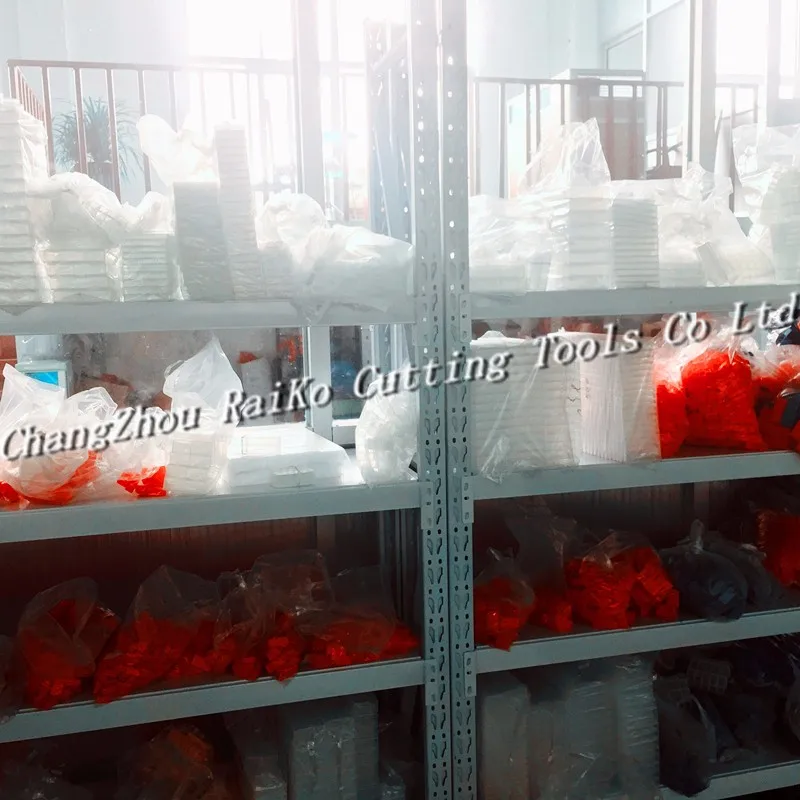

Packing & Delivery
Contact us
If you have any interest , please contact me for more details
Tel : +86-13327890322
Wechat : +86-13327890322
E-mail : sales04(at)raikotool.com
QQ : 2624837993
Skype : +86-13327890322.
