Product Overview

Description


Product Description

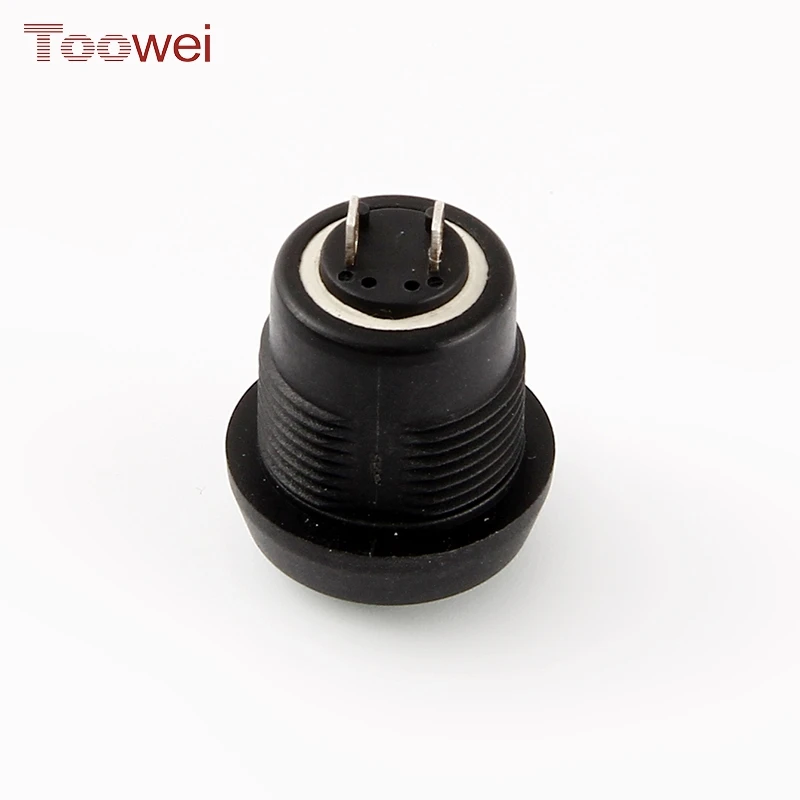

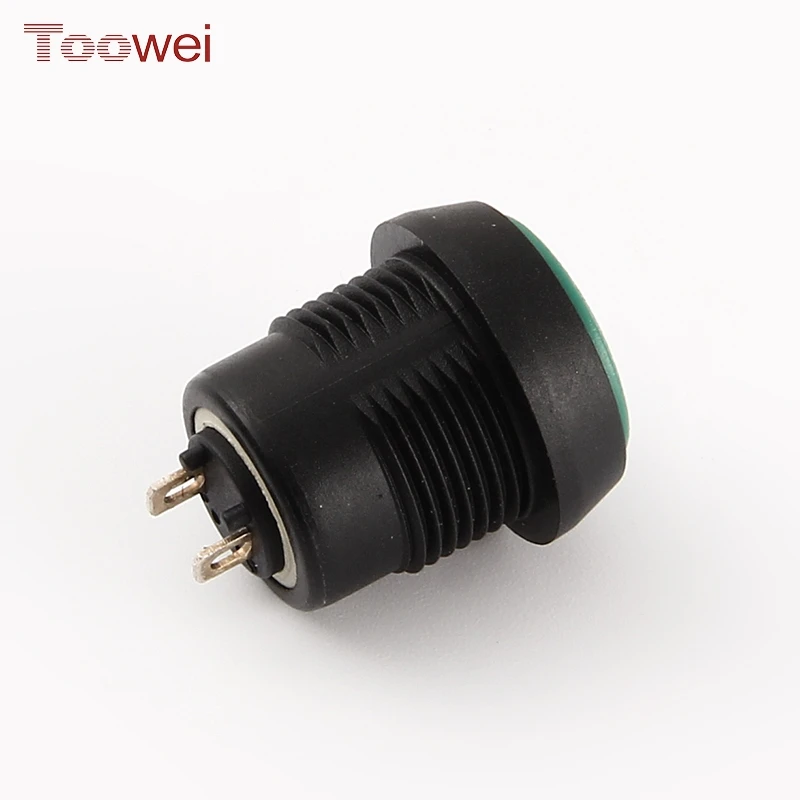

A3166series waterproof push button switch , protection degree reach IP67 ,installation size is 16mm. According to the material ,it has metal push button switch and plastic push button switch . All the switches has self-locking and momentary two differentkinds . If equip with LED light , colour can be customised based on the customer's request . It widely used in beauty equipment ,small yacht, lamps, medical equipment , military communication intelligent network equipment and the other instruments .
Dimension
Diameter 16mm
Terminal
Lead terminal
Shape form
Round
Function
latching
shell material
Black plastic
Button color
green
Technical parameters
Technical parameters
1. Operating force ≤6Nf, best range is 5Nf~6Nf , Maximum endurance 5kgf
2. Contact resistance ≤50m Ω
3. Rated current 3A , rated voltage 250VAC
4. Insulation resistance ≥100m Ω/min
5. Withstand voltage: AC 1000V(50~60hz)/min
6. Solderability: soldering iron 340°±5°/1-2s
7. Solder resistance: soldering iron 340°±5°/3-5s
8. Durability : Electrical life 50000 times, Mechanical life 100000 times
9. Protection degree: IP67
10 Material: Dupont Nylon PA66+20% glass fiber
11. Installation size: 16mm
