JIMI GT06N GPS tracker concox real time tracker protocol car gps tracking device
- Category: >>>
- Supplier: Shenzhen Jimi IOT Co. Ltd.
Share on (62371478433):
Product Overview
Description
JIMI Fleet Management Solutions
Optimize your fleet and keep costs down
Dynamic growth of automotive branch enables greater access to means of transport. Most companies have, smaller or larger, vehicle fleet to carry out various tasks. Understanding costs related to the vehicle maintenance, fuel consumption, driver performance, insurance and service is an important function for any business.
HARDWARE
car DVR Series
Wireless tracker
3G Vehicle tracking

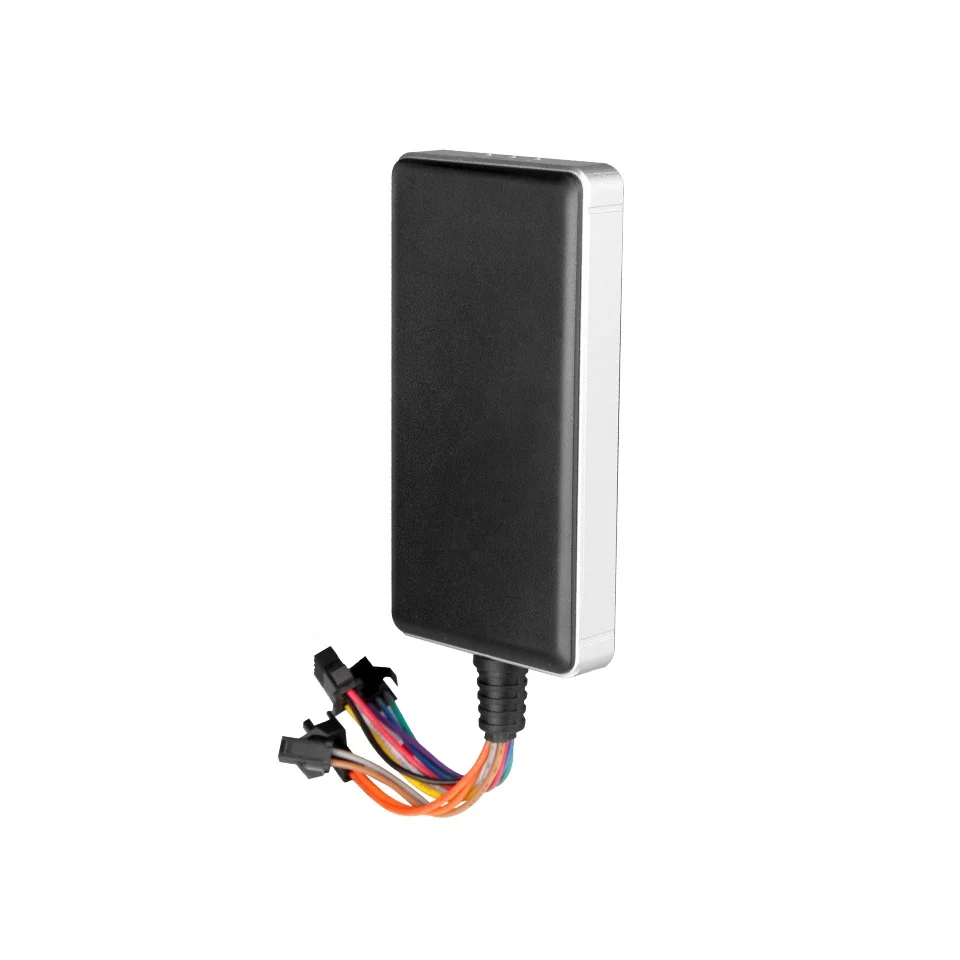

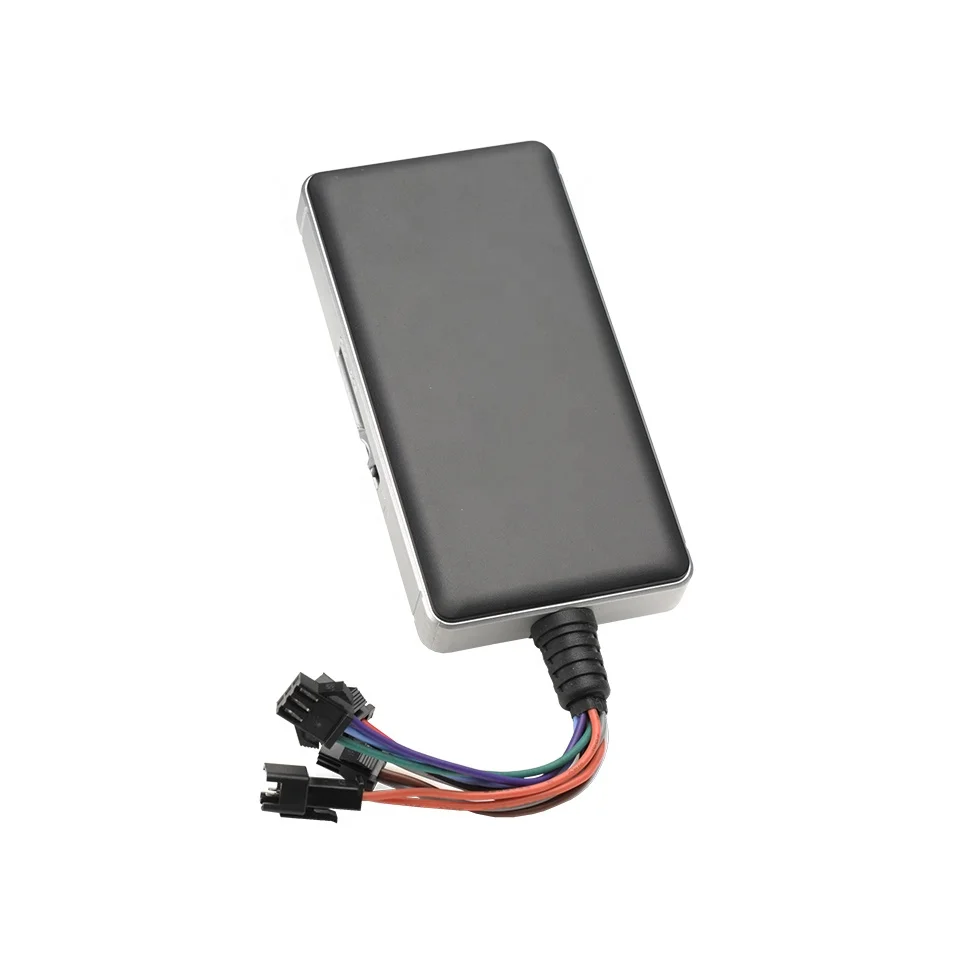

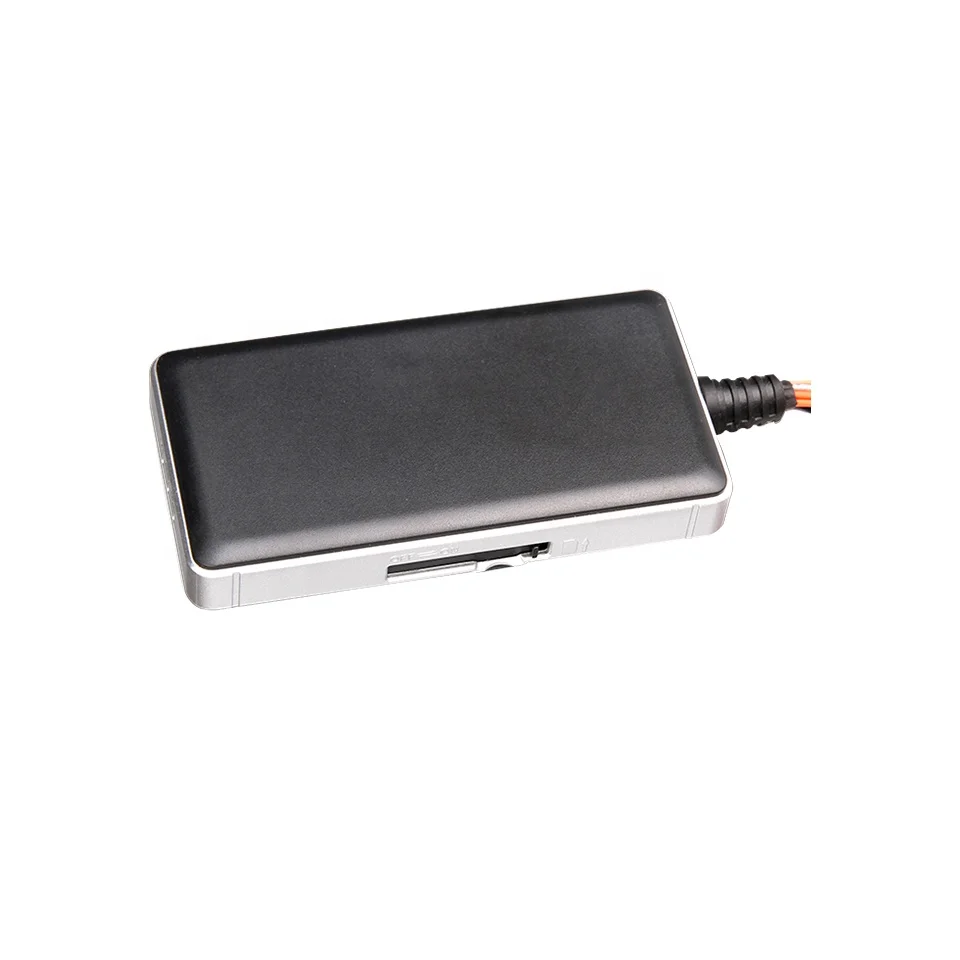

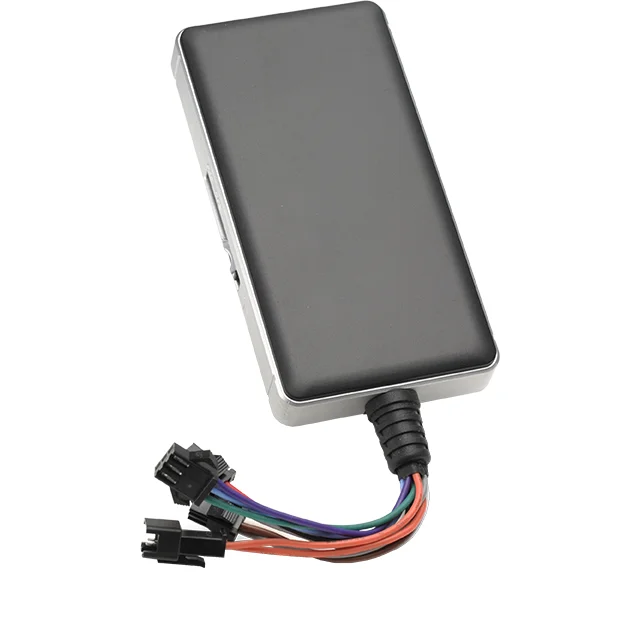

GT06N Multifunctional Vehicle Tracker
GT06N is trusted by customers around the world for it's rich feature set and durability. From standard tracker telematics like GPS tracking and ACC status to more advanced functions like an SOS button and audio monitoring, the GT06N has it all.
Features:
● GSM Quad-band
● GPS + GSM + GPRS wireless network
● High sensitive GPS chip set
● Real-time tracking
● Built-in GSM & GPS antenna
● Built-in ON / OFF power, wide voltage input range
● Built-in acceleration sensor for vibration alarm
● Support ACC detection, real-time reporting car status
● Built-in 450mAh battery for alarm when the power supply is disconnected unexpectedly
● Tele-cut off (petrol / electricity) function
● SOS button for SOS alarm
● Voice monitor function
● Built-in CPU, eliminating breakdown automatically
● Three LED indicators:
● GPS + GSM + GPRS wireless network
● High sensitive GPS chip set
● Real-time tracking
● Built-in GSM & GPS antenna
● Built-in ON / OFF power, wide voltage input range
● Built-in acceleration sensor for vibration alarm
● Support ACC detection, real-time reporting car status
● Built-in 450mAh battery for alarm when the power supply is disconnected unexpectedly
● Tele-cut off (petrol / electricity) function
● SOS button for SOS alarm
● Voice monitor function
● Built-in CPU, eliminating breakdown automatically

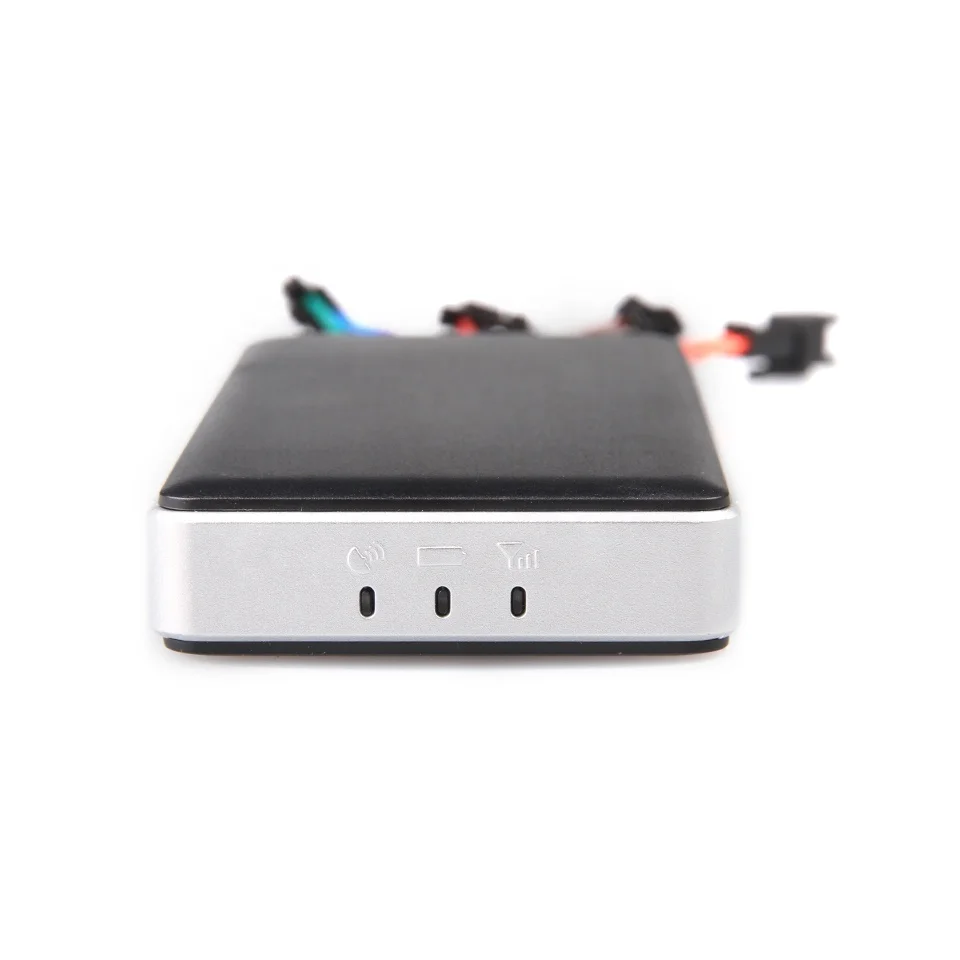

● Three LED indicators:
GPS - Blue; GSM - Green; Power - Red
● Check location via platform
● Check location via platform
Specifications:
GSM Specification | ||
GSM frequency | 850/900/1800/1900 MHz | |
GPRS | Class 12, TCP/IP | |
Memory | 32+32Mb | |
Phase error | RMSPE<5,PPE<20 | |
Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3dBm | |
Max frequency error | ±0.1ppm | |
GPS Specification | ||
GPS chipset | MTK high sensitivity chip | |
Frequency | L1,1575.42MHz C/A code | |
GPS channel | 66 | |
Location accuracy | <10 meters | |
Tracking sensitivity | -165dBm | |
Acquisition sensitivity | -148dBm | |
TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤32sec | |
Others | ||
Voice monitoring range | ≤5meters | |
Battery | 450mAh/3.7V Li-Polymer battery | |
Working voltage/current | 9-36VDC/45mA(12VDC), 28mA(24VDC) | |
Standby time | 60 hours | |
Working time | 4 hours | |
Operating temperature | -20℃～ 70℃ | |
Device weight | 96g | |
Device dimension | 105.8(L)*54.5(W)*16.4(H)mm | |
Appearance:
Certificates:
SOFTWARE
Tracksolid
COMPANY PROFILE
JIMI IOT
As a leading provider of IoT Solutions, Jimi is passionate about the design, intelligent manufacture, sales and operation of Intelligent Security Products & Solutions. Over the past 20 years, our solutions and products have been widely praised by the customers from 150+ countries and regions to help customers add value in intelligent security industry.
Our Team
We have 6 R&D Centers，600+ experienced engenieers，260+ invention patents，totally 2000+ employees.
Our Smart Factory
Automated factory is at the heart of Jimi's product manufacturing. Jimi is determined to provide ever more valuable support to the partners worldwide through the optimization and refinement of all aspects of our own business.
SMT Error Avoidance System
MES
Unattended Warehouse
You name it, we make it!
Provide customized services to achieve customers’ requests from ideas to reality.
Customers & Partners
We has expanded our business to 150+ countries and worked with exclusive/vip distributor in 20+ countries.
