Skillful Manufacture CNC Rebar Horizontal Bending Center Advanced Steel Metal Processing Machine

Product Overview

Description

Prodect Description

CNC rebar horizontal bending center is mainly used in railway, highway, bridge, tunnel, underground pipeline gallery and other national infrastructure fields, especially in the bending process of steel bar inbox girder and cover girder. The equipment is mainly composed of conveyor roller, lifting mechanism,left bending head, right bending head, gripper, unloading mechanism, feeding tolley, electronic control system, pneumatic system, etc. It is controlled by PLC and has a powerful graphics database, which realizes automatic bending of steel bar.

Advantages

1.With crank-connecting rod mechanism on rebar lifting mechanism, the rebar is sent to the top of the bending machine head as soon as it is lifted, which is convenient for the operator to discharge material and reduces the labor intensity of the workers . Driven by the motor reducer, all the bracket robs move in an unified way and the driving get more smooth and more steady.

2. The flexible engagement of rack and gear is adopted in the walking mechanism of bending machine head, which solves the problem of incomplete engagement between rack and gear caused by manufacturing error. With enough rigidity thicken on rack, the moving and positioning get more accurate and more stable.

3.The bending spindle is designed by spline ,and the spindle itself is made of high quality alloy steel by special technology. It has the characteristics of high strength, wear resistance and long service life.

4.The automatic unloading hooks for rebar equipped on the left-right bending head and clamps can carry out automatic unloading even in the case of long rebar.

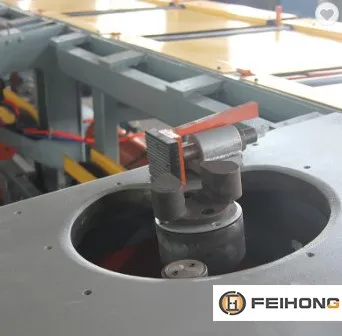

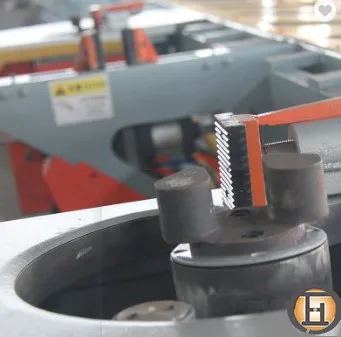

5.The bending disc is equipped with a steel bar scrap collecting cover to prevent a large number of scraps from falling into the reducer and causing wear and tear on the reducer.

6.The bending head is tilted to facilitate loading and unloading of reinforcing bars.

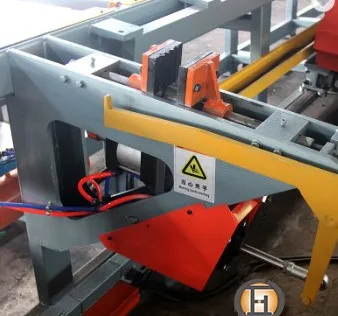

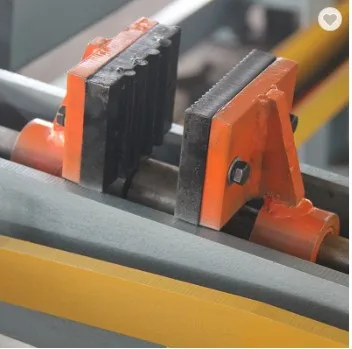

7.Double-acting cylinder adopted on the clamp can ensure that both sides of rebar are clamped at the same time while being clamped .And there is no need to adjust the clamp when replacing different specification of rebars.

8.The moving and the bending of the left-right bending head are controlled by servo motors, which makes control more sensitive and bending accuracy higher.

9. The flexible safety protection function on operation system can prevent machine from being damaged by bending action in the situation of photoelectric failure during bending detection.

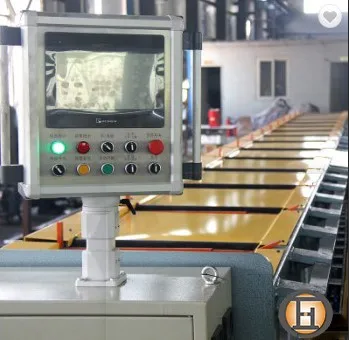

10.The operating system has a powerful database ,which can store more than 300 graphics.

For large arcs and incremental length change ribs ,it can be set by one key without manual input of parameters every time.

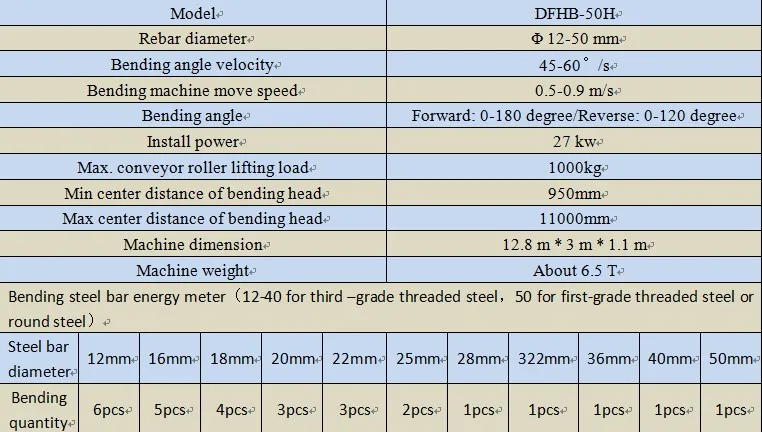

Parameter

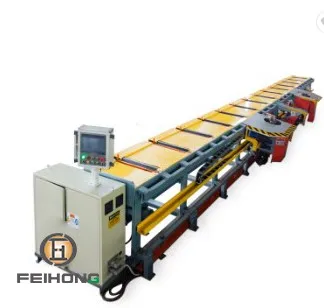

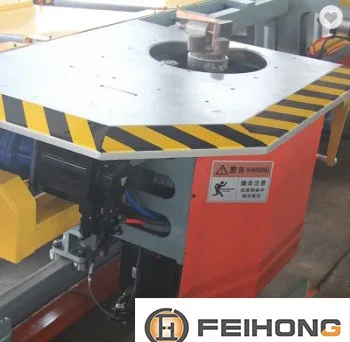

Prodect Picture

Company Information

Qingdao DongFeihong intelligent technology co., LTD., is committed to the field of steel processing research and development. Through continuous innovation and efforts, the company has won a number of intellectual property rights, has gradually become the intelligent steel processing overall solution solders and global steel processing plant workers intimate partner, and domestic and foreign large enterprises have cooperation, and almost achieved zero complaints.

Our company specializes in steel bar processing machine. We have CNC Cage Making Machine, CNC Rebar Sawing & Threading Line, CNC Rebar Shear Line, CNC Rebar Bending Center, CNC Stirrup Bender and so on. And any size can be customized on your request.

Certificate

Dongfeihong, with an advanced technology research and developmen center,composed of technical experts who have been engaged in the intelligent equipment industry for many years, has a number of independent inellectual property rights, such as technical inventions and utility model patents. Meanwhile we obtained ISO9001 quaity management system cetification, ISO14001 envonomental management system certification, and EU CE certification, etc.

Our Team

Customer Visit

Application

Our Service

Pre-sale service

1.Customers can experience our products on site.

2.Professional account managers will explain products to customers, and provide reasonable solutions.

3.Design experts will deeply analyze customer service solutions.

After-sale service

1.Quick maintance response within 24 hour:24-hour all-weather service hotline (domestic/abroad).

2.Three stages of return visit:Befor the warranty,one month after delivery;6 months after delivery;1 year after delivery.

FAQ

1.Q:Is your company manufacture or trading company ?

A:We are professional manufacturer and we have about 10 years experience in engineering machine line.

2.Q:Did your machine approved ISO?

A:Our all machines were had approved ISO9001 ago,that will do best quality for every customer.

3.Q:Can you help us contact the shipping agent in your loading port?

A:Of course,we have own best shipping forwarder who always provide the best services&price to us.

4. Q: Can you do OEM?

A: Yes, we can do OEM as client’s requirement.

5. Q: All products have a warranty?

A: YES, Our warranty term is One Year.

6. Q: What about the delivery time?

A: Usually 15-30 days after down payment.
