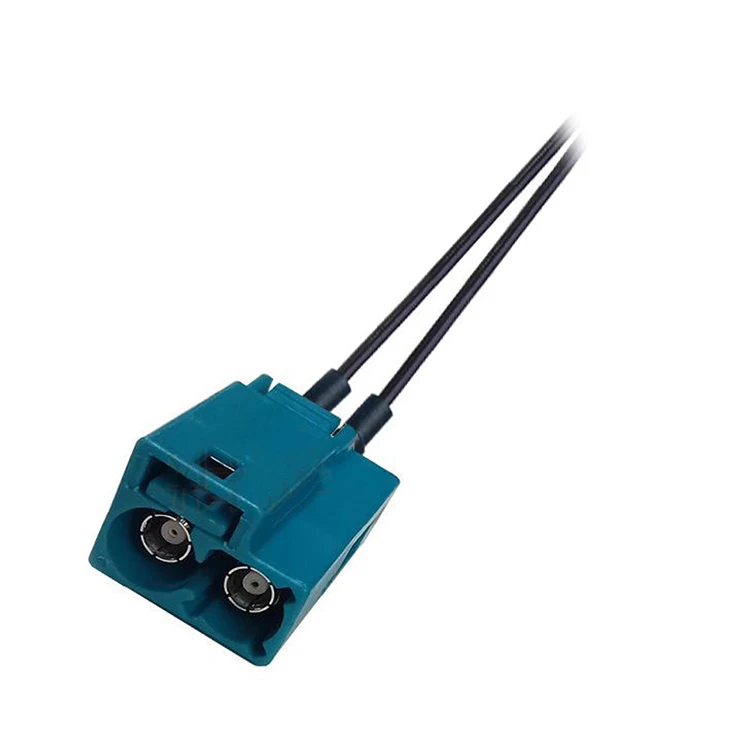

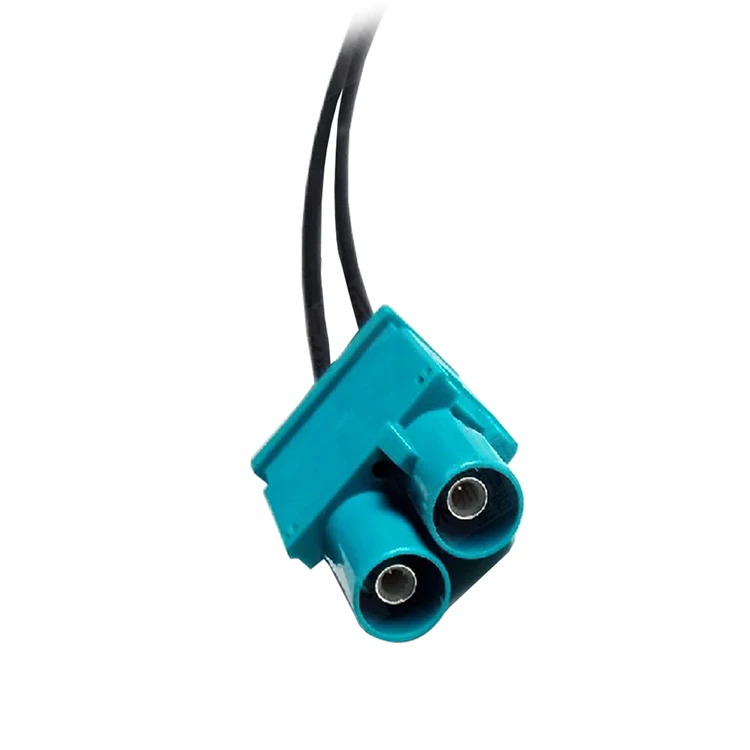

2023 Hot product Fakra Male A Connector For Rg316 Rg178 Rg174 Rg 1.37 Rg1.13 Fakra Cable

Product Overview

Description





Product technical description:

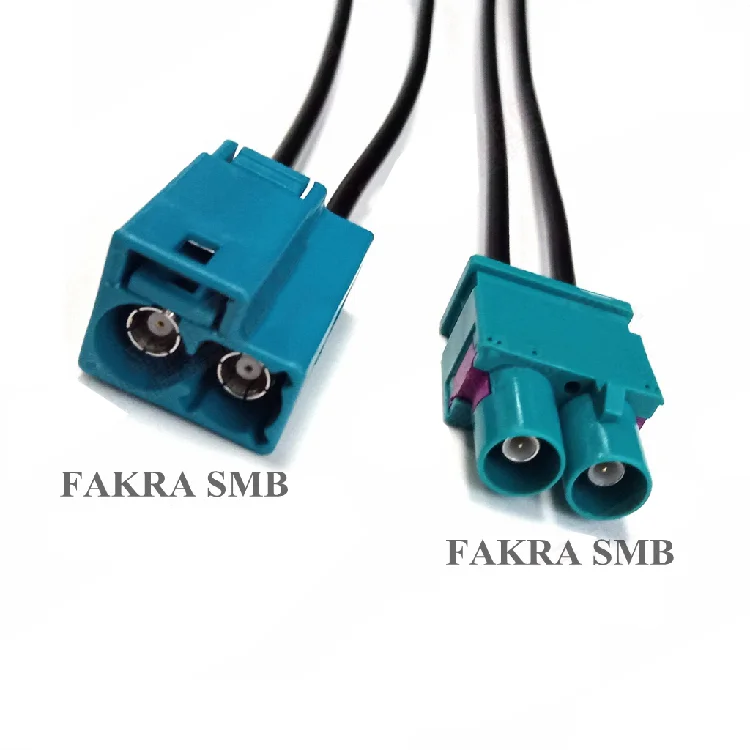

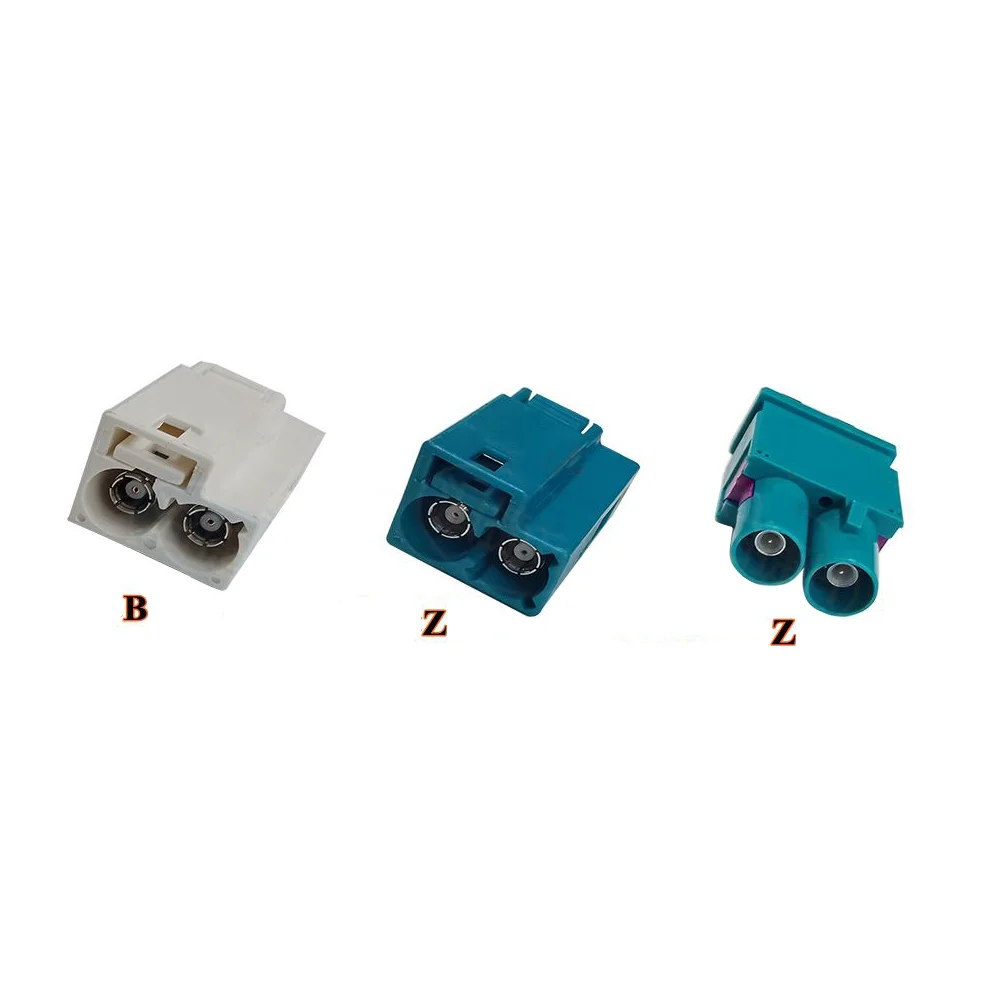

This is smb-c-k1.5 double row Z-type blue, fakra male / female. Commonly used in GPS series antenna wiring.



Shell	Brass, nickel plated
Jack	Beryllium bronze, gold plated
Insulator	PTFE
Crimping sleeve	Brass, nickel plated
Fixed ring	Beryllium bronze
Plastic shell	PA66+30%GF
Electrical characteristics
impedance	50
frequency range	4Ghz
Dielectric withstand voltage	1,000V (RMS)
Contact impedance
Inner conductor	≤ 20m
outer conductor	≤10m
Insulation impedance	≥1,000MΩ
VSWR	DC - 2GHz<1.2
Mechanical properties
Mesh	Get stuck
durability	≥ 500 cycles
temperature range	- 40 - +85°C





Q: Can I get one sample?

A: Yes, sample is for free.

Q:Payment term:
A:T/T(50% deposit as place order, 50% before shipment), Western Union, MoneyGram, Paypal

Q: What's the delivery time?
A: 1-2 working days for the sample, 7-10 working days for quantity below 5K, 15-30 working days for the quantity below 20K.

Q: Have antenna 100% assembles well in stock?
A: No, all antenna will be newly assembled according to your orders including the samples.

Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.

Q:How can you guarantee the product quality?
A: All of our items are manufactured unter RoHS directive and CE certified. Before shipment, we'll 100% inspect the commodity.

Q: What should customers do when you get the bad quality products?
A: If there are any damaged items, please kindly contact us for after-sale service. Generally, we'll pay for it in customer's next orders.
