Waste Recycling Machine Scrap Metal Shredder

Share on:


Price:$12,000.00 - $13,000.00
Price in USD:Details

Quantity:


Product Overview

Description


Waste Recycling Machine Scrap Metal Shredder

Waste Recycling Machine Scrap Metal Shredder
SCRAP METAL SHREDDER

This Waste Recycling Machine Scrap Metal Shredder is widely used in various kinds of scrap metals, such as aluminum can bundle, steel drum, car shell, color steel tile, copper aluminum radiator, bicycle, etc.

Waste Recycling Machine Scrap Metal Shredder
RAW MATERIAL

The raw materials of Waste Recycling Machine Scrap Metal Shredder can be aluminum can bundle, steel drum, car shell, color steel tile, bicycle, copper aluminum radiator, oil filter, scrap wires, cables, aluminum composite plastic panel, steel wire rope, gas tank, iron scrap, zip-top can, engine case, paint bucket, etc.

Waste Recycling Machine Scrap Metal Shredder
TECHNICAL PARAMETERS
ModelHNDM1000HNDM1200HNDM1500HNDM1900HNDM2600
Motor Power30*2 Kw45*2 Kw55*2 Kw90*2 Kw160*2 Kw
Capacity3-8 T/H5-10 T/H8-18 T/H10-25 T/H25-60 T/H
Blade Number34 Pieces30 Pieces38 Pieces34 Pieces25 Pieces
Input Opening Size1200*1000 mm1500*1200 mm2000*1500 mm2500*2000 mm3000*2500 mm
Dimension L/W/H3.6*1.5*2.2 m4.6*1.8*2.6 m5.2*2.0*2.6 m6.2*2.5*2.8 m8.2*4.0*4.3 m
Weight5 T8 T13 T18 T36 T
NOTE:

The Waste Recycling Machine Scrap Metal Shredder is our standard configuration. For different raw materials to be shredded, the configuration might be different. Please feel free to contact us for detailed information or special request;

We design single or multi-hook blades with different thickness for different materials.

Waste Recycling Machine Scrap Metal Shredder
MACHINE FEATURES

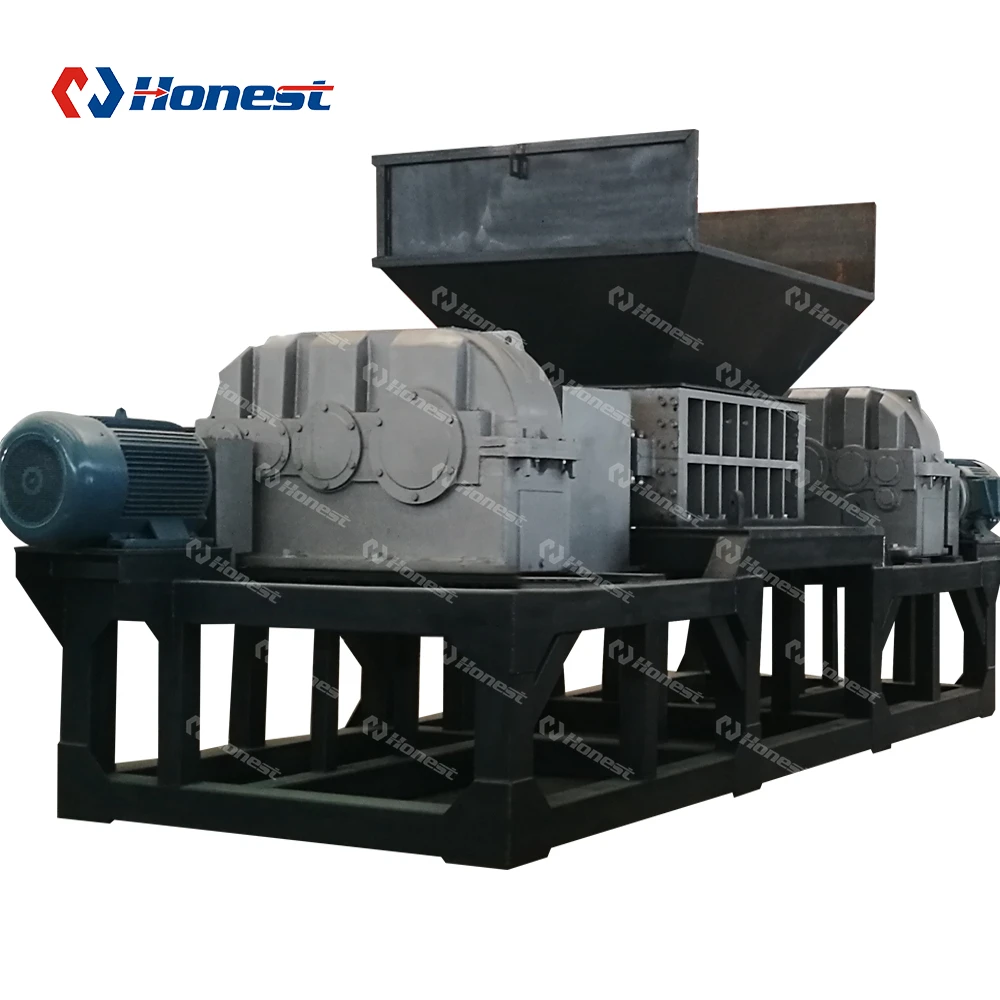

Waste Recycling Machine Scrap Metal Shredder is mainly composed of feed hopper, double shaft cutting system, PLC control system, discharging conveyor system and power system, etc;

Waste Recycling Machine Scrap Metal Shredder

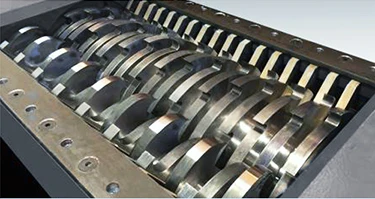

Blade materials include 9CrSi, Cr12MoV, SKD-II, D2, DC53, etc. It also can be customized.

Waste Recycling Machine Scrap Metal Shredder

Steel plate of crushing chamber is very thick, so very strong and durable, long service life.

Waste Recycling Machine Scrap Metal Shredder

We design shredder blades with different thickness for processing different raw materials.

Waste Recycling Machine Scrap Metal Shredder

The bearing pedestal adopts the split type, easy to maintain and replace the blade.

Waste Recycling Machine Scrap Metal Shredder

Button control, easy to operate, start, stop,forward, reverse, overload protection, etc.

Waste Recycling Machine Scrap Metal Shredder

Feed hopper can be designed according to different raw materials.

WORKING PRINCIPLE

Waste Recycling Machine Scrap Metal Shredder is the preprocessing equipment, the pre-sorted material to be chopped is fed into the two shafts whose rotors are moving slowly in opposite directions (therefore dust and noise free).

Waste Recycling Machine Scrap Metal Shredder

The cutting discs are plugged on the shaft. This double shaft shredder is designed for longevity; The number of the knives or their width respectively determines the size of the output material.

Waste Recycling Machine Scrap Metal Shredder
FAQ
Q: When we establish one kind of shredder machine, can we use it to shred other materials?

A: Yes, you can. We will design the shredder machine for you as per your materials.

Q: How to choose a suitable shredder?

A: Please tell us your raw material and what capacity you need, we will recommend you the most suitable shredder.

Q: What About The Machine Installation?

A: For the Waste Recycling Machine Scrap Metal Shredder installation, we will provide you the wire connection drawing and technical support, normally you can finish by yourself; but if you really need our technician, we will send technician to your working site as required.

Q: How About The Spare Parts?

A: We provide spare parts at cost price permanently and will give you the spare parts list when you purchase machine.

Q: Will you test the shredder machine before delivery?

A: Yes, we will test every machine and production line before delivery and send you the working video. You also can come to us for inspection before delivery.

WELCOME TO OUR FACTORY

Henan Honest Heavy Machinery Co.,Ltd is a professional company which is specialized in research and development, production and sales of renewable energy and organic solid waste environmental protection equipment.

Waste Recycling Machine Scrap Metal ShredderWaste Recycling Machine Scrap Metal Shredder
OUR CUSTOMERS FROM OVER 30 COUNTRIES AND REGIONS
Waste Recycling Machine Scrap Metal Shredder
