Factory Supply Light Steel Keel T Bars Galvanized Ceiling T Grid

Product Overview

Description

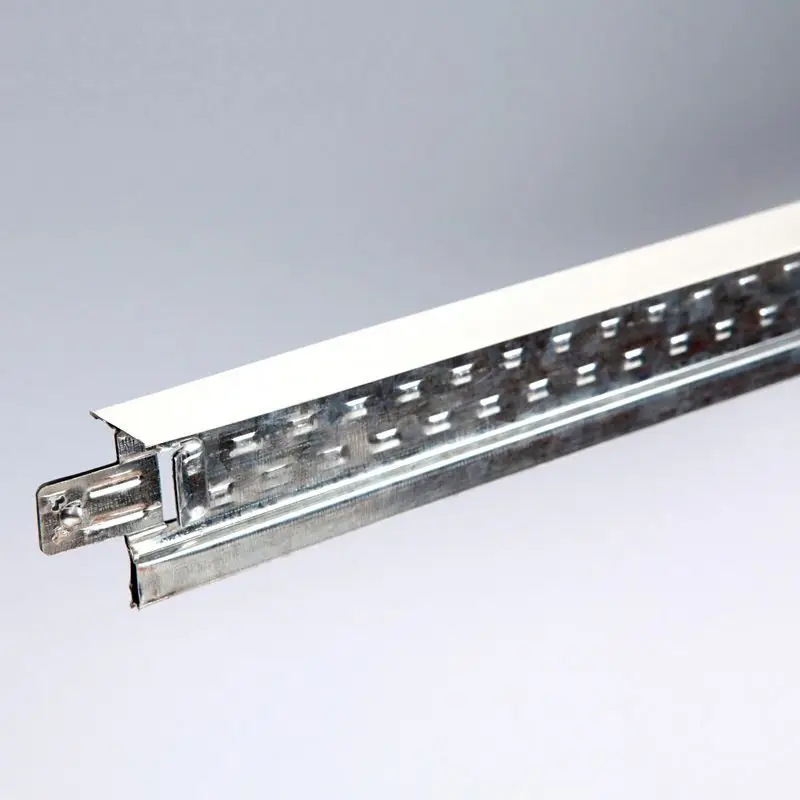

Factory Supply   Light Steel Keel T-Bars Galvanized Ceiling T Grid



SPECIFICATION:	T Bar Suspended Ceiling Grid Ceiling t-grid/ T-Bar / metal grid  Suspended ceiling tee bar Suspended ceiling tee grid Exposed Groove T-Grid / T-Bar System
MAIN TEE:	Size (Height×width×Length) 42×15×3600mm 42×15×3660mm 38×15×3600mm 38×15×3660mm 32×15×3600mm
CROSS TEE:	Size (Height×width×Length) 42×15×1200mm       38×15×600mm 42×15×1220mm       38×15×610mm 42×15×600mm        32×15×1200mm 42×15×610mm        32×15×1220mm 38×15×1200mm       32×15×600mm 38×15×1220mm       32×15×610mm Thickness0.3mm,0.4mm
WALL ANGLE:	Size (Height×width×Length) 20×16×3000mm 20×16×3600mm Thickness:0.3mm,0.4mm









Inspection item	Unit	National Standard	Test Result
Appearance	——	no damage	no
Hole Distance Difference	mm	±0.3	±0.1
Difference of baking paint thickness	µm	≥20	24
Width  Difference	mm	±0.5	0.1-0.3
Length Difference	mm	±1.0	0.3-0.6
Underside straight Limitation	mm/1000mm	≤1.3	0.6
Galvanized thickness	µm	≥14	17
Load bending Limitation	mm	≤2.8	2.1



MAYBE YOU ARE LOOKING FOR:

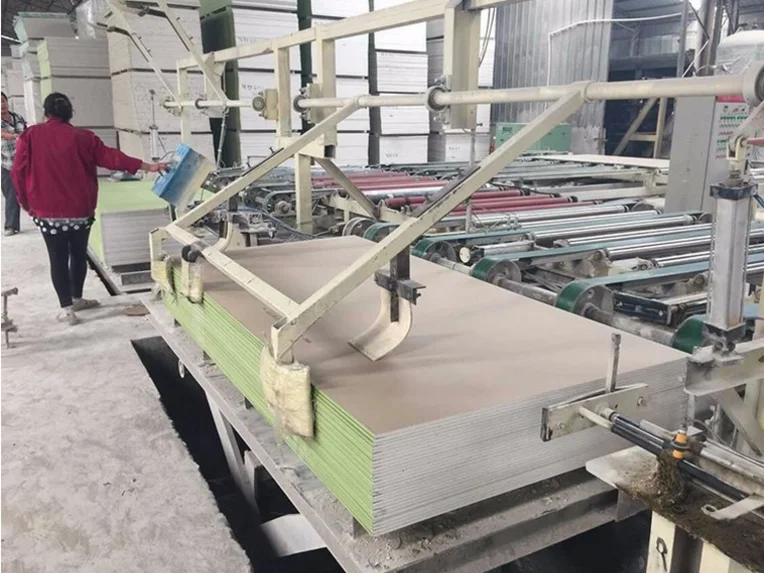

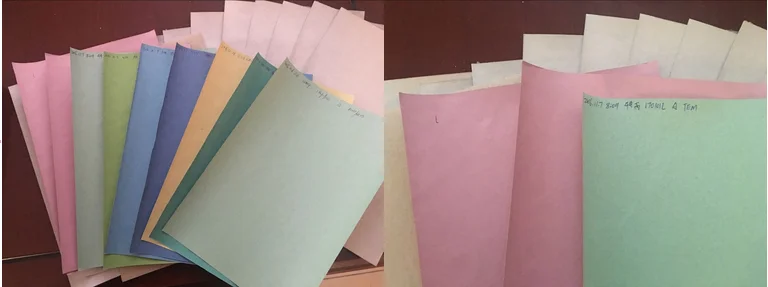

(High Quality Gypsum Board Paper)













To ensure that customers use our gypsum board with no worries, hereby we warrant:



1.  We strictly select good raw material to ensure the reliable quality.



2.  Not only in the selection of materials, but also in every production procedures, we strictly act according to the ISO9001 standard, and control by full-scale inspection.



3. The Technical and specialized support from us will be available.



4.  The upgraded products information will be timely supplied.
