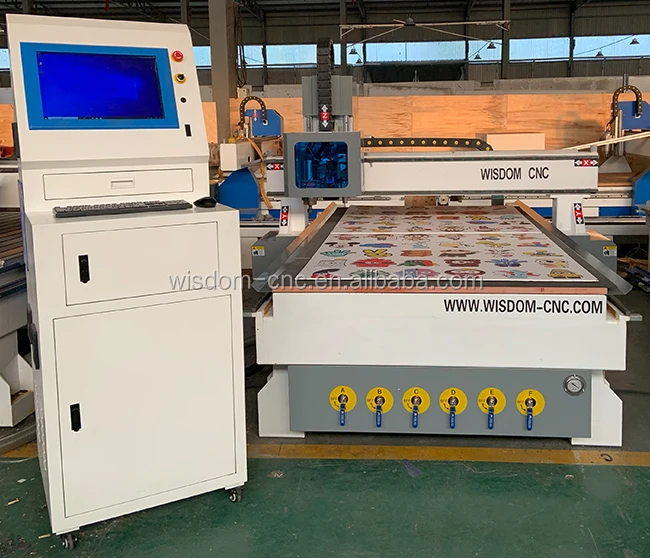

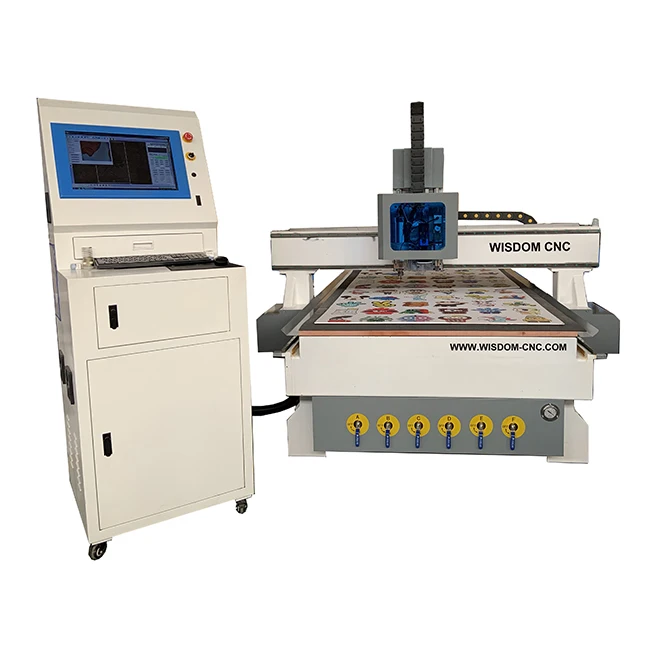

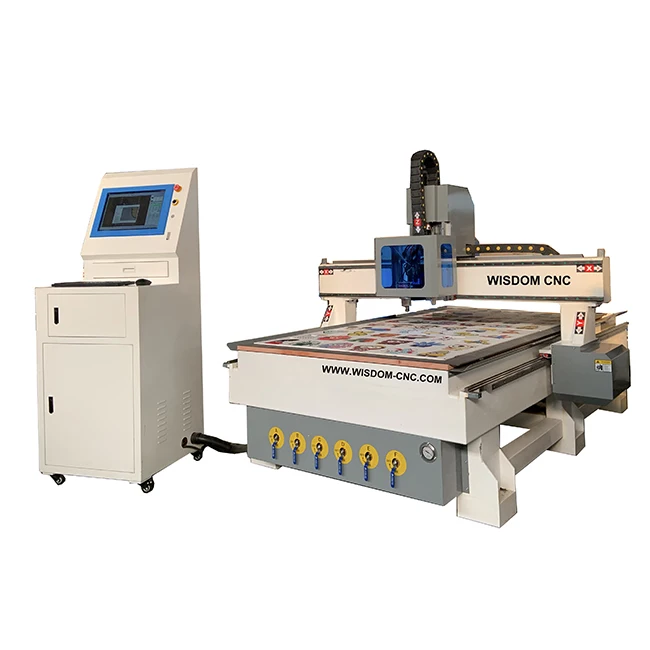

WS-K1325 Camera CCD + Oscillating Knife + Spindle cutting cnc router 1325 for cutting signs milling solid wood aluminum

Wood cnc router

CNC router with spindle and CCD camera and oscillating knife is a newly developed machine by our company, which combine CNC spindle cutting, oscillating knife cutting and CCD camera. It's very popular use in sign making and advertising industry.

CNC router spindle head is used for smart cutting, routing, carving, grooving, drilling on popular woodworking or advertising projects: Wood arts, wood crafts, wood signs, wood gifts, wood toys, cabinet making, wood door making, wardrobe and other wood furniture production. It applied to cut hard advertising materials, such as wood,acrylic,plastic,etc.

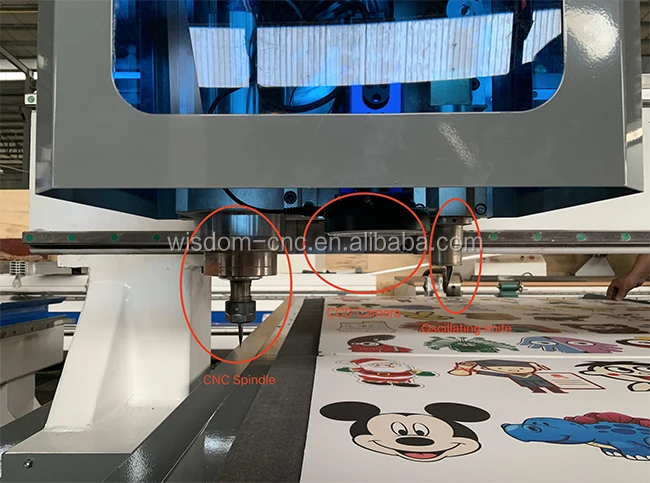

Oscillating knife is used for high-precision cutting of heavier flexible and semi-rigid materials. Oscillating knife is carried on the multi-tool cutting head–Vibration knife, Oblique knife, Circular knife, Punching knife, Milling knife, Punch roller and Marking pen. CCD Camera is for precise positioning, CCD camera scan,detect and recognize printed contour, or pick up printed registration marks and cut the chosen designs with fast speed and high accuracy. Oscillating knife cutting is also called CNC knife cutter, CNC knife cutter Machine, Knife Cutter, Knife Cutting Machine, CNC knife cutting table. At home, out shopping, on vacation, in the streets, in a car or on an airplane – we are constantly surrounded by products likely to have come off a knife cutter. From street signs to storefronts, packaging to spacesuits, hot-air balloons to bullet-proof vests, airplane seats to windshields, oscillating knife cutter can process all of the materials involved with the perfect tool for the job – be that cutting, routing, creasing, scoring, or cnc machining.

Besides, separate CNC system can control the CNC spindle head independently, if engraving or carving is necessary. CNC Oscillating Knife Cutting has advantages of high speed, high intelligent, high precise cutting and easy operation, etc. CNC Oscillating Knife Cutting can connect with other software well with data converting software.



Application:

1. we equipped our machine with the Famous brand Japan Yaskawa servo,and HSD 9kw aircooling ATC spindle,can achieve deep carving work with high precision stably and smoothly.

2.It is mainly used for acrylic,mdf ,pvc board processing, wave board production,various types of artificial board shaped cutting, neon channel literally cutting light box molding, aluminum acrylic cutting.

3.Oscillating knife: Especially for cutting flexible material PVC, KT board, thick foam, aluminium-plastic composite panel, polypropylene hollow sheet, foot pad,leather.

4.CCD System:Automatic tracing-edge CCD camera. It use Four-point positioning technology for label cutting.

Perfect for sign making, such as channel letters carving.also used for door and furniture carving.



Technical Features:

1. The machine adopts gantry movement, it can process any kinds of materials freely.
2. Three axes adopt Taiwan Hiwin high precision square guide rails; X and Y axes adopt helical rack and pinion transmission, better than vertical rack and pinion, fast speed, high efficiency and low cost. Z axis adopts Twain TBI ball screw, with high precision and longevity.
3. Well compatibility: CAD/CAM designing software e.g. Type 3 /Artcam /Castmate /Ucancam /Vcarve etc.
4. Combine the functions of spindle cutting, CCD camera and oscillating knife cutting.

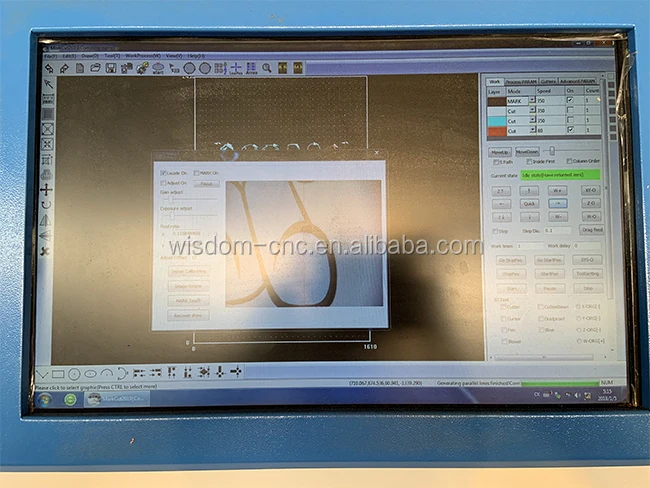

5. Adopting advanced integrated Leetro control system, which could control both CNC spindle and oscillating knife cutting.
6. Dust collector will clean up the carving residuum and make the operations tidier and more convenient.

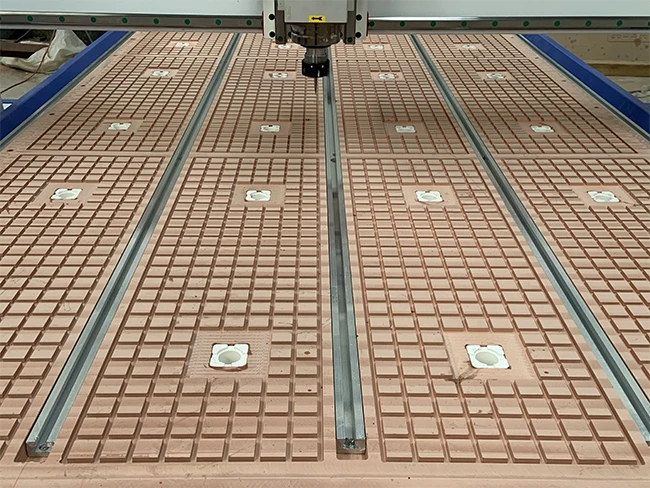

7. Vacuum table with vacuum pump could fix the materials steadily.



Technical parameters:

Model	WS-K1325
X,Y Working Area	1300 x 2500mm
Z Working Area	200mm
Lathe Structure	Heavy Steel lathe bed
X,Y Structure	Helical Rack and pinion transmission, high precision than vertical one
Z Structure	Thick ball screw,Hiwin linear Square guide rail
Spindle	4.5kw water-cooling
Spindle Rotate Speed	0-24000r/min, variable speed
Inverter	Fuling, good quality and popular
Working Mode	Yaskawa Servo motor
Driver	Yaskawa Servo motor
Command	G code
Operating System	Markcut
Diameter of cutter	φ3.175-φ12.7mm
Cooling Mode	Water pump
Work table	Vacuum absorption for spindle cutting Carpet layer for oscillating knife cutting
Lubrication	Automatic
Working Voltage	AC380V/50Hz,3 Phase
Dust collector	3.0kw with double bags, good dust collection

cnc router machine with oscillating knife cutting samples

Main Application:  Acrylic,PVC board,MDF board and other boards processing,wave board production,various types of artificial board shaped cutting,LED,neon channel literally cutting,light box molding.





Jinan Wisdom CNC Equipment Co., Ltd is one of the premium and quality-focused manufacturer and supplier in China integrating manufacture, research, marketing and service. We design, develop and manufacture CNC router machine (CNC wood router, stone engraving machine, metal engraving machine, 3 axis CNC router, 4 axis CNC router, 5 axis CNC router, 3D CNC router, CNC milling machine), CNC wood turning lathe, CO2 laser engraving and cutting machine, laser marking machine, fiber laser cutting machine, plasma cutting machine, etc.



Quality makes the core of our organization's philosophy, we are committed to providing customers with high quality products, competitive prices, excellent services and customized solutions. For decade of years development, our products have good market in more than 70 countries and regions including Europe, Africa, Mid east, America, Oceania and Southeast Asia, etc. Besides, we have 24hr customer service hot line, regularly consult customers' needs and suggestions to further improve our products and service.



We make use of the rich Internet information, integrate global market resource, and create a unique marketing and brand promoting mode belonging to "Wisdom". We insists on customer-oriented and non-stopping innovating to achieve common benefits, we whole-heartedly supply products with competitive price and perfect solutions to all users in all kinds of industries.



Rather careful and professional packing way for machine protection.
1. Film. Put PE film on the machine and some spare parts, then put bubble wrap to the machine.
2. Free-fumigation wooden case with steel tube support on wooden cover. Humidity-proof paper above the wooden plate.
This kind of package could protect the machine very well from dust and humidity etc.













Welcome to contact with us for further details and information.
