1. The upper die of the machine uses a pneumatic air jacket, which does not need to be replaced frequently, and the lower die is replaced quickly.
2. It is suitable for the alumium mold of various materials to adjust the tempreature by itself, and the shaping effect for hot melt adhensive is better.
3. The downward stroke of the fixture of the machine adopts the curved bending design, which makes the upper of the shoe more sturdy, and the shaping effect is more perfect. Depending on the upper of the shoe, the pull-down arc and depth can be adjusted arbitrarily.
4. It has coolant circulation refrigeration. The failure rate is low and the cooling effect is fast.
5. This machine is suitable for men's and women's leather shoes and sports shoes, saving space, economic and practical. A custom-made cold refrigerator can be added.
Mode
JY-862B
Power
0.6KW
Voltage
220V 50Hz
Weight
300Kg
Output
1000pairs/8hr
Dimensions
700*450*1850
Direction for use
1. Turn on the power switch
2. Turn on cold start button
3. After the starts, set the pressing interval time
4. Set the temperature
5.Place the upper on the heat set mold,
6.Press the foot switch to tighten the upper.
7.Press the start button to shape the upper
8.Place the upper on the cold mold,
9.Press the foot switch to tighten the upper.
10.Press the start button to shape the upper
Description of application effect
Shape the heel by heating and cooling
Detailed Images

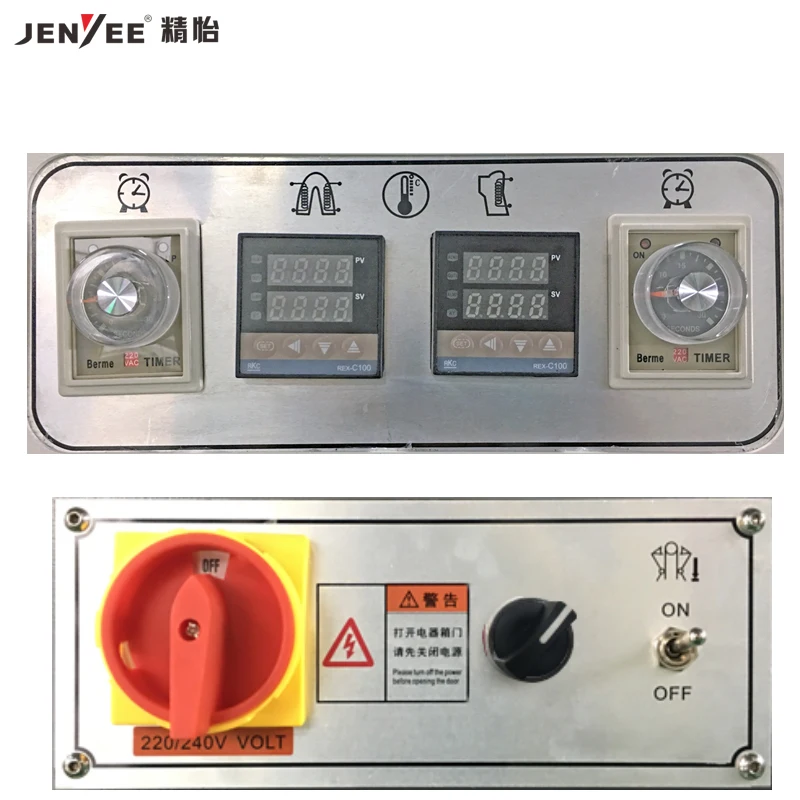

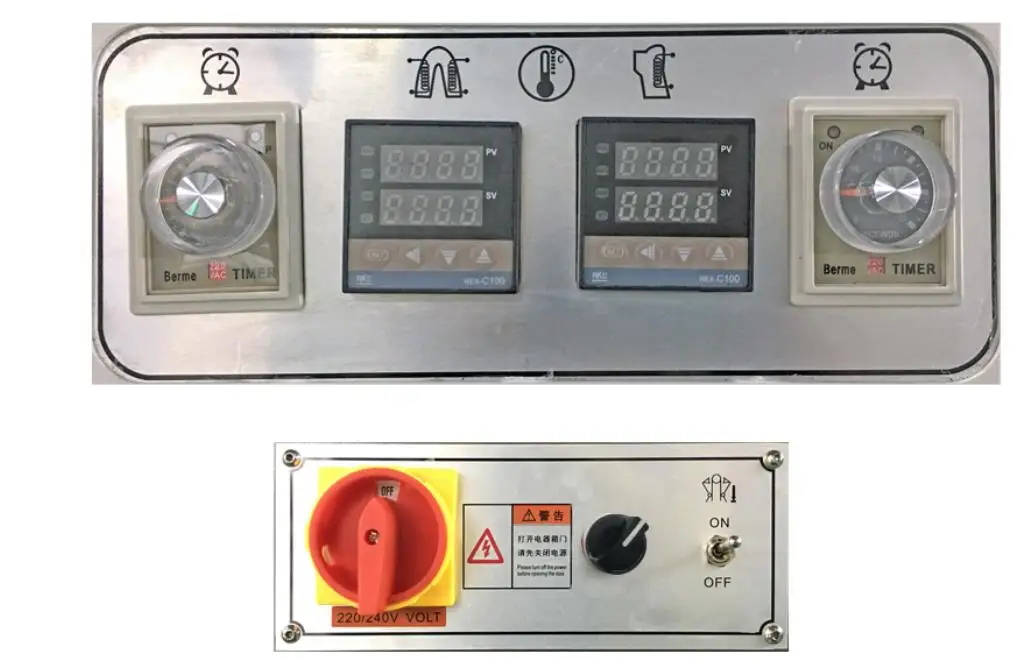

Panel
There are temperature controller and pressure time timer on the control panel。
There are main power switch, refrigeration switch and claw switch on the small panel.

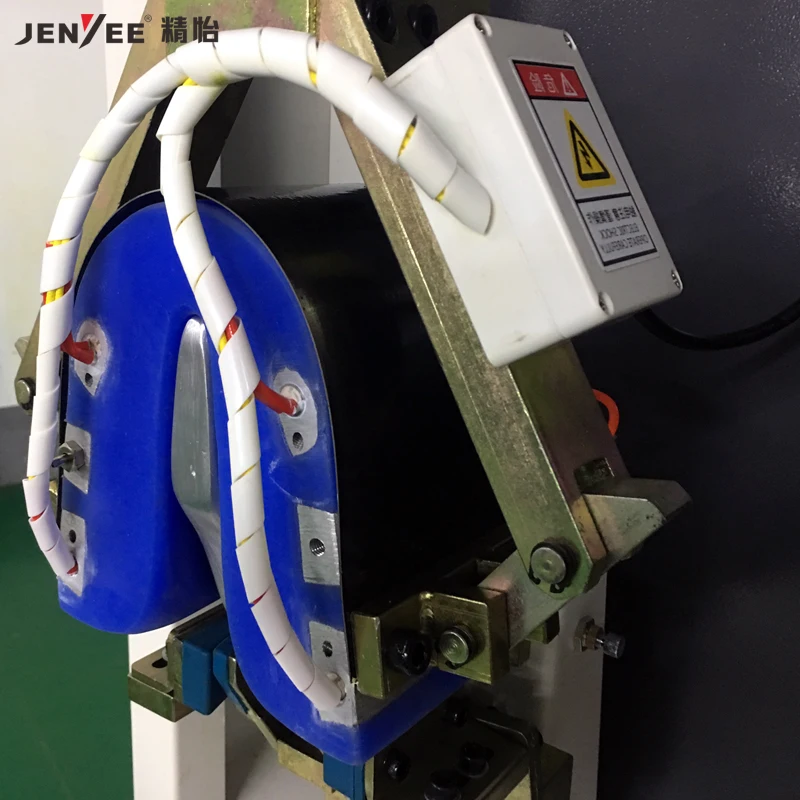

Heel setting
First, we can heating the toepuffs in shoe's backpart

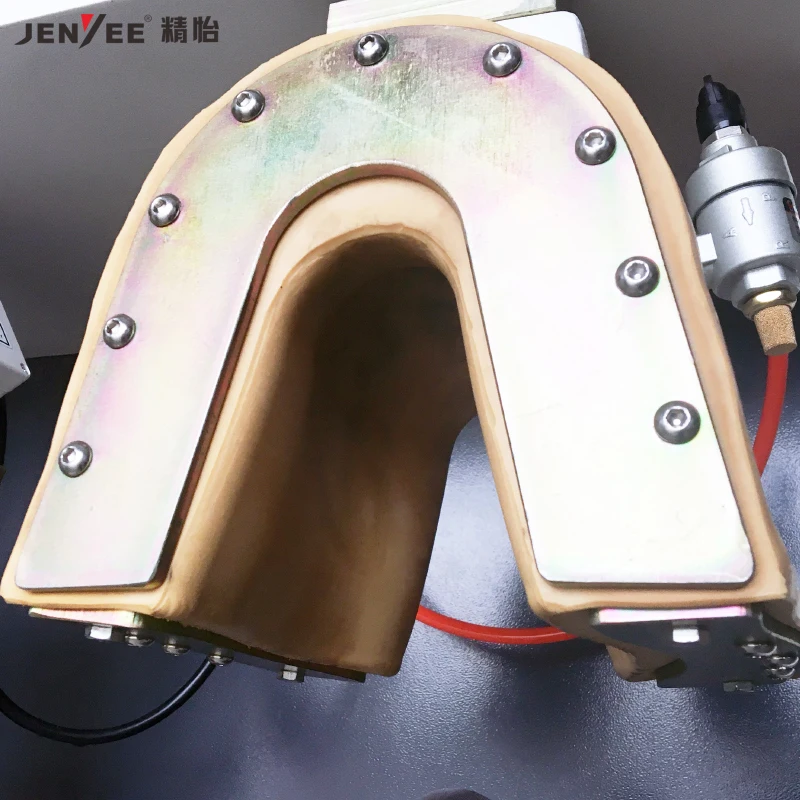

Cold setting
Then, we can freeze the the toepuffs in shoe's backpart

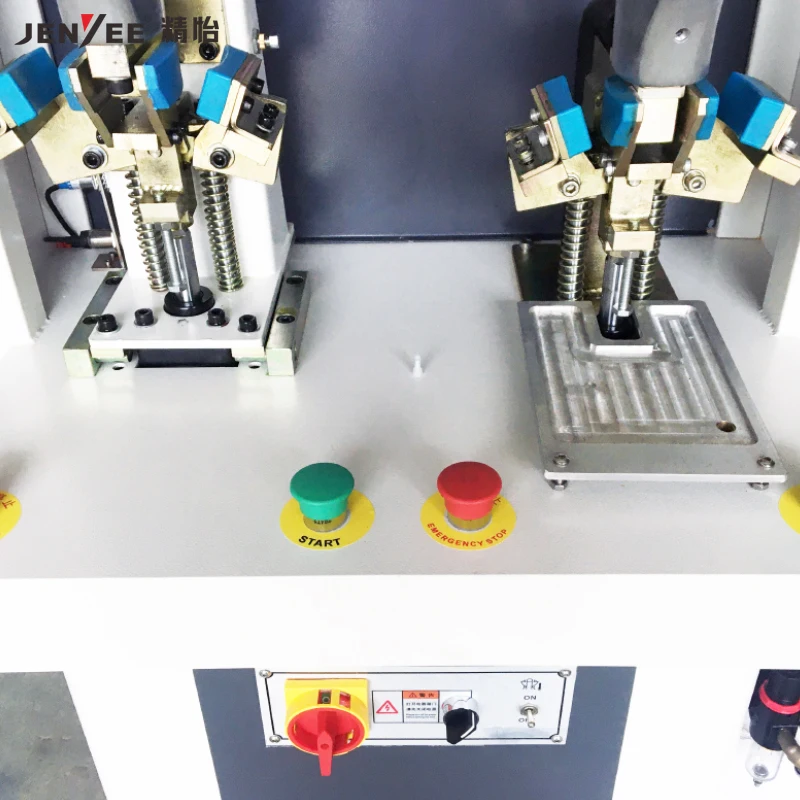

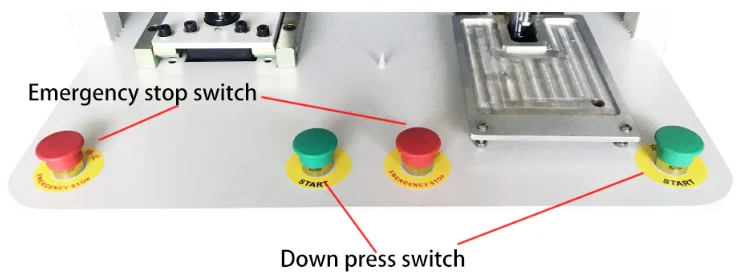

start switch and emergency stop switch，
Other accessories
Air filter and foot switch
