Product Overview
Description
Pump
| OUR PRODUCTS |

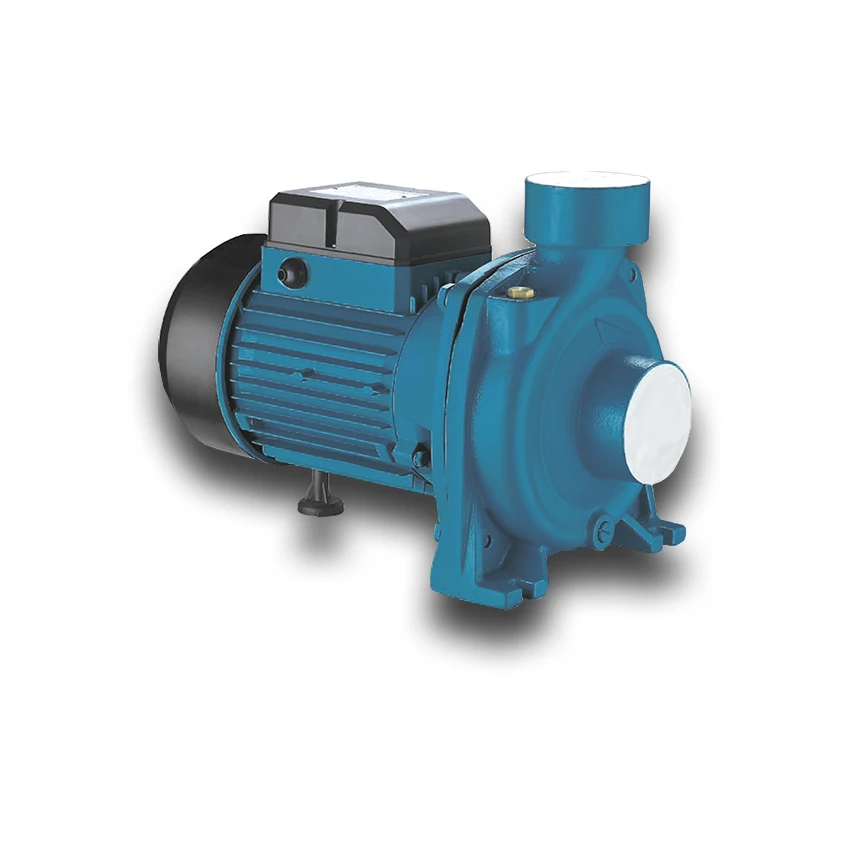

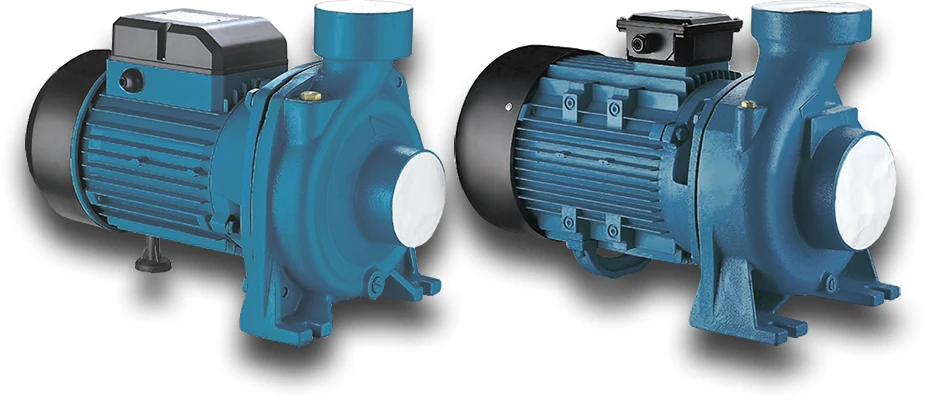

Product:2 hp - 10 hp High Efficient Surface Pump Draw Water Dewatering Electric Pump
Application Limits
Suction head up to 7m
Liquid temperature up to +40℃
Ambient temperature up to +40℃
Max. Working pressure: 3.6bar
Voltage fluctuation should not exceed 10% of rated value.
PH:6.5 to 8.5
Application Fields
Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc.
| SPECIFICATIONS |
| Model | Power | Max. Flow (m3/h) | Max. Head (m) | Head Range (m) | Max. Suction (m) | |
| KW | HP | |||||
| BP-203-130(110V-60Hz) | 0.37 | 0.5 | 6 | 22 | 8~22 | 7 |
| BP-203-130(220V-60Hz) | 37 | 0.5 | 6 | 22 | 8~22 | 7 |
| BP-203-130(110V/220V-60Hz) | 0.37 | 0.5 | 6 | 22 | 8~22 | 7 |
| BP-203-146(110V-60Hz) | 0.55 | 0.75 | 6.6 | 26 | 11~26 | 7 |
| BP-203-146(220V-60Hz) | 0.55 | 0.75 | 6.6 | 26 | 11~26 | 7 |
| BP-203-158(110V-60Hz) | 0.75 | 1 | 7.2 | 32 | 14~32 | 7 |
| BP-203-158(220V-60Hz) | 0.75 | 1 | 7.2 | 32 | 14~32 | 7 |
| BP-203-158(110V/220V-60Hz) | 0.75 | 1 | 7.2 | 32 | 14~32 | 7 |
| BP-203-170(110V-60Hz) | 1.1 | 1.5 | 7.8 | 40 | 17~40 | 7 |
| BP-203-170(220V-60Hz) | 1.1 | 1.5 | 7.8 | 40 | 17~40 | 7 |

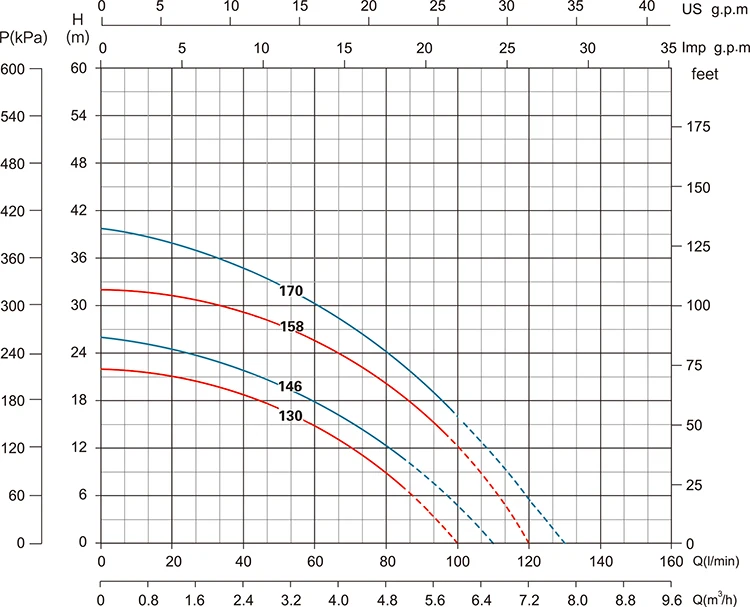

| PERFORMANCE CURVE |

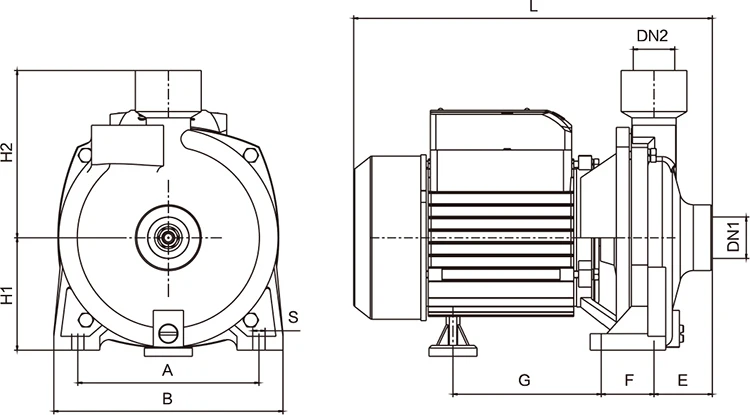

| OUTLINE DRAWING |
| Model | DN1 | DN2 | Dim.(mm) | ||||||||
| Inch | A | B | E | F | G | L | S | H1 | H2 | ||
| BP-203-130(110V-60Hz) | 1 | 1 | 132 | 167 | 42.5 | 38.5 | 108 | 262 | 9 | 82 | 122 |
| BP-203-130(220V-60Hz) | 1 | 1 | 132 | 167 | 42.5 | 38.5 | 108 | 262 | 9 | 82 | 122 |
| BP-203-130(110V/220V-60Hz) | 1 | 1 | 132 | 167 | 42.5 | 38.5 | 108 | 262 | 9 | 82 | 122 |
| BP-203-146(110V-60Hz) | 1 | 1 | 132 | 167 | 42.5 | 38.5 | 132 | 262 | 9 | 82 | 122 |
| BP-203-146(220V-60Hz) | 1 | 1 | 132 | 167 | 42.5 | 38.5 | 132 | 262 | 9 | 82 | 122 |
| BP-203-158(110V-60Hz) | 1 | 1 | 144 | 175 | 47 | 38 | 132 | 296 | 10 | 94.5 | 130.5 |
| BP-203-158(220V-60Hz) | 1 | 1 | 144 | 175 | 47 | 38 | 132 | 296 | 10 | 94.5 | 130.5 |
| BP-203-158(110V/220V-60Hz) | 1 | 1 | 144 | 175 | 47 | 38 | 132 | 296 | 10 | 94.5 | 130.5 |
| BP-203-170(110V-60Hz) | 1 | 1 | 158 | 192 | 45 | 42 | 164.5 | 300 | 10 | 100 | 144 |
| BP-203-170(220V-60Hz) | 1 | 1 | 158 | 192 | 45 | 42 | 164.5 | 300 | 10 | 100 | 144 |

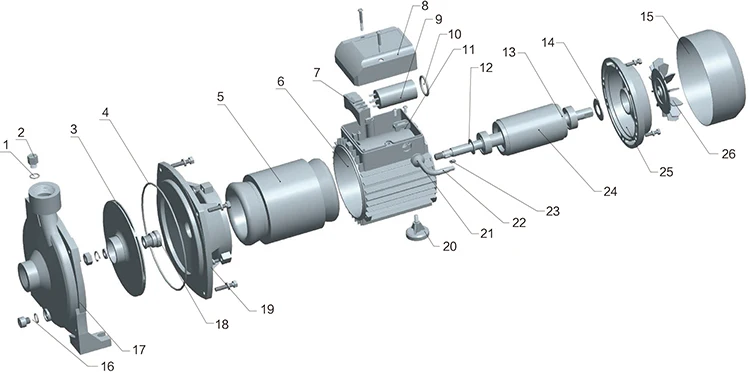

| MATERIALS TABLE |
| No. | Component | No. | Component | No. | Component |
| 1 | O-ring | 10 | O-ring | 19 | Coupling |
| 2 | Air Faucet | 11 | Cable Control Cover | 20 | Foot |
| 3 | Impeller | 12 | Waterproof Ring | 21 | Cable Sleeve |
| 4 | O-ring | 13 | Bearing | 22 | Cable |
| 5 | Stator | 14 | Wave Spring | 23 | Key |
| 6 | Motor Case | 15 | Fan Cover | 24 | Rotor |
| 7 | Terminal Board | 16 | Water Faucet | 25 | End Cover |
| 8 | Cable Block Cover | 17 | Pump Body | 26 | Fan |
| 9 | Capacitor | 18 | Mechanical Seal |
For more information, you can visit our website
https://www.belmont-tech.com
| PACKAGING& SHIPPING |
Each motor is packed in a foam box, 3pcs in a carton and 45 cartons in a pallet. If you have any special needs, please let us know, we can design packaging according to your request.
1. Q: Can you provide detailed technical data and drawing?
A: Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.
2. Q: Can I visit your factory before we place an order?
A: Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.
3. Q: How to control the products quality in your company?
A: With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
