1ton/day block ice making machine with stainless steel molds
- Category: Ice Machines >>>
- Supplier: Guangzhou Kingwell Heat Transfer Technology Co. Ltd.
Share on (62372806055):
Product Overview
Description
Product Description
Ice block maker machine 1ton per day for africa

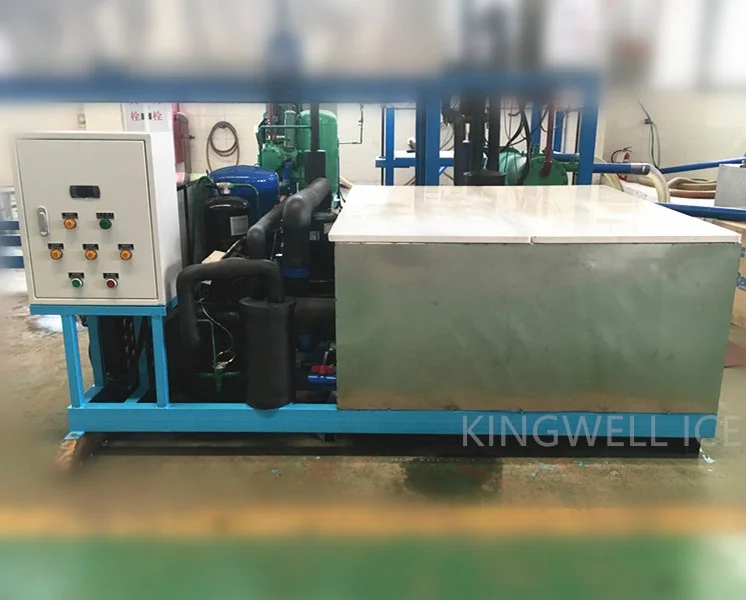

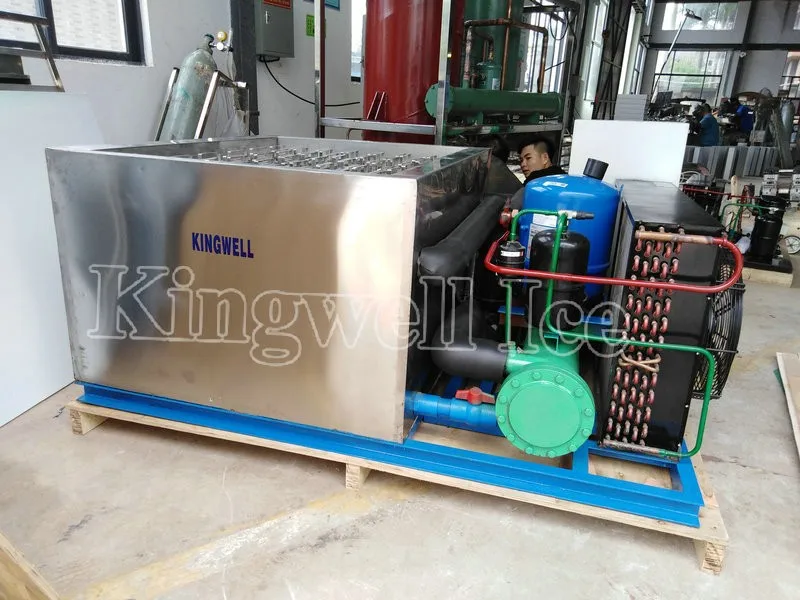

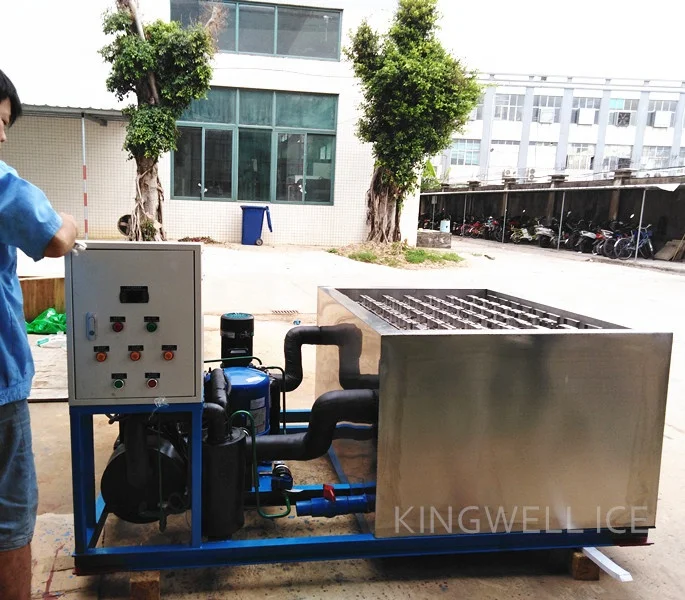

Block ice machine combine by three part: compressor machinery unit, salt water tank(with ice cans inside) and water cooling tower.
SPECIFICATIONS FOR 1 TONS PER DAY BLOCK ICE PLANT | ||||||
Compressor | Brand | Danfoss | ||||
Horse Power | 4HP | |||||
Type | hermetic compressor | |||||
Technical specification | Supply Power | 380V, 50Hz, 3Phase / Customized | ||||
Input Water Temp. | 21℃ | |||||
Condensing Temp. | 40℃ | |||||
Main Features

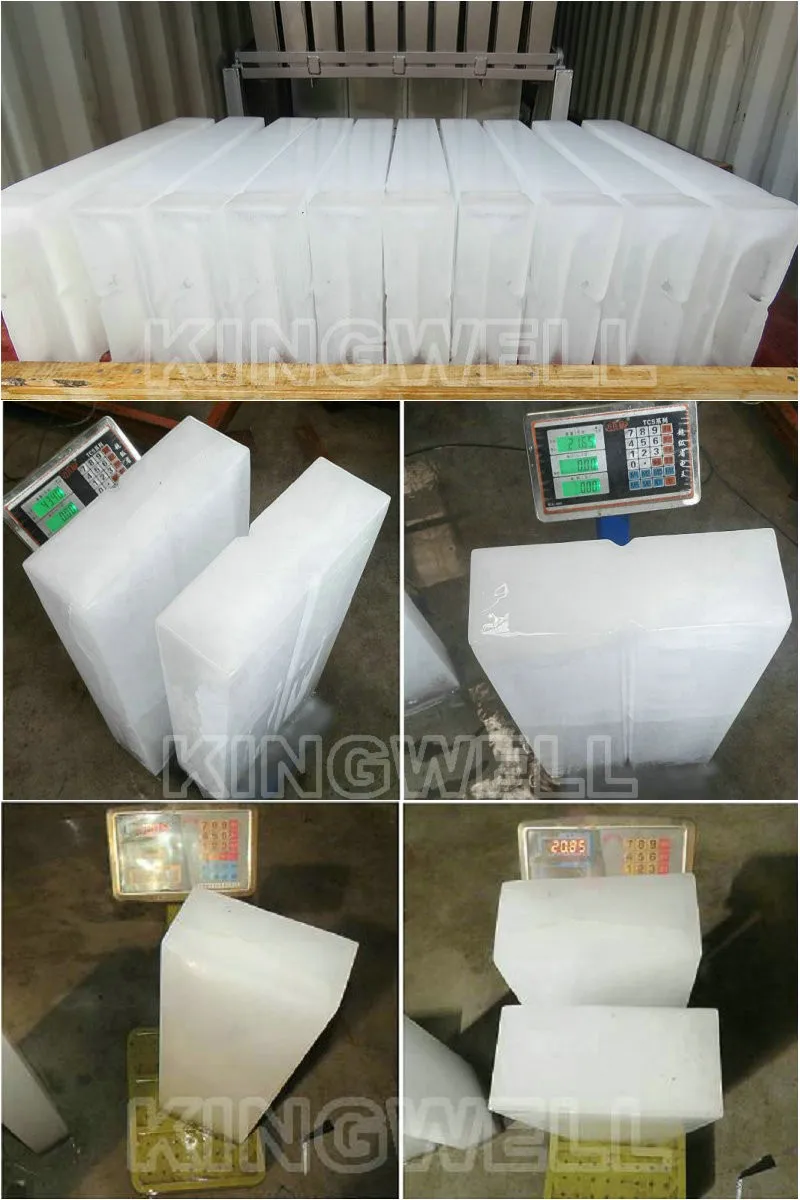

1). The block ice it created is strong and hard, do not melt easily, which is suitable for long-term and long-distance storage.
2). Energy saving: Using salt water as secondary refrigerant, which can help the ice freezing quicker, consumes less electricity.
Application

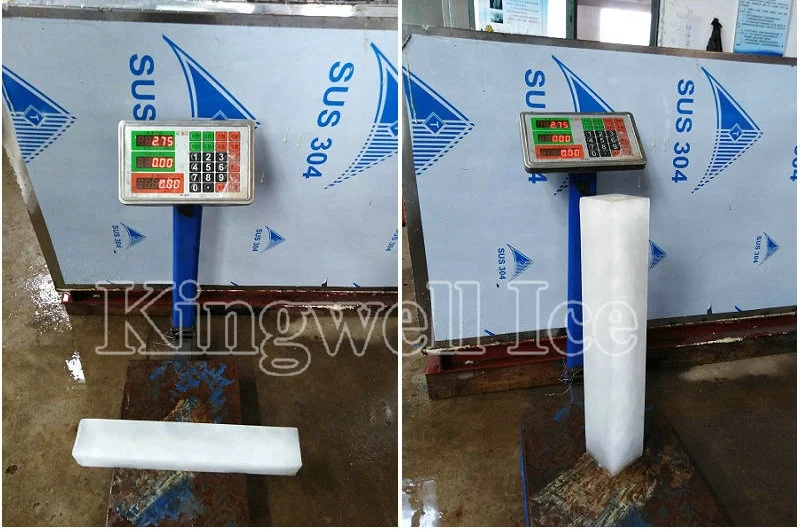

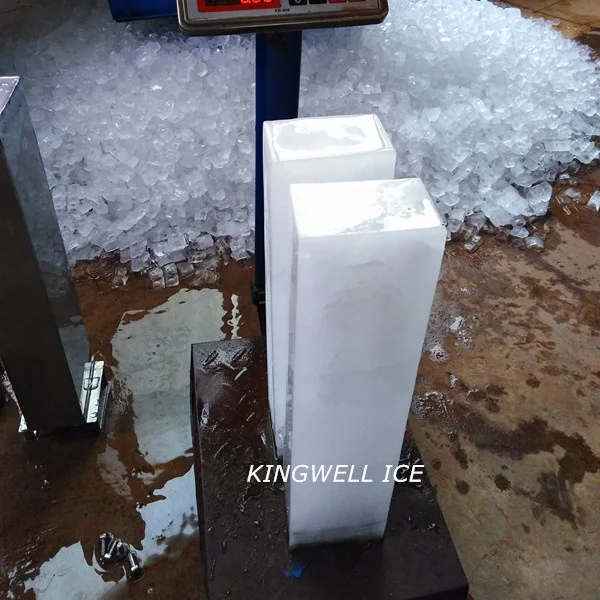

Widely application of block ice

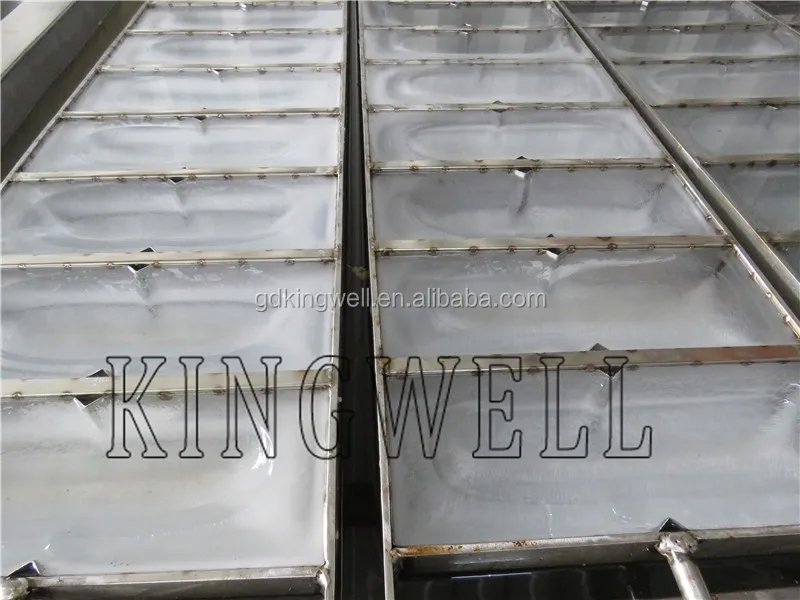

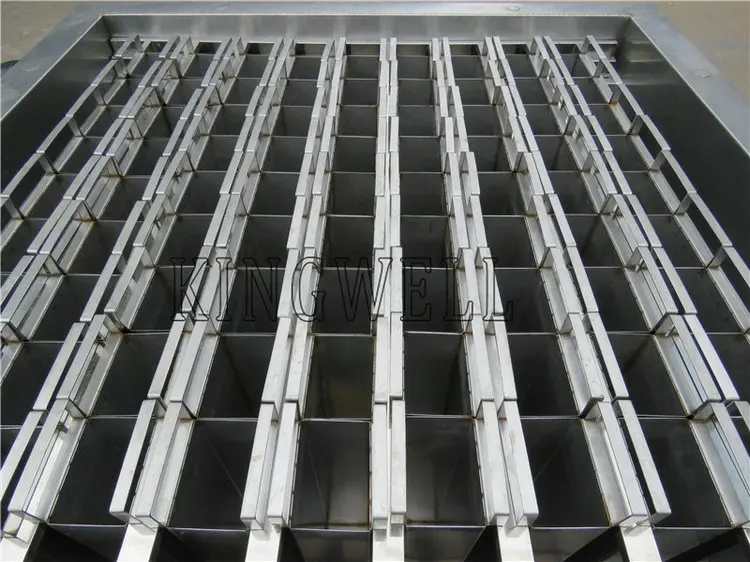

Different ice cans
Stainless steel & galvanised steel ice cans

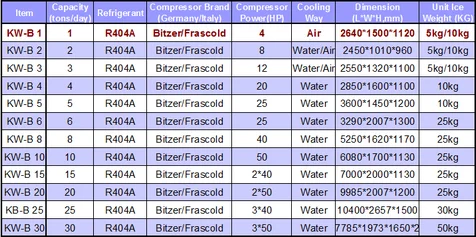

Technical Parameter
Why choose us (Feature)
1, Improved working system Unsurpassed in the industry, Most efficient in electrical and water consumption.
2, Easy to Maintenance, Save time and without worry
3, Professional, Experience, Faithful & Fast reply
4, Multi-purpose models available to suit all of your needs
Notes:
* Power supply: 380V~420V, 60hz; 3P; 220V~240V, 60hz, 3P; 380V, 50HZ, 3P; 440~480V, 60HZ, 3P.
* Above capacity based on makeup water temperature of 21℃, evaporating temperature of -15℃
and condensing temp. 40℃. The actual capacity will be changed by different ambient temp. and make-up water temp.
* The daily capacity can be ranged from 1ton to 120 tons or we can design as per your requirements.
Detailed Images
Compressor
Name: Bitzer
Brand: Germany brand
The compressor is the only engine of the refrigeration system, it's just as the heart for a human being, so the quality of compressor enfluence the refrigeration effect. Bitzer brand is good quality one, and widely used all over the world.
High/Low Pressure Controller
Name: Danfoss
Brand: Denmark brand
The high/low pressure controller is used as pressure controller and pressure protector, when the pressure of system reaches the setting point, it turns on or off automatically to keep the compressor refrigeration unit from damage.
Electrical components
Name: LS
Brand: South Korea brand
The electrical components like power switch, contactor, thermal relay are all protector for other refrigeration components.
Expansion Valve
Name: Danfoss
Brand: Denmark brand
World famous brand, with stable performance and low failure.
