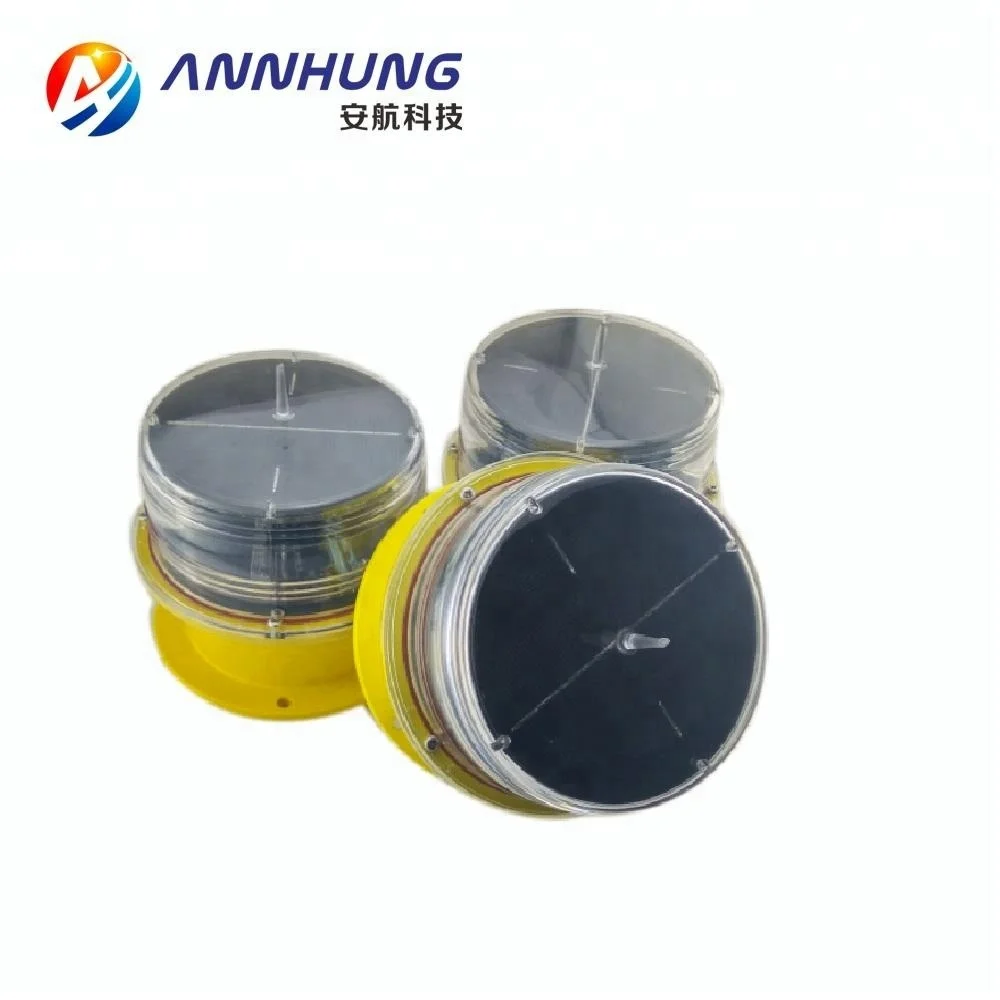

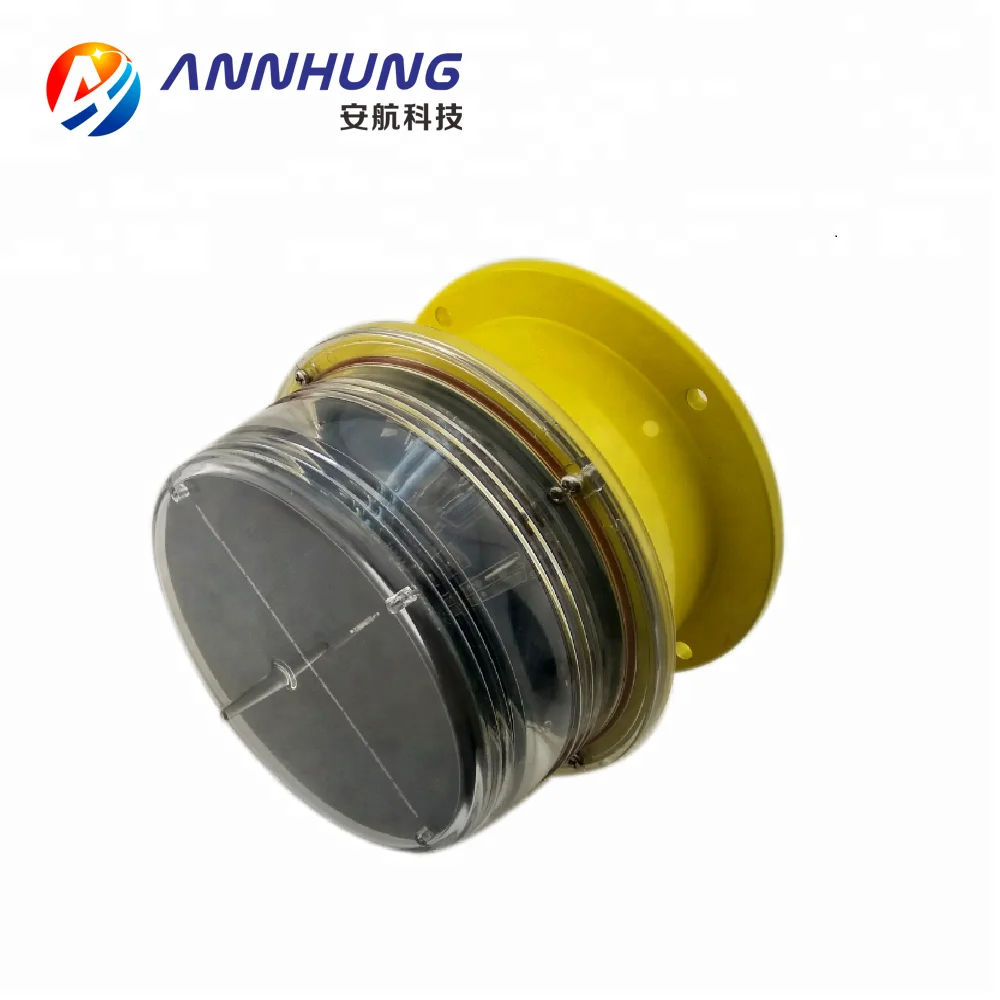

Factory Supply Solar Airport Lights for Emergency and Temporary Helipad or Airport

Product Overview

Description

Factory Supply Solar Airport Lights for Emergency and Temporary Helipad or Airport

Packaging & Delivery

Packaging Details:                             paper carton 1 piece/box



Delivery Detail:                                     Shipped in 7 days after payment



Specification





Airfield light

Solar Heliport Landing Light

Solar Airport Light



Applications



AH-SA-B Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary helipad. Light weight make it very easy for user to take and move the AH-SA/B.



Product Description

SPECIFICATIONS	AH-SA-B Solar Airfield Light
Light Characteristics
Light Source	LED
Available Colors	Red, Green, Yellow, White, Blue
Intensity(cd)	20cd(Steady), 35cd(Flashing)
Horizontal Output(degrees)	360
Vertical Divergence(degrees)	≥10
Flash Characteristics	Steady(Flashing mode is optional)
Operation Mode	24hours working after switched ON
LED Life Experience(hours)	>100,000
Electrical Characteristics
Operating Voltage	3.7
Circuit Protection	Integrated
Solar Characteristics
Solar Module Type	Mono crystalline Silicon
Output(watts)	1.8
Charging Regulation	Microprocessor controlled
Battery Characteristics
Battery type	Lithium ion battery
Nominal Voltage (V)	3.7
Battery Service Life	Average 3 years
Autonomy (hours)	Steady: 50, Flashing: 120
Physical Characteristics
Lamb Body Material	Aluminum Alloy
Base Material	Powder-coated Die-casting aluminum
Installation Size	140×140×M6
Overall Size (mm)	162×162×160
Weight(kg)	1
Product Life Expectancy	Average 5 years
Environmental Factors
Ambient Temperature(℃) -55℃~+70℃	-55~70
Humidity	0~100%
Wind Speed	80m/s
Waterproof	IP68
Compliance
ICAO	Annex 14 Volume II Heliports 5.3.
FAA	AC 150/5390-2B Heliport Design Guide
Optional
	Wireless remote control
	External battery charger
	NVG - compatible infrared (IR) LED
	Carry case for batch of lights
	Switch for dusk-till-dawn & 24hr operation





Function



AH-SA-B Solar Airfield Light has one photocell. It can work alone automatically at night by photocell when ambient brightness is lower than 500cd/m2 and close during the day.





Advantages

1.International advanced solar panel reaching at least 10 years service life.
2. Comprehensive protection in voltage short, over-voltage, floating charge and temperature.
3.Built-in Solar Panel.
4. Strong corrosion resistance, Rain and Snow, Shock and Vibrations protection and UV protection.
5. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching  100000hours.
6. Clean, renewable, green and reliable energy source.
7. Dusk-to-dawn operation: Built-in photocell inside light can let light work at night and close during the day automatically.
8. At least 5 days autonomy.
9. Recyclable batteries with the lightest environmental.

10. Small volume especially being suitable for heliport portable using.





Compliance



l ICAO Annex 14 Volume II Heliports 5.3.

l FAA  AC 150/5390-2B Heliport Design Guide

l CAP 437
