Product Overview
Description
production description

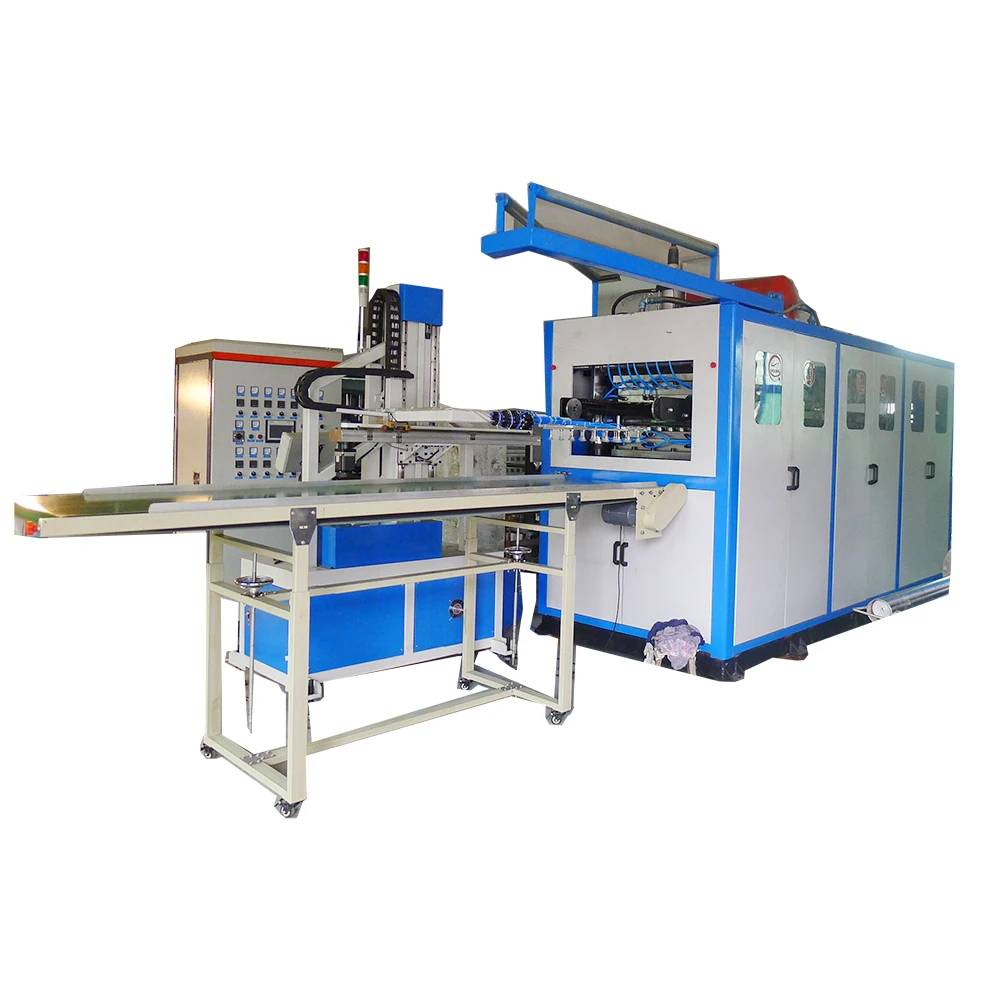

HX-660/720/750 series Cup&container Making Machine
Description
HX-660 series Cup/Container Making Machine provides high production rates and quality finished products at a great price. Standard hydraulic and pneumatic control, Running stably and reliably, working life long, machine can keep working for 7*24
Application
This is a version of thermoforming, whereby a sheet of plastic is heated to a forming temperature, stretched onto a mold, and forced against the mold by air-pressure formed into permanent objects.
Primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food and general retail industries.

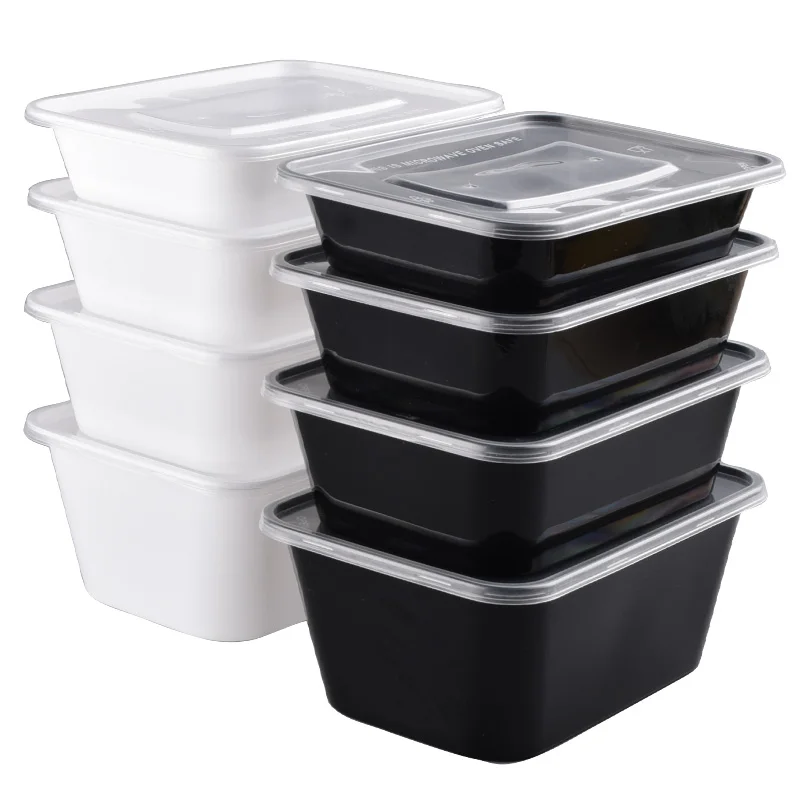

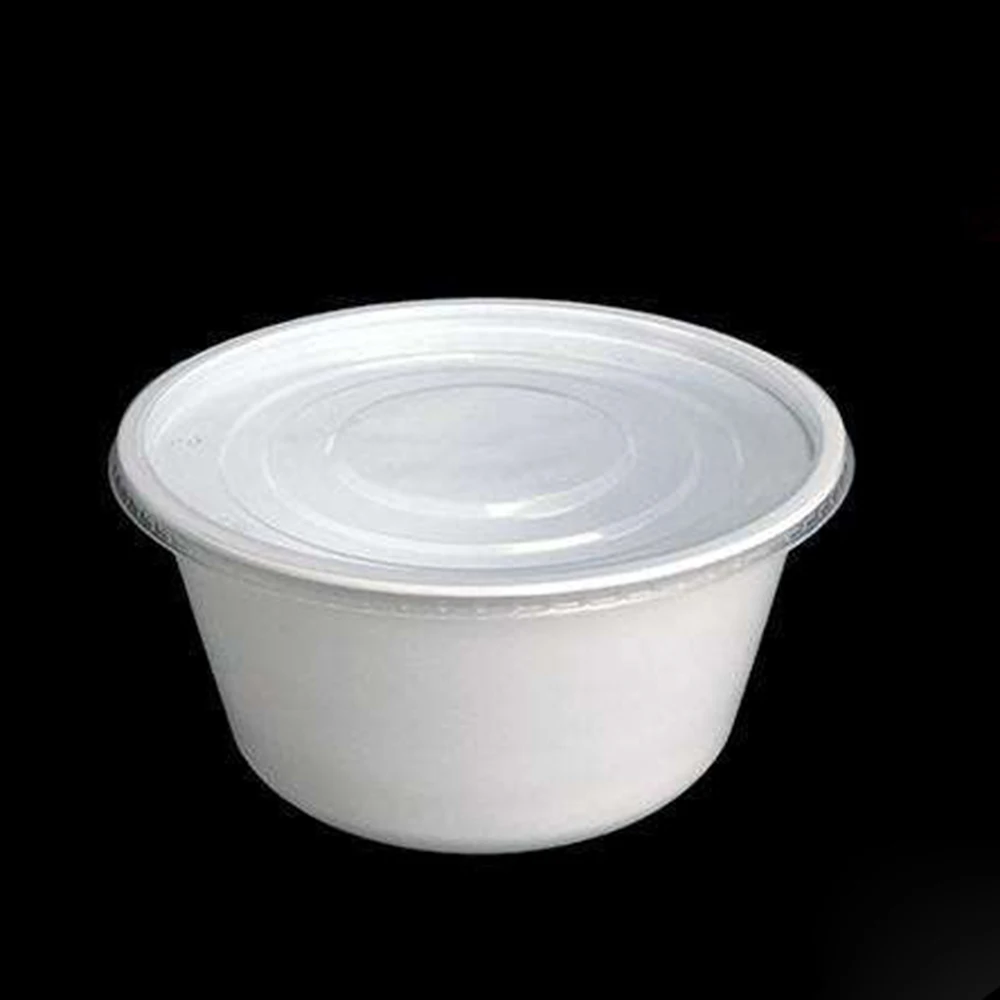

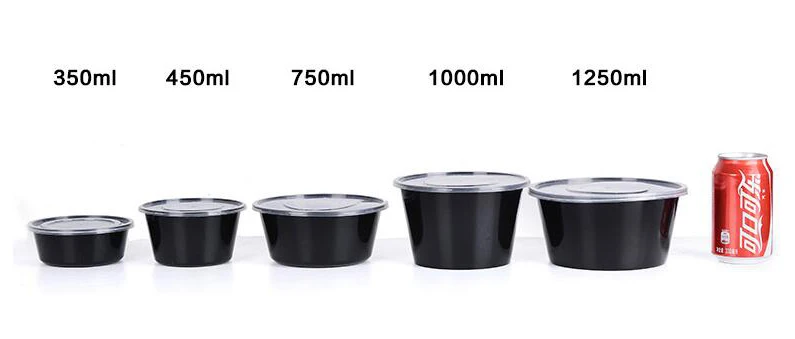

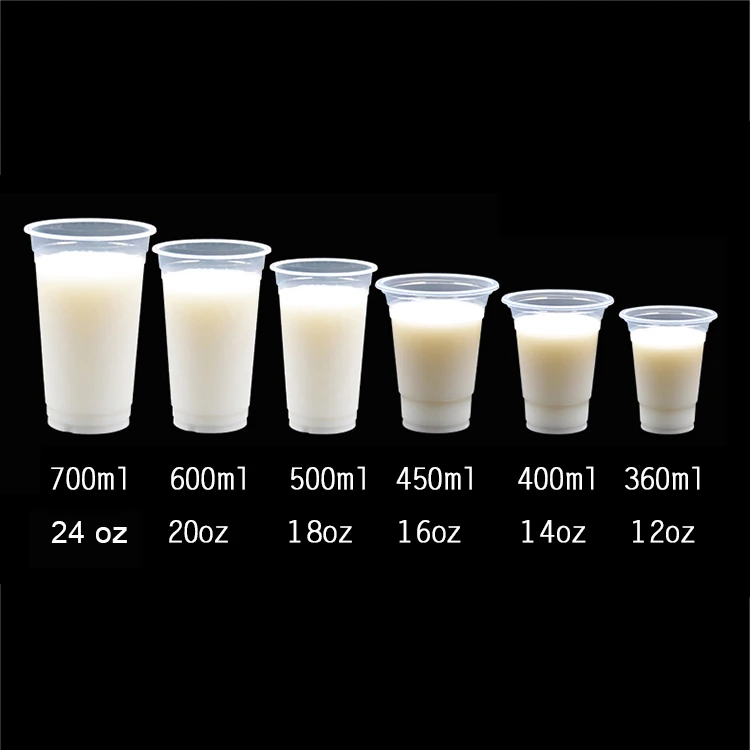

Sample
Parameter
|
Model |
HX-660 |
|
Material / Reel Feed |
PP,PE,PET,HIPS,GPPS |
|
Forming Size (mm) |
620*260 |
|
Material Width (mm) |
500-660 |
|
Material Length (mm) |
0.3-2.0 |
|
Forming Height (mm) |
150 |
|
Forming Speed (Cycles/min) |
≤18-28 |
|
Heater Power(KW) |
100 |
|
Actual power consumption (Kw/h) |
70 |
|
Motor Power (kw) |
7.5 |
|
Air Requirements (Mpa) |
0.6-0.8 |
|
Water Requirements (L/min) |
3 |
|
Weight(Ton) |
5.5 |
|
Dimension Machine (L*W*H)(mm) |
Material feeder: 1000×700×550 Main machine: 3700×1360×2100 Scrap Winder: 600×900×480 Control cabinet: 1300×550×1900 |
Features
1. Pressure stable, powerful, high efficiency, energy conservation.
2.14-section heating zone with automatic temperature control, reasonable regional distribution of each section, homogeneous heating and easy to operate
3. Wide application, lower nose, reliable performance
4. Motor with overcurrent protection device.
5. Siemens PLC control
6. Equipment with asynchronous Scrap Winder, Roll diameter max 0.8m, easy to operation
7. High quality electrical and electronic components (SIEMENS, OMRON, SCHNEIDER)
8. Electrical cabinet and installation to CE standard
9. EAC certificate.
Chains and Rails
Heating system
Forming Station
Mold:
Composite structure, multifunction (air compression, forming, in-mould cutting, take-off)
Production packing line
