1 Ton/Hour soil trommel vibrating screen sieve machinery for industrial

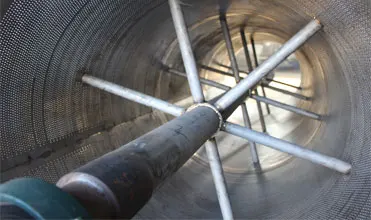

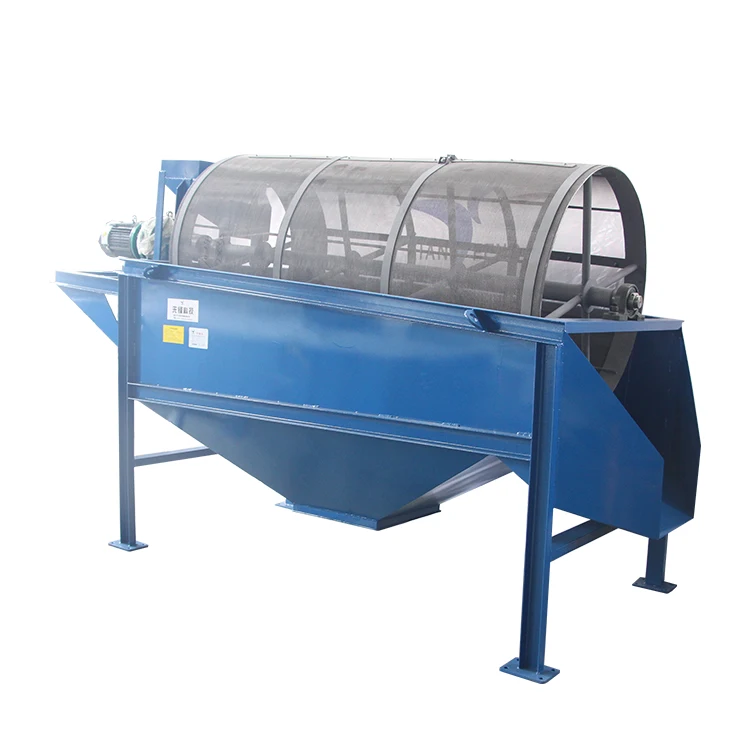

    The drum screen mainly consists of reducer, drum device, frame, sealing cover, inlet and outlet. The roller device is inclined to be mounted on the rack. The motor is connected with the roller device through the coupling through the coupling, driving the drum device to rotate around its axis.When the materials enter the cylinder device, because of roller gear tilt and transhipment, flip and rolling material on the surface of the sun, make the qualified material (undersize) after roller end at the bottom of the discharging mouth eduction.As the material is flipped inside the drum, roll the material in the sieve hole to prevent the hole plugging.

How it works...

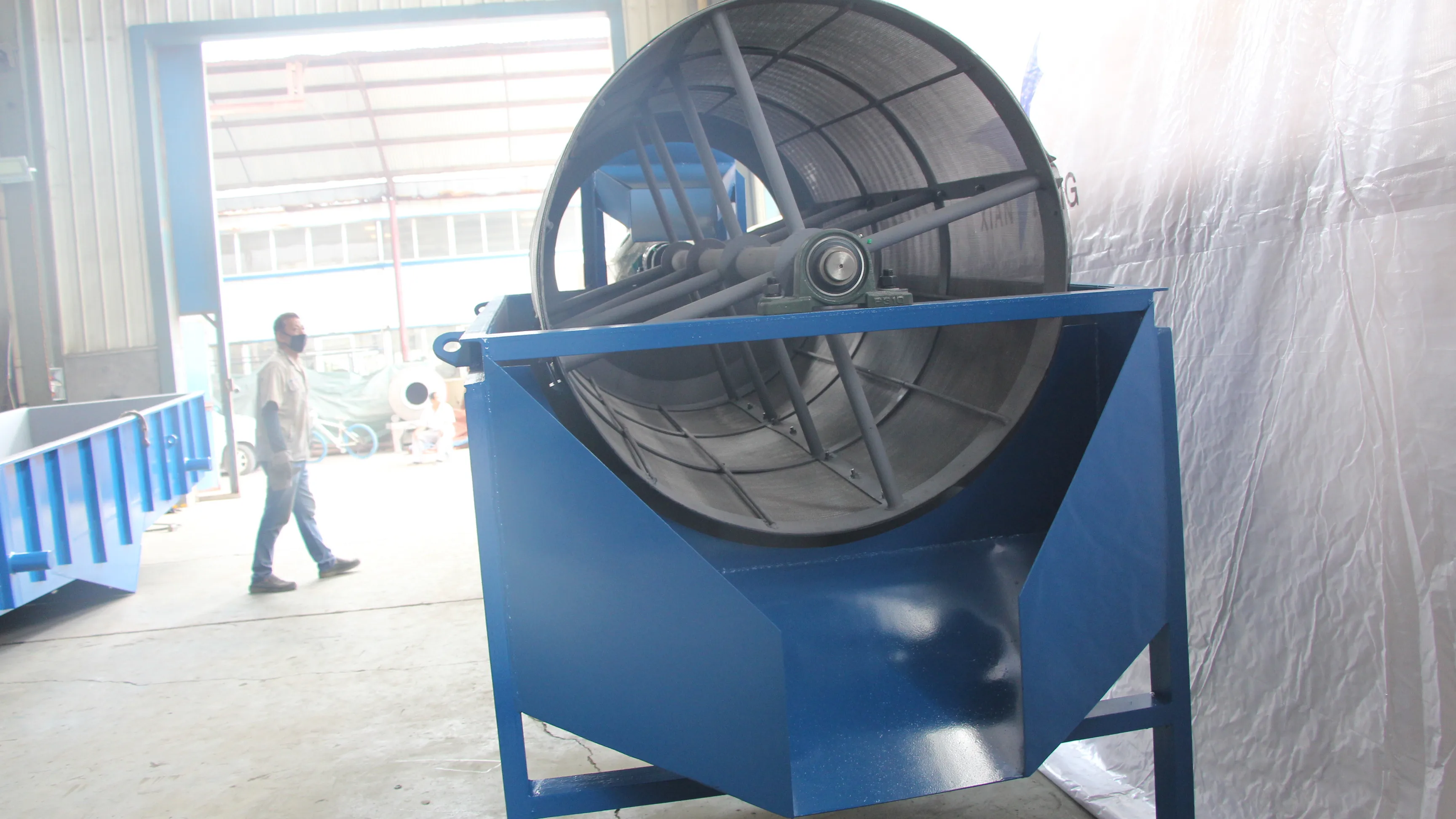

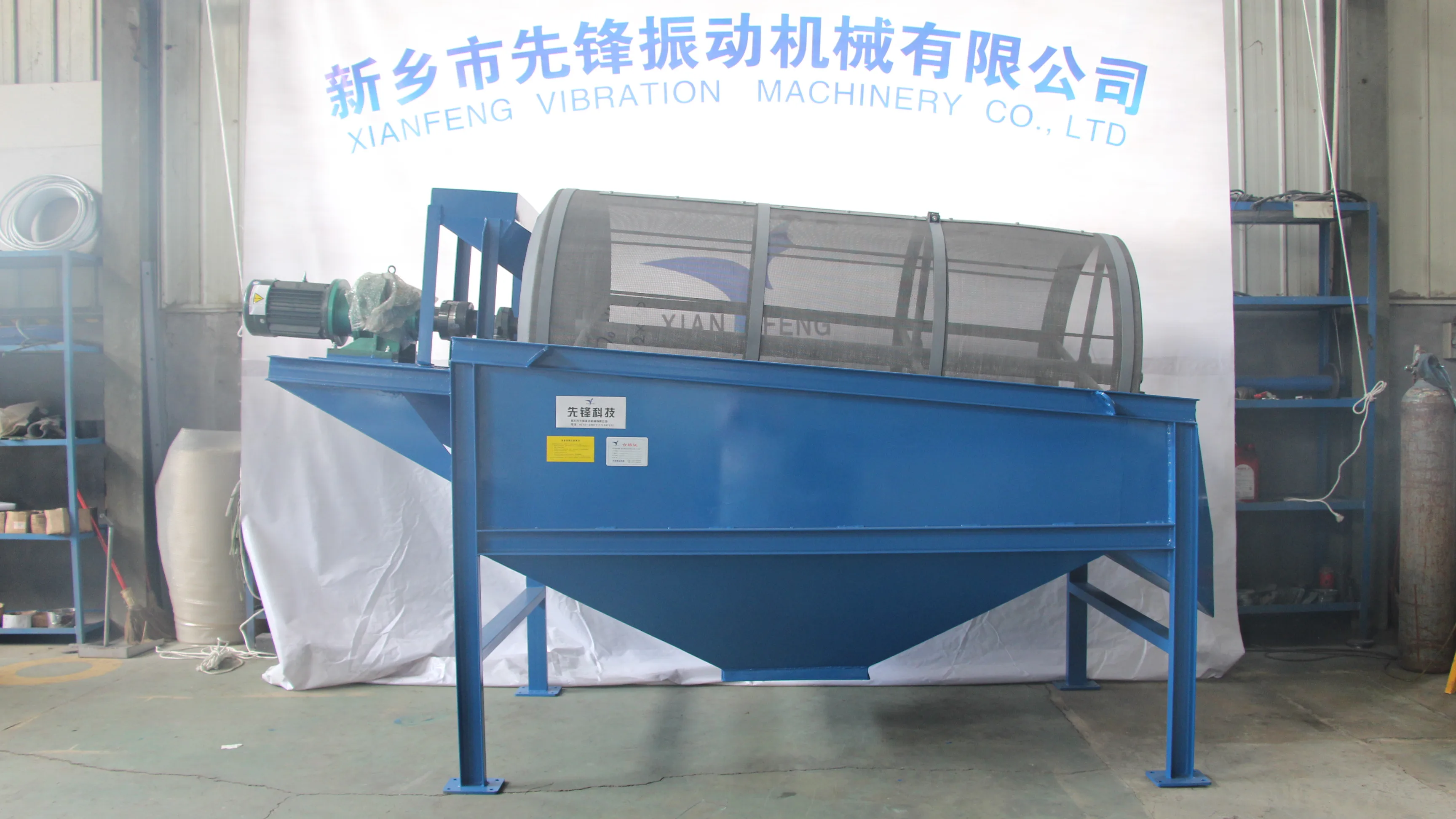

The drum screen is made up of five parts: hexagonal drum, frame, funnel, reducer and motor. After the broken stone enters the drum, the material is sieved by the centrifugal force of the drum rotation and the jigging action. Screened out one by one through screens of different meshes.

The stones of different specifications are sieved out and dropped into the belt conveyor through the funnel to be sent to the finished material yard. On the one hand, it is screened as the drum rotates, and the material is sieved by the centrifugal force of the drum rotation and the jigging action.

On the one hand, the coarse-grained stone flows forward along the slope of the drum, and is gradually screened out through the screen of different meshes. Small stones are sieved out and dropped into their respective funnels, which are then manually transported or fed to the finished product pile.

 Product Features

1) The mesh is not easily blocked.

2) Stable operation and low noise.

3) Simple structure and convenient maintenance.

4) The sieving can be closed and easy to collect dust.

5) The machine has high reliability and a small one-time investment.

6) Adopt the quality screen, the screen efficiency is high, the service life is long.

Range Of Application

1. Classification of stone in stone plant, and separation of stone and stone powder.

2. The sand stone plant is used for sand separation.

3. Coal industry is used for separating coal and coal and washing coal (parts of coal washing machinery).

4. In the chemical industry, the mineral processing industry is used for grading or separating powdery substances.

1.How to find suitable model?
   Let us know below details:
   a.Required capacity, e.g. 200kg/hour.
   b.Layers of screens, e.g. 2 layers.
   c.Screen mesh size, or particle size. e.g. 1mm or 20 mesh.
   d.Material name, water content ratio. e.g. dried flour powder.
   e.Other special requirement.

2.Warranty:
   You have 12 month guarantee, we provide 100% original spare parts and
   online support if any breakdown in warranty period.

3.Price security:
   We stand 50% of the floating cost if exchange rate changes before delivery.

4.How to ensure the machine work good with my material?
   We can test your material in the machine and let you see process in video.

5.How to find aftersales support?
   -Email us the picture and your questions.
   -Calling +86 373-3382566 directly if urgently.
   -XF technical team online video support via Skype or other application.
