CR series electricity LiMnO2 3v 2000mah cr17450 lithium battery
- Category: >>>
- Supplier: Foshan Jiezhen Technology Company Limited
Share on (62373437058):
Product Overview
Description

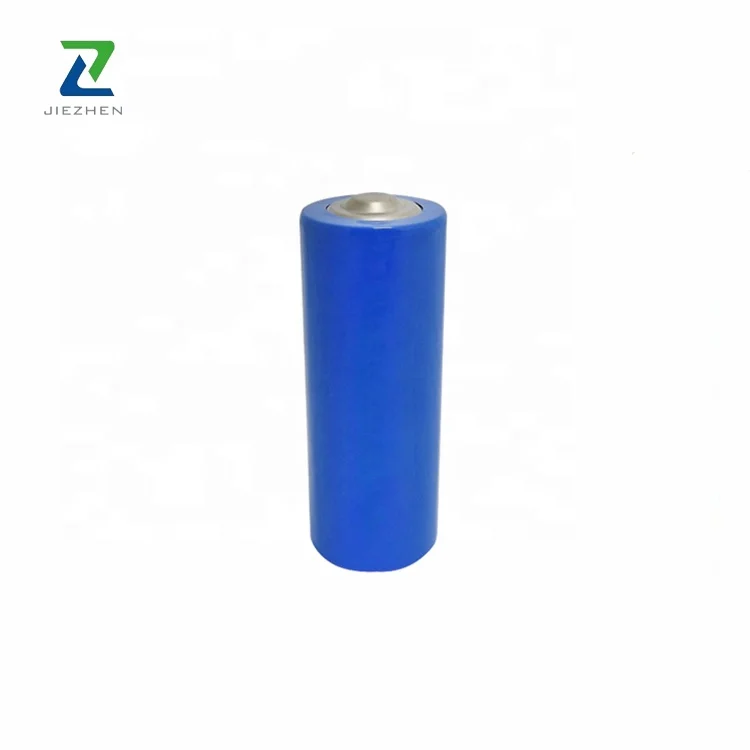

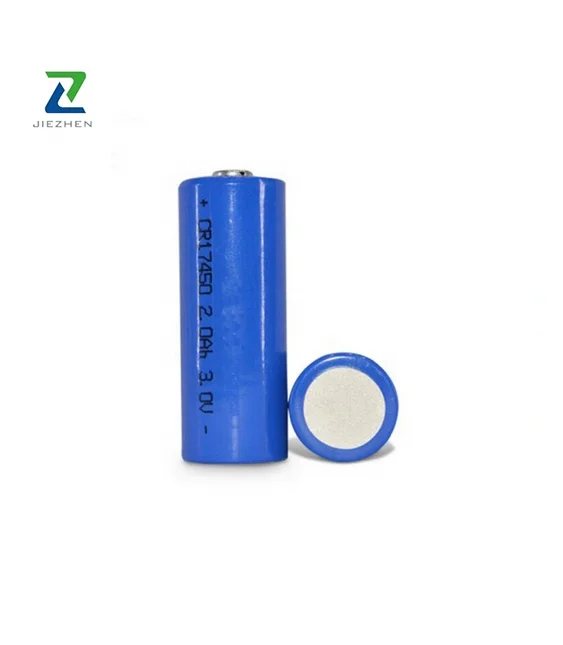

CR Series Electricity LiMnO2 3v 2000mah CR17450 Lithium Battery
Product Description
Item Name | CR series electricity LiMnO2 3v 2000mah cr17450 lithium battery |
Model | CR17450 3V 2000mAh |
Model Brand | JIEZHEN BATTERY |
Voltage | 3.0V |
Capacity | 2000mAh |
Dimension | 17x45mm |
Max Discharge Current | Continuous: 1500mA Pulse:3000mA |
Weight | 26g |
Operating Temperature | -40~+85°C |
Rechargeable | No |
Certification | CE, UL, ROHS, IEC62133, UN38.3 |
Application | Smoke alarm sensors, GPS, Sea buoys, CMOS memory, etc |
Sample Lead time | As usual 2-3 working days |
Production Lead time | 10-15 working days for available designs. Customized: 15~25 days |
Overview
1. High and stable operating voltage >3.15V. 2. High energy density (3 to 10 times higher than other non-lithium batteries). 3. Anti-leakage, Wide temperature range from -55 ℃ to + 85 ℃. 4. Low self-discharge rate. Less than 1% per year at room temperature. 5. Long shelf life, more than 10 years. 6. Superior leakage resistance. 7. Superior quality and safety. UL, UN38.3, CE and RoHS certificate. 8. Pollution free. Without toxic materials, noxious liquids or gases. | ||
Customized

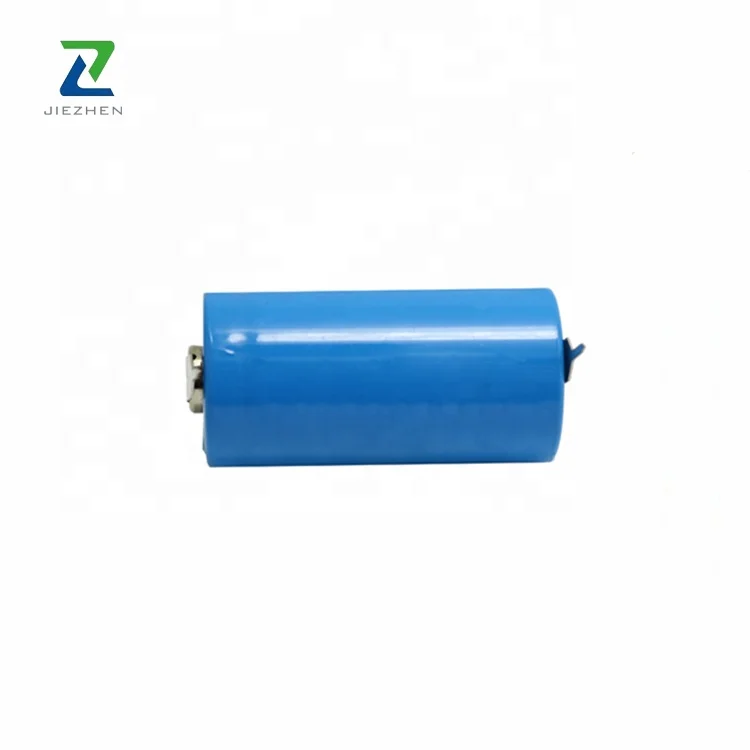

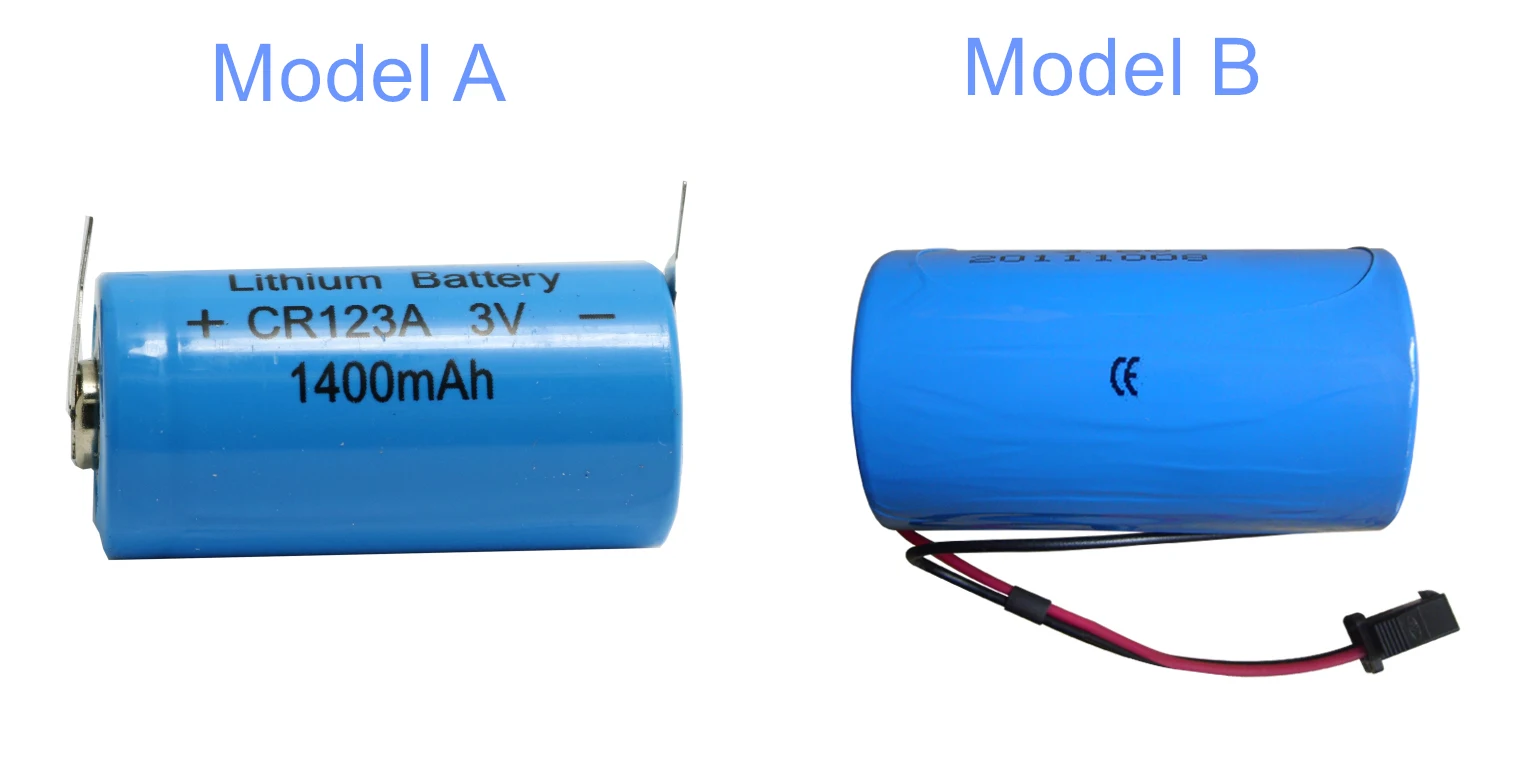

Model A: with tabs
We have a 12 years experienced professional design team that can customize the size, capacity, design,and more according to your requirements.

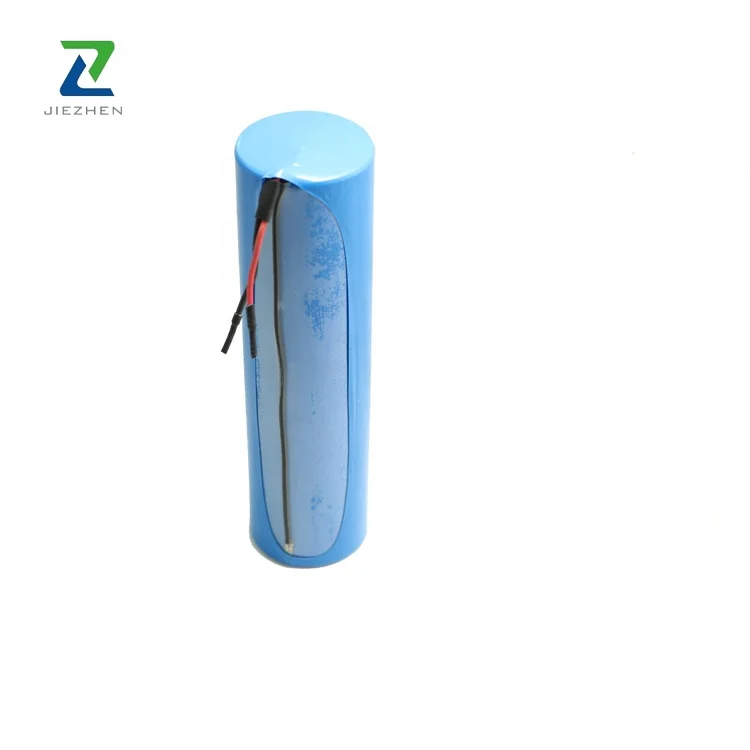

Model B: with wires and connector
We have a 12 years experienced professional design team that can customize the size, capacity, design,and more according to your requirements.
Adding connectors, cells in parallel,in series to reach high voltage and capacity,customized according to requirements.
3.0V Lithium Manganese Dioxide Battery Summarized Specifications | ||||||||||||||||||
Model | Size | Nominal Voltage (V) | Nominal Capacity (mAh) | Standard Discharge Current (mA) | Max.Discharge Current(mA) | Dimension (mm) | Approx. Weight (g) | |||||||||||
Continuous | Pulse | Diameter | Height | |||||||||||||||
CR14250 | 1/2AA | 3.0 | 650 | 1.0 | 800 | 1500 | 14.5 | 25 | 10.0 | |||||||||
CR14335 | 2/3AA | 3.0 | 800 | 1.0 | 1000 | 2000 | 14.5 | 33.5 | 14.0 | |||||||||
CR14505 | AA | 3.0 | 1500 | 1.0 | 2000 | 3000 | 14.5 | 50.5 | 21.0 | |||||||||
CR123A | 3.0 | 1500 | 1.0 | 1500 | 3000 | 17.0 | 34.5 | 20.0 | ||||||||||
CR17335 | 2/3A | 3.0 | 1500 | 1.0 | 1500 | 3000 | 17.0 | 33.5 | 20.0 | |||||||||
CR17450 | 3.0 | 2000 | 1.0 | 2000 | 3000 | 17.0 | 45.0 | 26.0 | ||||||||||
CR17505 | A | 3.0 | 2500 | 10.0 | 1500 | 3500 | 17.0 | 50.5 | 30.0 | |||||||||
CR18505 | 3.0 | 2800 | 1.0 | 2000 | 3000 | 18.0 | 50.5 | 35.0 | ||||||||||
CR26500 | C | 3.0 | 5400 | 10.0 | 2000 | 3000 | 26.0 | 50.0 | 62.0 | |||||||||
CR261020 | CC | 3.0 | 12000 | 5.0 | 80 | 800 | 26.0 | 102.0 | 120.0 | |||||||||
CR34615 | D | 3.0 | 12000 | 10.0 | 2000 | 3000 | 34.0 | 61.5 | 125.0 | |||||||||
CR341245 | DD | 3.0 | 22500 | 5.0 | 100 | 1000 | 34.0 | 124.5 | 220.0 | |||||||||
2CR5 | 6.0 | 1500 | 1.0 | 1500 | 3500 | 34.0*17.0*45.0 | 43.0 | |||||||||||
CR-P2 | 6.0 | 1500 | 1.0 | 1500 | 3500 | 35.8*19.5*34.8 | 42.0 | |||||||||||
CR2 | 3.0 | 750 | 5.0 | 1000 | 2000 | 15.5 | 27.0 | 13.0 | ||||||||||
CR1/3N | 1/3N | 3.0 | 170 | 3.0 | 60 | 140 | 11.7 | 10.9 | 3.0 | |||||||||
For cells with special size or specifications that are not include in the above list, please contact with our salesperson. | ||||||||||||||||||
Our Advantages
impedence, capacity and electric performance.
Long shelf life more than 10 years, low self discharge rate <2% per year.
if you have details in size, voltage, capacity, other related accessories, our 12 years experienced engineer team can give you solutions within 15 minutes.
Application
1. Intelligent Meters: Electricity meter, Water meter, Gas meter etc.
2. Wireless alarm systems: Smoke alarm sensors, Temperature monitors etc.
3. Remote monitoring systems:GPS, Sea buoys, Life-jacket lights etc.
4. Memory backup: CMOS memory, computer backup power, RTC real time clock etc.
5. Auto electric industry: Auto security systems, tire-pressure monitoring system etc.
6. Military electronics: Radio communication, Night vision equipment, Tracking systems etc.
Product packaging
Packing method:
1. Packing in a tray +inner box+carton box.
2. Single battery packing in PE bag+ inner box+ carton box.
3. Customized package etc...
Shipping method:
1. For samples, usually by express or by air.
2. For orders, by truck, by air, by express or by sea depend on customer requirement.
Certifications
Company Profile
About us

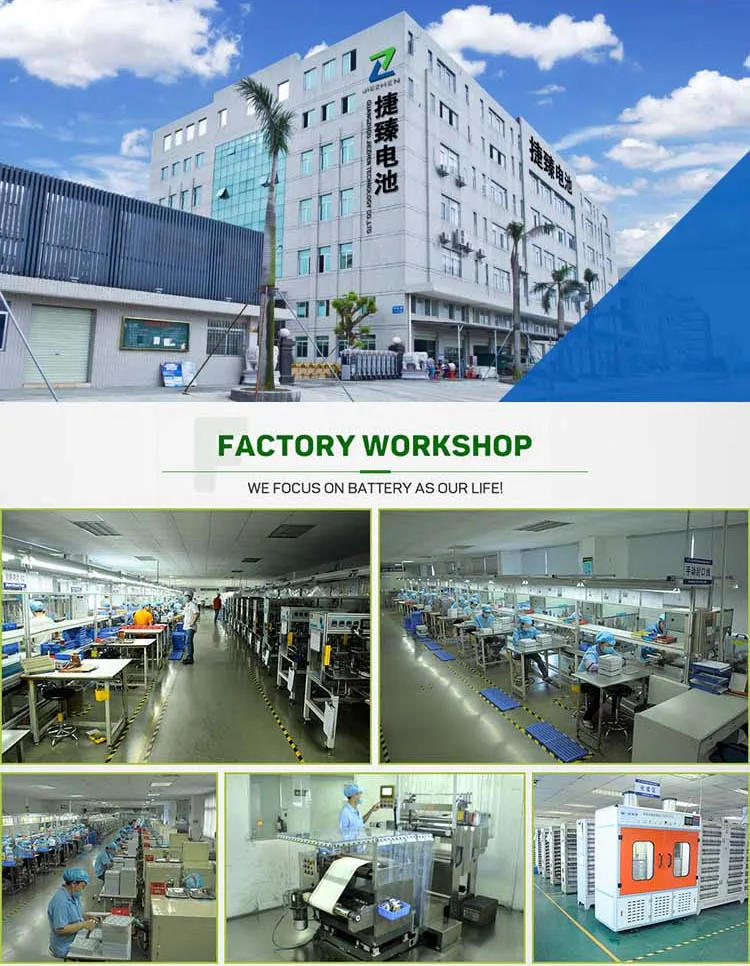

Foshan Jiezhen Technology Co.,Ltd,specialized in lithium battery products supplying and professional battery solution offering in China Mainland, With more than 150 kinds of machineries for batteries and QC equipment, dedicates itself in batteries research,manufacturing and export, invests heavily in batteries manufacturing technology to meet requirement of our customers for perfect products. We have quite a few patents of our own invention and product improvement. We produce rechargeable lithium batteries, especially soft pack with high energy and safety cells,curved battery and packs, as well as matured primary products, such as Lithium thionyl chloride( ER),Lithium Manganese(CR), also customized battery pack...
As an OEM manufacturer, JZ provides our customers with superior quality products and competitive pricing, which in return enables a win-win environment for all of us, our customers and end users of our products.
FAQ
Q1: Before order, can I have samples for testing?
Q3: How to proceed an order?
A: Yes, we can provide you samples for testing firstly.
Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3: How to proceed an order?
A: 1. Contact our service & let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
Q4: What kind of environment should lithium batteries store?
A: -40°C~50°C, 65±20%RH storage for a long time(>3 months)
and the storage condition shall be:<35°C , 65±20%RH
Q5: What is MOQ?
A: Low MOQ, 1pc for sample checking is available.
Q6: What is your payment and delivery items & time?
A: 1. Payment items: By T/T, 30% for deposit, and balance all before shipment.
For small amount, we also accept payment via PayPal.
2. Delivery Items: we can ship the batteries by
sea, by air, by UPS, DHL, TNT, FEDEX and some special line.
sea, by air, by UPS, DHL, TNT, FEDEX and some special line.
3. Delivery time: Generally, it will take 7 to 15 days after receiving
your advance payment.
your advance payment.
Sample : 7 days.
Big Order: 5-15days. The specific delivery time depends on the items and the quantity of
your order.
your order.
Pls contact us for details.
